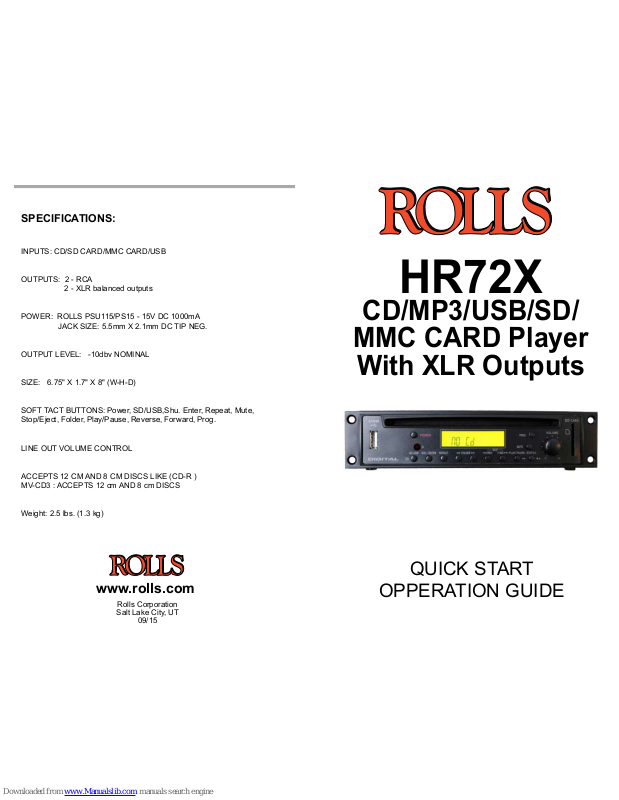

QUICK START
OPPERATION GUIDE
HR72X
CD/MP3/USB/SD/
MMC CARD Player
With XLR Outputs
Rolls Corporation
Salt Lake City, UT
09/15
www.rolls.com
SPECIFICATIONS:
INPUTS: CD/SD CARD/MMC CARD/USB
OUTPUTS: 2 - RCA
2 - XLR balanced outputs
POWER: ROLLS PSU115/PS15 - 15V DC 1000mA
JACK SIZE: 5.5mm X 2.1mm DC TIP NEG.
OUTPUT LEVEL: -10dbv NOMINAL
SIZE: 6.75" X 1.7" X 8" (W-H-D)
SOFT TACT BUTTONS: Power, SD/USB,Shu. Enter, Repeat, Mute,
Stop/Eject, Folder, Play/Pause, Reverse, Forward, Prog.
LINE OUT VOLUME CONTROL
ACCEPTS 12 CM AND 8 CM DISCS LIKE (CD-R )
MV-CD3 : ACCEPTS 12 cm AND 8 cm DISCS
Weight: 2.5 lbs. (1.3 kg)
INTRODUCTION
Thank you for your purchase of the Rolls HR72X CD/MP3 Player. The HR72X
is a 1/2 rack space CD/MP3 disc player. Intended mainly for installation applications, the HR72X plays standard audio CDs as well as CDs formatted with MP3
les. The single rack space height makes it convenient to install in almost any
professional audio rack.
FEATURES:
• Plays standard CDs as well as discs with MP3 les
•Plays les from SD cards
•Plays USB ash disk
• XLR Balanced line lever left and right outputs
• RCA Output
• Track programming with optional remote
• Repeat All, 1, and Shufe play
• Output Level control
INSPECTION
1. Unpack and Inspect the HR72X package
Your HR72X was carefully packed at the factory in a protective carton. Nonetheless, be sure to examine the unit and the carton for any signs of damage
that may have occurred during shipping. If obvious physical damage is noticed,
contact the carrier immediately to make a damage claim. We suggest saving
the shipping carton and packing materials for safely transporting the unit in the
future.
2. For complete Warranty information and registration, please visit our web site;
www.rolls.com. Click on the REGISTER YOUR WARRANTY HERE line. Or, complete the Warranty Registration Card and return it to the factory.
SPECIFICATIONS:
SOFT TACT BUTTONS: Power, SD/USB,Shu. Enter, Repeat, Mute, Stop/Eject,
Folder, Play/Pause, Reverse, Forward, Prog.
ACCEPTS 12 CM AND 8 CM DISCS LIKE (CD-R )
MV-CD3 : ACCEPTS 12 cm AND 8 cm DISCS
Connectors: Stereo XLR balanced, and stereo RCA Outputs
Dimensions: 6.75" X 1.7" X 8" (W-H-D)
Weight: 2.5 lbs. (1.3 kg)
ROLLS PSU115/PS15 switching power supply included
- Repeat / Shufe
-Normal opperation of the HR72X will play through all folders (MP3) and tracks,
then stop.
-To play the disc over and over, press the REP button on the remote once. The
display will show the REPEAT ALL in the display.
-To play one track continuously, press the REP button until the Track Play Status
reads REPEAT 1. If the REPEAT status is on alone (MP3 mode) the current
folder will repeat.
For Shufe (random on the optional remote) play, press the RAN button until the
Track Play Status reads SHUFFLE.
-If the Track Play Status displays none of the above, the disc will play through
one time and stop.

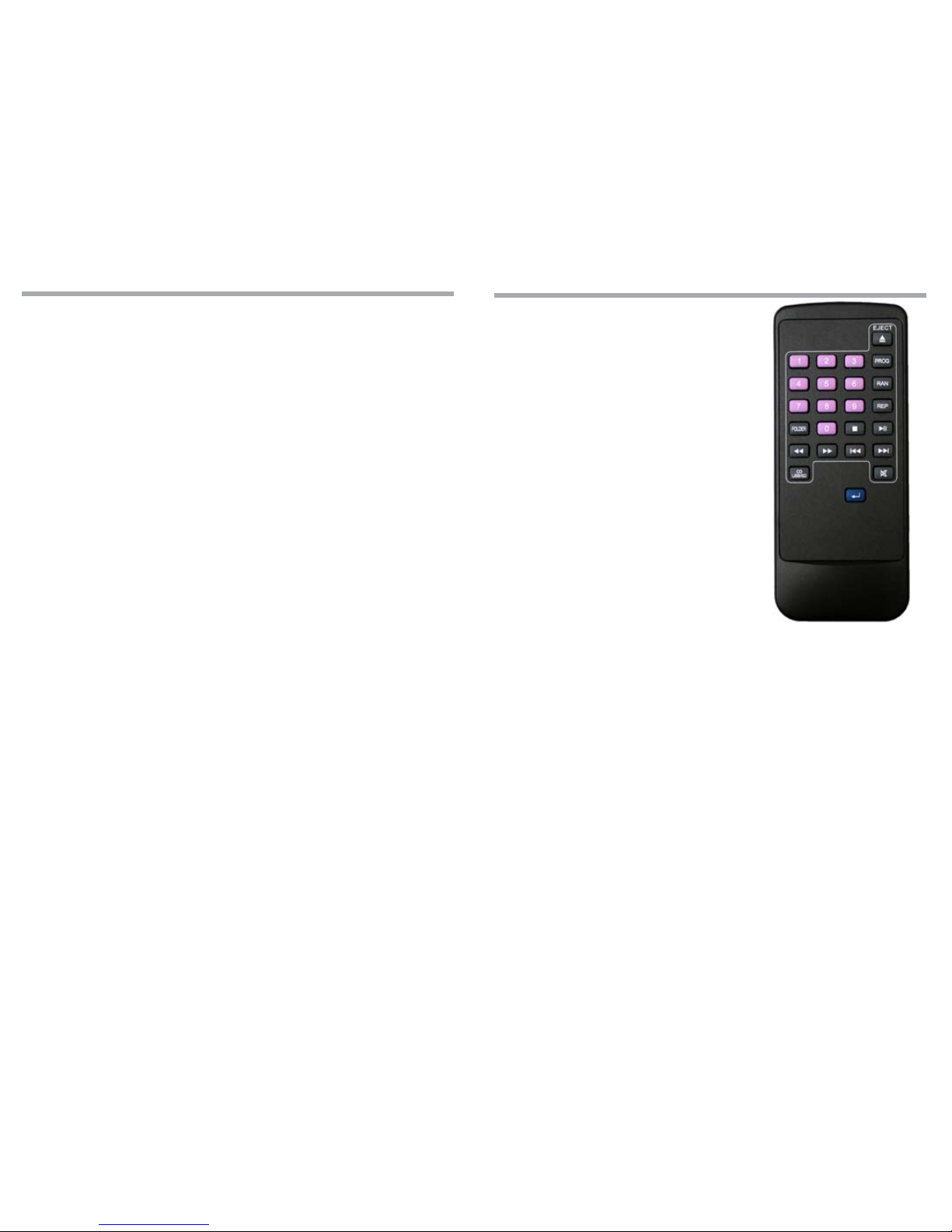

OPTIONAL ROLLS #172R REMOTE SOLD SEPARATELY
Some functions can only be accessed by
the optional remote ROLLS part #172R.
-The Custom Program option can only be
accessed by the optional remote.
To access the Custom Program feature insert
a disc and press the PROG button on the
remote. The display will show PROGRAM in
the top right corner of the display. Enter the rst
track number on the remote you wish to play.
If this is the only track you wish to play press
the PLAY button and the unit will play only that
track. If you are programing more than one
track use the blue arrow button on the remote
to program other tracks after selecting the track
number. The LCD Display will show you what
number you are programing. If you want the
HR72X to repeat the Custom Programed tracks
you must, after Programing the tracks and
pressing PLAY press the REP (Repeat) button
to REPEAT ALL.
1
6

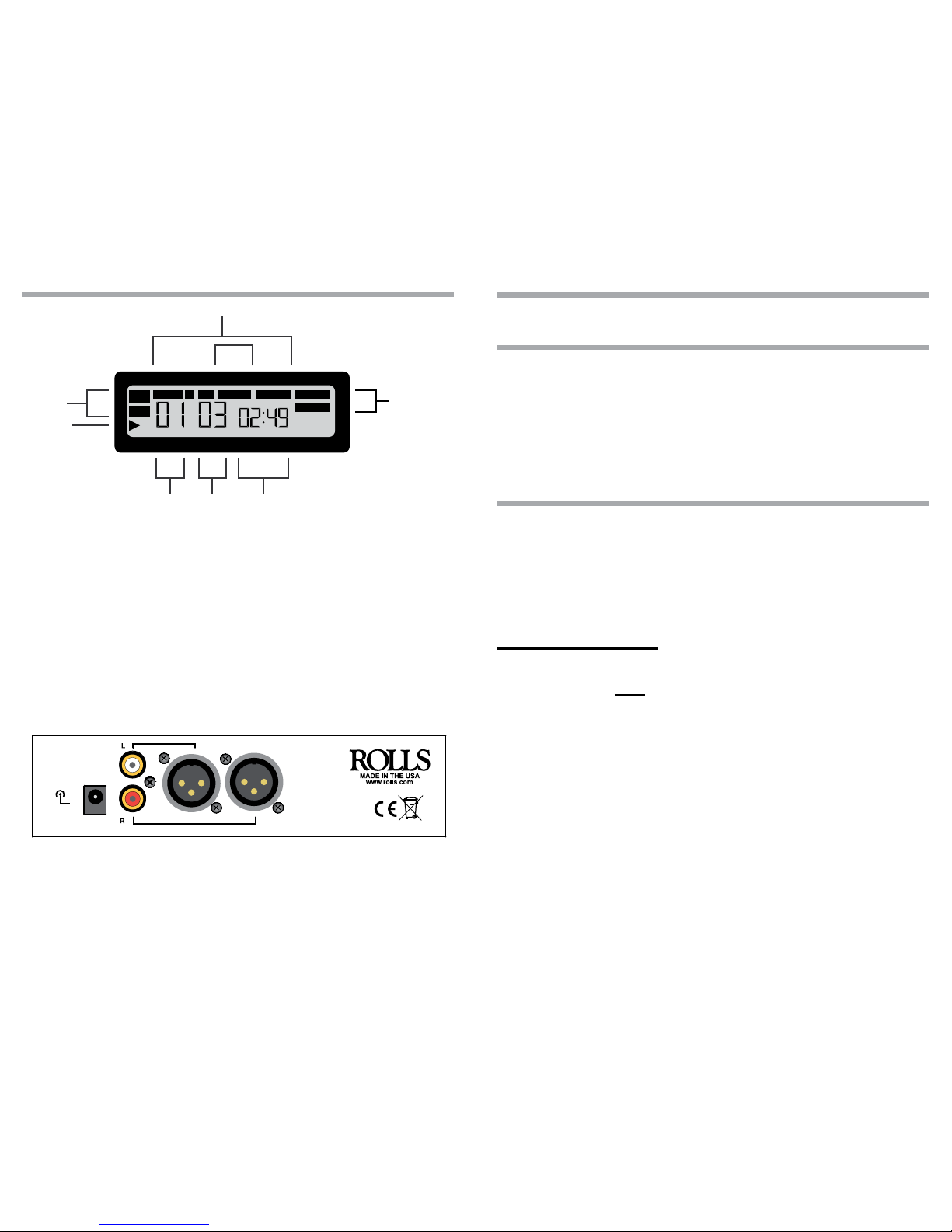

HR72X DISPLAY
• Disc Type Indicators: Indicates whether the inserted disc is a CD disc, or MP3 disc.
• Play Indicator: Shows that the disc is playing.
• Track Play Status: Indicates the repeating status of the disc. The "Repeat" indicator is
on, either "1" or "ALL" will be on. A "1" indicates the current track will be repeated, "ALL"
indicates the disc will play repeatedly. "SHUFFLE" play indicates random play, and if no
Track Play Status indicators are on, the disc will play through one time and stop.
• MP3 Folder Indicator: Displays the number of folders on the MP3 disc.
• Program/Memory Indicators: When "Program" is on, the HR72X is in track programming
mode. When the "Memory" indicator is on, there are tracks programmed into memory, and
the HR72 will play those tracks.
• Folder Number: Indicates which MP3 disc folder is currently selected.
• Track Number: Indicates the current selected track.
• Track Time: Indicates, in minutes and seconds, the amount of time the current track has
played.
MP3
CD
REPEAT ALL SHUFFLE
MEMORY
PROGRAM
1
Disc type
indicator
Play indicator
FOLDER
Folder
Number
Tr ack
Number
Tr ack
Time
MP3
Folder
Indicator
Track(s) Play
Status
Program/Memory
Indicators
DISPLAY DESCRIPTION
REAR PANEL
• DC Jack: Connect the ROLLS PSU115/PS15 adaptor to the HR72X only.
•
XLR Balanced line lever left and right outputs
• Stereo Outputs: RCA Stereo output.
2
5
CONNECTION
Connect the Rolls PSU115/PS15 Power Adapter to the power jack of the HR72X
and to an AC outlet with the proper voltage.
Connect the XLR or RCA Left and Right outputs to a mixer, amplier, or other
audio device.
OPERATION
Press in the POWER button to apply power to the HR72X. "NO DISC" if there is
no disc inside. If there is a CD disc or MP3 disc inside, the HR72X scans the disc
and will display the disc type, folder (if MP3), track and time information. The disc
then begins to play. Adjust the LEVEL control for a comfortable listening or proper
volume
BASIC FUNCTIONS:
IMPORTANT: DO NOT FORCE DISCS INTO THE DISC OPENING. PLACE THE DISC INTO THE OPENING AND CAREFULLY
PRESS IN UNTIL THE HR72X DISC LOAD MECHANISM TAKES
THE DISC.
When a disc is inserted, the display reads"LOAD", then disc type, folder (if MP3)
track and time info. The disc then begins to play.
- Playing tracks
To temporarily pause the Play mode, press the PLAY/PAUSE button.
To advance to the next track, press the FWD button, to go back to a previous
track press the REV button. To stop disc operation, press the STOP button.
- Fast Forward / Rewind
To fast forward through a track, press the SKIP-FF button. Press the play button
to stop the forward function and to play from the selected spot.
To rewind (reverse) through a track, press the SKIP-FB button. Press the play
button to stop the rewind function and to play from the selected spot.
CONNECTION AND OPERATION
+
-
SERIAL NUMBER
15 VDC
HR72X
CD DISC OPERATION
• Disc Play
If a CD type disc is inserted into the HR72X, the Disc Type Indicator will read
"CD", and the number of tracks will display. The disc will then begin to play.
• CD Track Programing see page 6 of this guide.
MP3 DISC OPERATION
Insert an MP3 formatted disc. The HR72X will read the disc and display the number of folders, total tracks, and time status.
MP3 track play, pause, FWD track, REV track, and Repeat/Shufe functions all
operate the same as the CD Disc Operation.
• Folders:
Since MP3 formatted discs are often arranged in folders (ie: the same way folders are arranged on a computer), the HR72X provides a way to access these
folders individually. Accessing other les/folders on the drive can be done by
selecting them from the FOLDER button. The FOLDER button only accesses the
next folder. Once you get to the end of all folders it will go back to the rst. You
can also press stop button twice and then the play button to get to the rst folder
again.
• MP3 Programming see page 6 of this guide.
USB OPERATION
IMPORTANT NOTE THE USB FROM THE HR72X SHOULD NEVER BE
PLUGGED INTO A COMPUTER IT IS FOR THUMB DRIVE DEVICES ONLY.
DAMAGE WILL BE DONE TO THE HR72X AND YOUR COMPUTER IF YOU
PLUG THEM TOGETHER!!!!!!!!!!!!
To use a Thumb drive simply plug it in to the HR72X. Select the USB option on
the HR72X by pressing the SD/USB/CD button.
SD/MMC CARD OPERATION
To use an SD card to play tracks simply plug it in to the HR72X. Select the SD
option on the HR72X by pressing the SD/USB/CD button. You will have all the
functions of a CD when playing from the card. Accessing other les/folders on
the card can be done by selecting them from the FOLDER button. The FOLDER
button only accesses the next folder. Once you get to the end of all folders it will
go back to the rst. You can also press stop button twice and then the play button
to get to the rst folder again.
OPPERATION
3
4

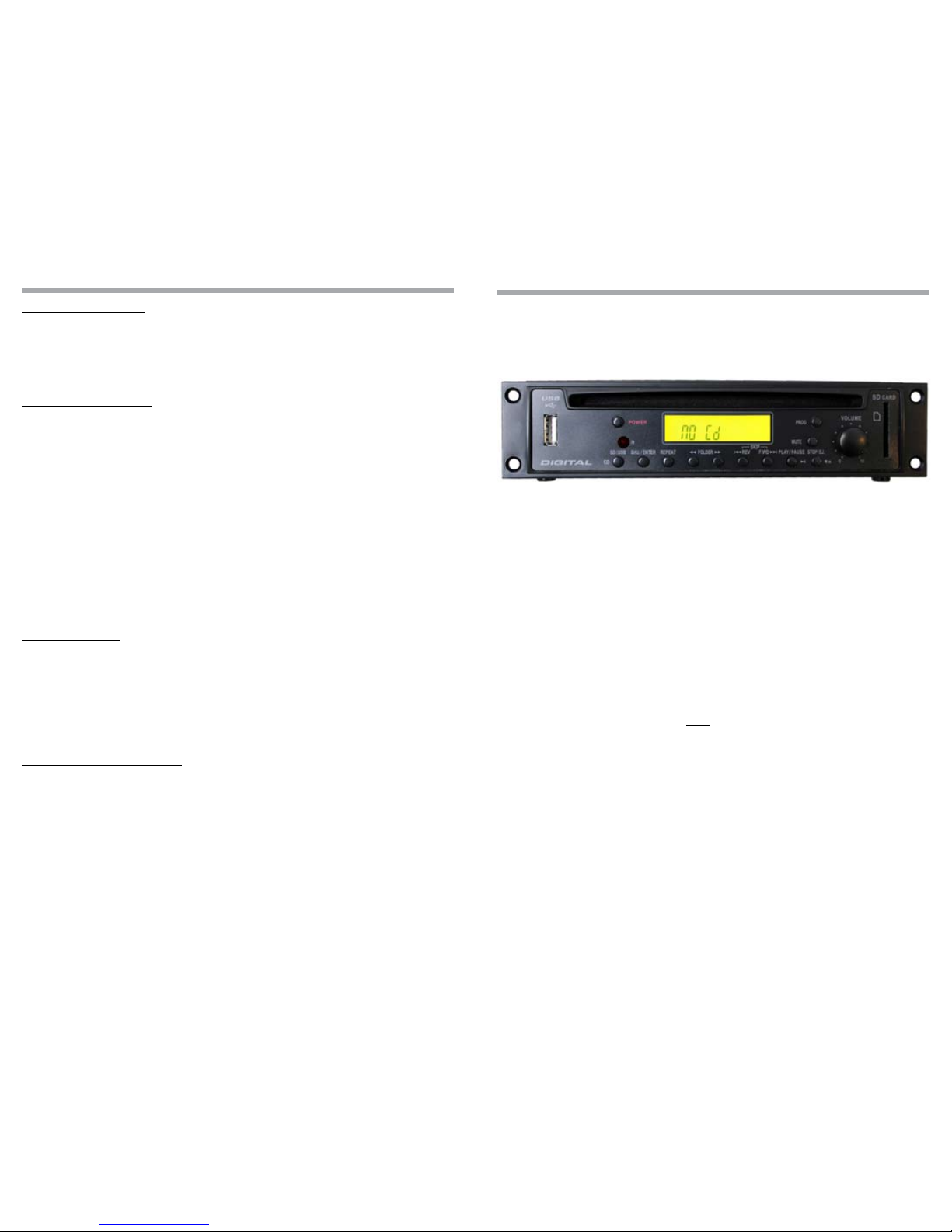

FRONT PANEL
• POWER: When pressed, applies power to the HR72X
• SD/USB/CD: Used to select between the different input options. PLEASE NOTE THAT
YOU MUST SELECT THE PROPER FUNCTION BEFORE PLAYING. THE DISPLAY
WILL SHOW WHAT OPTION HAS BEEN SELECTED.
• LCD DISPLAY: Displays the type and play status of the current disc.
• FOLDER: Button pressed to increment or decrement the current selected folder (MP3
discs only)
•PROG: This is used to "custom Program" tracks to play and must be used with the optional remote control to program tracks.
•REPEAT: Described in the Repeat/Shufe section of manual.
• SKIP-REW: (Fast Back) PRESS AND HOLD BUTTON
•SKIP-F.WD: (Fast forward) PRESS AND HOLD BUTTON
• PLAY/PAUSE: This button begins or temporarily suspends "Play" mode.
• SKIP-REV: Selects the previous track.
• SKIP-F.WD: Selects the next track.
• LEVEL: Adjusts the output. PLEASE NOTE: FOR A LINE LEVEL OUTPUT OF THE
HR72 SET THIS LEVEL CONTROL AT MAX.
• STOP/EJ: If this button is pressed when a selection is playing, the disc will stop - and in
MP3 mode will display the number of folders, and total number of tracks. In CD mode, the
number of tracks will be displayed. If disc play has stopped, pressing this button again will
eject the disc.
FRONT PANEL DESCRIPTION
