device and reconnect to it.
with. On power up will search for that
ber the device it was previously paired
When powered o the HR187 will rememdevice is paired.
ally search for that device until a dierent
previously connected to and will continuthe HR187 remembers the device it was
nected from the HR187, or out of range as
device must be o, its Bluetooth disconvice can be paired. The previously paired
device from being paired so a dierent deThe reset button can be used to stop a
being sent when paired.
blinking blue light indicates that audio is
device, but no audio is present. A slow
indicating that the HR187 is paired to a
to the HR187 a steady blue led will light
and connect. After the device is connected
the HR187 (ROLLSBT) on your device
To pair a device to the HR187 simply nd
unit.
fast the HR187 is not paired with any
When the blue indicator light is blinking
The level control will adjust all outputs.
reo line level outputs.
level balanced, RCA stereo or 1/8” steThe HR187 outputs are XLR stereo line
CONNECTION:
tion.
system, home, professional or installatooth signal to analog. Designed for any
adapter. It will convert any devices blueThe Rolls HR187 is a bluetooth audio
DESCRIPTION:
What's in the box?
1 - Made in USA HR187
1 - 15V power supply PN PS27s
1 - This owners manual
Rolls Corporation
Salt Lake City, UT
9-20

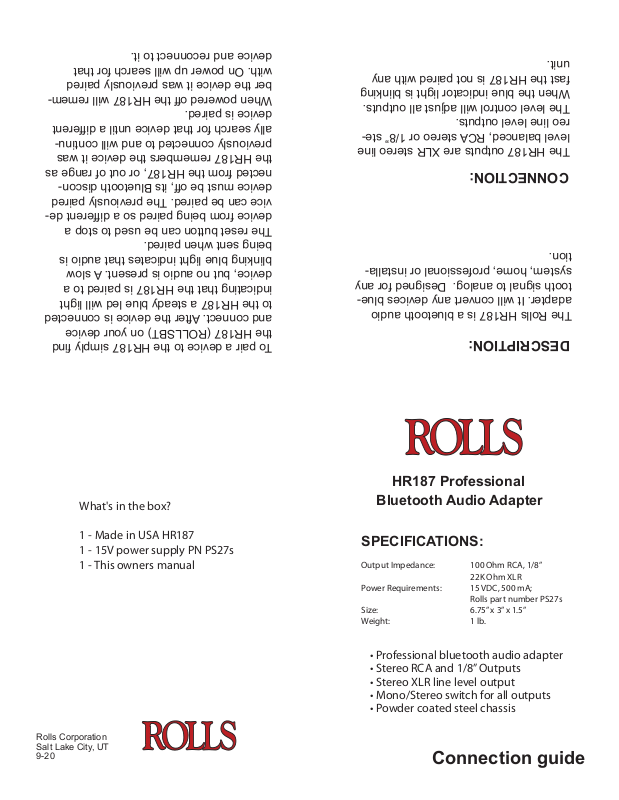

HR187 Professional
Bluetooth Audio Adapter
SPECIFICATIONS:
Output Impedance: 100 Ohm RCA, 1/8”
22K Ohm XLR
Power Requirements: 15 VDC, 500 mA;
Rolls part number PS27s
Size: 6.75” x 3” x 1.5”
Weight: 1 lb.
• Professional bluetooth audio adapter
• Stereo RCA and 1/8” Outputs
• Stereo XLR line level output
• Mono/Stereo switch for all outputs
• Powder coated steel chassis
Connection guide
DC jack for
connection to
the included
Rolls PS27s
power supply
15
VDC
+
-
Stereo XLR
Line level
outputs.
Mono Stereo selector switch for all outputs.
RCA Stereo outputs.
- Fast blinking blue unpaired
- Steady blue paired no audio signal
- Slow blinking blue paired with audio
1/8” Stereo output
jack.
Bluetooth antenna
cover and blue status
led.
RIGHT
STATUS
st - mono
LEFT
LEVEL
Professional Bluetooth Audio Adapter
RESET
RCA
POWER
Level control will
adjust the level of all
outputs.
BLUETOOTH ID
ROLLSBT
HR187
Power switch and Green
LED power indicator.
Reset button for disconnection
of a paired device that is no
longer on, has disconnected
form the HR187 or is out of
range. If the previously connected device is still on and in
range the HR187 will reconnect with the previously paired
device.
