DB227
Thank you for your purchase of the DB227
Podcast-Pro RCA/3.5mm, Microphone
mixer. This device was designed to mix a
microphone with a source signal either
RCA or 3.5mm (1/8”) signals. To a single
XLR output at microphone level.
To register the warranty for this product
please visit our website at www.rolls.com
and click the “register your warranty here”
Podcast Pro
text.
3.5mm
RCA
MIC
MIC
OUTPUT
GND-LIFT

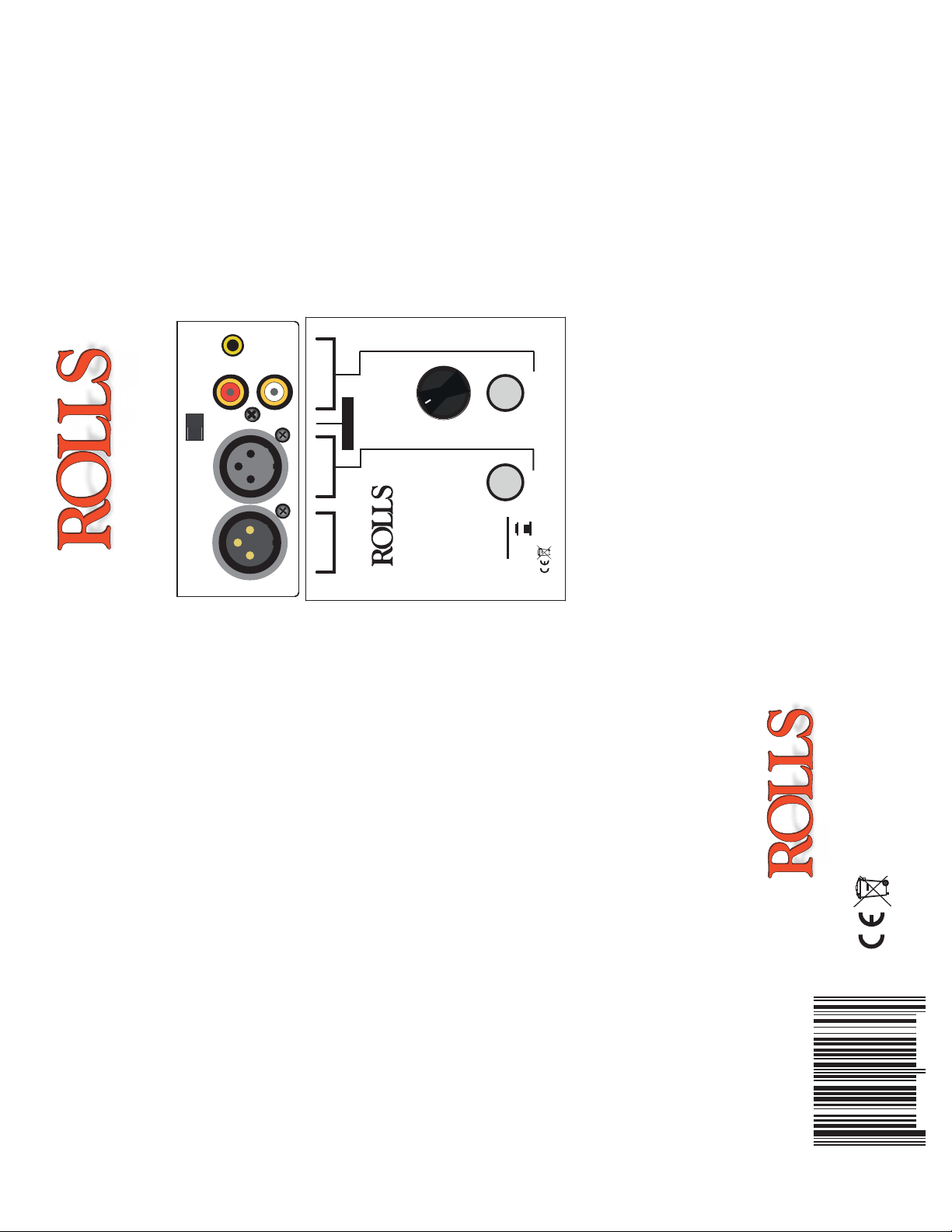

DESCRIPTION:
The DB227 consists of two balanced XLR
jacks; one female input, one male output.
RCA input jacks and 3.5mm input jack. A
level knob for the attenuation of the
source inputs of the unit (RCA and 3.5mm
only). Switches for allowing the input
signals to pass thru to the output of the
unit. A ground lift switch for grounding
LEVEL
DB227
www.rolls.com
MADE IN USA
Podcast-Pro
OUTPUT
ON
OFF
the input and outputs sections together
MUSIC
MIC
to help eliminate ground hum issues.
OPERATION:
Connect your inputs as the silk screening indicates. Connect the output XLR to a
microphone level input on the unit you are sending the mixed signal to. Adjust the level
control to the appropriate level for the source signals (RCA or 3.5mm) to match the
microphone level as desired. Switch the desired signals to be sent out of the DB227.
- You can use both the RCA and 3.5mm inputs at the same time, but please be aware
that you will not be able to attenuate the signals independently.
- The ground lift has no proper setting it will be dierent for every application. Choose
the setting that generates the best results (least amount of noise).
- The level control is designed to control only the level of the source input (RCA or
3.5mm). To match the level of the microphone that is passing thru the DB227.
Quick Start Guide
INSPECTION
3/13
Rolls Corporation
Salt Lake City, UT
46
DB227 PODCAST PRO
1. Unpack and Inspect the DB227 package.
Your DB227 Pro was carefully packed at the factory in a protective carton.
Nonetheless, be sure to examine the unit and the carton for any signs
of damage that may have occurred during shipping. If obvious physical
damage is noticed, contact the carrier immediately to make a damage
claim.
2. For warranty registration go to our website: WWW.ROLLS.COM
DB227 Podcast Pro
- Mixes one XLR microphone and a
source signal to a single XLR micro-
phone level output.
- Switchable mixing for quick operation.
- Single source level control for proper
attenuation of the source inputs.
- Passive unit does not require a power
source so it can be used anywhere.
This device was designed to add a line
level source signal to a microphone
input on any device. While allowing a
microphone to pass thru to the main
output. It also allows the user to switch
on the y both inputs to the output
section.
