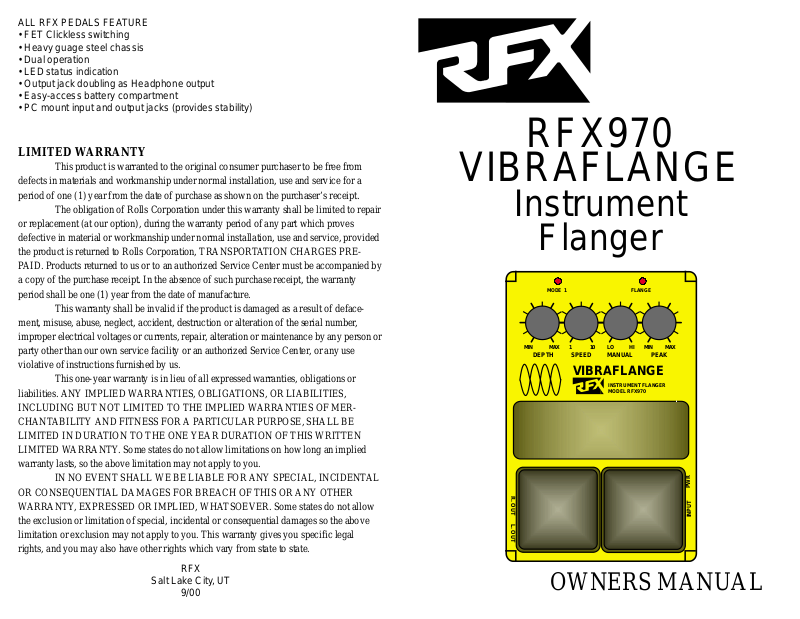

Rolls 970 User Manual
ALL RFX PEDALS FEATURE
PWR
INPUT
R. OUT L. OUT
MANUAL
PEAK
DEPTH
SPEED
MODE 1
FLANGE
VIBRAFLANGE
INSTRUMENT FLANGER
MODEL RFX970
MIN MAX 1
10
LO HI
MIN
MAX
• FET Clickless switching
• Heavy guage steel chassis
• Dual operation
• LED status indication
• Output jack doubling as Headphone output
• Easy-access battery compartment
• PC mount input and output jacks (provides stability)
LIMITED WARRANTY
This product is warranted to the original consumer purchaser to be free from
defects in materials and workmanship under normal installation, use and service for a
period of one (1) year from the date of purchase as shown on the purchaser’s receipt.
The obligation of Rolls Corporation under this warranty shall be limited to repair
or replacement (at our option), during the warranty period of any part which proves
defective in material or workmanship under normal installation, use and service, provided
the product is returned to Rolls Corporation, TRANSPORTATION CHARGES PREPAID. Products returned to us or to an authorized Service Center must be accompanied by
a copy of the purchase receipt. In the absence of such purchase receipt, the warranty
period shall be one (1) year from the date of manufacture.
This warranty shall be invalid if the product is damaged as a result of defacement, misuse, abuse, neglect, accident, destruction or alteration of the serial number,
improper electrical voltages or currents, repair, alteration or maintenance by any person or
party other than our own service facility or an authorized Service Center, or any use
violative of instructions furnished by us.
liabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE
LIMITED IN DURATION TO THE ONE YEAR DURATION OF THIS WRITTEN
LIMITED WARRANTY. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESSED OR IMPLIED, WHATSOEVER. Some states do not allow
the exclusion or limitation of special, incidental or consequential damages so the above
limitation or exclusion may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
This one-year warranty is in lieu of all expressed warranties, obligations or
IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL, INCIDENTAL
RFX970
VIBRAFLANGE
Instrument
Flanger
RFX
Salt Lake City, UT
9/00
OWNERS MANUAL
Thank you for purchasing the RFX970 VIBRAFLANGE Instrument flanger. The
970 is a dual operation flanger with one mode as a standard flanger effect, and
the other having the dry signal removed. This provides a more dramatic, detuning
effect useful for setting y our sound apart in a mix. The 970 also sports an internal
noise gate for eliminating any noise created bef ore the unit. Another unique
feature is the Manual control which allows you to v a ry the delay time, thus the
effect, manually.
Note that by turning off the Speed control and varying the Manual control, the
basic tone of your sound changes. This effect is known as "comb filtering" and is
very useful for certain unique ambient sounds. To achieve the best results from
your RFX970, please read the following man ual carefully. We sincerely hope you
enjoy this product.
INSPECTION
1. Unpac k and Inspect the RFX970 pac kage .
Your RFX970 was carefully packed at the f actory in a protective carton. Nonetheless, be sure to examine the unit and the carton for any signs of damage that ma y
have occurred during shipping. If ob vious ph ysical damage is noticed, contact the
carrier immediately to make a damage claim. We suggest saving the shipping
carton and packing materials for safely transporting the unit in the future.
2. Complete the Warranty Registration Card and return it to the factory.
FOOTPAD 2: Switches betw een b ypass and Flange modes .
CONNECTION
AC AD APTER INPUT : For use with the optional ROLLS PS27 Po wer Supply; 12
VDC, 150 mA, tip negative .
INSTRUMENT INPUT : 1/4" phone jack for an instrument level signal.
OUTPUTS: 1/4" phone jack to be connected to other pedals , a recording de vice ,
or an amplifier.
NOTE: Unique to the RFX series of effects pedals is the ability of the output jack
to be used as a headphone output.
SAMPLE SETTINGS
Jet Flange: Use Mode 1
SPEED
MANUAL
PEAKDEPTH
Medium Flange:
DESCRIPTION
SPECIFICATIONS
Po wer Source: 9V battery
MODE 1
FLANGE
Rolls PS27 adapter
Current Draw: 20 mA
DEPTH
SPEED
MANUAL
VIBRAFLANGE
INSTRUMENT FLANGER
MODEL RFX970
PEAK
Delay Time: 2mS - 17mS
LFO Rate: .5Hz - 10Hz
I/O Connectors: 1/4" TS unbalanced
Size (W x H x D): 3.3" x 2" x 5.25"
Weight: 1 lb.
I N P U T
I N P U T
O U T P U T 1
O U T P U T 2
B A T T E R Y C O M P A R T M E N T
F O O T P A D
1
F O O T P A D
2
A C A D A P T E R
I N S T R U M E N T
CONTROL DESCRIPTIONS
DEPTH: Sets the amount of v ariance in the modulation circuit. Turning this control
clockwise increases the depth.
SPEED: Controls the rate at which the modulation circuit is modulating. Turning
this control clockwise increases the speed of modulation.
MANUAL: Pro vides f or manual control of the modulation circuits. Turning this
control clockwise increases the pitch of the effected sound.
PEAK: Controls the regeneration or f eedbac k of the flanging eff ect.
FOOTPAD 1: Switches betw een Mode 1, which has the dry signal present; and
Mode 2, which removes the dry signal.
SPEED
MANUAL
PEAKDEPTH
Light Flange:
SPEED
MANUAL
PEAKDEPTH
BATTERY REPLA CEMENT
The battery will need to be replaced when the unit will not switch on and off, or
when the MODE 1 or FLANGE LEDs will not go completely out.
To change the battery, remov e the battery compartment cover and replaced with a
9-volt (alkaline preferred) battery. The battery cov er should be put bac k in place
with the extending flange toward the output side of the pedal.
Completely remove the battery if the unit is being operated with an external power
supply (ROLLS PS27), or if the unit is not going to be used for an e xtended period
of time.
