Rolls 925 User Manual
SPEED
WAVE
DEPTH
STEREO PAN/TREMOLO
RFX925
STEREO
EFFECT
MIN
MAX110
PWR
R. IN
L. IN
R. OUT L. OUT

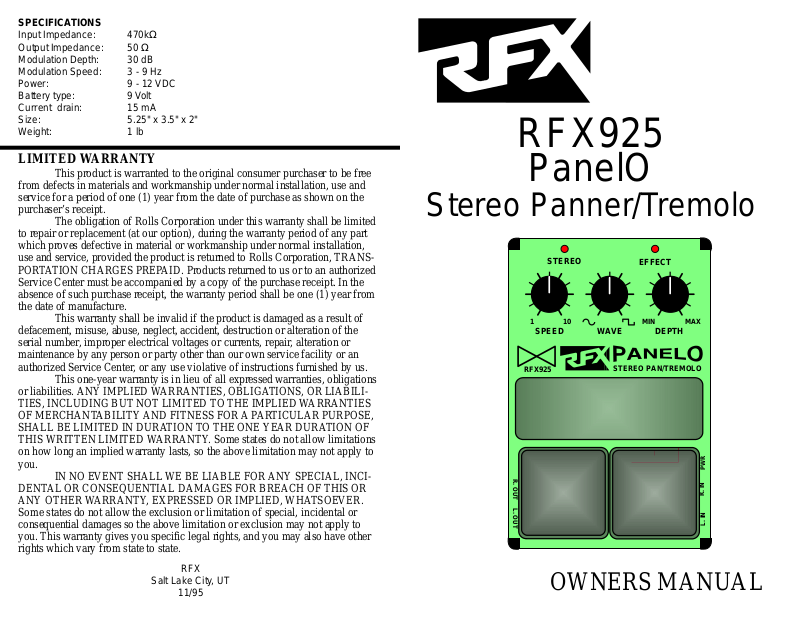

SPECIFICATIONS
Input Impedance: 470kΩ
Output Impedance: 50 Ω
Modulation Depth: 30 dB
Modulation Speed: 3 - 9 Hz
Power: 9 - 12 VDC
Battery type: 9 Volt
Current drain: 15 mA
Size: 5.25" x 3.5" x 2"
Weight: 1 lb
LIMITED WARRANTY
This product is warranted to the original consumer purchaser to be free
from defects in materials and workmanship under normal installation, use and
service for a period of one (1) year from the date of purchase as shown on the
purchaser’s receipt.
The obligation of Rolls Corporation under this warranty shall be limited
to repair or replacement (at our option), during the warranty period of any part
which proves defective in material or workmanship under normal installation,
use and service, provided the product is returned to Rolls Corporation, TRANSPORTATION CHARGES PREPAID. Products returned to us or to an authorized
Service Center must be accompanied by a copy of the purchase receipt. In the
absence of such purchase receipt, the warranty period shall be one (1) year from
the date of manufacture.
This warranty shall be invalid if the product is damaged as a result of
defacement, misuse, abuse, neglect, accident, destruction or alteration of the
serial number, improper electrical voltages or currents, repair, alteration or
maintenance by any person or party other than our own service facility or an
authorized Service Center, or any use violative of instructions furnished by us.
or liabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED IN DURATION TO THE ONE YEAR DURATION OF
THIS WRITTEN LIMITED WARRANTY. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to
you.
DENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR
ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, WHATSOEVER.
Some states do not allow the exclusion or limitation of special, incidental or
consequential damages so the above limitation or exclusion may not apply to
you. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
This one-year warranty is in lieu of all expressed warranties, obligations
IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL, INCI-
Salt Lake City, UT
RFX
11/95
RFX925
PanelO
Stereo Panner/Tremolo
OWNERS MANUAL
Thank you for purchasing the RFX925 P anelO Stereo P anner/Tremolo pedal. The
PanelO is designed and manuf actured to provide y ears of useful service. It
enhances the sound by panning back and f orth at different rates of speed and
with some interesting characteristics. With the introduction of a "W a v e" control,
the PanelO changes from a smooth, simple pan to an abrupt and sharp pan. By
switching to MONO mode, the panner becomes a classic tremolo eff ect. The
output of the PanelO is sufficient to drive a pair of headphones directly f or personal monitoring. Please take a moment and read this manual carefully.
INSPECTION
1. Unpac k and Inspect the RFX925 package .
Your RFX925 was carefully packed at the f actory in a protective carton. Nonetheless, be sure to examine the unit and the carton for any signs of damage that may
have occurred during shipping. If ob vious ph ysical damage is noticed, contact the
carrier immediately to make a damage claim. W e suggest sa ving the shipping
carton and packing materials for safely transporting the unit in the future.
2. Complete the Warranty Registration Card and return it to the factory.
DESCRIPTION
SPEED: Controls the rate at which the panning or tremolo eff ect mo v es.
WAVE: Changes the LFO wav ef orm from sine to square wave. This mak es the
panning effect change from gradual to a sharp, abrupt left to right panning effect.
Does not effect the mono tremolo effect.
DEPTH: Adjusts the amount of panning or tremolo eff ect.
MONO/STEREO SWITCH (Left Footpad): Switches from MONO Tremolo Mode to
Stereo Panning Mode.
NOTE: There is no difference in the sound if only one
output is used.
BYPASS SWITCH: Engages and disengages the effect.
EXAMPLE SETTINGS
Shown below are some example settings f or diff erent configurations of the
RFX925.
STEREO
SPEED
WAVE
EFFECT
MIN
DEPTH
Classic T remolo
For use with a mono input and
mono output. Yields a vintage
tremolo effect.
STEREO
STEREO
MAX110
SPEED
Psycho Pan
For use with a mono input and
stereo output. This provides a
dramatic warbling effect back
and forth.
EFFECT
Stereo Pan
For use with a stereo input and
EFFECT
WAVE
stereo output. This takes a
stereo signal, maintains true
separation of the channels, and
MAX110
autopans them back and forth.
SPEED
WAVE
MIN
DEPTH
MIN
DEPTH
MAX110
OPERATION
Example 1 shows the RFX925 in a mono configuration, Example 2 shows the
RFX925 connected for stereo operation.
Example 2
STEREO
EFFECT
MIN
MAX110
WAVE
DEPTH
SPEED
STEREO PAN/TREMOLO
RFX925
R. OUT L. OUT
PREAMP
PWR
R. IN
L. IN
STEREO
EFFECT
MIN
MAX110
WAVE
DEPTH
SPEED
STEREO PAN/TREMOLO
RFX925
STEREO
CHORUS
Example 1
R. OUT L. OUT
PWR
R. IN
L. IN
