rollease acmeda AUTOMATE, Paradigm Flush Wall Switch Series Manual

AUTOMATE

™

Paradigm Flush Wall Switch

433 MHz

AUTOMATE™ | Paradigm flush wall switches feature a contemporary design and a
wirefree deployment, making them retrofit ready for any location. Paradigm 5 channel
switches are perfect for individual shade, room and whole home control.

The Paradigm flush mount switch can be mounted on top of any surface. It’s slim profile
eliminates the need for any holes to be cut in walls.

FEATURES:

• Multi channel selectable

• Retrofit Ready

• Group Control

• Compatible with screwless decorator cover plates

• Optionally functions as handheld remote

INSTR-MTRF-WS5-FLUSH V1.0 MAR 2017

CONTENTS

1 TECHNICAL DATA / PACK CONTENTS 3

2 SAFETY 4

3 INSTALLATION 5

3.1 Install switch batteries 5

3.2 Mount switch 5

4 FUNCTIONAL OVERVIEW 6

4.1 Buttons 6

4.2 Selecting a channel - (multi channel remote 6

5 PROGRAMMING 7

5.1 Using motor P1 button 7

5.2 Using pre-existing controller 8

5.3 Locking the limit setting function 8

6 TROUBLESHOOTING 9

2 | Automate™ Programming Instructions | Flush Wall Switch ROLLEASE ACMEDA

1 TECHNICAL DATA / PACK CONTENTS

TECHNICAL SPECIFICATIONS

Voltage: 3V (CR2430)

Frequency: 433.92 MHz

Transmitting Power: 10 milliwatt

Ambient Operating Temperature: -10°C -50°C

Transmission Distance: up to 200 meters (open space)

PACK CONTENTS

1 x Switch

2 x Wall fixing screws & anchors

1 x Mountable holder

1 x Instruction manual

1 x 3V – CR2430 Battery

1 x White single gang Decorator style wall plate (incl 2 mounting screws)

ROLLEASE ACMEDA Automate™ Programming Instructions | Flush Wall Switch | 3

2 SAFETY

5005833

WARNING: Important safety instructions to be read before installation and use.

Incorrect installation or use can lead to serious injury and will void manufacturer’s liability and warranty.
It is important for the safety of persons to follow the enclosed instructions. Save these instructions for future reference.

• Do not expose to water, moisture, humid and damp environments or extreme temperatures.

• Persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
should not be allowed to use this product.

• Use or modification outside the scope of this instruction manual will void warranty.

• Installation and programming to be performed by a suitably qualified installer.

• Follow installation instructions.

• For use with motorized shading devices.

• Keep away from children.

• Frequently inspect for improper operation. Do not use if repair or adjustment is necessary.

• Keep clear when in operation.

• Replace battery with correctly specified type.

Rollease Acmeda declares this equipment is in compliance with the essential requirements and other relevant provisions of
R&TT EC Directive 1999/5/EC

Statement Regarding FCC Compliance

This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.

Do not dispose of in general waste.
Please recycle batteries and damaged electrical products appropriately.

4 | Automate™ Programming Instructions | Flush Wall Switch ROLLEASE ACMEDA

3 INSTALLATION

3.1 Install switch batteries

Open rear battery cover by gently separating

switch covers with a screwdriver

3.2 Mount switch

Best Practice tip; Program Switch to motors prior to installation, then test radio

performance In the location the switch will be installed in, to insure best performance

Install CR2430 battery with positive side facing

up. Snap covers back together.

Snap covers back together.

Use supplied fasteners and anchors as needed to attach base.

ROLLEASE ACMEDA Automate™ Programming Instructions | Flush Wall Switch | 5

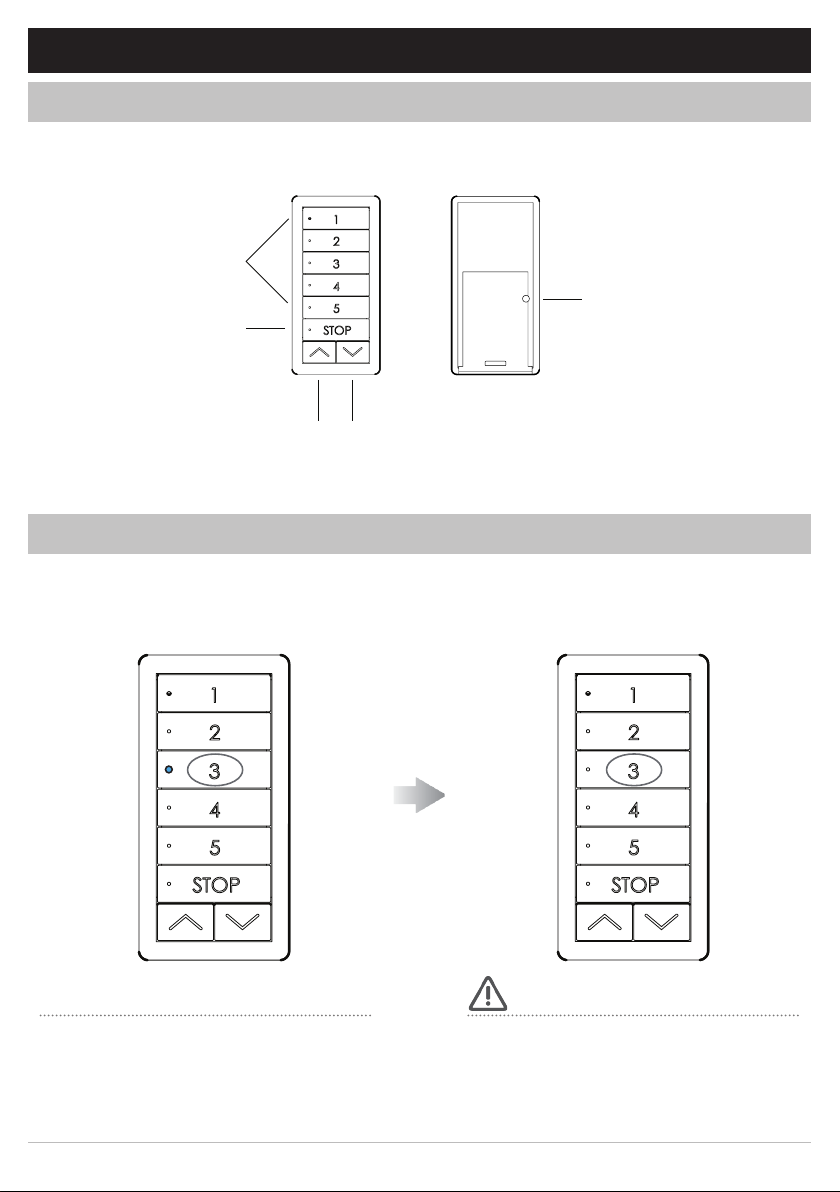

4 FUNCTIONAL OVERVIEW

4.1 Buttons

CHANNELS 1-5

STOP

UP DOWN

4.2 Selecting a channel - (multi channel remote

P2

Press desired channel button(s) To deselect channel, press channel button

until LED turns off

Response IMPORTANT

Blue LEDs will illuminate indicating channel
selection.

Switch requires that at least one channel be selected at
all times. First select an additional channel, then deselect
channel you don’t want to operate

6 | Automate™ Programming Instructions | Flush Wall Switch ROLLEASE ACMEDA

5 PROGRAMMING

5.1 Using motor P1 button

IMPORTANT

Multiple motors can be grouped onto shared channels for co-ordinated control. Limit settings and favorite positions cannot be adjusted when
motors are grouped together.

• Confirm that motor limits and favorite position are already set for each individual motor.

• Ensure that each motor you want to group is also assigned to another channel by itself

Select a channel on

switch.

Hold P1 button on motor

head.

Motor Response

RELEASE P1

Hold STOP on switch.

Motor Response

ROLLEASE ACMEDA Automate™ Programming Instructions | Flush Wall Switch | 7

5.2 Using pre-existing controller

Select channel that

operates motor on

existing switch.

Press P2

Motor response Motor response Motor response

Press P2 on existing switch. Select desired channel on

new switch. Press P2.

5.3 Locking the limit setting function

Stops unwanted changes to limit settings

Press STOP and hold

for 15 seconds.

Press STOP and hold

for 15 seconds.

Release STOP

button.

Locked limit

settings.

Remote response Remote response

All lights flash x1 All lights flash x2

8 | Automate™ Programming Instructions | Flush Wall Switch ROLLEASE ACMEDA

Release STOP

button.

Unlocked limit

settings.

6 TROUBLESHOOTING

Problem Cause Remedy

Switch battery is discharged Replace battery

Battery is inserted incorrectly Check battery polarity

Ensure remote is positioned away

Radio interference / Shielding

from metal objects and that aerial on
motor or reciever is kept straight and
away from metal.

Motor is not responding

Receiver distance is too far
from remote

Power failure

Incorrect motor wiring

Cannot set limits on a single
motor (multiple motors
respond)

Motor will not go down after
setting the top limit.

NOTE

The switch can be used to set/adjust limits. Please refer to the
motor instructions for limit setting functions.

Using “Group” channels to
adjust motor limits

Top limit was set using the
DOWN and STOP buttons.

Move remote to a closer position

Check power supply to motor is
connected and active

Check wiring is connected correctly
(refer to motor installation
instructions)

Always reserve an individual channel
for programming functions.

SYSTEM BEST PRACTICE - Provide
an extra 15 channel remote in your
multi motor projects, that provides
individual control for each motor for
programming purposes.

Reset the motor and begin
programming sequence again.

Remember that upper limit is to be
set using the UP and STOP buttons,
and the down limit is set using the

DOWN and STOP buttons.

ROLLEASE ACMEDA Automate™ Programming Instructions | Flush Wall Switch | 9
