• Compact designed UPS in futuristic design
• For Workstations and PCs
• LineInteractive UPS
• AVR (Automatic Voltage Regulation)
• Digital status display
• Integrated overvoltage protection
• Telephone/Modem connections
• USB Port for advanced Power Management Software (incl, in content of delivery)
• EMI/RFI Noise Filter
• Dimensions (HxLxW) 168 x 105 x 334 mm
• Weight: 6.3 kg
• Backup Time: up to 4 Minutes
Data sheet

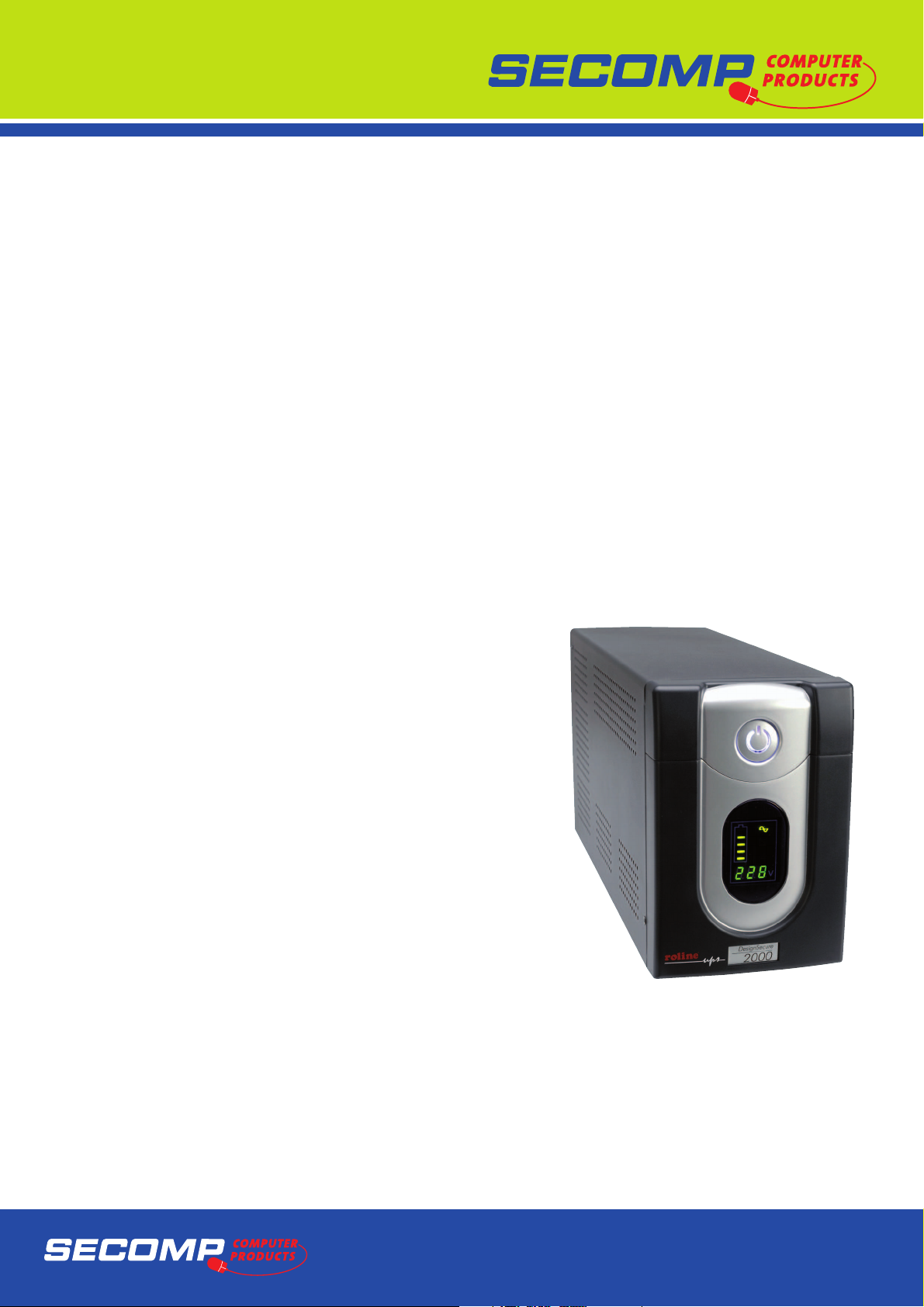

ROLINE DesignSecure 2000
19.40.1220
Technical Data:
Classification (IEC 62040-3) VI-SS-333
UPS technology Line interactive
Output (VA/W) 2000 / 1200
Backup time full/half-load 2 / 4 min
Weight 16 kg
Dimensions (HxWxD) 192 x 130 x 382 mm
Mounting form Tower
Colour black, silver
Voltage (input) 230 V
Voltage (output) 230 V
Output voltage regulation yes
Frequency 50 Hz
Connector type (input) cold connector IEC320 C14
Connector type (output) 6 cold connector IEC320 C13
Phase in/output 230V/230V / 50Hz
Over current protection EMI,- RFI-Filter
Interface USB
Hot swap batteries No
Bypass No
Additional over current protector Telephone/Fax
Activity Display yes
incl.Management Software Windows
Internal cooling Passive
Ambient temperature 0-40 °C
