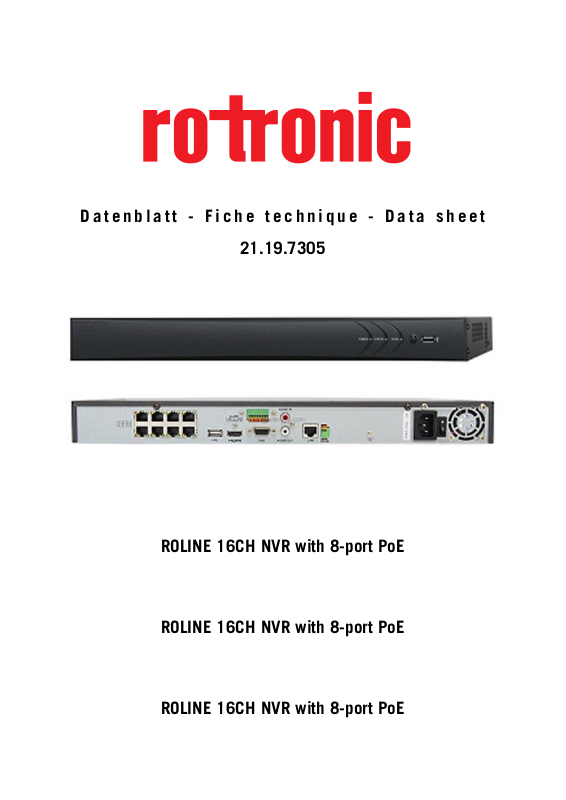

Datenblatt - Fiche technique - Data sheet

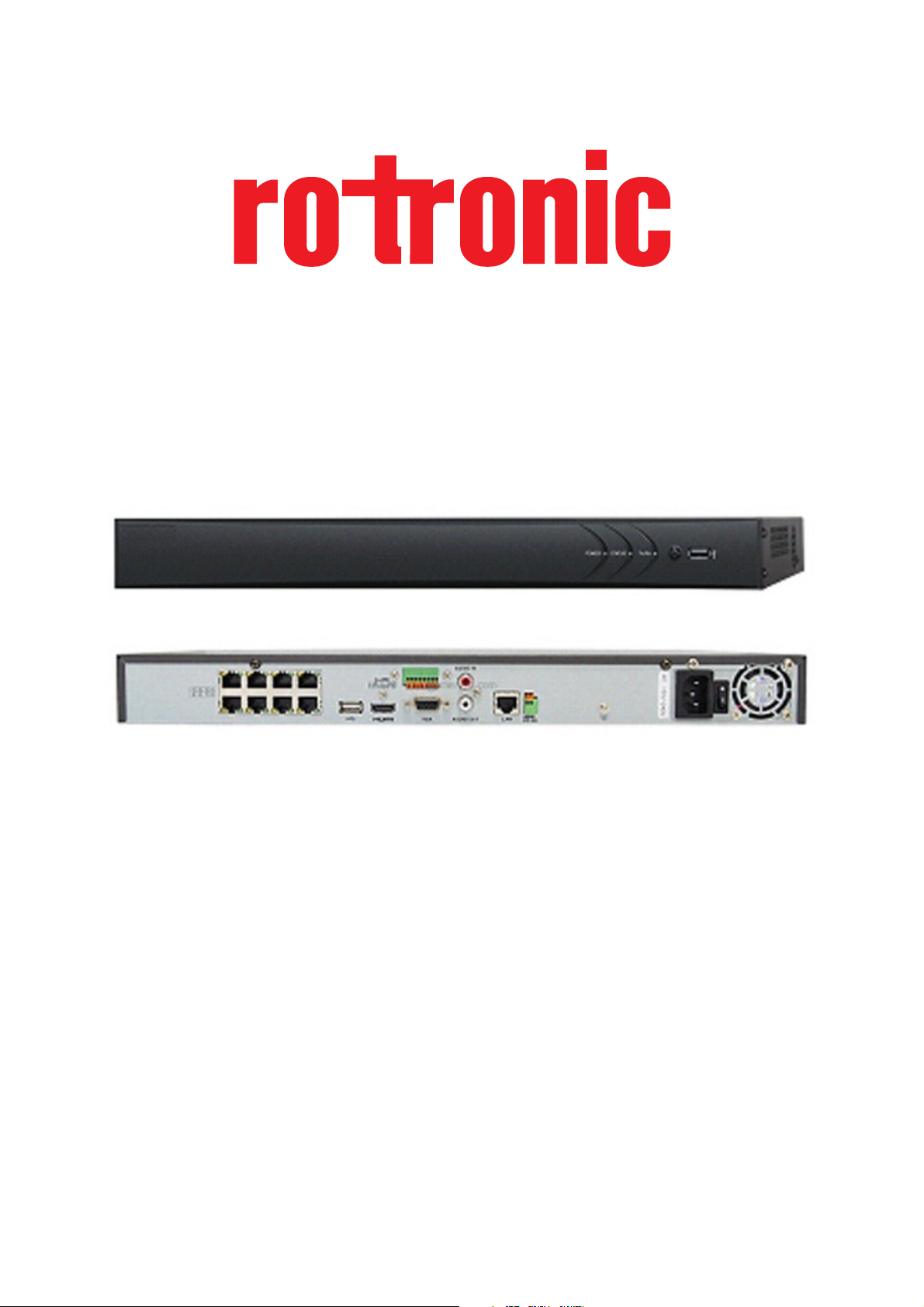

ROLINE 16CH NVR with 8-port PoE
ROLINE 16CH NVR with 8-port PoE
ROLINE 16CH NVR with 8-port PoE

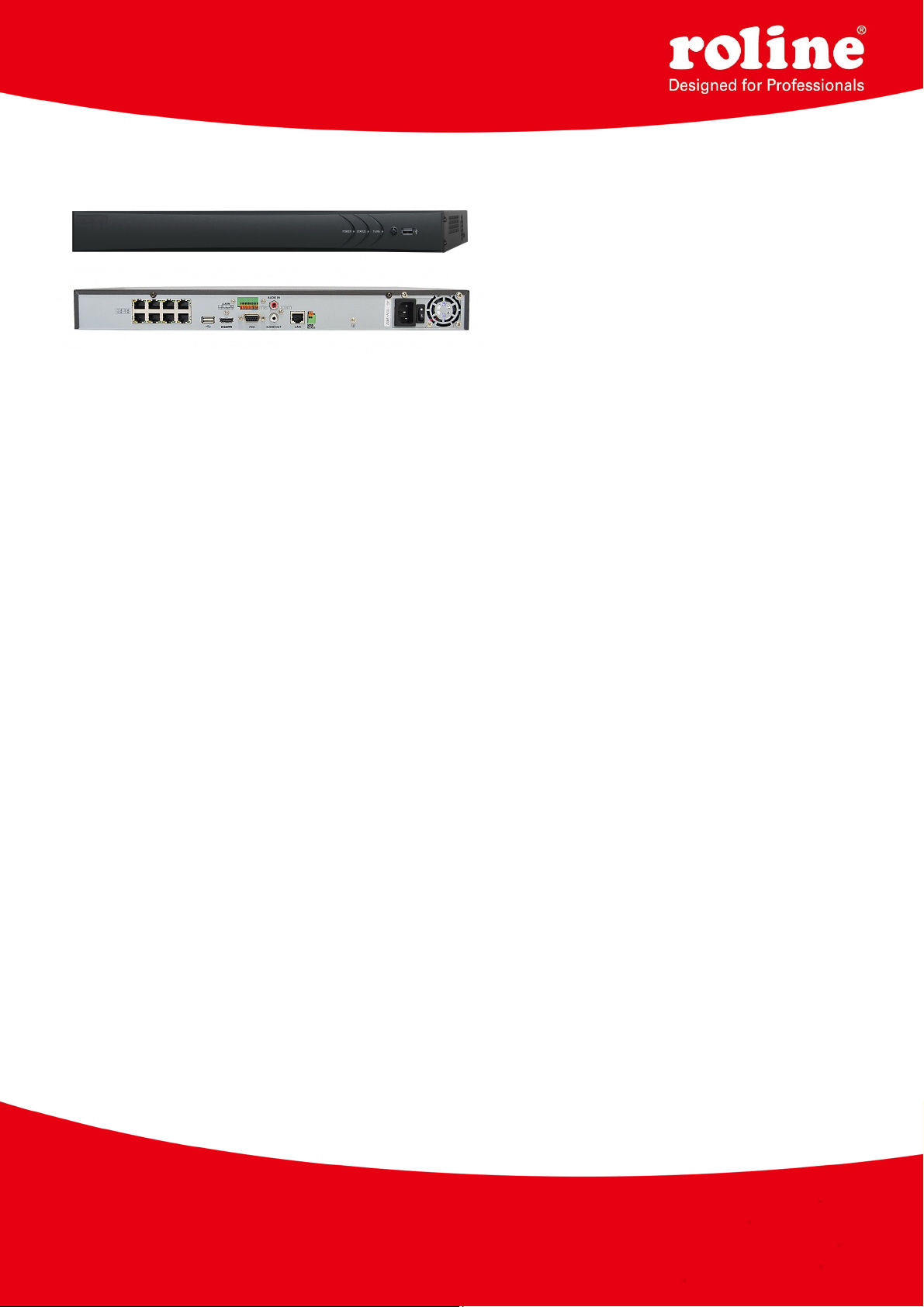

Page 2
Features:
• 16 channels view & record NVR
ROLINE 16CH NVR with 8-port PoE
RNR0216P
• HDMI and VGA output at up to 1920 x 1080 resolution
• HDD quota and group management
• 1x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• 8 independent POE network interfaces for built-in switch (120W, 802.3af)
• Locking and unlocking record files
• Incoming bandwidth: 80Mbps
• 2x SATA interfaces for 2 HDDs(Type 3.5)
• 2x USB 2.0 ports
• 19-inch rack-mounted 1U chassis
• Support network detection, including network delay, packet loss, etc.
Page 3
Specification:
21.19.7305 - RNR0216P
16CH NVR with 8-port PoE
5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CI
F/CIF/QCIF
1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 ×
1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF /
DCIF / 2CIF /CIF /QCIF
2 SATA interfaces for 2 HDDs (not included with
package)
1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet
interface
8 independent 10 /100 Mbps PoE Ethernet
interfaces
802.3af
Parameter
Video/Audio input
Network
Video/Audio output
Hard disk
External interface
PoE
Others
Model
IP video input 16-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth 80Mbps
Output bandwidth 40Mbps
Remote connection 128
Recording resolution
HDMI/VGA output
Audio output 1-ch, RCA (Linear, 1kΩ)
Playback resolution
Synchronous playback 8-ch 4CIF /4-ch, 720P / 2-ch, 1080P / 1-ch, 5MP
SATA
Capacity Up to 4TB for each disk
Network interface
Serial interface 1 RS-485 half-duplex interface
USB interface 2 × USB 2.0
Interface
Output Consumption 120W
Supported Standard
Power supply 100~240VAC, 47~63Hz, 3A
Consumption ≤ 15 W (without hard disk)
Working temperature -10 ºC ~ +55 ºC
Working humidity 10 % ~ 90 %
Chassis 19-inch rack-mounted 1U chassis
Dimensions (W × D × H) 445 × 290 × 45mm
Weight ≤ 2 Kg ( without hard disk)

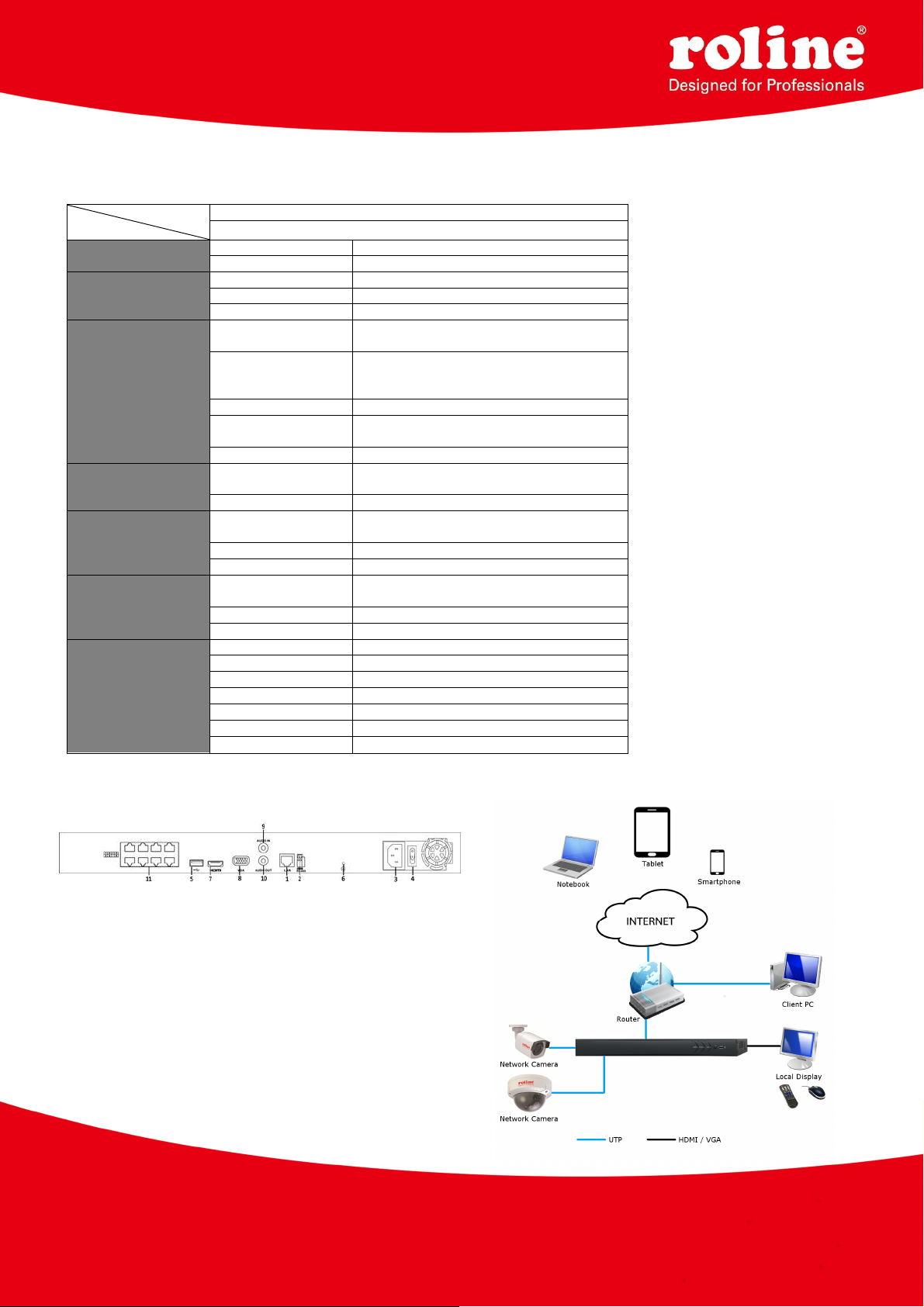

Connection: Application:
1. LAN Network Interface
2. RS-485 Interface
3. 100~240VAC Power Input
4. Power Switch
5. USB Interface
6. GND
7. HDMI Interface
8. VGA Output
9. Audio In
10. Audio Out
11. Network Interfaces with PoE function
