Page 1
DATE
CHK
BY
REVISION RECORD MODIFICATIONS
NEW
1 of 1
Page
REV.
V0
REMARK
QT'Y
NO.
PARTS.NAME
SPECIFICATION STANDARD
30AWG(30AWG TC*1P+D+AL+MY)*5C+30AWG TC*5C+ADB+Jacket:PVC/Black OD:6.0±0.2mm
CABLE 1
OUTER MOLDING
HDMI CONNECTOR
1
3
1
MATERIAL LIST:
19P A/M connector Solder Type,The Pin Gold Plating,the shell for Gold Plating
3
6
1
2
LD-PE
INNER MOLDING
1
7
ABS BLACK
DUST CAP
LD-PE
DP CONNECTOR
DP Female Connector ,The Pin Gold Plating,the shell for Nickel Plating
USB CONNECTOR
USB A male Solder Type,The Pin Gold Plating,the shell for Nickel Plating
4
CABLE 2
5
PVC BLACK
HOUSING
PCBA HDMI TO DP PCBA
8
9
10
1
1
1
1
2
1
NOTE:
1.Computer + Monitor test (HDMI INPUT,DP Female OUTPUT)(DVD not applicable)
(1).Resolution:3840*2160@60Hz
2.RoHS and REACH Compliant
P1 P2
150±20mm
8.7min
USB Cable (0.12*12)*2C JACKET PVC Black OD=3.0 L=300±20mm
6
7
1
2
19 20
2021-05-10
2
1
8 9
7
5
3
7
4
DESC.

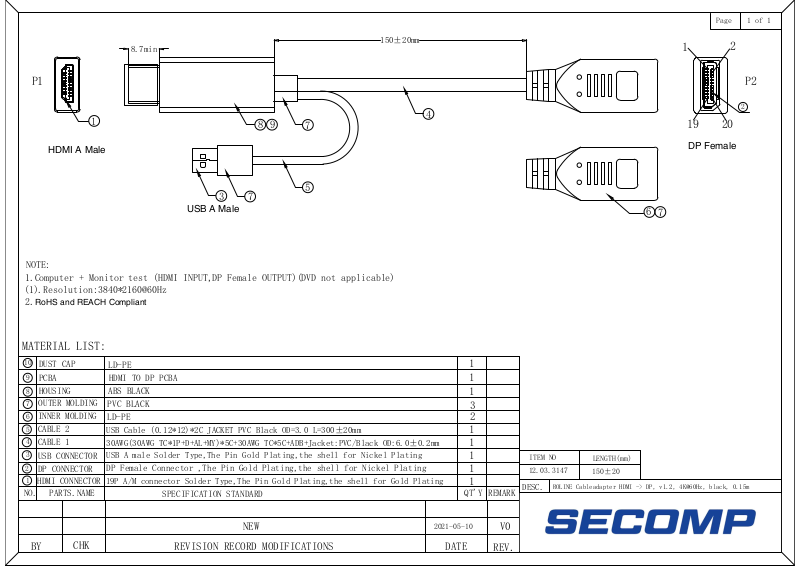

ROLINE Cableadapter HDMI -> DP, v1.2, 4K@60Hz, black, 0.15m
ITEM NO
12.03.3147
150±20
LENGTH(mm)
DP Female
USB A Male
HDMI A Male
