Datenblatt - Fiche technique - Data sheet
12.02.1028

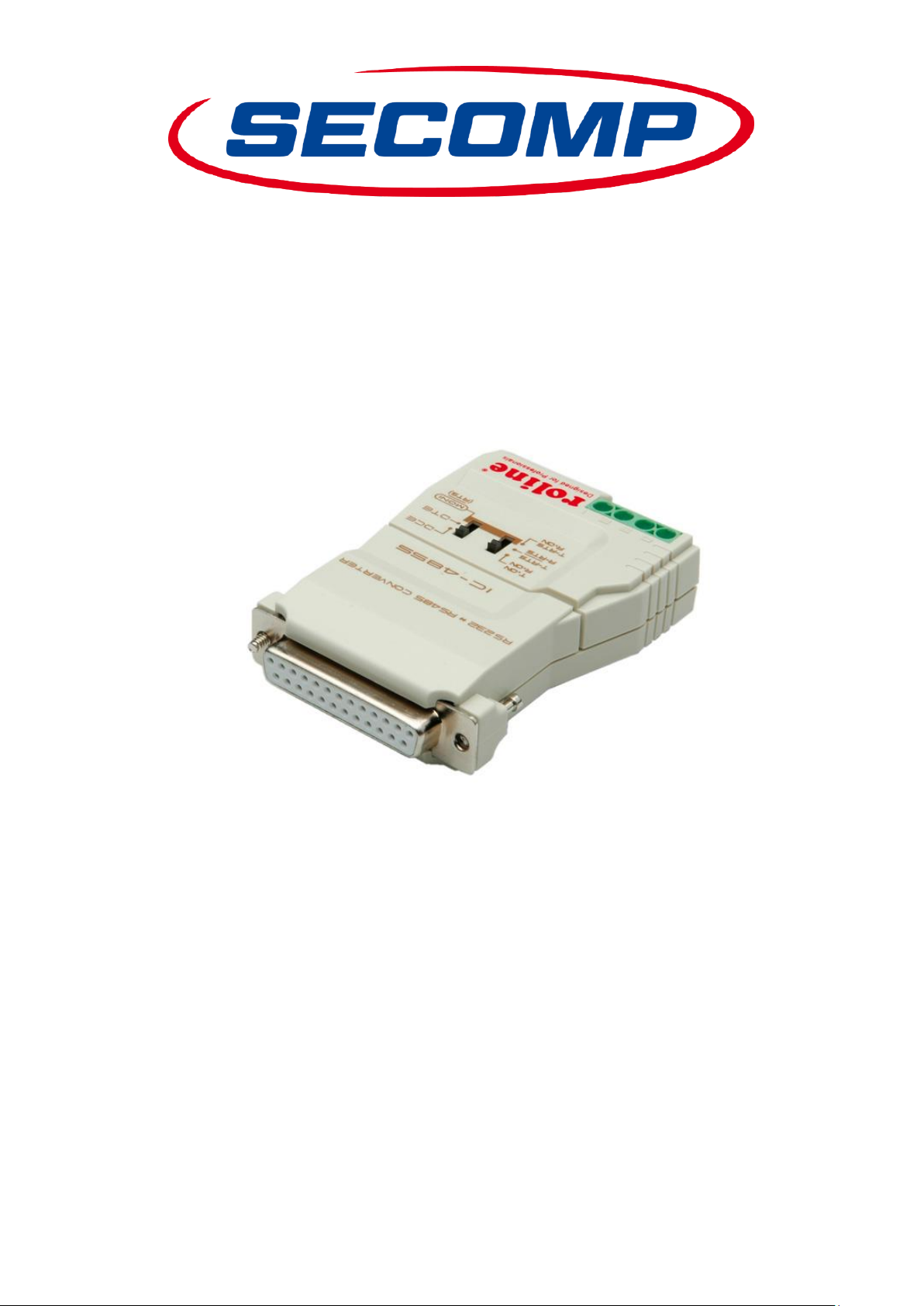

ROLINE Konverter RS232-RS485, ohne galvan. Trennung
ROLINE Convertisseur RS232 / RS485 sans isolation galvanique
Converter RS232-RS485, without Galvanic Isolation
Page 2

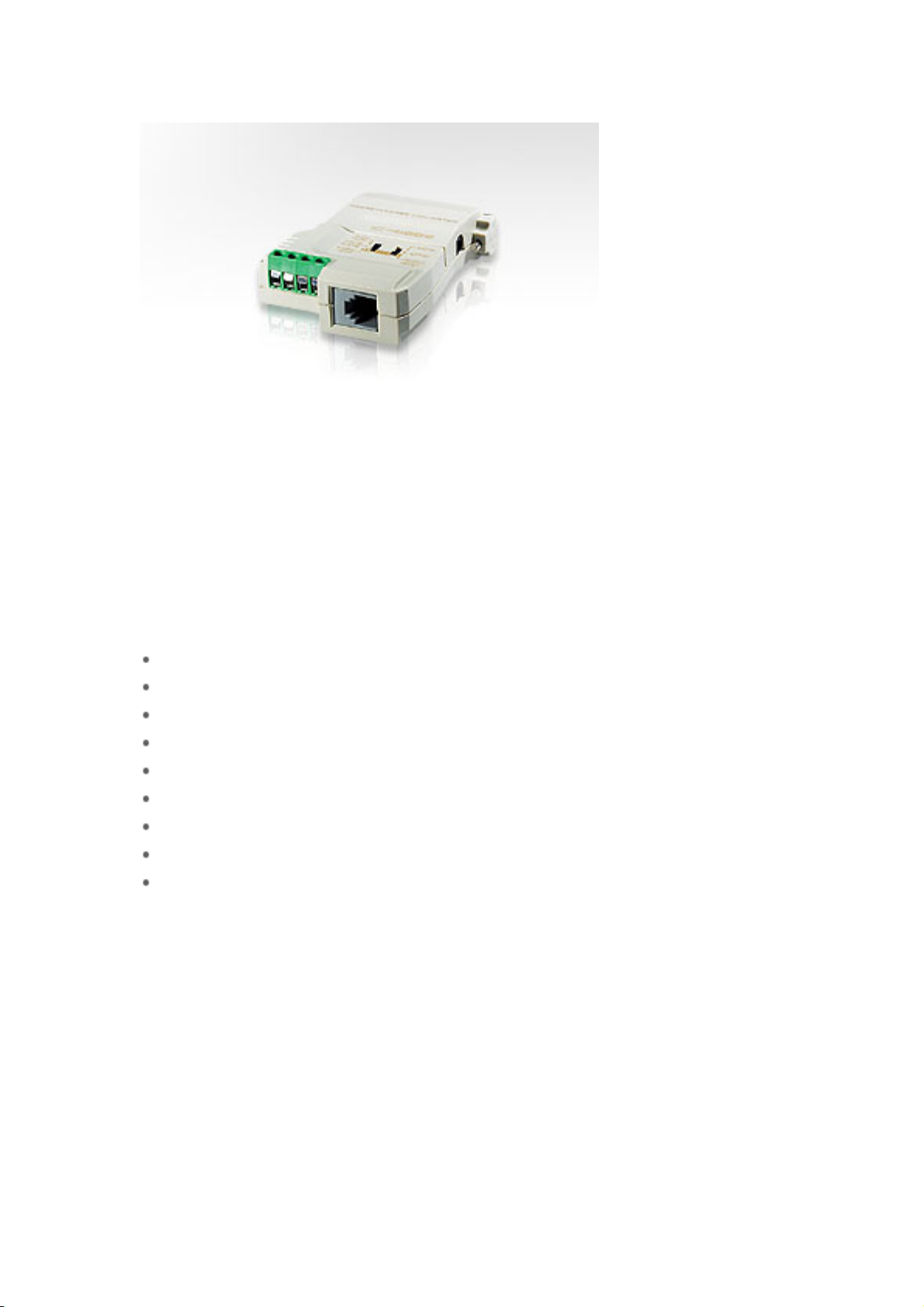

RS-232/RS-485 Interface Converter
Item no.: 12.02.1028
Features:
Data transmission controlled by the RTS signal.
DCE/DTE selectable.
Point to point, multidrop, and simplex/duplex link selection.
Four wire full duplex; two wire half duplex.
Compact size.
Cable distance of up to 1200m (4000 ft.).
Monitor configuration support.
Supports baud rates up to 115.2kbps.
OS Support: Windows 2000, Windows XP
Page 3
Specification:
Connectors 1 DB-25 Female (RS-232)
RS-485 / RS-422 Four Terminal Block
1x RJ-11 Female
Switches SW1 DCE, DTE, Monitor
SW2 TxON, RxON
TxRTS, RxRTS
TxRTS, RxON
Power Consumption DC9V, 1.35W (max.)
Signal Range 1200 m [4000'] (max.)
Data Rate Up to 100 Kbps under 1200 m [4000']
Environment Operating Temperature 0 ~50˚C
Storage Temperature -20 ~ 60˚C
Humidity 0~80% RH, Non-condensing
Physical
Properties
Housing Plastic
Weight 60 g
Dimension ( L x W x H ) 5.40 x 7.45 x 1.85 cm
