Datenblatt - Fiche technique - Data sheet
11.04.5870

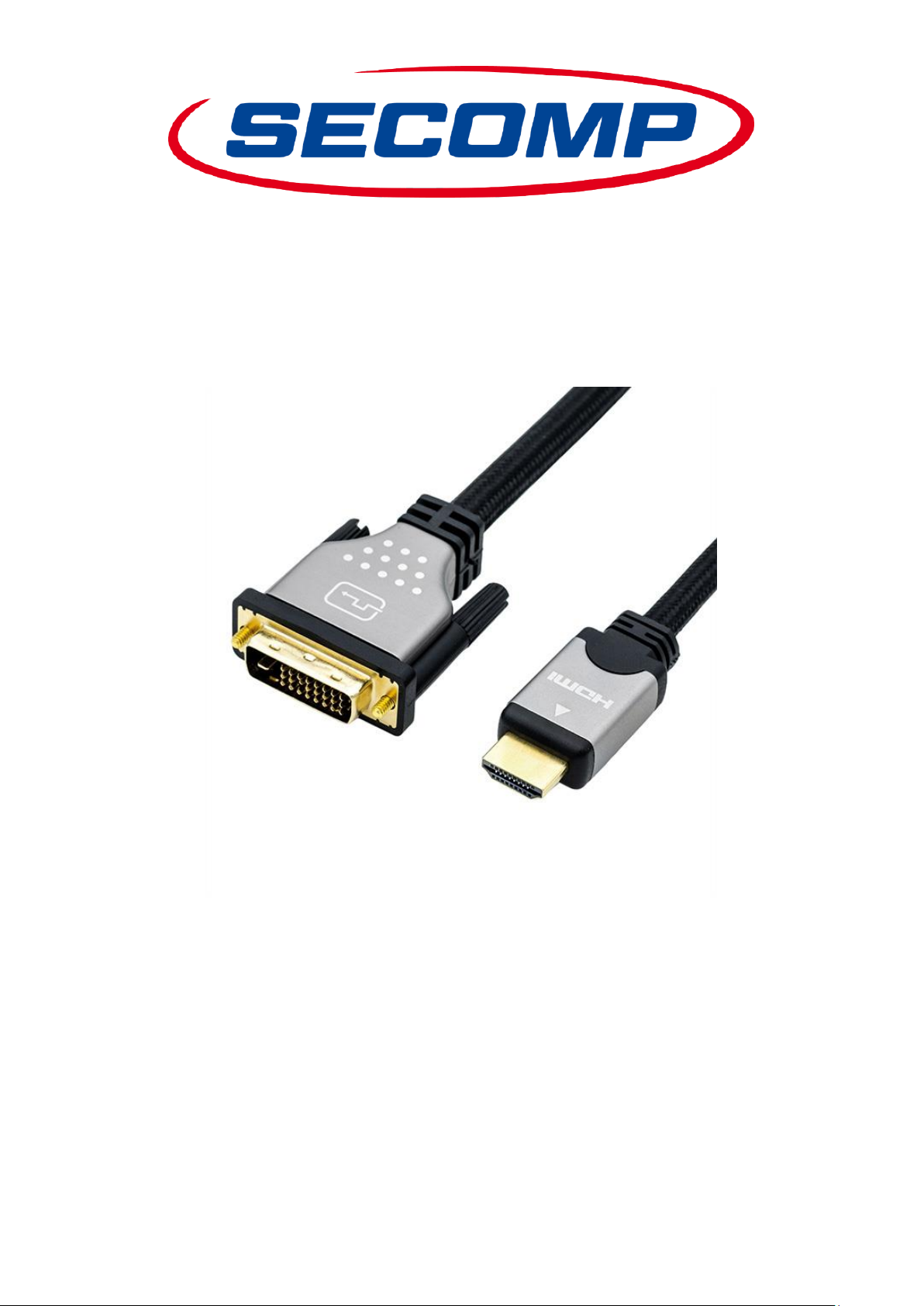

ROLINE Monitorkabel DVI - HDMI, ST-ST, dual link, schwarz / silber, 1,0 m
ROLINE Câble pour écran DVI (24+1) - HDMI, Dual Link, M-M, noir/argent, 1,0
m
ROLINE Monitor Cable, DVI (24+1) - HDMI, Dual Link, M/M, black /silver, 1.0 m
Page 2
Philip
Allen
Allen
P1
DVI 24+1 Male
L
HDMI 19P Male
Part No. Cable L Braid L
11.04.5870 1000±20 mm 1000±20 mm
11.04.5871 2000±30 mm 2000±30 mm
11.04.5872 3000±30 mm 3000±30 mm
11.04.5873 5000±50 mm 5000±50 mm
11.04.5874 7500±50 mm 7500±50 mm
Specification：
1 Cable
2 Braid Black Cotton, RoHS
3 Connecter 1 DVI(24+1)M, Insulator: Black, Iron Shell: Gold Plated 1u”, Pin: Gold Plated 1u”, RoHS
4 Connecter 2 HDMI 19P M, Insulator: Black, Iron Shell: Gold Plated 1u”, Pin: Gold Plated 1u”, RoHS
5 Solder 0.
6 Tube 1 Black Tube, OD: 0.8 mm, RoHS
7 Tube 2 Black Tube, OD: 2.5 mm, RoHS
8 Inner Molding LP-PE, RoHS
9 Tape High Temperature Resistant, 1.8CM, RoHS
10 Copper Foil 2.2CM, RoHS
11 Outer Molding PVC: 45P, Color: Black, RoHS
12 Outer Molding PVC: 60P, Color: Black, RoHS
13 Metal Shell For DVI, Color: Dark Gray, RoHS
14 Metal Shell For HDMI, Color: Dark Gray, RoHS
15 Screw 2.8*44.2, RoHS
16 Screw PVC PVC: 2
17 Dust Cover 1 For DVI M, RoHS
18 Dust Covre 2 For HDMI M, RoHS
Rev. Date Contents of Change Designer
1
2
3
4
5
UL20276, (1P*28AWG+AL+D+M)*4C+1P*28AWG+5C*28AWG+AL+D+B, PVC: Black,
OD: 7.0 mm, Printing: High Speed HDMI™ Cable E119932-T AWM STYLE 20276
80°C 30V VW-1 COPARTNER
8 mm Tin Line, RoHS
5P, Color: Black, RoHS
Range
0~6
6~30
30~80
80~180
180~315
315~800
11.04.5875 10000±50 mm 10000±50 mm
Tol±
Pla Met Ins Por Cab Pac Gas Dis
1.0 1.0
0.1
0.1
0.1
.15
0.2
0.1
.15
51. 51.
0.2
0.3
0.2 0.2
0.5
.15
0.2
.25
0.3
0.4
1 1
.25 .25
2 5.1
0.3 0.3
2 2
0.3
2.5
0.4
3 3
0.5
1
0.5
0.5
1
1
1
2
2
Approve Check Draw Design
.45
0.6
1.1
HDMI 19P Male
1
3
2
4
6
5
7
9
8
10
12
11
Shell Shell
Scale 1 : 1 Unit mm
Shield Shield
Pin Assignment
DVI 24+1 Male
R
2
W
1
D
3
Blu
10
W
9
D
11
G
18
W
17
D
19
Brown
Product Name
Drawing Date
2017/3/27
23
W
24
D
22
Product No. R00
HDMI 19P Male DVI 24+1 Male
15
16
17
18
19
O
6
Y
7
R
15
P
14
W
16
ROLINE SILVER DVI-D/HDMI Cable,
DVI-D(24+1)/HDMI, M/M
11.04.5870/11.04.5871/11.04.5872/
11.04.5873/11.04.5874/11.04.5875
