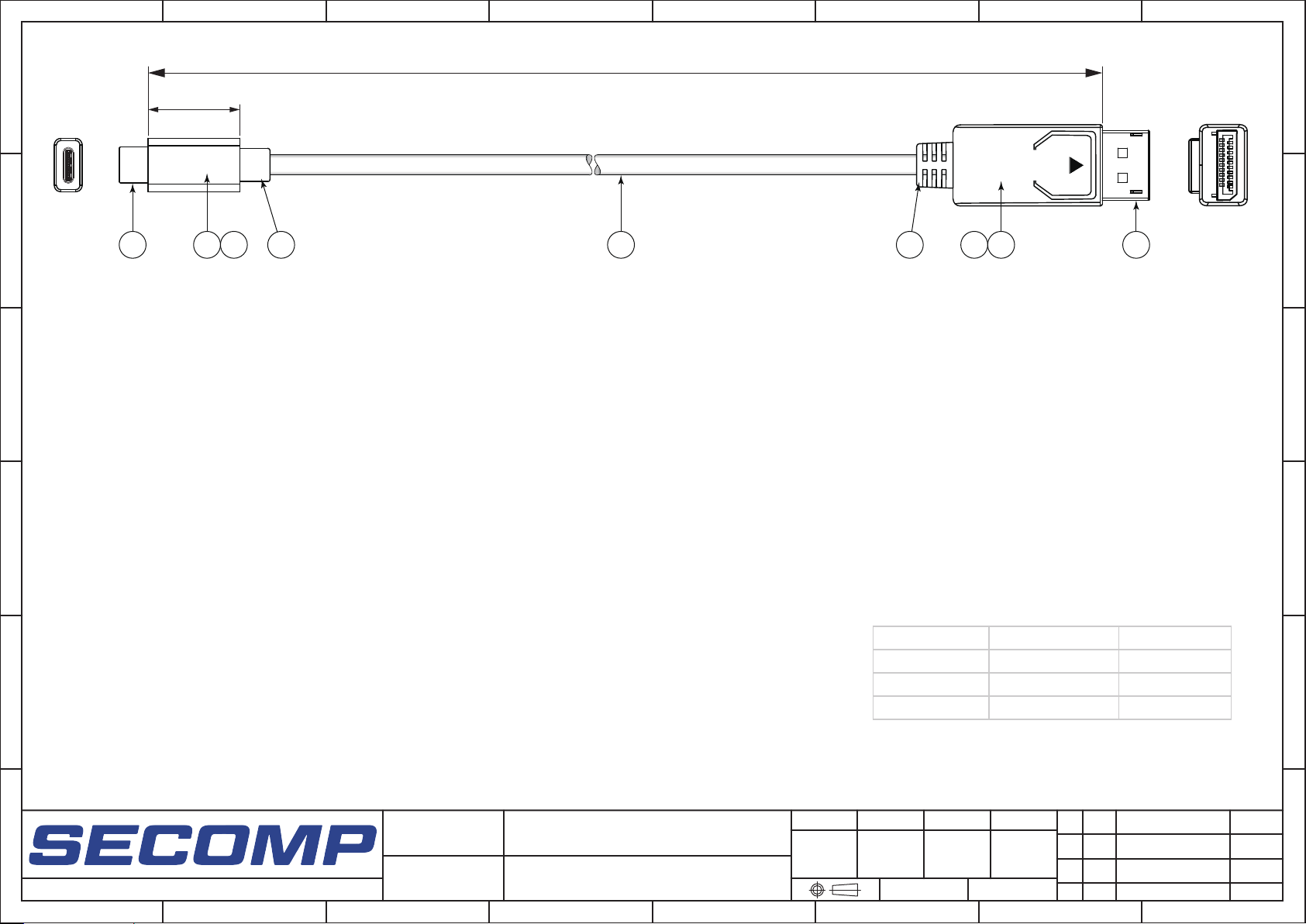

Part No. Length Resistance
11.04.5837 3000 mm 2 ohm
USB
Type C Plug
A
21 mm
B
C
Note :
Source Resolution UXGA:
7680x4320 @60Hz
3840x2160 @120HZ
D
L±30 mm
1 32 4 6 7 567
DisplayPort
Plug
A
B
C
D
Specification：
1.
Cabe
2.
E
F
Conn.
3.
Conn.
4.
Hood
5.
Hood
6.
Inner molding
7.
S.R.
Issue Date :
UL20276, (1P(32AWG)+AL/MY)*5 + 3C(32AWG) + 1C(28AWG) +
2C(24AWG) + AL+BD, Jacket Color: Black, OD: 4.6±0.15 mm
USB Type C Plug, Conductor: Gold Plated, Shell: Nickel Plated
DisplayPort Plug, Conductor: Gold Plated, Shell: Nickel Plated
For USB Type C Plug, ABS, Color: Black
For DisplayPort Plug, ABS, Color: Black
LDPE
Black PVC: 45P
2020/11/05

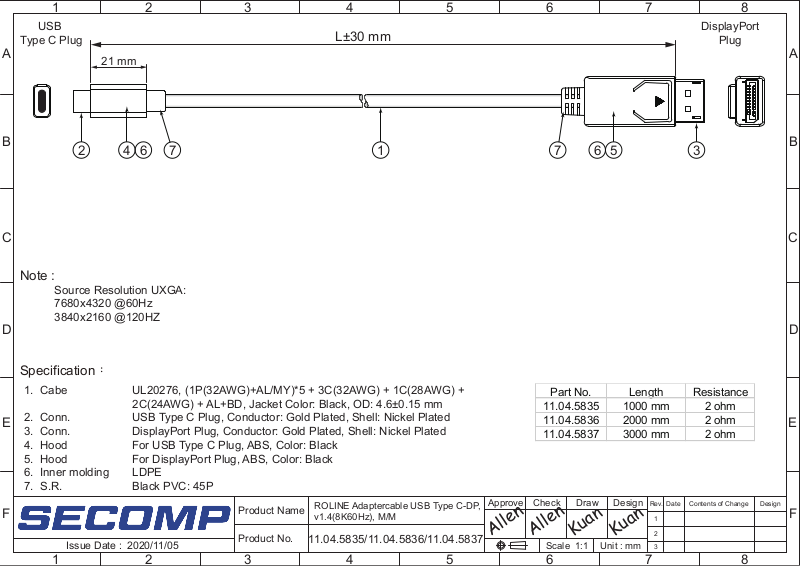

Product Name
Product No.
ROLINE Adaptercable USB Type C-DP,
v1.4(8K60Hz), M/M
11.04.5835/11.04.5836/11.04.5837
11.04.5835 1000 mm 2 ohm
11.04.5836 2000 mm 2 ohm
Approve Check DesignDraw
Allen
Allen
Kuan
Kuan
Unit : mmScale 1:1
Rev.
1
2
3
E
DesignContents of ChangeDate
F
