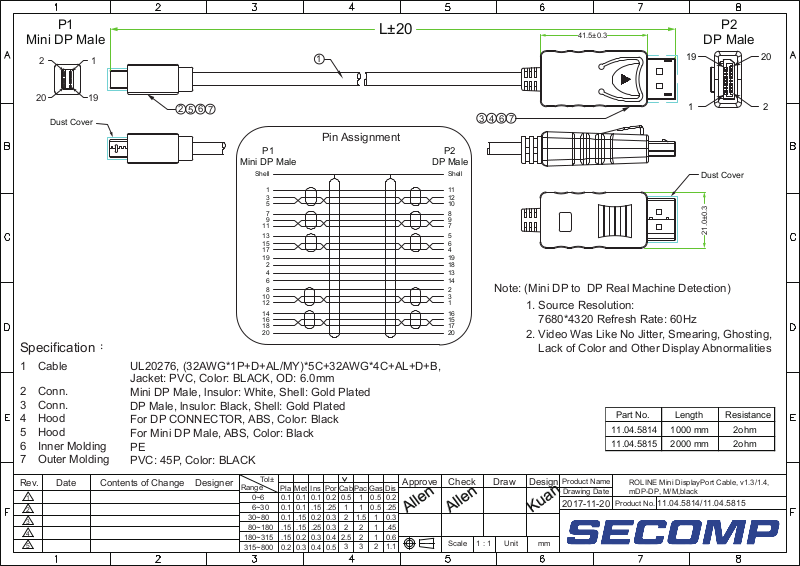

Page 1
P1
Mini DP Male
2
1
L±20
1
41.5±0.3
19
P2
DP Male
20
20 19
Dust Cover
Specification：
1
Cable
2
Conn.
3
Conn.
4
Hood
5
Hood
6
Inner Molding
7
Outer Molding
2
6
5
7
Pin Assignment
P1
Mini DP Male
1
3
5
7
9
11
13
15
17
19
2
4
6
8
10
12
14
16
18
DP Male
UL20276, (32AWG*1P+D+AL/MY)*5C+32AWG*4C+AL+D+B,
Jacket: PVC, Color: BLACK, OD: 6.0mm
Mini DP Male, lnsulor: White, Shell: Gold Plated
DP Male, lnsulor: Black, Shell: Gold Plated
For DP CONNECTOR, ABS, Color: Black
For Mini DP Male, ABS, Color: Black
PE
PVC: 45P, Color: BLACK
P2
ShellShell
11
12
10
8
9
7
5
6
4
19
18
13
14
2
3
1
16
15
17
2020
1
6
3
4
7
Note: (Mini DP to DP Real Machine Detection)
1. Source Resolution:
7680*4320 Refresh Rate: 60Hz
2. Video Was Like No Jitter, Smearing, Ghosting,
Lack of Color and Other Display Abnormalities
Part No. Length Resistance
11.04.5814 1000 mm 2ohm
11.04.5815 2000 mm 2ohm
2
Dust Cover
21.0±0.3
Rev. Date Contents of Change Designer
1
2
3
4
5
Range
0~6
6~30
30~80
80~180
180~315
315~800
Tol±
Pla Met Ins Por Cab Pac Gas Dis
0.1
0.1
0.1
.15
0.2
0.1
.15
.15.15
0.2
0.3
0.10.1
0.2 0.2
0.5
.15
0.2
.25
0.3
0.4
1 1
.25 .25
0.3 0.3
2 2
0.3
2.5
0.4
3 3
0.5
Approve Check Draw Design
1
0.5
0.5
1
1.52
1
1
2
2
.45
0.6
1.1
Allen
Allen
Scale 1 : 1 Unit mm
Kuan
Product Name
Drawing Date
2017-11-20
ROLINE Mini DisplayPort Cable, v1.3/1.4,
mDP-DP, M/M,black
Product No.
11.04.5814/11.04.5815
