Page 1
1 2
P/N. Length
11.04.5789 1500±20 mm
11.04.5790 1000±30 mm
11.04.5791 2000±30 mm
11.04.5792 3000±50 mm
3
4
5
6 7 8
Mini
L±T mm
HDMI
DisplayPort
A A
2
20
1
19
19
1
2
18
12 35,64,5 7
11
10
12
15
17
16
18
13
14
19
20
White
1
Red
3
Drain
5
White
4
Green
6
Drain
2
White
7
Blue
9
Drain
White
Black
Drain
8
White
Brown
Drain
Purple
Yellow
White
Green
Red
Pin Assignment
1
3
GND
4
6
GND
7
9
GND
10
12
GND
15
17
GND
18
13
14
GND
VBUS
Shell
PCBA
B
C
HDMI
Plug
D
B
DisplayPort Plug
C
Feature:
Resolution: 1920x1080P @ 60Hz
D
Shell
Specification :
1.
Cable
UL20276, [1P(32AWG)+D+AL/MY]*5 + 4C(32AWG) + 1C(28AWG) + AL + D + B,
Jacket Color: Black, OD: 5.5mm
2.
Conn.
E
3.
Conn.
4.
Hood
5.
Inner Molding
6.
Outer Molding
7.
S.R.
Mini DisplayPort Plug, Conductor: Gold Plated, Shell: Nickel Plated
HDMI Plug, with PCB, Conductor: Gold Plated, Shell: Nickel Plated
For DisplayPort Plug, Black ABS
PE
Black PVC:45P
Black PVC: 45P
F
1 2
Issue Date :
2022/01/06
Product Name
Product No.
3

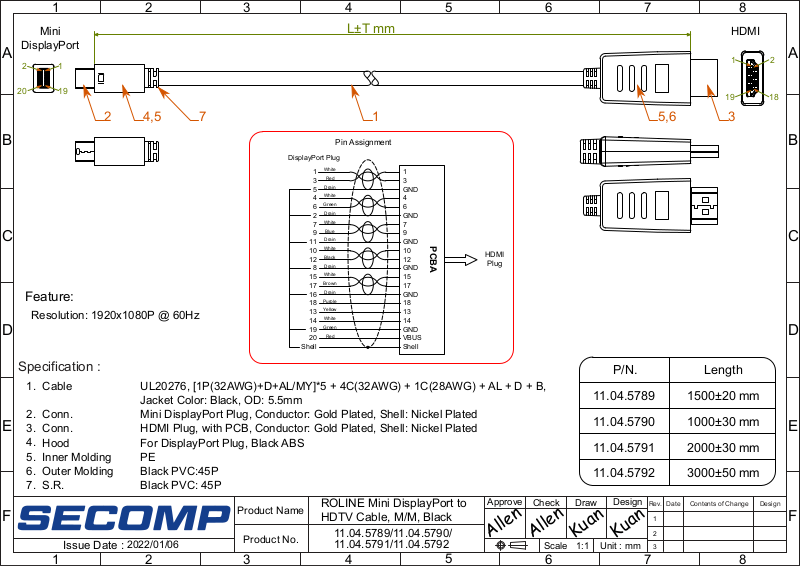

ROLINE Mini DisplayPort to
HDTV Cable, M/M, Black
11.04.5789/11.04.5790/
11.04.5791/11.04.5792
4
5
Approve
Allen
Check
Allen
Scale 1:1
Draw
Kuan
Unit : mm
Design
Kuan
Rev.
1
2
3
Contents of Change
Date
6 7 8
E
Design
F
