REV.
DATE
CHK
BY
REVISION RECORD MODIFICATIONS
V1
NEW
TYPE C
CABLE
1
3
4
2
2
1
REMARK
QT'Y
SPECIFICATION STANDARD
PARTS NAME
NO.
2
INNER MOLD
MATERIAL LIST:
2.RoHS and REACH Compliant
3.Support 100W MAX
USB C/M Solder Type,Black PBT Insulation,The Pin Gold
Plating, the shell for Nickel Plating+Iron Shield
LD-PE
NOTE:
1.Electrical test:
(1).100% open short & miss wire test;
(2).Insulation resistance:DC 100V 0.01S 5M ohm;
(3).Contactor resistance:3 ohm Max;
2
ABS Housing
(4).Mac book pro + LG Monitor TEST:3840*2160@60Hz
(5).Transmission rate : 40Gbps Current rate:5A
P1
A4+A9+B4+B9
A7
A6
A1+A12+B1+B12
A5
A2
A3
B11
B10
B2
B3
A11
A10
A8
B8
SHELL
DRAIN+BRAID
P2
A4+A9+B4+B9(VBUS)
A7
A6
A1+A12+B1+B12(VGND)
A5
B11
B10
A2
A3
A11
A10
B2
B3
B8
A8
SHELL
PIN OUT
B5 B5
Housing
5
E-mark
USB4 GEN3*2 40Gbps 5A
1
A1
A12
B1
B12
A1
A12
B1
B12
6.55(min)
P2
P1
L±T
USB4 COAXL CABLE(30AWG*1C+SP+HM)*8COAX+(34AWG*1P+HMAM)*1C
+30AWG*4C+24AWG*1C+F+PAPER+B TPE JACKET BLACK OD:4.6
±0.2mm

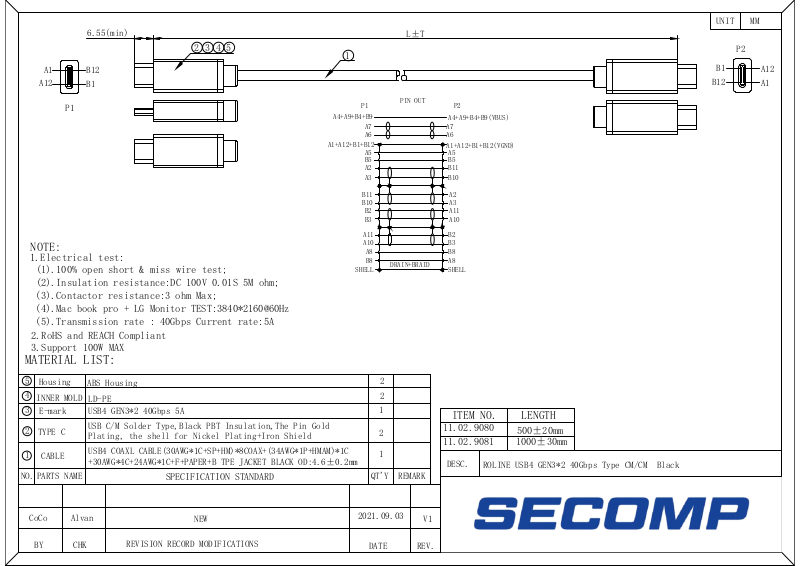

ROLINE USB4 GEN3*2 40Gbps Type CM/CM Black
DESC.
11.02.9081
1000±30mm
500±20mm
11.02.9080
LENGTH
ITEM NO.
AlvanCoCo
1
2 3 4 5
UNIT
MM
2021.09.03
