Page 1
REV.
DATE
CHK
BY
REVISION RECORD MODIFICATIONS
A
NEW
DESC.

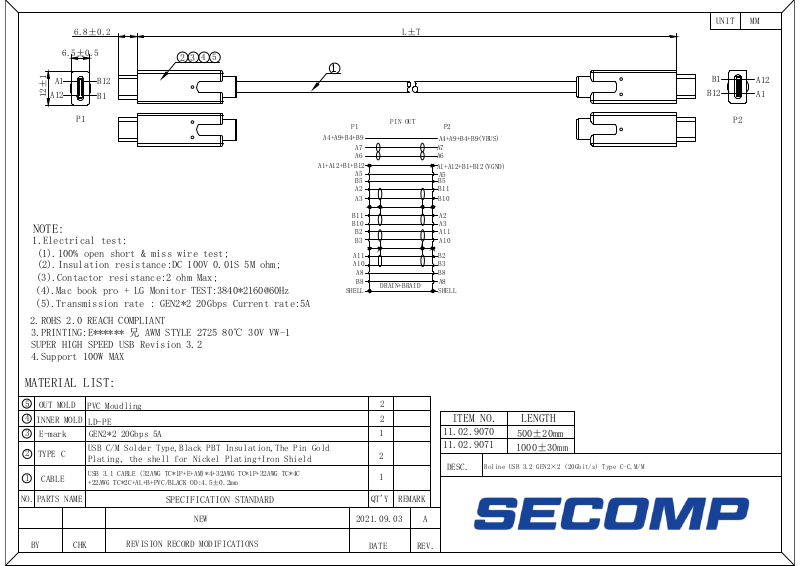

Roline USB 3.2 GEN2×2 (20Gbit/s) Type C-C,M/M
UNIT
MM
USB 3.1 CABLE (32AWG TC*1P+E+AM)*4+32AWG TC*1P+32AWG TC*4C
+22AWG TC*2C+AL+B+PVC/BLACK OD:4.5±0.2mm
TYPE C
CABLE
1
3
4
2
2
1
REMARK
QT'Y
SPECIFICATION STANDARD
PARTS NAME
NO.
2
INNER MOLD
MATERIAL LIST:
2.ROHS 2.0 REACH COMPLIANT
USB C/M Solder Type,Black PBT Insulation,The Pin Gold
Plating, the shell for Nickel Plating+Iron Shield
LD-PE
NOTE:
1.Electrical test:
(1).100% open short & miss wire test;
(2).Insulation resistance:DC 100V 0.01S 5M ohm;
(3).Contactor resistance:2 ohm Max;
2
PVC Moudling
3.PRINTING:E****** 兄 AWM STYLE 2725 80℃ 30V VW-1
SUPER HIGH SPEED USB Revision 3.2
4.Support 100W MAX
(4).Mac book pro + LG Monitor TEST:3840*2160@60Hz
(5).Transmission rate : GEN2*2 20Gbps Current rate:5A
OUT MOLD
5
E-mark GEN2*2 20Gbps 5A
1
A1
A12
B1
B12
A1
A12
B1
B12
P1
A4+A9+B4+B9
A7
A6
A1+A12+B1+B12
A5
A2
A3
B11
B10
B2
B3
A11
A10
A8
B8
SHELL
DRAIN+BRAID
P2
A4+A9+B4+B9(VBUS)
A7
A6
A1+A12+B1+B12(VGND)
A5
B11
B10
A2
A3
A11
A10
B2
B3
B8
A8
SHELL
PIN OUT
B5 B5
L±T6.8±0.2
P2
P1
12±1
6.5±0.5
1000±30mm
11.02.9071
LENGTH
ITEM NO.
500±20mm
11.02.9070
2 3
4 5
2021.09.03
