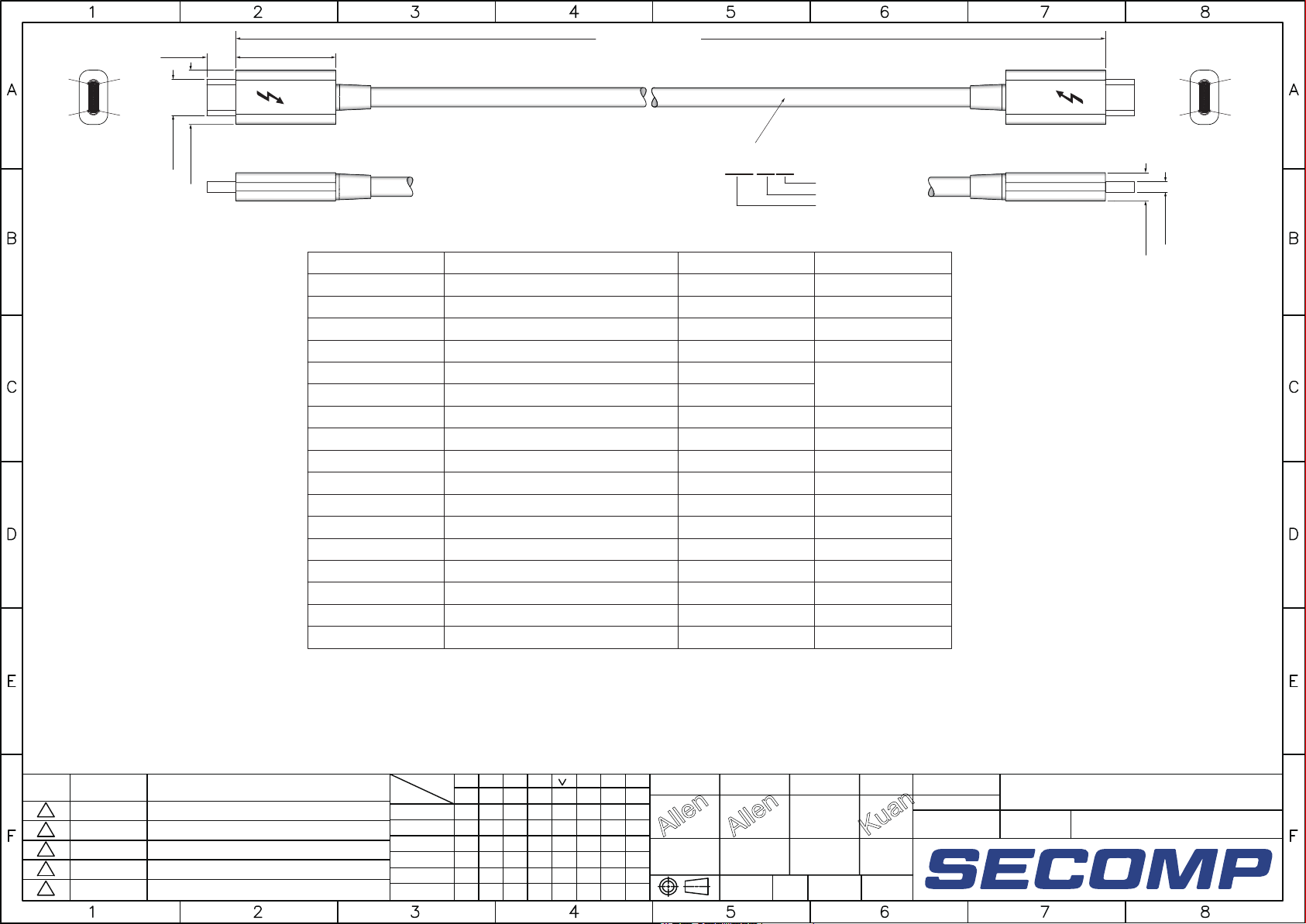

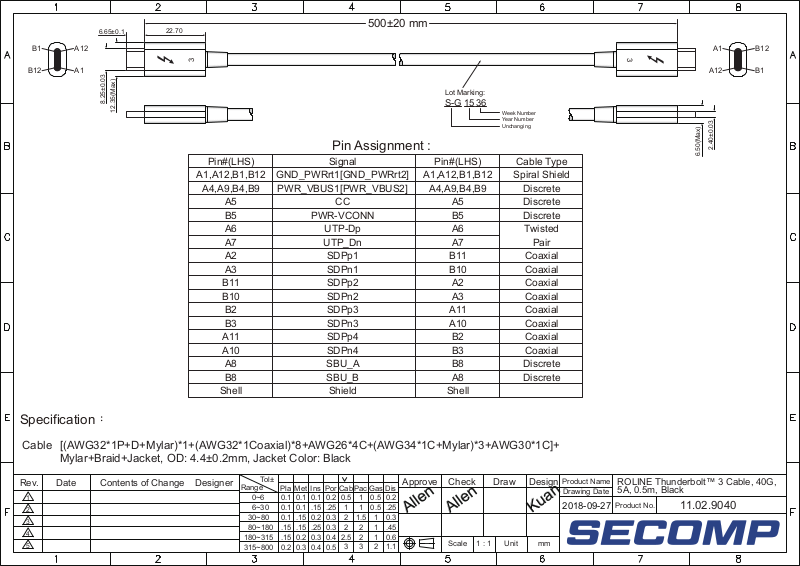

6.65±0.1
22.70
500±20 mm
B1
B12
A12
A1
8.25±0.03
12.35(Max)
3
Pin#(LHS)
A1,A12,B1,B12
A4,A9,B4,B9
A5
B5
A6
A7
A2
A3
B11
B10
B2
B3
A11
A10
A8
B8
Shell
Pin Assignment :
Signal
GND_PWRrt1[GND_PWRrt2]
PWR_VBUS1[PWR_VBUS2]
CC
PWR-VCONN
UTP-Dp
UTP_Dn
SDPp1
SDPn1
SDPp2
SDPn2
SDPp3
SDPn3
SDPp4
SDPn4
SBU_A
SBU_B
Shield
Lot Marking:
S-G 15 36
Pin#(LHS)
A1,A12,B1,B12
A4,A9,B4,B9
A5
B5
A6
A7
B11
B10
A2
A3
A11
A10
B2
B3
B8
A8
Shell
Week Number
Year Number
Unchanging
Cable Type
Spiral Shield
Discrete
Discrete
Discrete
Twisted
Pair
Coaxial
Coaxial
Coaxial
Coaxial
Coaxial
Coaxial
Coaxial
Coaxial
Discrete
Discrete
3
A1
A12
2.40±0.03
6.50(Max)
B12
B1
Specification：
Cable
Rev. Date Contents of Change Designer
1
2
3
4
5
[(AWG32*1P+D+Mylar)*1+(AWG32*1Coaxial)*8+AWG26*4C+(AWG34*1C+Mylar)*3+AWG30*1C]+
Mylar+Braid+Jacket, OD: 4.4±0.2mm, Jacket Color: Black
Range
0~6
6~30
30~80
80~180
180~315
315~800
Tol±
Pla Met Ins Por Cab Pac Gas Dis
0.1
0.1
0.1
.15
0.2
0.1
.15
.15.15
0.2
0.3
0.10.1
0.2 0.2
0.5
.15
0.2
.25
0.3
0.4
1 1
.25 .25
0.3 0.3
2 2
0.3
2.5
0.4
3 3
0.5
Approve Check Draw Design
1
0.5
0.5
1
1.52
1
1
2
2
.45
0.6
1.1
Allen
Allen
Scale 1 : 1 Unit mm
Kuan
Product Name
Drawing Date
2018-09-27
ROLINE Thunderbolt™ 3 Cable, 40G,
5A, 0.5m, Black
Product No.
11.02.9040
