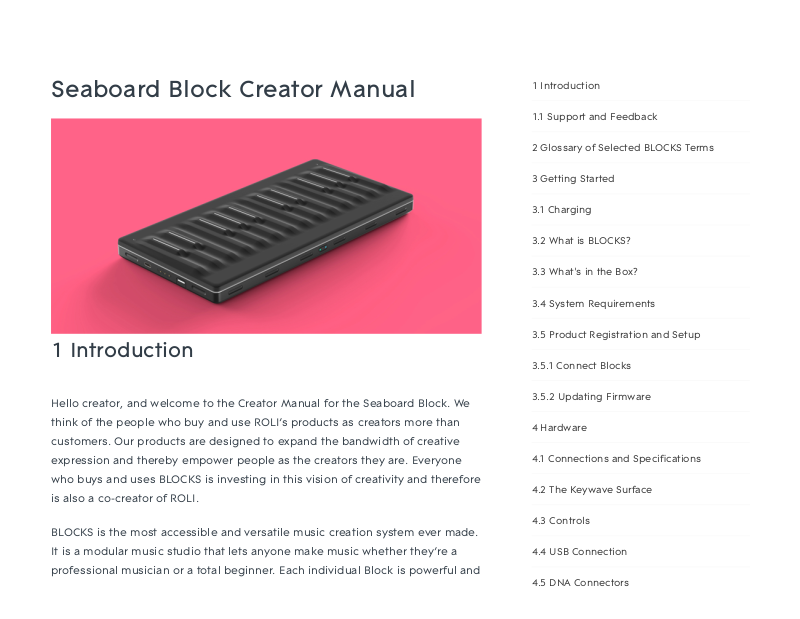

Seaboard Block Creator Manual
1 Introduction
Hello creator, and welcome to the Creator Manual for the Seaboard Block. We
think of the people who buy and use ROLI’s products as creators more than
customers. Our products are designed to expand the bandwidth of creative
expression and thereby empower people as the creators they are. Everyone
who buys and uses BLOCKS is investing in this vision of creativity and therefore
is also a co-creator of ROLI.
BLOCKS is the most accessible and versatile music creation system ever made.
It is a modular music studio that lets anyone make music whether they’re a
professional musician or a total beginner. Each individual Block is powerful and
1 Introduction
1.1 Support and Feedback
2 Glossary of Selected BLOCKS Terms
3 Getting Started
3.1 Charging
3.2 What is BLOCKS?
3.3 What's in the Box?
3.4 System Requirements
3.5 Product Registration and Setup
3.5.1 Connect Blocks
3.5.2 Updating Firmware
4 Hardware
4.1 Connections and Specifications
4.2 The Keywave Surface
4.3 Controls
4.4 USB Connection
4.5 DNA Connectors
intuitive, offering unique capabilities that let people make music in simple but
far-reaching ways. The Blocks connect together to create customizable kits that
suit any budget, skill level, and musical style. With a click of magnetic
connectors, music-makers can build their own instruments as they go.
You may already be playing your Seaboard Block and discovering its creative
possibilities. This comprehensive Creator Manual explains the details about
your Seaboard Block to ensure that you get the most out of it.
The Seaboard Block is a multi-dimensional MIDI controller whose touch-
sensitive interface – especially when paired with the NOISE mobile app or
BLOCKS Dashboard – opens up new possibilities for musical expression. While
most conventional keyboards offer one dimension of touch to control sound
(initial velocity, or what we call Strike), the Seaboard Block offers five
dimensions of touch, or 5D Touch for short. These can be mapped to a variety
of sound parameters. The separate, optional Touch Block adds another layer of
expressive control, allowing you to tune the touch responsiveness of the
keywaves to match your personal taste in real time.
In the next sectionwe have included a short list of terms specific to BLOCKS.
We will refer to these terms throughout the Creator Manual.
Please note that this is a digital manual updated regularly to reflect software
updates and other improvements. This manual is current up to NOISE v2.4.0.
1.1 Support and Feedback
We want you to have the best experience possible with our instruments and
would love to hear your feedback. Should you have any questions, experience
4.6 Bluetooth Connection
5 Playing the Seaboard Block
5.1 Five Dimensions of Touch or 5D Touch
5.2 Playing Techniques
5.3 The Five MIDI Messages of the Five
Dimensions of Touch
6 Working with Other Hardware and
Software
6.1 Multidimensional Polyphonic
Expression
6.2 Working with Digital Audio
Workstations (DAWs)
6.3 USB MIDI Class Compliancy
7 Care and Maintenance
8 ROLI Support
8.1 My ROLI
8.2 ROLI Support
9 Appendix
any problems, or just want to say hello, please don’t hesitate to get in touch.
The easiest way to reach us is to send a support enquiry from support.roli.com.
We will respond as soon as possible.
2 Glossary of Selected BLOCKS Terms
BLOCKS
A modular music studio built of individual Blocks, each with specific
capabilities, that connect together physically through BLOCKS DNA connectors
and wirelessly through Bluetooth.
Block(s)
The individual hardware components of the BLOCKS system including the
Lightpad Block, Live Block, Loop Block, Seaboard Block, Touch Block, and
Developer Kit Control Block.
BLOCKS Dashboard
A desktop application for modifying and customising the internal settings of
Blocks, making it easy to use BLOCKS with third-party digital audio
workstations and synthesizers.
BLOCKS DNA Connectors
Six-pin connectors that magnetically connect multiple Blocks and also transmit
power and data between the Blocks. Each Control Block has six DNA
Connectors.
Control Block
Any one of several different Blocks with ten buttons and a row of LEDs,
designed to control NOISE functions. Control Blocks include the Live Block,
Loop Block, Touch Block, and Developer Kit Control Block. Control Blocks can
also send MIDI messages to third-party applications.
Equator Player
Based onEquator– ROLI’s custom-built, multi-dimensional sound engine and
software synthesizer –Equator Playeris a Windows and MacOS app included
with the Lightpad Block and Seaboard Block. Equator Player takes advantage of
the Seaboard Block’s 5 dimensions of touch, maximizing your ability to express
yourself using just the motions of your fingers on your Seaboard Block’s
keywaves and Lightpad Block’s playing surface. It features a simplified user
interface that allows you to easily modify the most important characteristics of
a preset. If you’d like to create your own sounds and have full control
ofEquator you mayupgrade to the full version of Equator.
The Five Dimensions of Touch (5D Touch)
The feature of real-time control and modulation of sound through the basic
movements ofStrike, Press, Glide, Slide, and Lift.
Strike:The velocity and force with which a finger makes contact with
theLightpad surface or keywave surface.
Press:The pressure and continuous touch applied to theLightpad surface
or keywave surfaceafter the initialStrike.
Glide:Horizontal left and right movements onLightpadsurface or keywave
surface
.
Slide:Vertical movements up and down theLightpad surface or keywave
surface.
Lift:The release velocity or speed of liftoff fromLightpad surface or
keywave surface.
Grid
A fixed configuration of pads on the NOISE interface and the Lightpad Block
surface. Possible grid layouts include 2×2, 4×4, and 5×5. In each grid layout,
the number of pads is the same on the X and Y axis.
Keywave
A wavelike element of the keywave surface of Seaboards that corresponds to a
single key on a standard keyboard. Each of the Five Dimensions of Touch can
be accessed on a single keywave.
Keywave surface
The entire playing Seaboard surface including all keywaves and the ribbons
above and below them. The keywave surface corresponds to a keyboard.
Lightpad Block
A Master Block and the central Block in the BLOCKS system. The Lightpad Block
features an illuminated tactile surface that enables creators to shape sound
through Five Dimensions of Touch: Strike, Glide, Slide, Press, and Lift. When
paired with NOISE it builds sequencing, looping, finger drumming and
expressive control into one intuitive device. It can also be used with BLOCKS
Dashboard to expressively control digital audio workstations and software and
hardware synthesizers.
Lightpad Surface
The 15×15 LED matrix made up of individual cells (225) and covered with laser-
etched silicone which makes up the surface of the Lightpad Block and enables
users to play multidimensional or 5D Touch performances.
Live Block
A Control Block that provides quick access to music performance functions, so
creators can be more expressive in real time. The Block’s 10 buttons include
controls for switching scales and octaves, playing chords and arpeggios, and
sustaining notes in NOISE.The Live Block can also be used with BLOCKS
Dashboard to transmit MIDI CC messages in order to control digital audio
workstations and software synthesizers.
Loop Block
A Control Block that provides quick access to music production functions so
creators can easily layer sounds into a song in NOISE.The Block’s 10 buttons
include controls for setting a tempo, recording loops, and quantizing loops so
they snap in time with the tempo. The Loop Blockcan also be used with
BLOCKS Dashboard to send MMC messages to control the trasport functions of
digital audio workstations, and it can also transmit MIDI CC messages in order
to control digital audio workstations and software synthesizers.
Master Block
Master Blocks – including the Lightpad Block and Seaboard Block – are the
central Blocks of the BLOCKS system. To use BLOCKS you need at least one
Master Block. Additional Blocks, including Control Blocks, connect via DNA to
the Master Block.
MPE
Multidimensional Polyphonic Expression (MPE) is a protocol for using standard
MIDI messages to communicate with and enable the operation of
multidimensional instruments such as the Seaboard and BLOCKS. MPE enables
independent, per-note control of multiple sound parameters such as pitch and
timbre.
NOISE
A free modular music app that lets anyone create beats, melodies and songs
using simple, easy-to-learn gestures on the touch screens of mobile devices.
The app’s expressive power can be expanded with BLOCKS. It is at the heart of
the BLOCKS system.
Pad
A square that corresponds to a note in the grid layout of the Lightpad Block
and NOISE.

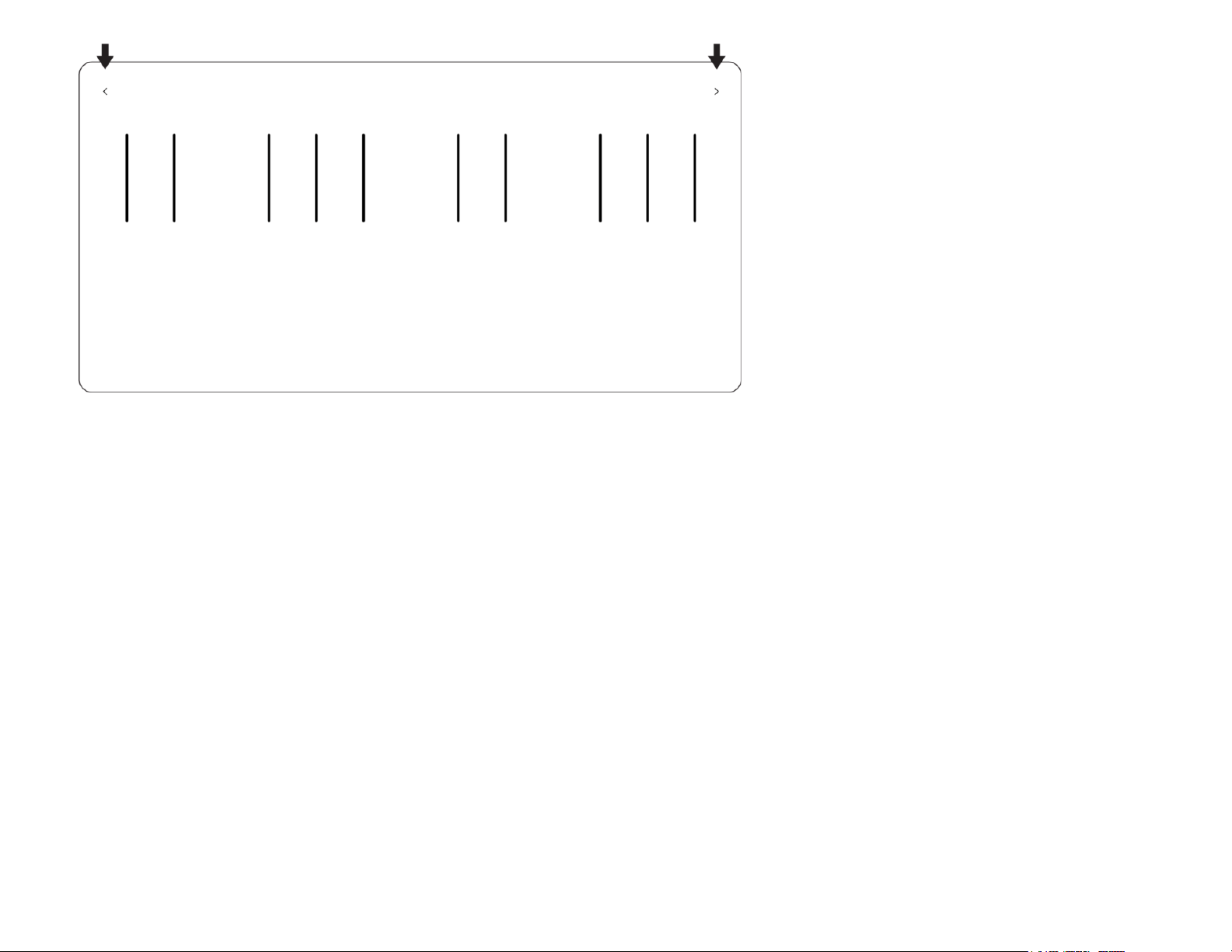

Seaboard Block
The Seaboard Block pairs the powerfully expressive keywave surface of the
Seaboard GRAND and Seaboard RISE with the portability and modularity of
BLOCKS. It is a Master Block and includes 24 keywaves as well as lower and
upper octave switches. Multiple Seaboard Blocks can connect together to
create an extended playing surface.
Touch Block
A Control Block that adjusts the responsiveness of the Seaboard Block’s and
Lightpad Block’s 5D Touch when used with NOISE or desktop applications. The
Touch Block’s 10 buttons control the sensitivity of Strike, Glide, Slide, Press,
and Lift, lock Strike or Glide, or put the Seaboard Block into “piano mode,” by
turning off Glide.The Touch Blockcan also be used with BLOCKS Dashboard to
transmit MIDI CC messages in order to control digital audio workstations and
software synthesizers.
USB-C
The type of USB connector used to connect and charge the Lightpad Block and
Seaboard Block. There is a female connector on the block itself, and a male
connector on the included USB-C-to-USB-A cable.
3 Getting Started
3.1 Charging
You should charge your Seaboard Block as the first step before proceeding.
When connected to a suitable power source, the Seaboard Block can charge
additional Blocks that are connected to its DNA connectors.

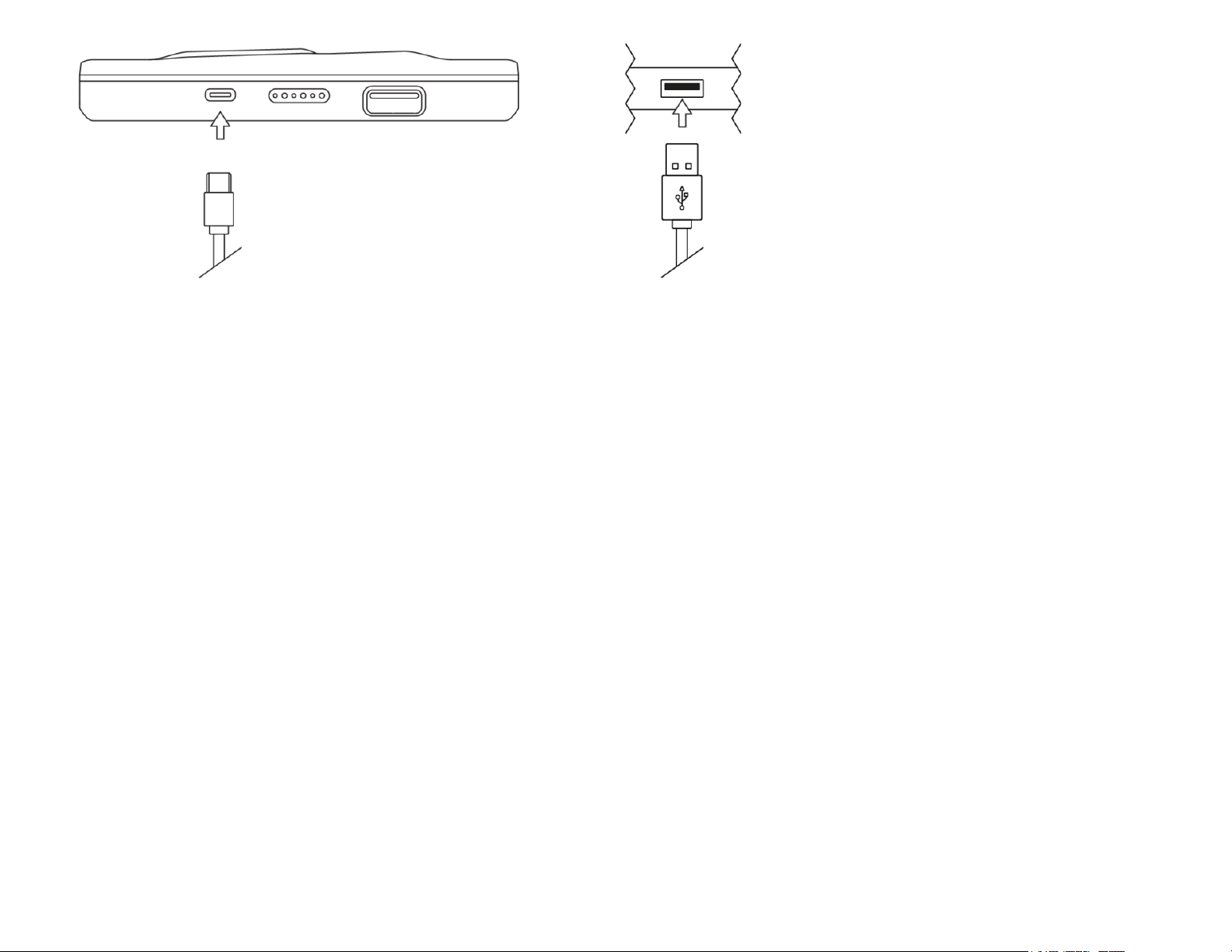

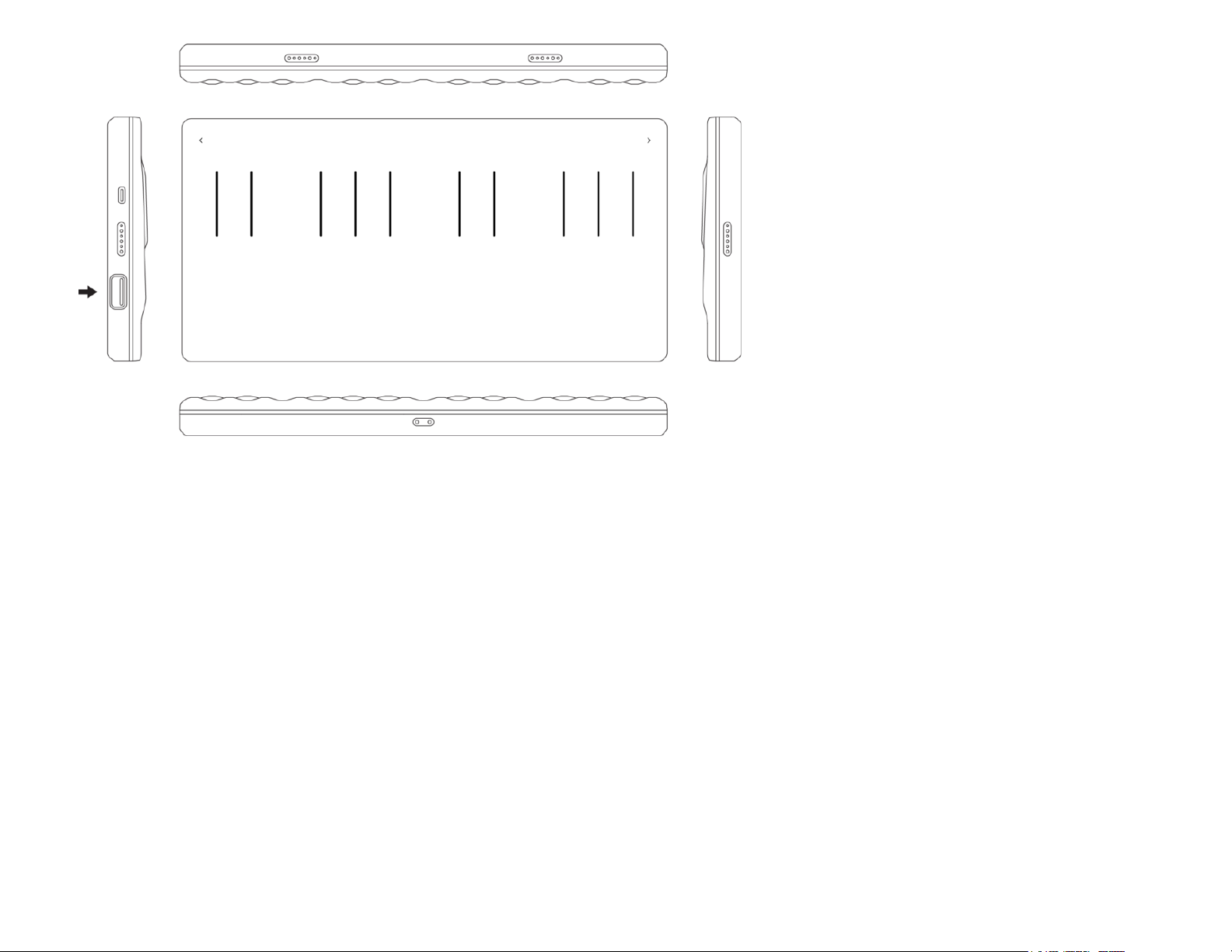

Plug the included USB-C cable into the Seaboard Block and plug the other end
of the cable into a USB 3 charger or a computer with a USB 3 port.
First connect the Seaboard Block to a USB 3 power source (like an iPad
charger or Macbook USB 3 port) with the included USB-C cable.
Connect the Control Block to the Lightpad or Seaboard Block via DNA
connectors to begin charging it.
For fastest charging times, turn the Blocks off during charging.
The Seaboard Block requires 5 watts of power to run and charge the battery
efficiently. Adding more Blocks via the DNA connectors will increase the
demand for power, so we recommend using a higher output charger such as
an iPad charger (10–12 watts) or a higher output USB 3 charger.
Please note that when charging via a computer that you must use the ROLI-
supplied USB cable to connect to the host computer. When using a laptop
computer please make sure that it is plugged into a wall outlet and has its
sleep feature disabled.
Note: Please do not use an iPhone charger to charge BLOCKS, as it is not a
compatible charger.
3.2 What is BLOCKS?
BLOCKS is a modular music platform that opens new possibilities for musical
expression. A BLOCKS system starts with either the Lightpad Block or the
Seaboard Block, both of which are so-called Master Blocks. Other Blocks – such
as the Live Block, Loop Block, and Touch Block – connect to the Master Block
and allow easier, faster control of music performance and production. The
modular system is powered by NOISE, a free iOS app that functions as the
