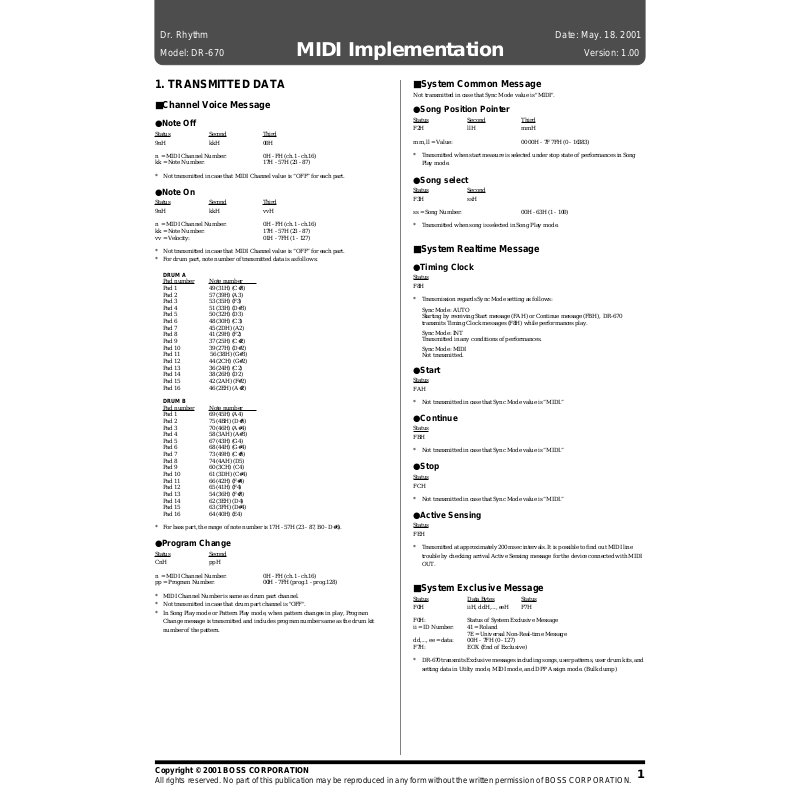

Page 1

Dr. Rhythm

Date: May. 18. 2001

Model: DR-670

MIDI Implementation

1. TRANSMITTED DATA

■Channel Voice Message

●Note Off

Status Second Third 9nH kkH 00H

n = MIDI Channel Number: 0H - FH (ch.1 - ch.16) kk = Note Number: 17H - 57H (23 - 87)

* Not transmitted in case that MIDI Channel value is “OFF” for each part.

●Note On

Status Second Third 9nH kkH vvH

n = MIDI Channel Number: 0H - FH (ch.1 - ch.16) kk = Note Number: 17H - 57H (23 - 87) vv = Velocity: 01H - 7FH (1 - 127)

* Not transmitted in case that MIDI Channel value is “OFF” for each part. * For drum part, note number of transmitted data is as follows:

DRUM A

Pad number Pad 1 49 (31H) (C#3) Pad 2 57 (39H) (A3) Pad 3 53 (35H) (F3) Pad 4 51 (33H) (D#3) Pad 5 50 (32H) (D3) Pad 6 48 (30H) (C3) Pad 7 45 (2DH) (A2) Pad 8 41 (29H) (F2) Pad 9 37 (25H) (C#2) Pad 10 39 (27H) (D#2) Pad 11 56 (38H) (G#3) Pad 12 44 (2CH) (G#2) Pad 13 36 (24H) (C2) Pad 14 38 (26H) (D2) Pad 15 42 (2AH) (F#2) Pad 16 46 (2EH) (A#2)

DRUM B

Pad number Pad 1 69 (45H) (A4) Pad 2 75 (4BH) (D#5) Pad 3 70 (46H) (A#4) Pad 4 58 (3AH) (A#3) Pad 5 67 (43H) (G4) Pad 6 68 (44H) (G#4) Pad 7 73 (49H) (C#5) Pad 8 74 (4AH) (D5) Pad 9 60 (3CH) (C4) Pad 10 61 (3DH) (C#4) Pad 11 66 (42H) (F#4) Pad 12 65 (41H) (F4) Pad 13 54 (36H) (F#3) Pad 14 62 (3EH) (D4) Pad 15 63 (3FH) (D#4) Pad 16 64 (40H) (E4)

* For bass part, the range of note number is 17H - 57H (23 - 87, B0 - D#6).

●Program Change

Status Second CnH ppH

n = MIDI Channel Number: 0H - FH (ch.1 - ch.16) pp = Program Number: 00H - 7FH (prog.1 - prog.128)

* MIDI Channel Number is same as drum part channel. * Not transmitted in case that drum part channel is "OFF". * In Song Play mode or Pattern Play mode, when pattern changes in play, Program

Change message is transmitted and includes program number same as the drum kit number of the pattern.

Note number

Version: 1.00

■System Common Message

Not transmitted in case that Sync Mode value is "MIDI".

●Song Position Pointer

Status Second Third F2H llH mmH

mm, ll = Value: 00 00H - 7F 7FH (0 - 16383)

* Transmitted when start measure is selected under stop state of performances in Song

Play mode.

●Song select

Status Second F3H ssH

ss = Song Number: 00H - 63H (1 - 100)

* Transmitted when song is selected in Song Play mode.

■System Realtime Message

●Timing Clock

Status F8H

* Transmission regards Sync Mode setting as follows:

Sync Mode: AUTO Starting by receiving Start message (FAH) or Continue message (FBH), DR-670 transmits Timing Clock messages (F8H) while performances play.

Sync Mode: INT Transmitted in any conditions of performances.

Sync Mode: MIDI Not transmitted.

●Start

Status FAH

* Not transmitted in case that Sync Mode value is “MIDI.”

●Continue

Status FBH

* Not transmitted in case that Sync Mode value is “MIDI.”

●Stop

Status FCH

* Not transmitted in case that Sync Mode value is “MIDI.”

●Active Sensing

Status FEH

* Transmitted at approximately 200 msec intervals. It is possible to find out MIDI line

trouble by checking arrival Active Sensing message for the device connected with MIDI OUT.

■System Exclusive Message

Status Data Bytes Status F0H iiH, ddH,..., eeH F7H

F0H: Status of System Exclusive Message ii = ID Number: 41 = Roland

dd,..., ee = data: 00H - 7FH (0 - 127) F7H: EOX (End of Exclusive)

* DR-670 transmits Exclusive messages including songs, user patterns, user drum kits, and

setting data in Utilty mode, MIDI mode, and DPP Assign mode. (Bulk dump)

7E = Universal Non-Real-time Message

Page 2

MIDI Implementation

2. RECOGNIZED RECEIVE DATA

■Channel Voice Message

●Note Off

Status Second Third 8nH kkH vvH

9nH kkH 00H

n = MIDI Channel Number: 0H - FH (ch.1 - ch.16) kk = Note Number: 17H - 57H (23 - 87) vv = Velocity: 00H - 7FH (0 - 127)

* Velocity value is not recognized. * Not recognized in case that MIDI Channel value is “OFF” for each part.

●Note On

Status Second Third 9nH kkH vvH

n = MIDI Channel Number: 0H - FH (ch.1 - ch.16) kk = Note Number: 17H - 57H (23 - 87) vv = Velocity: 01H - 7FH (1 - 127)

* Not recognized in case that MIDI Channel value is “OFF” for each part. * For drum part, note number of recognized data is as follows:

DRUM A

DRUM B

* For bass part, the range of note number is 17H - 57H (23 - 87, B0 - D#6).

●Program Change

Status Second CnH ppH

n = MIDI Channel Number: 0H - FH (ch.1 - ch.16) pp = Program Number: 00H - 7FH (prog.1 - prog.128)

* MIDI Channel Number is same as drum part channel. * Not recognized in case that drum part channel is “OFF.” * Recognizing Program Change message, DR-670 switches Drum Kit of the same number

as Program Number. Consequently, bass tone changes as the Drum kit including.

* After recognizing a Program Change message, new voices will sound as a switch, but

sounding voices will not change then.

Note number

■System Common Message

Not recognized in case that Sync Mode value is "INT".

●Song Position Pointer

Status Second Third F2H llH mmH

mm, ll = Value: 00 00H - 7F 7FH (0 - 16383)

* Recognized under stop state of performances in Song Play mode or Pattern Play mode,

and located the start position to play as a Value.

●Song Select

Status Second F3H ssH

ss = Song Number: 00H - 63H (1 - 100)

* Recognized under stop state of performances in Song Play Mode, and switched song to

play.

■System Realtime Message

●Timing Clock

Status F8H

* Recognition regards Sync Mode setting as follows:

Sync Mode: AUTO Starting by receiving Start message (FAH) or Continue message (FBH), performances are synchronized to Timing Clock message (F8H).

Sync Mode: INT Not recognized.

Sync Mode: MIDI Recognized in any conditions of performances.

●Start

Status FAH

* Not recognized in case that Sync Mode value is “INT.”

●Continue

Status FBH

* Not recognized in case that Sync Mode value is “INT.”

●Stop

Status FCH

* Not recognized in case that Sync Mode value is “INT.”

●Active Sensing

Status FEH

* Once receiving Active Sensing message, DR-670 begins checking intervals of receiving

messages. If an interval is over 500 msec, DR-670 will stop sounding tones temporarily and not check intervals after this.

■System Exclusive Message

Status Data Bytes Status F0H iiH, ddH,..., eeH F7H

F0H: Status of System Exclusive Message ii = ID Number: 41 = Roland

dd,..., ee = data: 00H - 7FH (0 - 127) F7H: EOX (End of Exclusive)

* Bulk-dumped data by own or other DR-670 can be recognized as Exclusive messages.

(Bulk load)

7E = Universal Non-Real-time Message

Page 3

MIDI Implementation

3. Messages stored in patterns

■Channel Voice Message

●Note Off

Status Second Third 9nH kkH 00H

n = MIDI Channel Number: 0H - FH (ch.1 - ch.16) kk = Note Number: 23H - 4BH (35 - 75)

●Note On

Status Second Third 9nH kkH vvH

n = MIDI Channel Number: 0H - FH (ch.1 - ch.16) kk = Note Number: 23H - 4BH (35 - 75) vv = Velocity: 01H - 7FH (1 - 127)

* For drum part, note number of stored data is as follows:

DRUM A

DRUM B

* For bass part, the range of note number is 23H - 48H (35 - 75, B1 - D#5).

Note number

4. Exclusive Communications

■General

DR-670 can do one-way communications to send and receive parameters for songs, user patterns, user drum kits, and other memorized setting data. Model ID included in the exclusive message should be 00H 41H. The device ID code should be “DEV ID” value in MIDI mode, that is System Exclusive Device ID. Note that the actual value that set in device ID field is smaller by one than the value set as “DEV ID” in MIDI mode.

●Universal Non-Realtime System Exclusive Message

❍Identity Request

Status Data Bytes Status F0H 7EH, dev, 06H, 01H F7H

Byte F0H Exclusive Status

7EH ID Number (Universal Non-Real-time Message) dev Device ID (10H - 1FH, 7FH (17 - 32, 128)) 06H Sub ID#1 (General Information) 01H Sub ID#2 (Identity Request) F7H EOX (End of Exclusive)

* Device ID (dev) value is “DEV ID” in Midi mode or 7FH (Broadcast). * When Identity Request is received, Identity Reply message will be transmitted.

❍Identity Reply

Status Data Bytes Status F0H 7EH, dev, 06H, 02H, F7H

Byte F0H Exclusive Status

7EH ID Number (Universal Non-Real-time Message) dev Device ID (10H - 1FH (17 - 32)) 06H Sub ID#1 (General Information) 02H Sub ID#2 (Identity Reply) 41H Manufacturer ID (Roland) 41H, 01H Device Family Code 00H, 00H Device Family Number Code 00H, 02H, 00H, 00H Software Revision Level F7H EOX (End of Exclusive)

* Transmitted Identity Reply message by the unique device ID when the device has

received the Identity Request message in the Broadcast(Device ID: 7FH).

●Data Transmission

❍Request data RQ1 11H

Byte Description F0H Exclusive status

41H Manufacturer ID (Roland) dev Device ID (10H - 1FH) 00H Model ID (DR-670) MSB 41H Model ID (DR-670) LSB 11H Command ID (RQ1) aaH Address MSB bbH Address ccH Address ddH Address eeH Address LSB ssH Size MSB ttH Size uuH Size vvH Size wwH Size LSB sum Checksum F7H EOX (End of Exclusive)

❍Data set DT1 12H

Byte Description F0H Exclusive status

41H Manufacturer ID (Roland) dev Device ID (10H - 1FH) 00H Model ID (DR-670) MSB 41H Model ID (DR-670) LSB 12H Command ID (DT1) aaH Address MSB bbH Address ccH Address ddH Address eeH Address LSB ffH Data : : ggH Data sum Checksum F7H EOX (End of Exclusive)

Description

41H, 41H, 01H, 00H, 00H, 00H, 02H, 00H, 00H,

Description

Page 4

MIDI Implementation

■Transmission

DR-670 transmits Exclusive message when executing MIDI Bulk dump at "TX BULK" screen in MIDI mode.

■Receive

DR-670 receives Exclusive message only at "RX BULK" screen in MIDI mode.

5. Parameter Address Map

Address value shows in 7-bit hexadecimal.

+———————————+———————————+———————————+———————————+———————————+———————————+ | Address | MSB | | | | LSB | +———————————+———————————+———————————+———————————+———————————+———————————+ | Binary | 0aaa aaaa | 0bbb bbbb | 0ccc cccc | 0ddd dddd | 0eee eeee | | 7 bit hex.| AA | BB | CC | DD | EE | +———————————+———————————+———————————+———————————+———————————+———————————+

■Parameter Address

Start Address Description 10 00 00 00 00 Song data (1 - 100) 20 00 00 00 00 User Pattern data (201 - 400) 30 00 00 00 00 User Drum Kit data (65 - 128) 40 00 00 00 00 Utility mode, MIDI mode and DPP assign settings data 70 00 00 00 00 Bulk transmission control commands

* Address values in messages of data request should be as above. Request size values are

free.

6. Supplementary material

●Decimal/Hexadecimal table

MIDI uses 7-bit hexadecimal values to indicate data values and the address and size of exclusive messages. The following table shows the correspondence between decimal and hexadecimal numbers.

+——————+——————++——————+——————++——————+——————++——————+——————+ | D | H || D | H || D | H || D | H | +——————+——————++——————+——————++——————+——————++——————+——————+ | 0 | 00H || 32 | 20H || 64 | 40H || 96 | 60H | | 1 | 01H || 33 | 21H || 65 | 41H || 97 | 61H | | 2 | 02H || 34 | 22H || 66 | 42H || 98 | 62H | | 3 | 03H || 35 | 23H || 67 | 43H || 99 | 63H | | 4 | 04H || 36 | 24H || 68 | 44H || 100 | 64H | | 5 | 05H || 37 | 25H || 69 | 45H || 101 | 65H | | 6 | 06H || 38 | 26H || 70 | 46H || 102 | 66H | | 7 | 07H || 39 | 27H || 71 | 47H || 103 | 67H | | 8 | 08H || 40 | 28H || 72 | 48H || 104 | 68H | | 9 | 09H || 41 | 29H || 73 | 49H || 105 | 69H | | 10 | 0AH || 42 | 2AH || 74 | 4AH || 106 | 6AH | | 11 | 0BH || 43 | 2BH || 75 | 4BH || 107 | 6BH | | 12 | 0CH || 44 | 2CH || 76 | 4CH || 108 | 6CH | | 13 | 0DH || 45 | 2DH || 77 | 4DH || 109 | 6DH | | 14 | 0EH || 46 | 2EH || 78 | 4EH || 110 | 6EH | | 15 | 0FH || 47 | 2FH || 79 | 4FH || 111 | 6FH | | 16 | 10H || 48 | 30H || 80 | 50H || 112 | 70H | | 17 | 11H || 49 | 31H || 81 | 51H || 113 | 71H | | 18 | 12H || 50 | 32H || 82 | 52H || 114 | 72H | | 19 | 13H || 51 | 33H || 83 | 53H || 115 | 73H | | 20 | 14H || 52 | 34H || 84 | 54H || 116 | 74H | | 21 | 15H || 53 | 35H || 85 | 55H || 117 | 75H | | 22 | 16H || 54 | 36H || 86 | 56H || 118 | 76H | | 23 | 17H || 55 | 37H || 87 | 57H || 119 | 77H | | 24 | 18H || 56 | 38H || 88 | 58H || 120 | 78H | | 25 | 19H || 57 | 39H || 89 | 59H || 121 | 79H | | 26 | 1AH || 58 | 3AH || 90 | 5AH || 122 | 7AH | | 27 | 1BH || 59 | 3BH || 91 | 5BH || 123 | 7BH | | 28 | 1CH || 60 | 3CH || 92 | 5CH || 124 | 7CH | | 29 | 1DH || 61 | 3DH || 93 | 5DH || 125 | 7DH | | 30 | 1EH || 62 | 3EH || 94 | 5EH || 126 | 7EH | | 31 | 1FH || 63 | 3FH || 95 | 5FH || 127 | 7FH | +——————+——————++——————+——————++——————+——————++——————+——————+

D: decimal H: hexadecimal

* Decimal expressions such as used for MIDI channel, Program Change, and Device ID

will be the value 1 greater than the decimal value given in the above table.

* Since each MIDI byte carries seven significant data bits, each byte can express a

maximum of 128 different values. Data for which higher resolution is required must be transmitted using two or more bytes. For example data indicated as a two-byte value of aa bbH would have a value of aa x 128 + bb.

What is the decimal equivalent of 5AH? From the above table, 5AH = 90.

What is the decimal equivalent of the 7-bit hexadecimal values 12 34H? From the above table, 12H = 18 and 34H = 52 Thus, 18 x 128 + 52 = 2356

(“H” follows hexadecimal value)

❍Examples of actual MIDI messages

<Example> C9 49

CnH is the Program Change status and n is the MIDI channel number. Since 9H = 9 and 49H = 73, it is a Program Change message for MIDI CH = 10 and Program number = 74.

❍Examples of exclusive messages and calculating the checksum

Roland exclusive messages (RQ1, DT1) are transmitted with a checksum at the end of the data (before F7H) to check that the data was received correctly. The value of the checksum is determined by the address and data (or size) of the exclusive message.

❍How to calculate the checksum

The checksum consists of a value whose lower seven bits are zero when the address, size and checksum itself are added. The following formula shows how to calculate the checksum when the exclusive message to be transmitted has an address for aa bb cc ddH, and data or size for ee ffH.

aa + bb + cc + dd + ee + ff = total total / 128 = quotient ... remainder 128 - remainder = checksum

Checksum is zero if the remainder is zero.

<Example> Request to transfer the drum kits data

See the Parameter Address Map address : 30 00 00 00 00H size : can be any values (now using 00 00 00 00 00H)

F0 41 10 00 41 11 30 00 00 00 00 00 00 00 00 00 ?? F7 (1) (2) (3) (4) (5) address size checksum (6)

(1) Exclusive status (2) ID number (Roland) (3) Device ID (17) (4) Model ID (DR-670) (5) Command ID (RQ1) (6) End of Exclusive

Next, we calculate the checksum.

30H + 00H + 00H + 00H + 00H + 00H + 00H + 00H + 00H + 00H = 48 + 0 + 0 + 0 + 0 + 0 + 0 + 0 + 0 = 48 (sum)

48 (total) / 128 = 0 (quotient) ... 48 (remainder) checksum = 128 - 48 (remainder) = 80 = 50H

This means that the message transmitted will be F0 41 10 00 41 11 30 00 00 00 00 00 00 00 00 00 50 F7.
