Roland VC-30HD User Manual

Owner's Manual
Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY”(p. 4) and “IMPORTANT NOTES” (p. 7). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, owner’s manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.
Copyright © 2011 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
* Roland is either registered trademark or trademark of Roland Corporation
in the United States and/or other countries.
* All product names mentioned in this document are trademarks or
registered trademarks of their respective owners.
IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.
BLUE: BROWN:
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Under no circumstances must either of the above wires be connected to the earth terminal of a three pin plug.
NEUTRAL LIVE
For the U.K.

Check the Included Items

The following items are included. Please make sure that all items are present. If anything is missing, please contact your dealer.
The VC-30HD itself
fig.VC30HD-itself.eps
AC adaptor and power cord
fig.PSB1U.eps
Rubber foot
fig.rubber-foot.eps
* The rubber feet are arranged onto one pad.
Remove each one from the pad if you wish to install them.
* Attach the included rubber feet as needed.
Refer to “About the Rubber Foot“ (p. 10).
Owner’s Manual (this document)
fig.owners-manual.eps
MMP (Moore Microprocessor Portfolio) refers to a patent portfolio concerned with microprocessor architecture, which was developed by Technology Properties Limited (TPL). Roland has licensed this technology from the TPL Group.
3

USING THE UNIT SAFELY

Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.
* Material damage refers to damage or
other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.
002c
• Do not open (or modify in any way) the unit or its AC adaptor.
.......................................................................................................................
003
• Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an autho­rized Roland distributor, as listed on the “Infor­mation” sheet.
.......................................................................................................................
004
• Never install the unit in any of the following locations.
• Subject to temperature extremes (e.g.,
direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are
• Damp (e.g., baths, washrooms, on wet
floors); or are
• Exposed to steam or smoke; or are
• Subject to salt exposure; or are
• Humid; or are
• Exposed to rain; or are
• Dusty or sandy; or are
• Subject to high levels of vibration and
shakiness.
.......................................................................................................................
007
• Make sure you always have the unit placed so it is level and sure to remain stable. Never place it on stands that could wobble, or on inclined surfaces.
.......................................................................................................................
The symbol alerts the user to important instructions or warnings.The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for
The symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
The symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power­cord plug must be unplugged from the outlet.
008c
• Be sure to use only the AC adaptor supplied with the unit. Also, make sure the line voltage at the installation matches the input voltage specified on the AC adaptor’s body. Other AC adaptors may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.
.......................................................................................................................
008e
• Use only the attached power-supply cord. Also, the supplied power cord must not be used with any other device.
.......................................................................................................................
009
• Do not excessively twist or bend the power cord, nor place heavy objects on it. Doing so can damage the cord, producing severed elements and short circuits. Damaged cords are fire and shock hazards!
.......................................................................................................................
010
• In combination with an amplifier and headphones or speakers, this unit may be capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high volume level, or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should immediately stop using the unit, and consult an audiologist.
.......................................................................................................................
4
011
• Do not allow any objects (e.g., flammable material, coins, pins); or liquids of any kind (water, soft drinks, etc.) to penetrate the unit.
.......................................................................................................................
012b
• Immediately turn the power off, remove the AC adaptor from the outlet, disconnect all the cables and request servicing by your retailer, the nearest Roland Service Center, or an autho­rized Roland distributor, as listed on the “Infor­mation” sheet when:
• The AC adaptor, the power-supply cord, or
the plug has been damaged; or
• If smoke or unusual odor occurs
• Objects have fallen into, or liquid has been
spilled onto the unit; or
• The unit has been exposed to rain (or
otherwise has become wet); or
• The unit does not appear to operate
normally or exhibits a marked change in performance.
.......................................................................................................................
013
• In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the unit.
.......................................................................................................................
014
• Protect the unit from strong impact. (Do not drop it!)
.......................................................................................................................
015
• Do not force the unit’s power-supply cord to share an outlet with an unreasonable number of other devices. Be especially careful when using extension cords—the total power used by all devices you have connected to the extension cord’s outlet must never exceed the power rating (watts/amperes) for the extension cord. Excessive loads can cause the insulation on the cord to heat up and eventually melt through.
.......................................................................................................................
016
• Before using the unit in a foreign country, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” sheet.
.......................................................................................................................
USING THE UNIT SAFELY
5
USING THE UNIT SAFELY
101b
• The unit and the AC adaptor should be located so their location or position does not interfere with their proper ventilation.
.......................................................................................................................
102c
• Always grasp only the plug on the AC adaptor cord when plugging into, or unplugging from, an outlet or this unit.
.......................................................................................................................
103b
• At regular intervals, you should unplug the AC adaptor and clean it by using a dry cloth to wipe all dust and other accumulations away from its prongs. Also, disconnect the power plug from the power outlet whenever the unit is to remain unused for an extended period of time. Any accumulation of dust between the power plug and the power outlet can result in poor insulation and lead to fire.
.......................................................................................................................
104
• Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.
.......................................................................................................................
106
• Never climb on top of, nor place heavy objects on the unit.
.......................................................................................................................
107c
• Never handle the AC adaptor or its plugs with wet hands when plugging into, or unplugging from, an outlet or this unit.
.......................................................................................................................
108b
• Before moving the unit, disconnect the AC adaptor and all cords coming from external devices.
.......................................................................................................................
109b
• Before cleaning the unit, turn off the power and unplug the AC adaptor from the outlet (p.
11) and disconnect all the cables.
.......................................................................................................................
110b
• Whenever you suspect the possibility of lightning in your area, disconnect the AC adaptor from the outlet.
.......................................................................................................................
118d
• To prevent accidental ingestion of the parts
below, always keep them out of the
listed reach of small children.
• Included Parts
Rubber Foot (p. 10)
• Removable Parts
Ground Terminal Screw (p. 12)
.......................................................................................................................
118e
• If you remove the screw from the ground terminal, be lying around where it could accidently be swallowed by small children. When refas­tening the screw, make that it is firmly fastened, so it won't come loose.
.......................................................................................................................
119
• The top panel may become hot, so take care to avoid
.......................................................................................................................
sure to replace it; don't leave it
burns.
6

IMPORTANT NOTES

Power Supply
301
• Do not connect this unit to same electrical outlet that is being used by an electrical appliance that is controlled by an inverter (such as a refrigerator, washing machine, microwave oven, or air conditioner), or that contains a motor. Depending on the way in which the electrical appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If it is not practical to use a separate electrical outlet, connect a power supply noise filter between this unit and the electrical outlet.
302
• The AC adaptor will begin to generate heat after long hours of consecutive use. This is normal, and is not a cause for concern.
307
• Before connecting this unit to other devices, turn off the power to all units. This will help prevent malfunc­tions and/or damage to speakers or other devices.
309
• With the factory settings, the VC-30HD's power will automatically be switched off four hours after the unit stops receiving input signals. If you don't want the power to turn off automatically, change the "AUTO OFF" setting to "OFF" as described on p. 13.
Placement
351
• Using the unit near power amplifiers (or other equipment containing large power transformers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it farther away from the source of interference.
352a
• This device may interfere with radio and television reception. Do not use this device in the vicinity of such receivers.
352b
• Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.
354a
• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Excessive heat can deform or discolor the unit.
355b
• When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.
360
• Depending on the material and temperature of the surface on which you place the unit, its rubber feet may discolor or mar the surface. You can place a piece of felt or cloth under the rubber feet to prevent this from happening. If you do so, please make sure that the unit will not slip or move accidentally.
361
• Do not put anything that contains water on this unit. Also, avoid the use of insecticides, perfumes, alcohol, nail polish, spray cans, etc., near the unit. Swiftly wipe away any liquid that spills on the unit using a dry, soft cloth.
7
IMPORTANT NOTES
Maintenance
401a
• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impreg­nated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.
402
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.
Repairs and Data
452
• Please be aware that all data contained in the unit’s memory may be lost when the unit is sent for repairs. Important data should always be written down on paper (when possible). During repairs, due care is taken to avoid the loss of data. However, in certain cases (such as when circuitry related to memory itself is out of order), we regret that it may not be possible to restore the data, and Roland assumes no liability concerning such loss of data.
Additional Precautions
551
• Please be aware that the contents of memory can be irretrievably lost as a result of a malfunction, or the improper operation of the unit. To protect yourself against the risk of loosing important data, we recommend that you periodically write down on paper.
552
• Unfortunately, it may be impossible to restore the contents of data that was stored on internal memory once it has been lost. Roland Corporation assumes no liability concerning such loss of data.
553
• Use a reasonable amount of care when using the unit’s buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.
556
• When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable’s internal elements.
558b
• To avoid disturbing your neighbors, try to keep the unit’s volume at reasonable levels (especially when it is late at night).
559a
• When you need to transport the unit, package it in the box (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials.
562
• Some connection cables contain resistors. Do not use cables that incorporate resistors for connecting to this unit. The use of such cables can cause the sound level to be extremely low, or impossible to hear. For infor­mation on cable specifications, contact the manufac­turer of the cable.
928/929
• When turning the unit upside-down, handle with care to avoid dropping it, or allowing it to fall or tip over. Prevent damage to the buttons and controls.
About Intellectual Property Rights
C-02
• This product can be used to record or duplicate audio or visual material without being limited by certain technological copy-protection measures. This is due to the fact that this product is intended to be used for the purpose of producing original music or video material, and is therefore designed so that material that does not infringe copyrights belonging to others (for example, your own original works) can be recorded or duplicated freely.
8

Contents

Before Using the VC-30HD.................................................... 10
Supported Formats ....................................................................................................10
About Rubber Feet..................................................................................................... 10
Turning the Power On and Off.............................................. 11
Connecting the AC Adapter....................................................................................11
Turning the Power On...............................................................................................12
Turning the power off ...............................................................................................12
About AUTO OFF......................................................................................................... 13
Names of Things and What They Do ....................................14
Front Panel ....................................................................................................................14
Rear Panel ......................................................................................................................16
About Button Operations ........................................................................................17
Connecting External Equipment .......................................... 18
Connecting Video Sources ......................................................................................19
Making a Component Connection ..............................................................................19
Making a Composite/S-Video Connection ............................................................... 20
Making an HDMI Connection......................................................................................... 21
Making an i.LINK Connection......................................................................................... 21
Connecting Audio Sources...................................................................................... 22
Making an Analog Connection .....................................................................................22
Making a Digital Connection .........................................................................................23
The PEAK/SIG Indicators and the SENS Dial .............................................................23
Connecting Output Equipment............................................................................. 24
Connecting an i.LINK Device.......................................................................................... 24
Connecting a USB device ................................................................................................24
Connecting a Timecode Source.............................................................................25
Converting Signals ................................................................26
Converting Analog Input .........................................................................................26
Converting HDMI Input ............................................................................................27
i.LINK Thru-Out ............................................................................................................27
Audio Source Settings............................................................................................... 28
Appendices ............................................................................ 29
Main Specifications ....................................................................................................29
About Remote Control.............................................................................................. 31
Security slot...................................................................................................................31

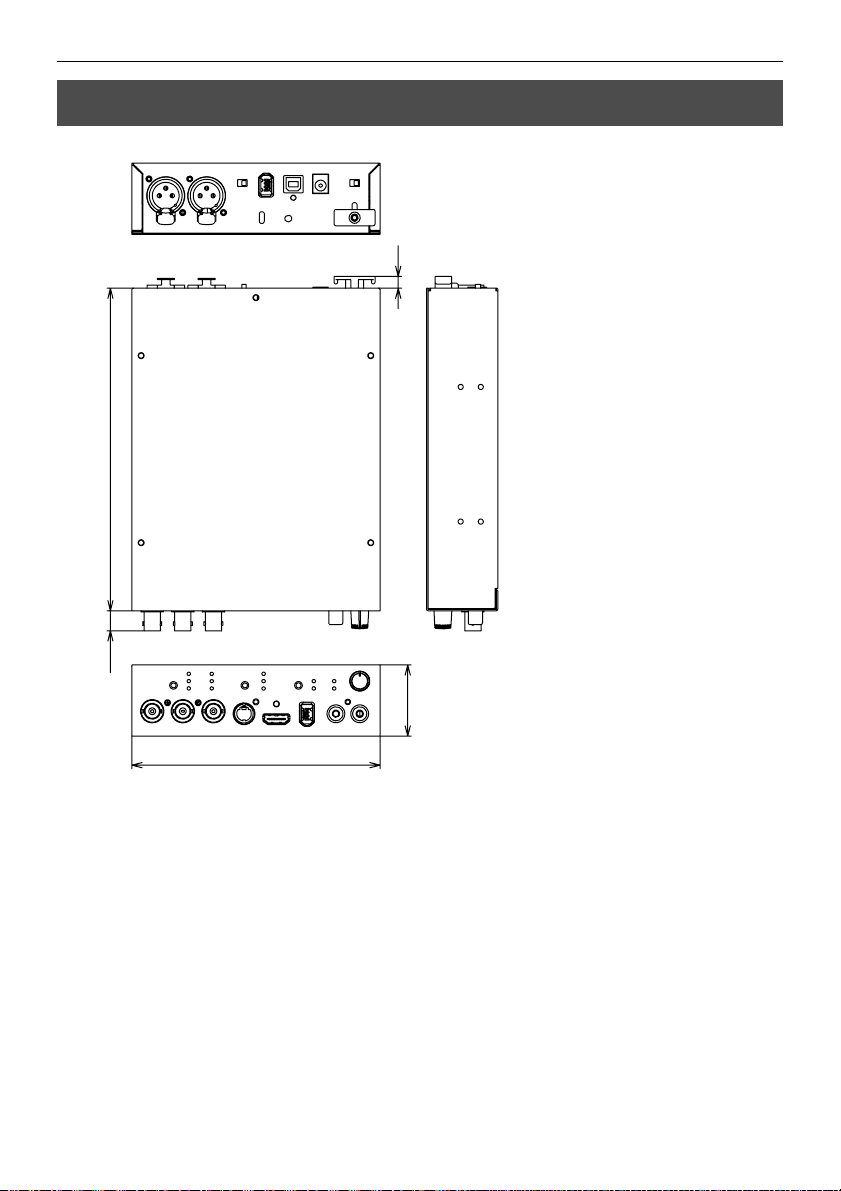

Dimensions ...................................................................................................................32
Troubleshooting.......................................................................................................... 33
9

Before Using the VC-30HD

Supported Formats

The VC-30HD supports the following formats.
fig.conversion-table.eps
INPUT OUTPUT
Component/HDMI
1080/59.94i, 50i, 23.98PsF 720/59.94p, 50p 576/50p, 480/59.94p
576/50i, 480/59.94i
Composite/S-Video
576/50i, 480/59.94i
i.LINK (Front)
HDV, DV, MPEG-2
* The output frame rate will be the same as the input frame rate.
The VC-30HD does not support up/down scalling, interlace/progressive (I/P) conversion, or frame rate conversion. The [OUTPUT FORMAT] indicators flash when the input and output formats are not compatible, such as the scenarios shown below. No output is possible while the [OUTPUT FORMAT] indicators are flashing.
• When 1080i component input is selected as the source and DV is selected as the output format.
• When NTSC S-Video input is selected as the source and HDV is selected as the output format.
i.LINK(Rear), USB
HDV, MPEG-2
DV, MPEG-2
i.LINK (Rear), USB
DV, MPEG-2
i.LINK (Rear), USB
Thru Output

About Rubber Feet

Attach the included rubber feet to the bottom panel if necessary. Attach the rubber feet at the locations shown below. Affix so as to block the four holes on the bottom panel.
* When turning the unit upside down, handle with care to avoid dropping the unit, allowing it to
fall or tip over, or damaging the controls.
fig.rubber-foot-location.eps
10

Turning the Power On and Off

Connecting the AC Adapter

Place the AC adaptor so the side with the indicator (see illustration) faces upwards and the side with textual information faces downwards.
* The indicator will light when you plug the AC adaptor into an AC outlet.
fig.connect-PSB1U.eps
Indicator
About Cord Hook
To prevent the inadvertent disruption of power to your unit (should the plug be pulled out accidentally), and to avoid applying undue stress to the AC adaptor jack, anchor the power cord using the cord hook, as shown in the illustration.
fig.cord-hook.eps
11
