Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and
“IMPORTANT NOTES” (p. 2 – p. 4). These sections provide important information concerning
the proper operation of the unit. Additionally, in order to feel assured that you have gained a
good grasp of every feature provided by your new unit, Owner’s manual should be read in its
entirety. The manual should be saved and kept on hand as a convenient reference.

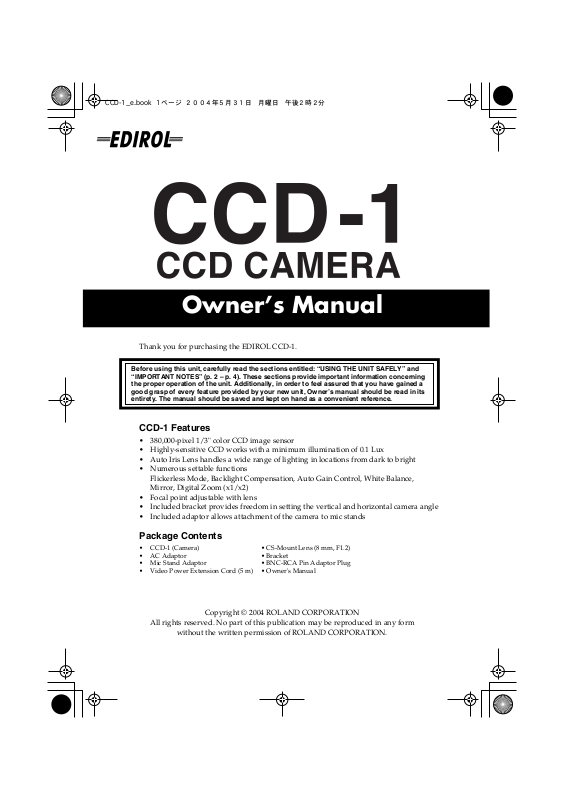

CCD-1 Features
• 380,000-pixel 1/3" color CCD image sensor
• Highly-sensitive CCD works with a minimum illumination of 0.1 Lux
• Auto Iris Lens handles a wide range of lighting in locations from dark to bright
• Numerous settable functions
Flickerless Mode, Backlight Compensation, Auto Gain Control, White Balance,
Mirror, Digital Zoom (x1/x2)
• Focal point adjustable with lens
• Included bracket provides freedom in setting the vertical and horizontal camera angle
• Included adaptor allows attachment of the camera to mic stands
Package Contents
• CCD-1 (Camera)• CS-Mount Lens (8 mm, F1.2)
• AC Adaptor• Bracket
• Mic Stand Adaptor• BNC-RCA Pin Adaptor Plug
• Video Power Extension Cord (5 m) • Owner's Manual
• Do not attempt to repair the unit, or
replace parts within it (except when
this manual provides specific instructions directing you to do so). Refer all
servicing to your retailer, the nearest
Roland Service Center, or an authorized Roland distributor, as listed on
the “Information” page.
(e.g., direct sunlight in an enclosed
vehicle, near a heating duct, on top
of heat-generating equipment); or
are
• Damp (e.g., baths, washrooms, on
wet floors); or are
• Humid; or are
• Exposed to rain; or are
• Dusty; or are
• Subject to high levels of vibration.
The symbol alerts the user to important instructions
or warnings.The specific meaning of the symbol is
determined by the design contained within the
triangle. In the case of the symbol at left, it is used for
general cautions, warnings, or alerts to danger.
The symbol alerts the user to items that must never
be carried out (are forbidden). The specific thing that
must not be done is indicated by the design contained
within the circle. In the case of the symbol at left, it
means that the unit must never be disassembled.
The ● symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In
the case of the symbol at left, it means that the powercord plug must be unplugged from the outlet.
007
• Make sure you always have the unit
placed so it is level and sure to remain
stable. Never place it on stands that
could wobble, or on inclined surfaces.
• Be sure to use only the AC adaptor
supplied with the unit. Also, make
sure the line voltage at the installation
matches the input voltage specified on the AC
adaptor’s body. Other AC adaptors may use a
different polarity, or be designed for a
different voltage, so their use could result in
damage, malfunction, or electric shock.
• Do not excessively twist or bend the
power cord, nor place heavy objects
on it. Doing so can damage the cord,
producing severed elements and short
circuits. Damaged cords are fire and shock
hazards!
• Do not allow any objects (e.g.,
flammable material, coins, pins); or
liquids of any kind (water, soft drinks,
etc.) to penetrate the unit.
2
013
• In households with small children, an
adult should provide supervision until
the child is capable of following all the
rules essential for the safe operation of
the unit.
• Do not force the unit’s power-supply
cord to share an outlet with an unreasonable number of other devices. Be
especially careful when using
extension cords—the total power used
by all devices you have connected to
the extension cord’s outlet must never
exceed the power rating (watts/
amperes) for the extension cord.
Excessive loads can cause the
insulation on the cord to heat up and
eventually melt through.
• Before using the unit in a foreign
country, consult with your retailer, the
nearest Roland Service Center, or an
authorized Roland distributor, as
listed on the “Information” page.
101b
• The unit and the AC adaptor should
be located so their location or position
does not interfere with their proper
ventilation.
• Always grasp only the plug on the AC
adaptor cord when plugging into, or
unplugging from, an outlet or this unit.
103b
• At regular intervals, you should
unplug the AC adaptor and clean it by
using a dry cloth to wipe all dust and
other accumulations away from its
prongs. Also, disconnect the power
plug from the power outlet whenever
the unit is to remain unused for an
extended period of time. Any accumulation of dust between the power plug
and the power outlet can result in
poor insulation and lead to fire.
• Should you remove BNC/RCA phono
converter plug, make sure to put them
in a safe place out of children's reach,
so there is no chance of them being
swallowed accidentally.
3
IMPORTANT NOTES
291a
In addition to the items listed under “USING THE UNIT SAFELY” on page 2, please read and
observe the following:
Power Supply
301
• Do not connect this unit to same electrical
outlet that is being used by an electrical
appliance that is controlled by an inverter
(such as a refrigerator, washing machine,
microwave oven, or air conditioner), or that
contains a motor. Depending on the way in
which the electrical appliance is used, power
supply noise may cause this unit to
malfunction or may produce audible noise. If
it is not practical to use a separate electrical
outlet, connect a power supply noise filter
between this unit and the electrical outlet.
302
• The AC adaptor will begin to generate heat
after long hours of consecutive use. This is
normal, and is not a cause for concern.
307
• Before connecting this unit to other devices,
turn off the power to all units. This will help
prevent malfunctions and/or damage to
speakers or other devices.
Placement
352a
• This device may interfere with radio and
television reception. Do not use this device in
the vicinity of such receivers.
352b
• Noise may be produced if wireless communications devices, such as cell phones, are
operated in the vicinity of this unit. Such
noise could occur when receiving or initiating
a call, or while conversing. Should you
experience such problems, you should
relocate such wireless devices so they are at a
greater distance from this unit, or switch
them off.
355b
• When moved from one location to another
where the temperature and/or humidity is
very different, water droplets (condensation)
may form inside the unit. Damage or
malfunction may result if you attempt to use
the unit in this condition. Therefore, before
using the unit, you must allow it to stand for
several hours, until the condensation has
completely evaporated.
Maintenance
401a
• For everyday cleaning wipe the unit with a
soft, dry cloth or one that has been slightly
dampened with water. To remove stubborn
dirt, use a cloth impregnated with a mild,
non-abrasive detergent. Afterwards, be sure
to wipe the unit thoroughly with a soft, dry
cloth.
402
• Never use benzine, thinners, alcohol or
solvents of any kind, to avoid the possibility
of discoloration and/or deformation.
Additional Precautions
553
• Use a reasonable amount of care when using
the unit’s buttons, sliders, or other controls;
and when using its jacks and connectors.
Rough handling can lead to malfunctions.
556
• When connecting / disconnecting all cables,
grasp the connector itself—never pull on the
cable. This way you will avoid causing shorts,
or damage to the cable’s internal elements.
559a
• When you need to transport the unit, package
it in the box (including padding) that it came
in, if possible. Otherwise, you will need to use
equivalent packaging materials.
4

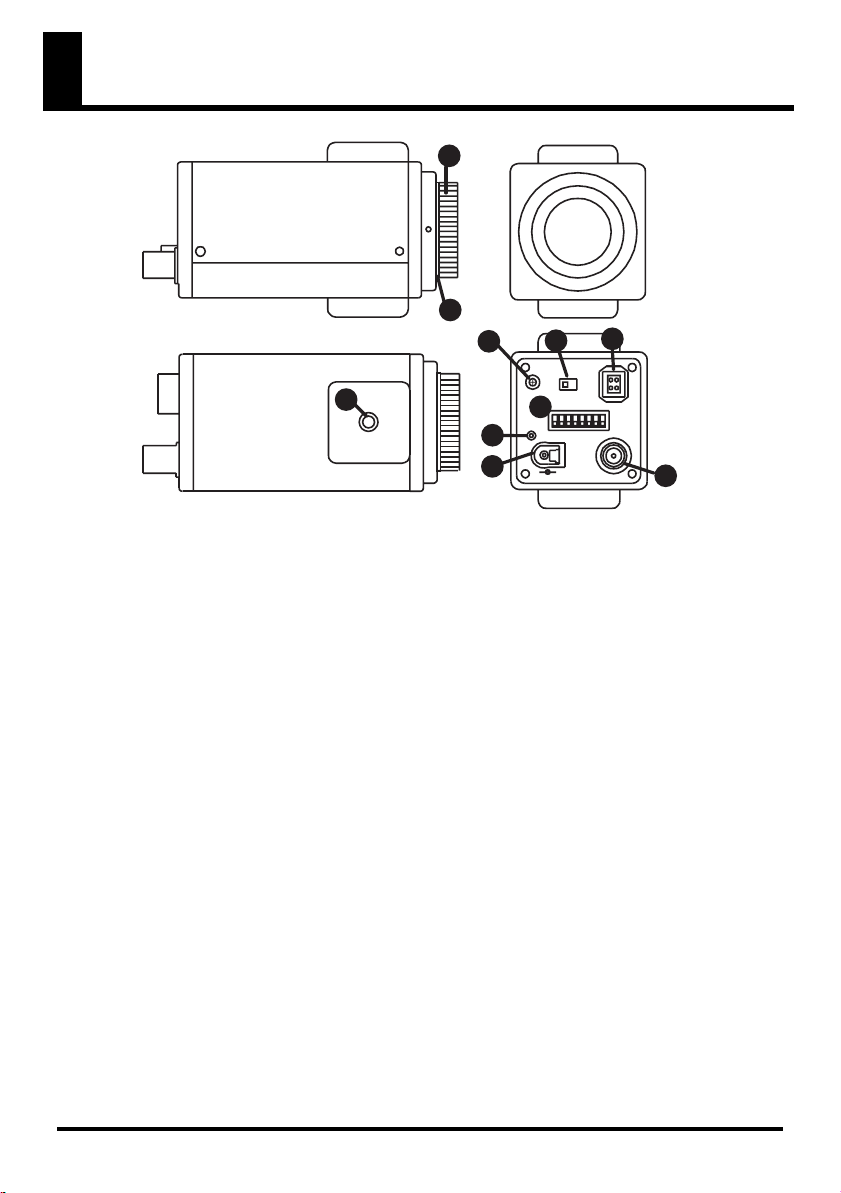

Names of Things and What They Do
fig.panel.eps
1
2
6
4
5
3
7
8
9
C-Mount Lens Attachment Screw
1.
Used to attach the C-mount lens to the CCD-1.
The CS-mount lens is normally used, so the C-mount lens attachment screw is
not usually necessary.
2.
CS-Mount Lens Attachment Screw
Use this to attach the included CS-mount lens to the CCD-1.
3.
Camera Mounting Holes
Used for attaching the included bracket to the CCD-1. The holes are 1/4” in
diameter, the same size as attachment screws on conventional camera tripods.
There is one hole each on the top and bottom sides. Use the one that best suits
your setup.
* If attaching the CCD-1 to a mic stand, use the mic stand adaptor included with the unit.
DC Iris Lens Adjustment Control
4.
Adjusts the lens iris. Rotate to the right (clockwise) to make the image brighter,
or to the left (counterclockwise) to make the image darker.
Differences in hue may occur when more than one CCD-1 is used. Adjust the
DC iris lens control while focusing the cameras on a white object until the tone
is uniform.This step of adjusting the iris while focusing the cameras on a white
object is also recommended when using the CCD-1 together with another type
of camera.
* Shining a strong light on the object may cause the object to be overly bright, which may turn the
screen white and prevent proper imaging. In such instances, rotate the DC iris lens adjustment
control to adjust the brightness.
* In certain situations, such as when the amount of light on the object changes suddenly, it may
take some time after adjusting the DC iris lens control for the Auto Iris function to complete
processing.
10
5
Names of Things and What They Do
Iris Select Switch
5.
Allows you to select either DC or VIDEO to match the type of lens being used.
Set this to DC when using the CCD-1 in combination with the lens that was
supplied with it.
Auto Iris Connector
6.
Plug the CS-mount lens cable to the Auto Iris connector when using the CCD-1
with the included CS-mount lens attached.
7.

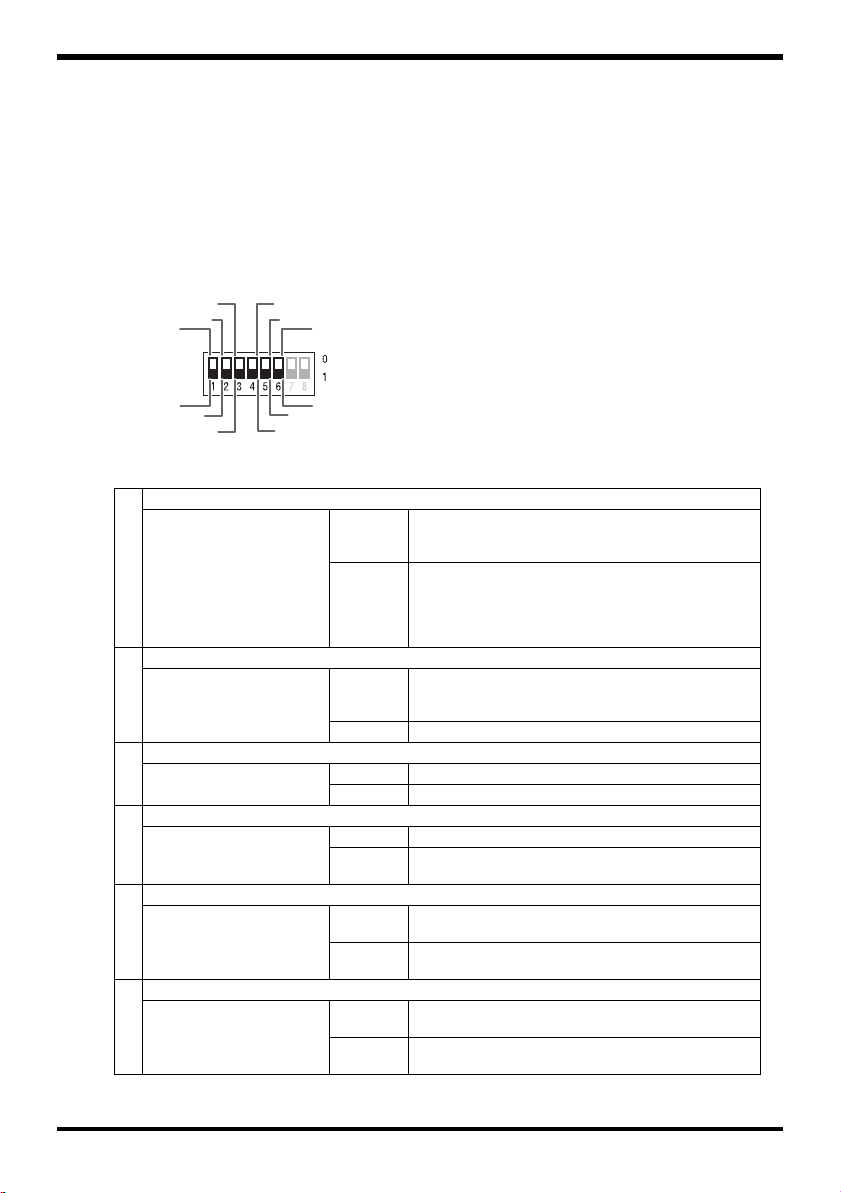

Function Select Switch
Switch used for setting the function.
AGC OFF
BLC OFF
ALC
AWC
REVERSE
x2
fig.sw-table
AES
BLC ON
BLC ON
AGC ON
Settings Chart
Iris Mode
1
Switches the Iris mode.
BLC (Backlight Compensation)
2
Function that compensates for higher backlight.
AGC (Auto Gain Control)
3
Auto Gain Control
White Balance
Setting used in compen-
4
sating for the white level
in the white balance.
Mirror
A mirror-like effect that
5
reverses the image left to
right.
Digital Zoom
6
Allows the images to be
enlarged.
NORMAL
AT W
x1
* (7) and (8) are not used with the CCD-1.
OFF
ON
ON
OFF
ON
OFF
ATW
AWB
Normal
Reverse
x1
x2
Switches the CCD-1 to Auto Iris mode. This adjusts
the diaphragm automatically.
AES
Auto Digital Shutter Mode
Switches the CCD-1 to Flickerless mode. Set to Flickerless mode when using the CCD-1 in 50 Hz regions.
This eliminates flicker in the images.
ALC
Auto Level Control
Automatically adjusts the iris.
Backlight compensation is performed automatically.
Use this setting when the background of the object is
relatively bright.
The backlight is not compensated for automatically.
The gain level is adjusted automatically.
The gain level is fixed.
Automatically tracks and adjusts the white level.
Automatically tracks and adjusts the white level, then
locks it in.
The actual image as captured by the camera is displayed in the monitor.
The image taken by the camera is reversed laterally
then displayed in the monitor.
The images are shown in the monitor at the normal
size.
The images are shown in the monitor at twice the normal size.
6
Names of Things and What They Do
POWER Indicator
8.
Lights in green when the power is on.
AC Adaptor Jack
9.
Connect the included AC adaptor here.
Be sure to use only the AC adaptor included with this camera.
BNC Video Signal Output Connector
10.
Connect the included BNC/RCA phono converter plug here, then connect the
RCA phono type AV cable to a television or monitor.
7
Setup and Connections
Attaching the Lens
The CCD-1 is focused manually. Adjust the control at the base of the lens to bring
the object into focus according to the distance between the object and the camera.
1.
Use the CS-mount lens attachment screw to attach the included CS-mount
lens.
2.
Connect the included CS-mount lens cable to the Auto Iris connector on the
CCD-1’s rear panel.
Attaching the Camera to a Mic Stand
1.
Attach the upper part of the included bracket to the camera mounting hole on
the CCD-1 camera housing.
2.
Attach the bottom part of the bracket to the mic stand adaptor.
Attach the mic stand adaptor to the mic stand.
3.

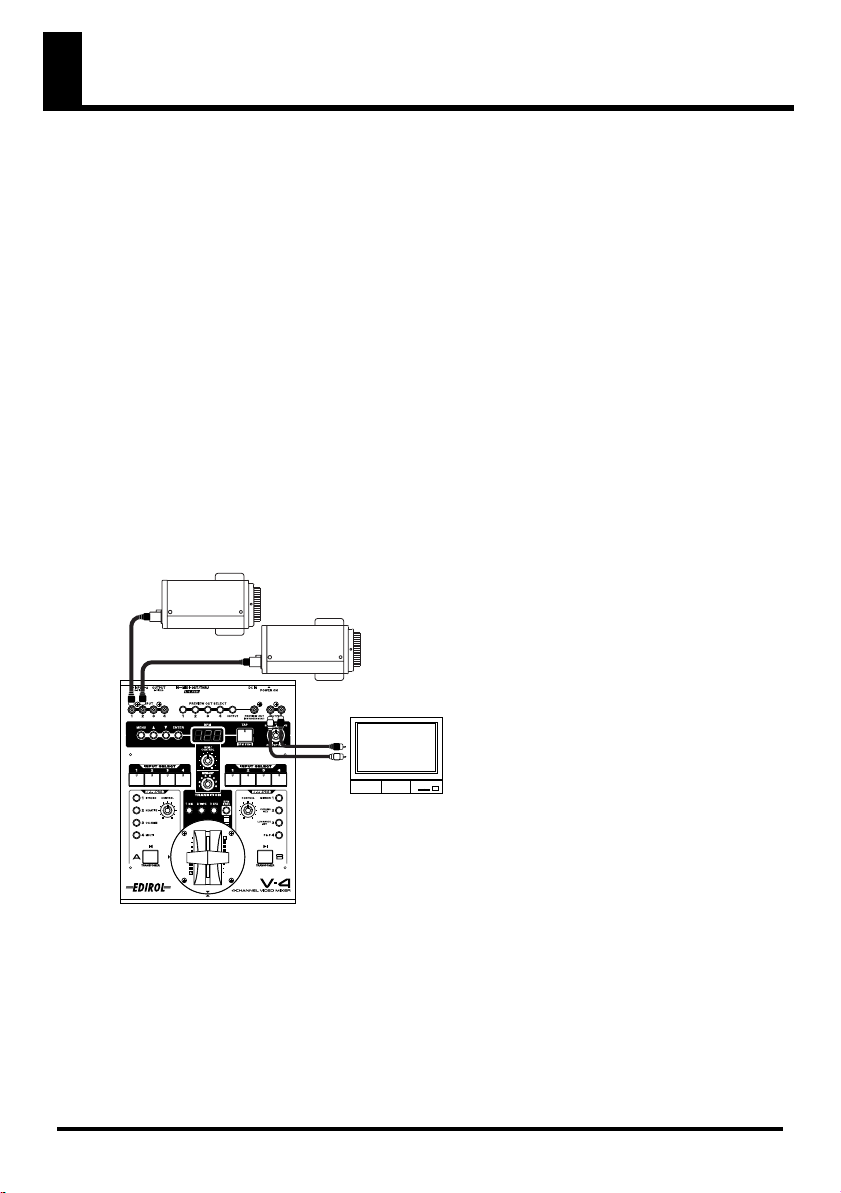

Connection Example
The figure shows two CCD-1 cameras connected to a V-4 video mixer.
fig.V-4
• Differences in hue may result when more than one CCD-1 is used.
Adjust the DC iris lens control while focusing the cameras on a white object
until a uniform hue is achieved.
• Using the camera in dark environments may cause noise to appear in the
screen.
• Shining a spotlight at the camera when using it in darker environments may
disrupt the white balance.
• Setting the Digital Zoom to x2 results in a coarser image.
8
Specifications
Dimensions
Weight
TV System
Image Sensor
CCD Total Pixels
Pixels
Scanning System
Sync System
Minimum Illumination
Resolution
S/N Ratio
VIDEO Output
Gamma Correction
Operation Temperature
Flickerless
Gain Control
B.L.C. Function
White Balance
Mirror Function
Digital Zoom
Auto Iris
Electronic Shutter
Power Supply
Accessories
NTSC
50.5 (W) x 110 (D) x 64.5 (H) mm
2 (W) x 4-3/8 (D) x 2-9/16 (H) inches
Camera 335 g / 12 oz
Lens 53 g / 2 oz
NTSC
1/3-inch CCD
816 (H) x 495 (D) pixels
380,000 pixels
525 lines, 60 fields/sec
Internal
0.1 Lux / F 1.2
480 TVL
52 dB (MIN) / 60 dB (TYP: AGC OFF)
Composite 1.0 V 9-9 at 75 ohms
0.45
-20 – 50˚C (humidity 85 %)
ON / OFF switchable
AGC ON / OFF switchable
ON / OFF switchable
ATW / AWB switchable
NORMAL / REVERSE switchable
ON (x2) / OFF (x1) switchable
VIDEO / DC / A.E.S.
1/60 – 1/100000 sec.
DC 12 V / 150 mA
AC adaptor, CS mount lens (8 mm / 3/8 inchs, F 1.2), Bracket,
Mic Stand Adaptor, BNC-RCA Pin Adaptor Plug,
Video Power Extension Cord (5 m), Owner's Manual
PAL
PAL
798 (H) x 548 (D) pixels
625 lines, 50 fields/sec
1/50 – 1/100000 sec.
* In the interest of product improvement, the specifications and/or appearance of this unit are
subject to change without prior notice.
Function Select Switch Setting
Color Control setting
Electronic Shutter setting
Iris Adjust Level
Function Select Switch
For more detailed information about the functions, refer to
fig.sw1
1 Iris Mode
2 BLC
3 AGC
4 White Balance
5 Mirror
6 Digital Zoom
120 %
1/100 sec.
95 K
0
1
1
1
1
1
“Function Select Switch”
(p. 6).
9
For EU Countries
This product complies with the requirements of European Directive 89/336/EEC.
For the USA
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Unauthorized changes or modification to this system can void the users authority to operate this equipment.
This equipment requires shielded interface cables in order to meet FCC class B Limit.
For Canada
NOTICE
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
AVIS
Information
When you need repair service, call your nearest EDIROL/Roland Service Center or authorized EDIROL/Roland distributor
in your country as shown below.
EUROPE
EDIROL (Europe) Ltd.
Studio 3.4 114 Power Road
London W4 5PY
U. K.
TEL: +44 (0)20 8747 5949
FAX:+44 (0)20 8747 5948
http://www.edirol.com/europe
