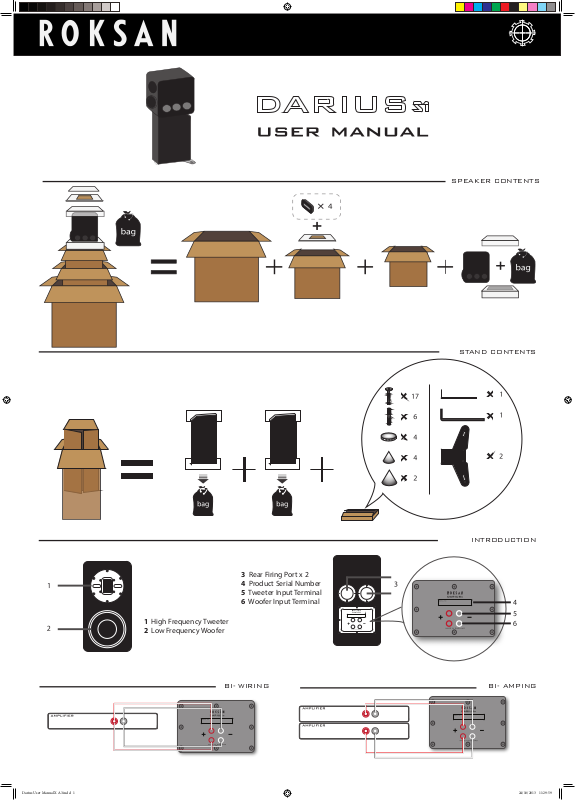

Page 1
SPEAKER CONTENTS
NOTE: ‘Jump-bars’
CONNECTED
NOTE: ‘Jump-bars’
REMOVED
NOTE: ‘Jump-bars’
REMOVED
STAND CONTENTS
1 High Frequency Tweeter
2 Low Frequency Woofer
3 Rear Firing Port x 2
4 Product Serial Number
5 Tweeter Input Terminal
6 Woofer Input Terminal
BI- WIRING
INTRODUCTION
BI- AMPING
Darius User Manual X A3.indd 1 24/10/2013 11:29:59
Page 2
1 High Frequency Tweeter
2 Low Frequency Woofer
3 Rear Firing Port x 2
4 Product Serial Number
5 Tweeter Input Terminal
6 Woofer Input Terminal
speaker - Stand Assembly
ROKSAN DARIUS S1 - Specification
OR WOOFER
Tweeter High fidelity, aluminum ribbon tweeter, fast transient type
Woofer 5” Customised high fidelity woofer, optimally tuned
Crossover
Enclosure High quality MDF, internally reinforced, braced and decoupled, filled
Input power [W] 40-200 (recommended)
Sensitivity [dB] 89
Frequency response [Hz] 47-30000 (-3dB at edges)
Impedance [O] 4
Dimensions [mm] 376 x 200 x 376 (length x width x depth)
Net weight [kg] 13.4
Colors Black, White
DO NOT USE ABRASIVES OR SOLVANTSDO NOT WIPE OR PRESS TWEETER DOME
SPECIFICATION
Mundorf high quality components, air core baked inductors, polypropylene
low inductance capacitors, metal-oxide resistors.
Pin to pin soldered, elements for tweeter and woofer are located on
separate plates, silver coated cabling
with wool, coated with piano lacquer
Always switch the Ampliers OFF before attempting to connect or disconnect the speaker cables to/from your speaker. Failure to do this may cause
permanent damage to the amplier and/or speakers.
Your Darius S1 speaker requires at least 48 hrs of continuous music
programme at reasonable volume to allow the various moving parts of the
drive units and other component to ‘burn-in’. After this period has elapsed,
the bass will increase in weight, denition, extension speed and articulation
whilst the treble will sound more open, coherent and tactile.
A nal adjustment and leveling of the speakers/spikes should be carried out
after the optimum position/location of the speakers in the room is established.
Roksan ‘Darius S1’ loudspeakers should be put 30-40cm (distance from the
back of the cabinet) in front of the wall
ROKSAN WARRANTY REGISTRATION
VISIT
http://www.roksan.co.uk/rw.php
Call: +44(0)20 8900 6801
CAUTION
Jubilee CloseTownsend Lane London NW9 8TR
T: +44 (0)20 8900 6801 F : +44 (0)20 82052644
E: [email protected] W: www.roksan.co.uk
All specifications are liable to change without notice. E&OE
