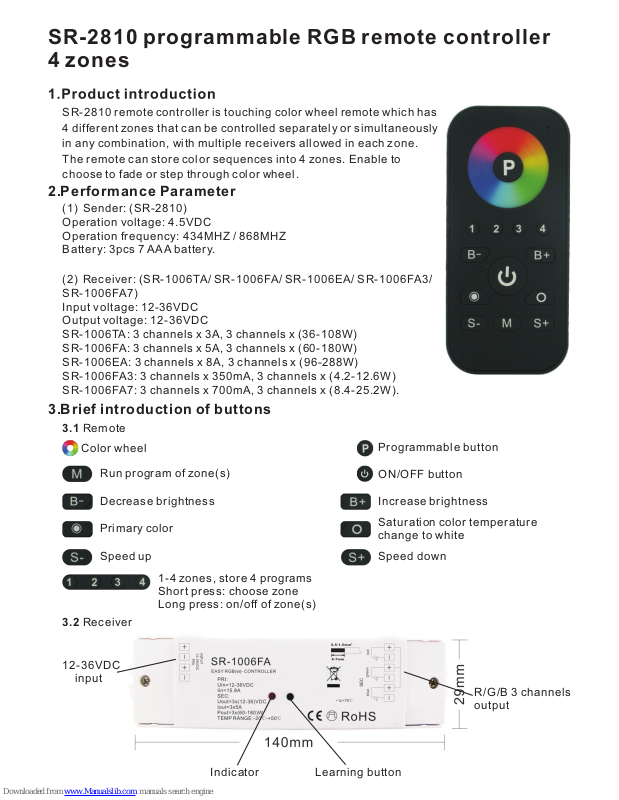

ROHS SR-2810 User Manual

SR-2810 programmable RGB remote controller
4 zones

SR-2810 remote controller is touching color wheel remote which has
4 different zones that can be controlled separately or simultaneously
in any combination, with multiple receivers allowed in each zone.
The remote can store color sequences into 4 zones. Enable to
choose to fade or step through color wheel.

2.Performance Parameter

(1) Sender: (SR-2810)
Operation voltage: 4.5VDC
Operation frequency: 434MHZ / 868MHZ
Battery: 3pcs 7 AAA battery.

(2) Receiver: (SR-1006TA/ SR-1006FA/ SR-1006EA/ SR-1006FA3/
SR-1006FA7)
Input voltage: 12-36VDC
Output voltage: 12-36VDC
SR-1006TA: 3 channels x 3A, 3 channels x (36-108W)
SR-1006FA: 3 channels x 5A, 3 channels x (60-180W)
SR-1006EA: 3 channels x 8A, 3 channels x (96-288W)
SR-1006FA3: 3 channels x 350mA, 3 channels x (4.2-12.6W)
SR-1006FA7: 3 channels x 700mA, 3 channels x (8.4-25.2W).

3.Brief introduction of buttons

3.1 Remote

Color wheel

Programmable button

1-4 zones, store 4 programs
Short press: choose zone
Long press: on/off of zone(s)

ON/OFF button

Run program of zone(s)

Decrease brightness Increase brightness

Primary color

Saturation color temperature
change to white

Speed up Speed down

3.2 Receiver

12-36VDC
input

R/G/B 3 channels
output

Indicator Learning button

1. Do wiring according to connection diagram

2. Learning process
a. Wake up the remote control by press ON/OFF button.
b. Press at learning button on receiver and the indicator will be on.
c. Press and hold a zone number on remote control.
d. The indicator on receiver will blink to confirm zone designation.
e. Press at learning button on receiver over 5 seconds until indicator off, then delete
the learned ID.

Note: Enable to assign multiple receivers to the same zone number and those
receivers will be controlled synchronously. Enable to reassign a receiver to a different
zone by the above same steps.

3. Program
The ON/OFF button will wake up the remote and light controllers will resume the mode they
were previously running. It will go to sleep after 10 seconds of inactivity and the remote has
to be awake by pressing ON/OFF. To select the zone (s) you want to control by pressing the
corresponding number(s). Press 1, 2, 3, 4 to send commands to those 4 zones together or
press any one button of those 4 buttons to send command to any one zone. Such as:

Press ON/OFF -> Press zone number from 1 to 4 -> Press “P” button -> Touch multiple color
at color wheel -> Press “P” button again to save program - > Press “M” button to run this
program

Note: 1. Enable to touch fade or step color at max 10 times for a program.

2. Command 4 zones together, 4 zones will work in sequences.

3. Each zone button only can store 1 program, if you store 2 programs into the
same zone. The latter program will replace the previous program.

To change brightness, choose the zone and press the increase or decrease brightness
button.
To change the speed of the running color, choose the zone and press speed up & speed
down button.

4.Connection diagram

SR-1006FA

PRI :
Uin =12-3 6VDC
Iin =15.8 A
SEC :
Uou t=3x( 12-36 )VDC
Iou t=3x5 A
Pou t=3x( 60-18 0)W
TEM P RA NGE:- 20℃-+50℃

R

G

B

R

G

B

RGB color changing LED light

Power Inpu t

12-36VDC

LN

220V

5.Operation
