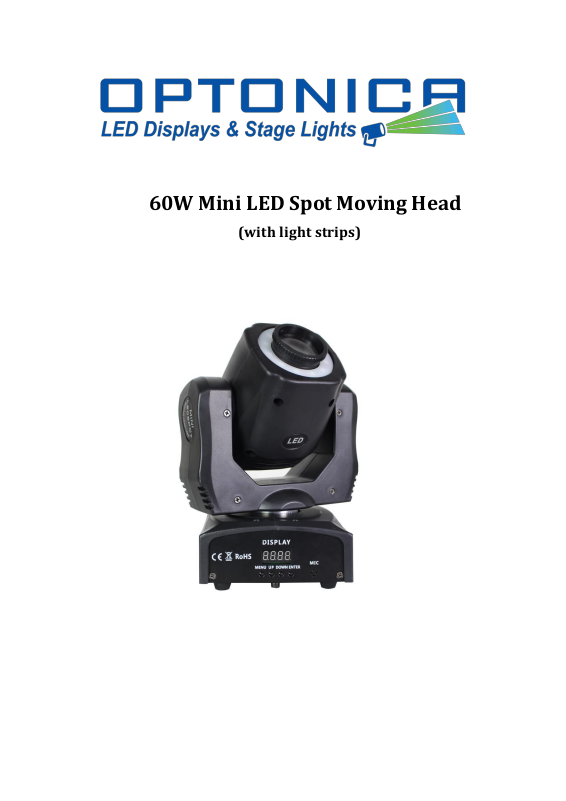

60W Mini LED Spot Moving Head
(with light strips)
Page 2
Use Manual
Thanks for using our LED Stage Lighting Equipment. Before using, please read the
instruction carefully. The instruction include important installing and using
information. Please use the fixtures following the instruction and keep the user
manual properly.
Our product use engineering plastic shell which is new, beautiful and can bear high
temperature and high hardness metal body. Our product strictly follow the standard
of CE and CCC to design and product. It’s conform to the international standard
DMX512 signal protocol. It’s can be use alone or connect together. It’s have rotation
fast, low noise and multifunctional as the product’s feature. It’s special for KTV,
Dance hall, Night club, Bar and so on.
1. Safety Instruction
● Please keep this User Guide for future consultation.If you sell the unit to another
user,be sure that they also receive this instruction booklet
● Unpack and check carefully there is no transportation damage before using the
unit.
● Before operating,ensure that the voltage and frequency of power supply match
the power requirements of the unit
● It’s important to ground the yellow/green conductor to earth in order to avoid
electric shock.
● The unit is for indoor use only.Use only in a dry location
● The unit must be installed in a location with adequate ventilation,at least 50cm
from adjacent surfaces.Be sure that no ventilation slots are blocked
● Disconnect main power before replacement or servicing.
function declaration
Addr
A001-A512
512 Address Setting
CHnd
12CH
12 Channel Setting
10CH
10 Channel Setting
SLnd
AUTO
Host mode
SL 1
Console mode
SL 2
Secondary mode
Page 3
SHnd
SH 0
Effect 0 (recommended)
SH 1
Effect 1
SH 2
Effect 2
SH 3
Effect 3
Soud
on
Voice activated
oFF
Voice off
SEnS
0-99
Voice-activated sensitivity adjustment
bLAnd
bLAc
No 512 signal return to zero
Auto
No 512 signal self-propelled
Soun
No 512 signal sound
HoLd
No 512 signal keeps last console state
LEd
OFF
After 5 seconds off the screen
ON
The screen is is always on
dISP
no
Display reverse
YES
Display positive
rPAN
no
X motor forward
YES
X motor reversal
rTiL
no
Y motor forward
YES
Y motor reversal
REST
System Reset
12 channels
channel
Features
Instructions
1
Horizontal operation
0-255
2
horizontal fine adjustment
0-255
3
Vertical operation
0-255
4
Vertical fine adjustment
0-255
5
Color
0-9 White
10-139 Color selection
140-255 Automatic color change from slow
to fast
6
Gobo
0-7 White
8-63 Fixed gobo
64-127 Shaking gobo
128-255 Automatic change pattern from
slow to fast
7
Strobe
0-255（Stroboscopic from slow to fast）
8
Dimming
0-255（0-100% Linear dimming）
9
Motor speed
0-255（Speed from fast to slow）
10
Automatic mode
0-59 Other channels function
60-134 Automatic （fast）
135-159 Automatic （slow）
160-255 Voice-control mode
Page 4
11
functioning pattern
0-20 No Function
21-100 X axis final motion
101-200 Y axis final motion
201-249 XY axis final motion
250-255 Reset(5 seconds)
12
Light strips
5-109 Color selection
110-255 Color auto operation
10 channel
channel
Features
Instructions
1
Horizontal operation
0-255
2
Vertical operation
0-255
3
Color
0-9 White
10-139 Color selection
140-255 Automatic color change from slow to
fast
Technical parameters:
Voltage: AC100-240V,50-60HZ
Total power: 100W
Light source:One 60 W white light beads,12 RGB 0.2 W lamp beads
Gobo: 7 Gobo+1 white light
4
Gobo
0-7 White
8-63 Fixed gobo
64-127 Shaking gobo
128-255 Automatic change pattern from
slow to fast
5
Strobe
0-255
6
Dimming
0-255
7
Motor speed
0-255
8
Automatic mode
0-59 Other channels function
60-134 Automatic （fast）
135-159 Automatic （slow）
160-255 Voice-control mode
9
functioning pattern
0-20 No Function
21-100 X axis final motion
101-200 Y axis final motion
201-249 XY axis final motion
250-255 Reset(5 seconds)
10
Light strips
5-109 Color selection
110-255 Color auto operation
Page 5
Color:7 colors +1 white light
Channels: 10/12C
Control mode: voice control, master-slave, self-walk, DMX
X axis: 540 °
Y axis: 270 °
