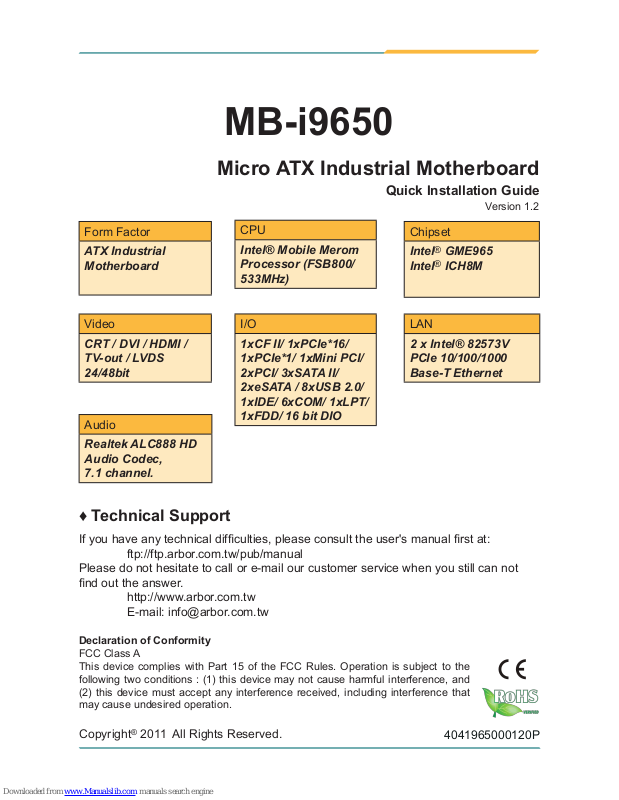

ROHS MB-i9650 Quick Installation Manual
Quick Installation Guide
Version 1.2
MB-i9650
Micro ATX Industrial Motherboard
Form Factor
ATX Industrial
Motherboard
LAN
2 x Intel® 82573V
PCIe 10/100/1000
Base-T Ethernet
CPU
Intel® Mobile Merom
Processor (FSB800/
533MHz)
I/O
1xCF II/ 1xPCIe*16/
1xPCIe*1/ 1xMini PCI/
2xPCI/ 3xSATA II/
2xeSATA / 8xUSB 2.0/
1xIDE/ 6xCOM/ 1xLPT/
1xFDD/ 16 bit DIO
Chipset
Intel
®
GME965
Intel® ICH8M
Audio
Realtek ALC888 HD
Audio Codec,
7.1 channel.
Video
CRT / DVI / HDMI /
TV-out / LVDS
24/48bit
4041965000120P
Copyright
®
2011 All Rights Reserved.
If you have any technical difculties, please consult the user's manual rst at:
ftp://ftp.arbor.com.tw/pub/manual
Please do not hesitate to call or e-mail our customer service when you still can not
nd out the answer.
http://www.arbor.com.tw
E-mail: info@arbor.com.tw
♦ Technical Support
Declaration of Conformity
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
1
2. Ordering Information
MB-i9650VL2G Micro ATX Industrial Motherboard with 6 x COM, 3 x SATAII,
2 x eSATA, 8 x USB, CRT, LCD, Audio and Dual Gb LAN
Cable Kit CBK-06-9650-00
3 x COM Flat cables
2 x USB cables
1 x FDD cable
1 x IDE Flat cable
1 x Printer Flat cable
3 x Serial SATA cables
Before you begin installing your single board, please make sure that the
following materials have been shipped:
1. Packing List
1 x MB-i9650 Industrial Motherboard
1 x Driver CD
1 x Quick Installation Guide
3. The Installation Paths of CD Driver
Driver Path
AUDIO \AUDIO\REALTEK_HD\WINDOWS_R178
CHIPSET \CHIPSET\INTEL\INF 8.3
LAN \ETHERNET\INTEL\PHY_82566DM\2K_XP
VGA \GRAPHICS\INTEL_2K_XP_32\1431
\GRAPHICS\INTEL_VISTA_32\1544
2
4. Specifications
Form Factor Micro ATX Industrial Motherboard
CPU
Supports socket mPGA-478 for Intel® Mobile Merom
Processor up to 800MHz FSB
Chipset Intel® GME965 + Intel® ICH8M
System Memory 2 x 240pin DIMM socket up to 4GB DDR2 SDRAM
VGA Controller
Integrated Intel® Graphics Media Accelerator X3100
(Intel® GMA X3100)
24/48 bit LVDS, Dual-channel, CRT, TV-out (support
NTSC/PAL/ SDTV/HDTV), DVI & HDMI (optional)
Ethernet 2 x Intel® 82573V PCIe Gb LAN
I/O Chips Winbond W83627HG
BIOS AMI PnP Flash BIOS
Audio ALC888 HD Codec, 7.1 channel/MIC-in/Line-in/Line-out
Serial ATA
3 x Serial ATA II (SATA) with 300MB/s
2 x External Serial ATA (eSATA)
IDE Interface 1 x Ultra DMA 100/66/33, support 2 IDE devices
Serial Port
6 x COM port (RS-232)
COM2: RS-232/422/485 Selectable
Parallel Port
Floppy
1 x SPP/EPP/ECP mode
1 x Floppy connector
IrDA 1 x IrDA connector
KBMS
1 x Standard PS/2 Keyboard connector
1 x Standard PS/2 Mouse connector
Universal Serial Bus 8 x USB 2.0
DIO 16-bit programmable Digital I/O (8 bit In/ 8 bit Out)
Expansion Interface
1 x PCIe*16 slot
1 x PCIe*1 slot
2 x PCI slot
1 x Mini PCI socket
Hardware Monitor Chip Integrated in W83627HG
Operation Temp. -20ºC ~ +70ºC (-4ºF ~ +158ºF)
Watchdog Timer 255-level Reset

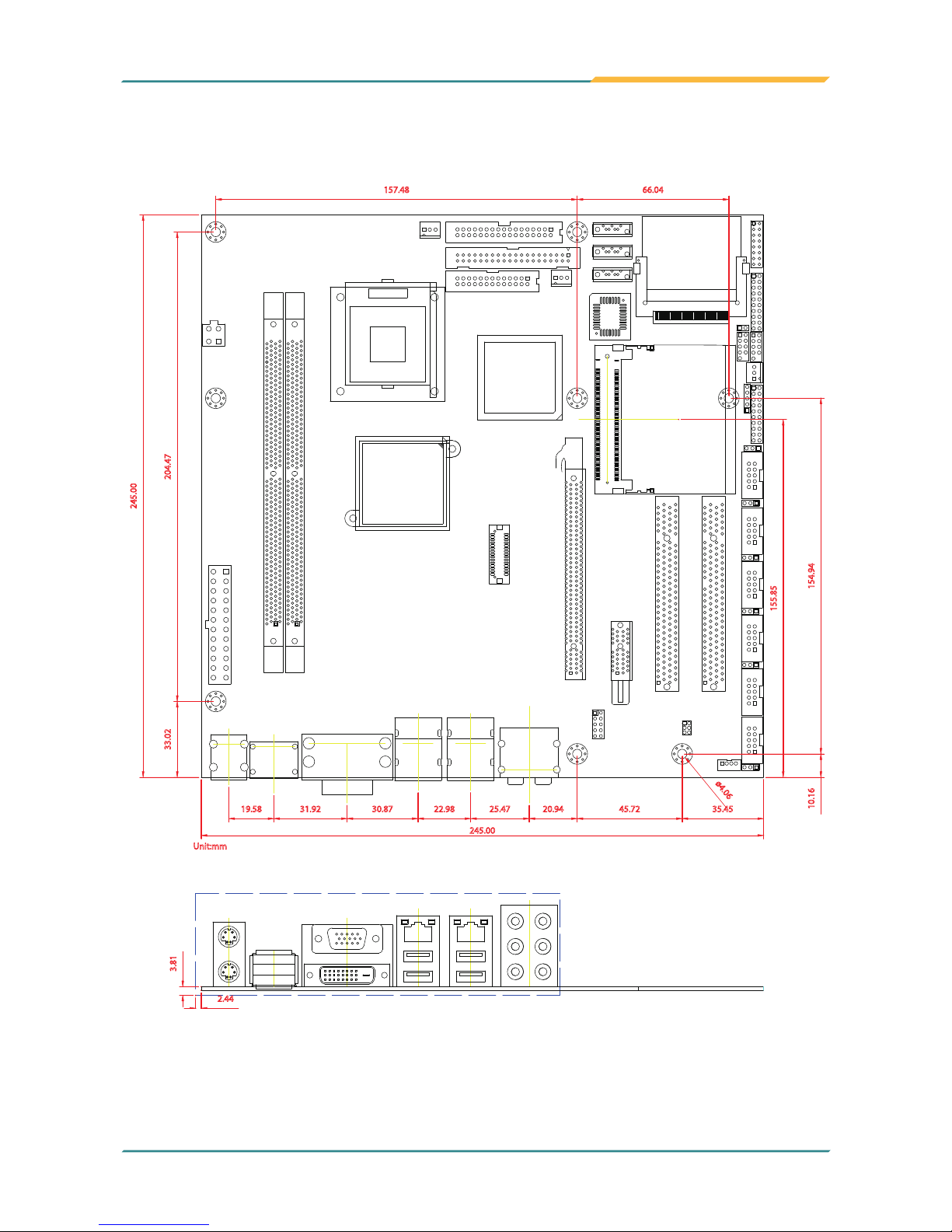

Dimension (L x W) 244 x 244 mm (9.6” x 9.6”)
3

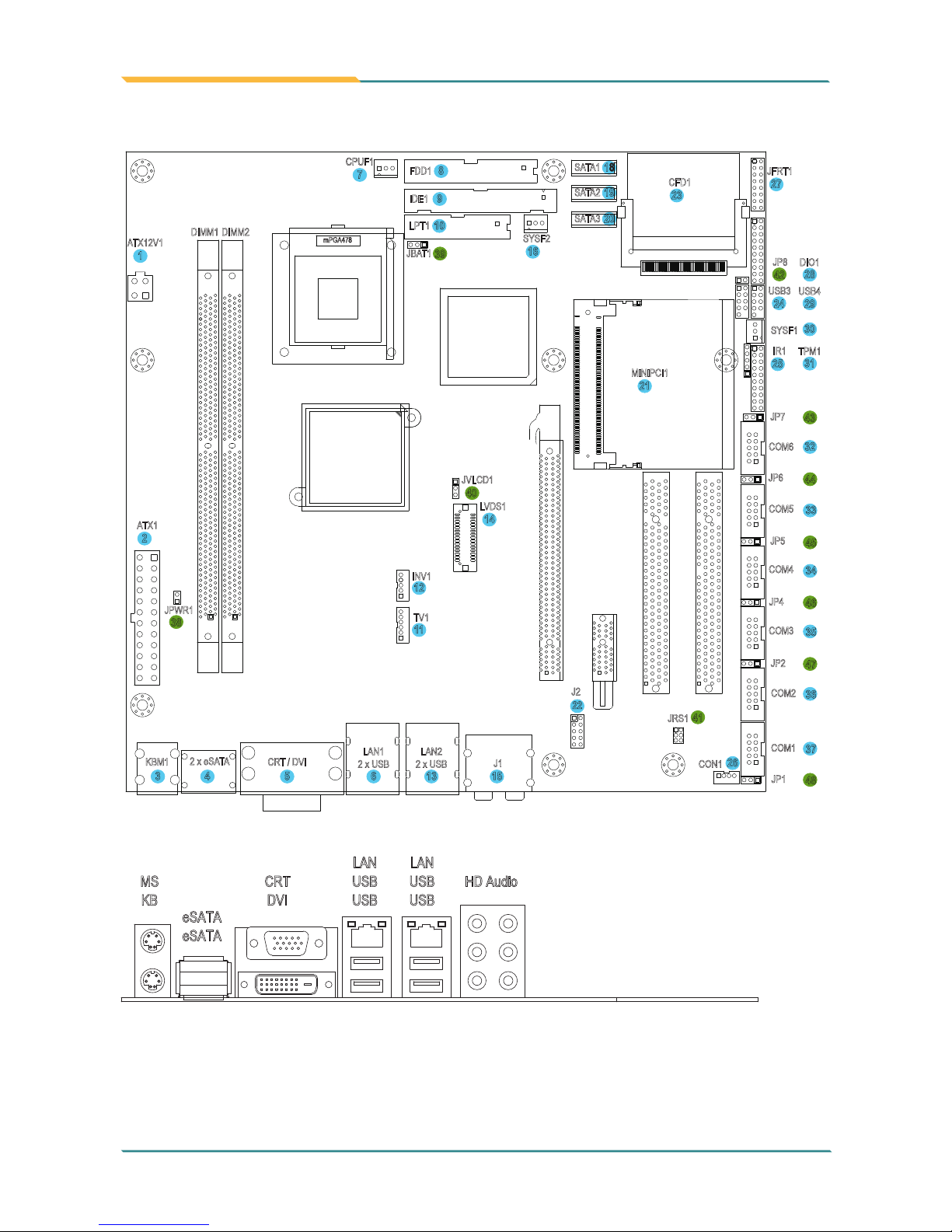

5. Jumpers/ Connectors Quick Reference
Connectors
Label Description
ATX12V1 ATX 12V Connector
ATX1
ATX Power Supply
Connector
KBM1 Keyboard & Mouse
ESATA1
External Serial ATA
Connector
LAN1, LAN2
RJ-45 Connector & stack
USB port
CPUF1
CPU Fan Power
Connector
SYSF1, SYSF2 Fan Power Connector
FDD1 FDD Connector
IDE1 IDE Connector
LPT1 Parallel Port Connector
TV1 TV-Out Connector
SATA1~3 Serial ATA Connectors
J1 HD AUDIO Connector
INV1 LCD inverter Connector
LVDS LVDS Connector
HDMI HDMI Connector
CFD1
CompactFlash Disk
socket
USB3, 4 USB Connector
IR1 Infrared Connector
CON1
RS-422/ 485 Output
Connector
JFRT1 Switches and Indicators
DIO1 Digital I/O Connector
TPM1
Trusted Platform Module
Connector
COM1~6 RS-232 Connectors
VGA1 CRT/ DVI Connector
Jumpers
Label Description
JPWR1
AT/ATX Power Mode
Select
JBAT1 Clear CMOS Setup
JVLCD1
LCD Panel Voltage
Selector
JRS1
COM2 RS-232/422/485
Mode Select
JP8
Compact Flash Mster/
Slave Selec
JP1~2,
JP4~JP7
COM Port Power Special
Support
