ROHS HS04, HS07, RC01 User Manual
1

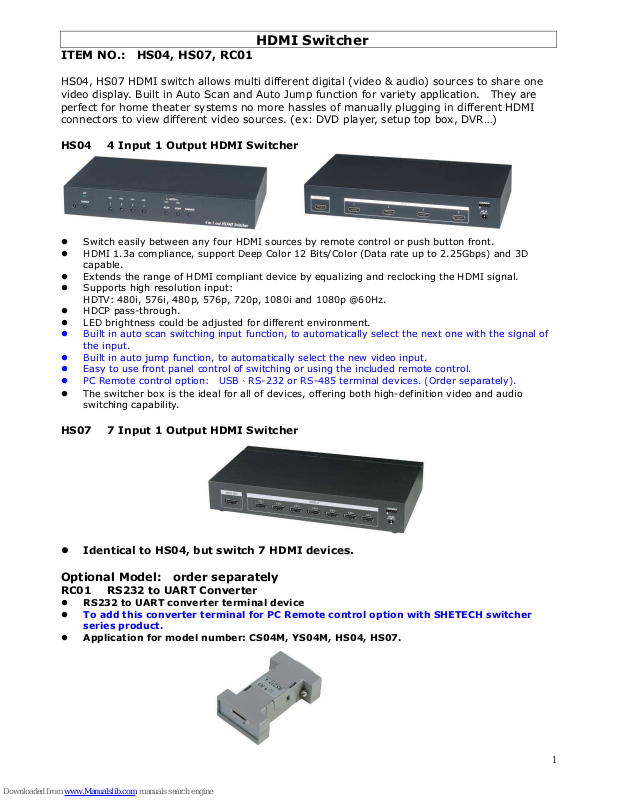

HDMI Switcher
ITEM NO.: HS04, HS07, RC01
HS04, HS07 HDMI switch allows multi different digital (video & audio) sources to share one
video display. Built in Auto Scan and Auto Jump function for variety application. They are
perfect for home theater systems no more hassles of manually plugging in different HDMI
connectors to view different video sources. (ex: DVD player, setup top box, DVR…)
HS04 4 Input 1 Output HDMI Switcher
Switch easily between any four HDMI sources by remote control or push button front.
HDMI 1.3a compliance, support Deep Color 12 Bits/Color (Data rate up to 2.25Gbps) and 3D
capable.
Extends the range of HDMI compliant device by equalizing and reclocking the HDMI signal.
Supports high resolution input:
HDTV: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p @60Hz.
HDCP pass-through.
LED brightness could be adjusted for different environment.
Built in auto scan switching input function, to automatically select the next one with the signal of
the input.
Built in auto jump function, to automatically select the new video input.
Easy to use front panel control of switching or using the included remote control.
PC Remote control option: USB、RS-232 or RS-485 terminal devices. (Order separately).
The switcher box is the ideal for all of devices, offering both high-definition video and audio
switching capability.
HS07 7 Input 1 Output HDMI Switcher
Identical to HS04, but switch 7 HDMI devices.
Optional Model: order separately
RC01 RS232 to UART Converter
RS232 to UART converter terminal device
To add this converter terminal for PC Remote control option with SHETECH switcher
series product.
Application for model number: CS04M, YS04M, HS04, HS07.
2
Panel View:
HS04
HS07

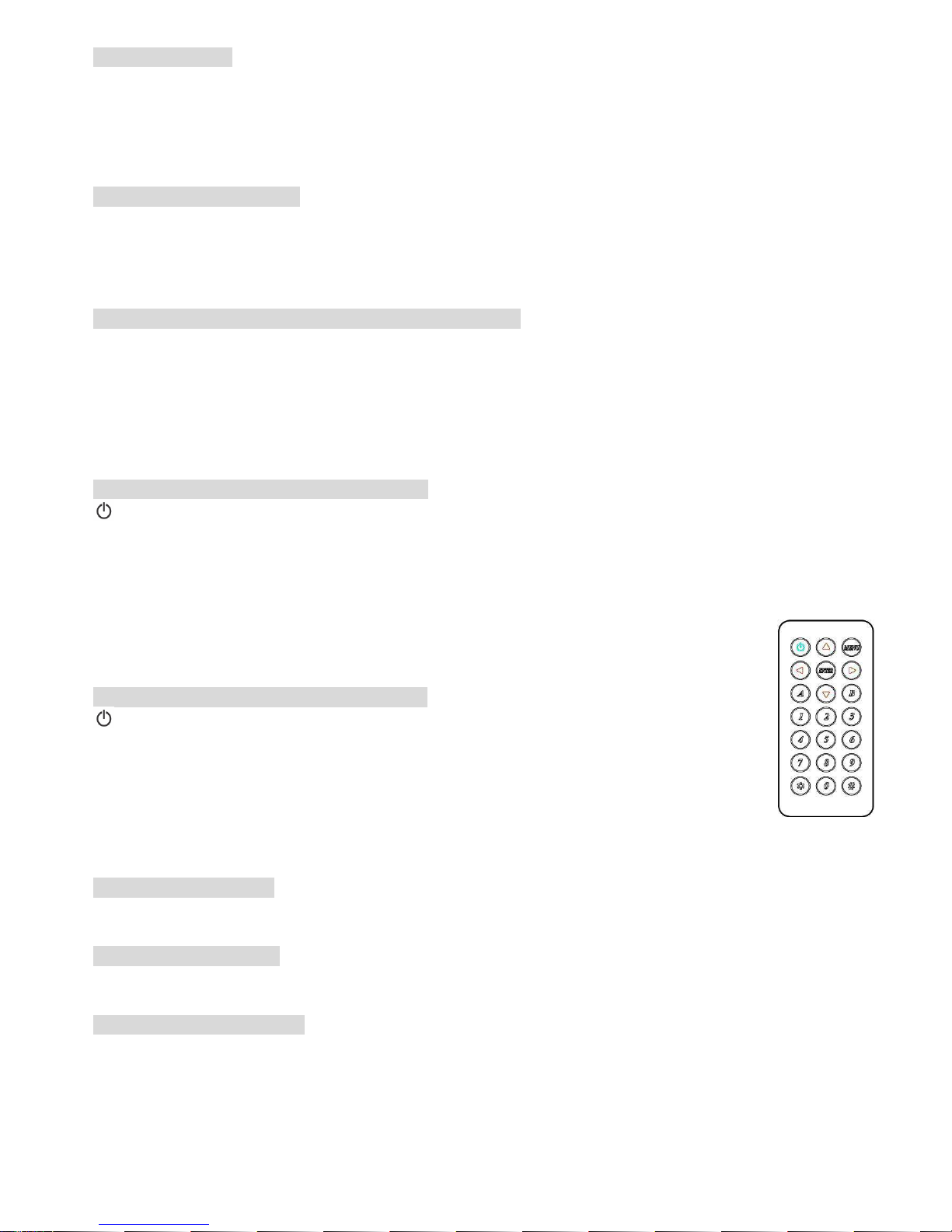

IR Remote Control Setting：：：：
This device could use IR remote control for function setting and control, The ID number must be setup
before using IR remote control or change new batteries.
Setup IR remote ID number: Press and hold “Power Symbol” button and press number 0.

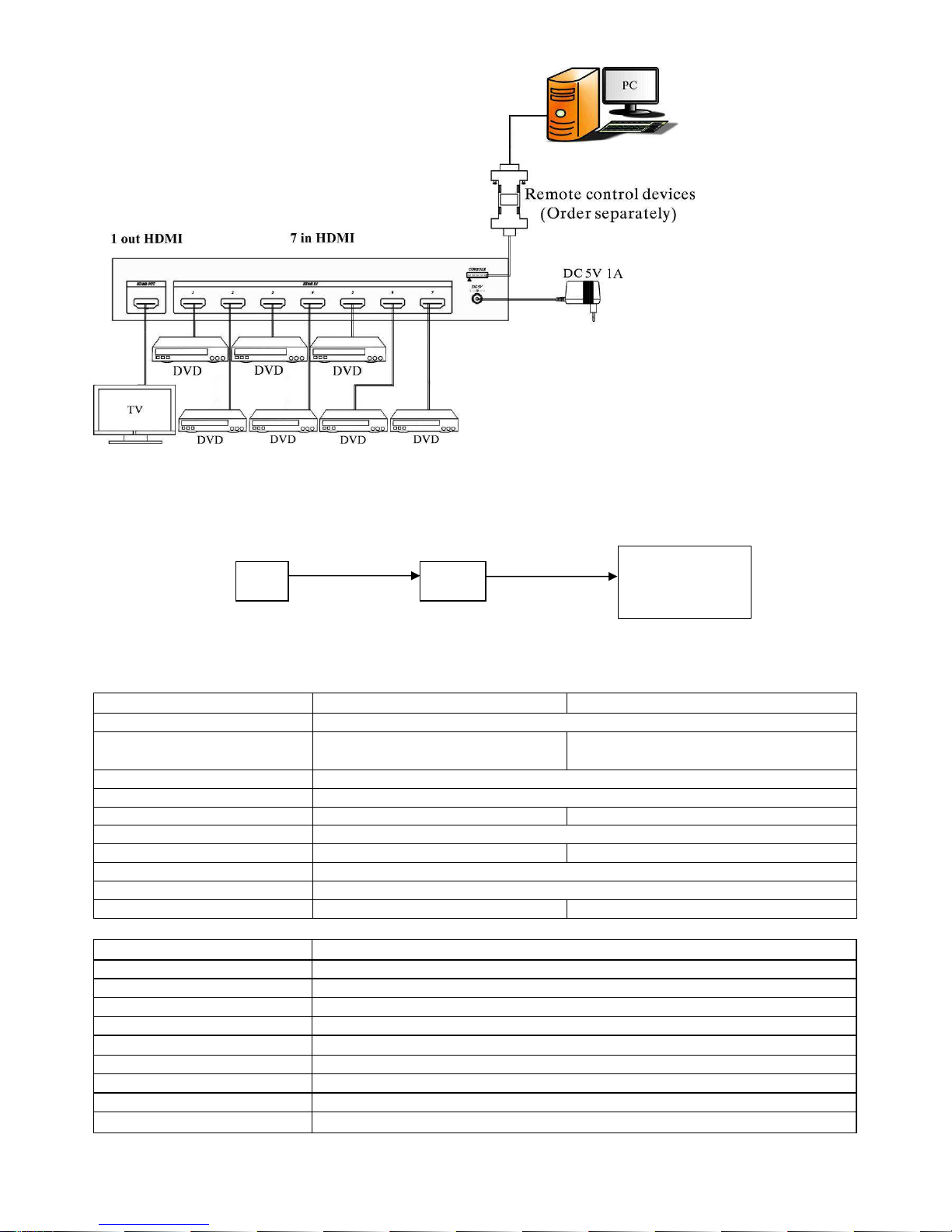

Installation View:
HS04
