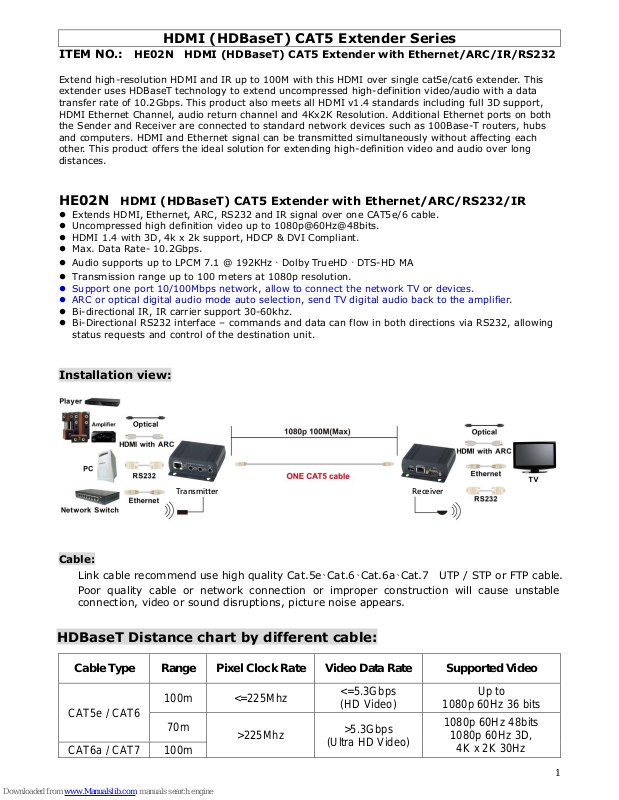

ROHS HE02NT, HE02NR User Manual
1
HDMI (HDBaseT) CAT5 Extender Series
ITEM NO.: HE02N HDMI (HDBaseT) CAT5 Extender with Ethernet/ARC/IR/RS232
Extend high-resolution HDMI and IR up to 100M with this HDMI over single cat5e/cat6 extender. This
extender uses HDBaseT technology to extend uncompressed high-definition video/audio with a data
transfer rate of 10.2Gbps. This product also meets all HDMI v1.4 standards including full 3D support,
HDMI Ethernet Channel, audio return channel and 4Kx2K Resolution. Additional Ethernet ports on both
the Sender and Receiver are connected to standard network devices such as 100Base-T routers, hubs
and computers. HDMI and Ethernet signal can be transmitted simultaneously without affecting each
other. This product offers the ideal solution for extending high-definition video and audio over long
distances.
HE02N HDMI (HDBaseT) CAT5 Extender with Ethernet/ARC/RS232/IR
Extends HDMI, Ethernet, ARC, RS232 and IR signal over one CAT5e/6 cable.
Uncompressed high definition video up to 1080p@60Hz@48bits.
HDMI 1.4 with 3D, 4k x 2k support, HDCP & DVI Compliant.
Max. Data Rate- 10.2Gbps.
Audio supports up to LPCM 7.1 @ 192KHz、Dolby TrueHD、DTS-HD MA
Transmission range up to 100 meters at 1080p resolution.
Support one port 10/100Mbps network, allow to connect the network TV or devices.
ARC or optical digital audio mode auto selection, send TV digital audio back to the amplifier.
Bi-directional IR, IR carrier support 30-60khz.
Bi-Directional RS232 interface – commands and data can flow in both directions via RS232, allowing
status requests and control of the destination unit.
Installation view:
Cable:
Link cable recommend use high quality Cat.5e、Cat.6、Cat.6a、Cat.7 UTP / STP or FTP cable.
Poor quality cable or network connection or improper construction will cause unstable
connection, video or sound disruptions, picture noise appears.
HDBaseT Distance chart by different cable:
Cable Type
Range
Pixel Clock Rate
Video Data Rate
Supported Video
CAT5e / CAT6
100m
<=225Mhz
<=5.3Gbps
(HD Video)
Up to
1080p 60Hz 36 bits
70m
>225Mhz
>5.3Gbps
(Ultra HD Video)
1080p 60Hz 48bits
1080p 60Hz 3D,
4K x 2K 30Hz
CAT6a / CAT7
100m
Transmitter
Receiver
2
If connection through the wall socket, the cable length must less 5 meters between HDMI
extender and wall jack, as below drawing:
10/100Mbps network connection using general CAT5e cable and working distance up to 100M.
RJ45 Define:
LED Indication:
DC JACK Port:
Color
LED Function
HE02NT
HE02NR
GREEN
Power
On: power on
BLUE
IR Receive
On: IR received signal
RED
IR Emitter
On: IR emitting
HDBaseT Port:
Color
LED Function
HE02NT
HE02NR
GREEN
HDBaseT Linking
On: HDBaseT linking
BLUE
Digital Audio
transmission
On: Receiving ARC or digital audio signal
RED
HDMI
On: with HDCP, Dark: HDMI Unlink
10/100 Ethernet Port:
Color
LED Function
HE02NT
HE02NR
GREEN
Ethernet linking
On: Linking, Flash: data transmission
YELLOW
No function
Transmitter
Wall Jack
Wall Jack
Receiver
MAX 100M
< 5M
< 5M
