ROHO ENH88C, ENH89C, ENH98C, ENH99C, ENH910C User manual

...
Page 1

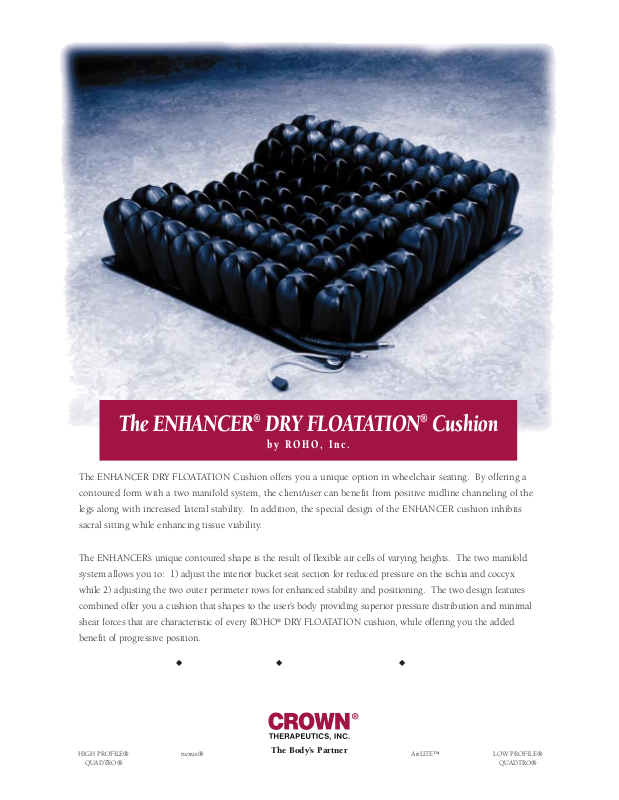

The ENHANCER
®
DRY FLOATATION®Cushion
by ROHO, Inc.
The ENHANCER DRY FLOATATION Cushion offers you a unique option in wheelchair seating. By offering a
contoured form with a two manifold system, the client/user can benefit from positive midline channeling of the
sacral sitting while enhancing tissue viability.
The ENHANCER’s unique contoured shape is the result of flexible air cells of varying heights. The two manifold
system allows you to: 1) adjust the interior bucket seat section for reduced pressure on the ischia and coccyx
while 2) adjusting the two outer perimeter rows for enhanced stability and positioning. The two design features
combined offer you a cushion that shapes to the user’s body providing superior pressure distribution and minimal
shear forces that are characteristic of every ROHO
®
DRY FLOATATION cushion, while offering you the added
benefit of progressive position.
HIGH PROFILE®
QUADTRO®
◆ ◆ ◆
The Body’s Partner
nexus® AirLITE™ LOW PROFILE®
QUADTRO®
Page 2
Specifications
The ENHANCER comes complete with hand inflation pump, repair kit and operating instructions.
Construction–flame resistant neoprene rubber
Weight–approximately four (4) pounds
Cleaning–soap and water, or can be steam autoclaved
MODEL CHAIR SIZE ENH88C fits 15"–16" widths & 15"–16" depths ENH89C fits 15"–16" widths & 16"–17" depths ENH98C fits 16"–17" widths & 15"–16" depths ENH99C fits 16"–17" widths & 16"–17" depths ENH910C fits 16"–17" widths & 18"–19" depths ENH109C fits 18"–19" widths & 16"–17" depths ENH1010C fits 18"–19" widths & 18"–19" depths
Can be custom made to fit a variety of seating surfaces and sizes.
Applications
Most effective for users:
◆
at moderate risk for skin breakdown ◆needing some degree of abduction/adduction
◆
with poor sitting balance ◆who sacral sit
Features and Benefits
Variable Cell Heights: Provides for channeling of the legs and enhances lateral stability and body positioning.
Dual-Manifold Design: Permits specific adjustments to allow for reduced pressures on boney prominences while independently promoting better positioning and increases stability.
Lightweight: The ENHANCER is approximately four (4) pounds making it easy to transport and handle and minimizes fatigue of the individual.
Durable Neoprene Rubber: Flame resistant and resistant to urine, oils and medicines. Easily cleaned with soap or water and can be steam autoclaved. Product can be repaired extending the overall life of the cushion.
Washable, Two-Way Stretch Cover:
Allows for proper immersion into the cushion and “breathes” with every shift in position.
Ventilation: Individual air cells allow for air circulation between the cells.
24 Month Warranty
Adjustable: Shapes to the individual
and to their specific seating needs.
. NOTE: All measurements for cushions are approximate from edge to edge.
