ROHO DRY FLOATATIO cushion User Manual

SUPPLIER: This manual must be given to the user of this product.

USER: Before using this product, read instructions and save
for future reference.

2

TABLE OF CONTENTS

INTENDED USE 2
PRODUCT SPECIFICATIONS 2-3
CAUTIONS 4
PARTS DETAIL 5

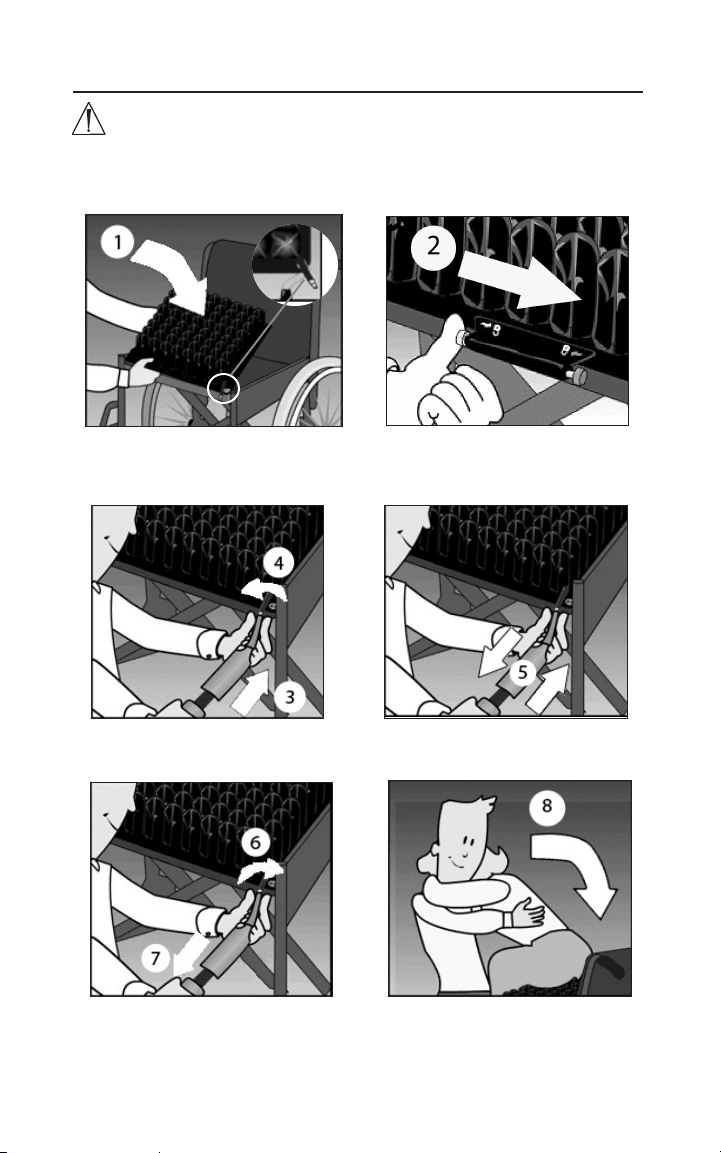

ADJUSTMENT INSTRUCTIONS 6-7
COVER REMOVAL & REPLACEMENT 8
CLEANING & DISINFECTING YOUR PRODUCT 8-9
TROUBLESHOOTING 9
DISPOSAL 9
CONTACT INFORMATION 9
RETURN POLICY 10
LIMITED WARRANTY 10

ESPAÑOL 11
FRANÇAIS 21
DEUTSCH 31
ITALIANO 41
NEDERLANDS 51
DANSK 61
SVENSKA 71
NORSK 81
SUOMI 91
PORTUGUÊS 101

ROHO, Inc. has a policy of continual product improvement and reserves the right to amend this
document. Current version of this document is available on the website, www.therohogroup.com.

ROHO® Cushioning Products are manufactured by ROHO, Inc.,

100 North Florida Avenue, Belleville, Illinois 62221-5429, www.therohogroup.com.
U.S.A.: 1-800-851-3449, Fax [phone] e-mail: [e-mail]
Outside the U.S.A.: 1-618-277-9150, Fax [phone] e-mail: [e-mail]

© 2007-2011 ROHO, Inc.
The following are trademarks and registered trademarks of ROHO, Inc.: ROHO®, DRY FLOATATION®,
ISOFLO Memory Control®, Yellow Rope®, shape fitting technology®, CONTOUR SELECT®,
ENHANCER®, QUADTRO SELECT®, HIGH PROFILE®, MID PROFILE™, and LOW PROFILE®.

Products in this manual may be covered by one or more U.S. and foreign patents and trademarks.
For further details please refer to www.therohogroup.com.

1

INTENDED USE:

Each ROHO® DRY FLOATATION® product in this manual is an air filled, adjustable,
cellular design, wheelchair support surface designed to conform to a user's seated shape.
These products are recommended for individuals of any weight* who may require skin
protection, positioning, or skin protection and positioning while seated:

ROHO LOW PROFILE® SINGLE COMPARTMENT CUSHION (LOW PROFILE Single
Compartment Cushion)

ROHO MID PROFILE™ SINGLE COMPARTMENT CUSHION (MID PROFILE Single Compartment
Cushion)

ROHO HIGH PROFILE® SINGLE COMPARTMENT CUSHION (HIGH PROFILE Single
Compartment Cushion)

ROHO LOW PROFILE® DUAL COMPARTMENT CUSHION (LOW PROFILE Dual Compartment
Cushion)

ROHO MID PROFILE™ DUAL COMPARTMENT CUSHION (MID PROFILE Dual Compartment
Cushion)

ROHO HIGH PROFILE® DUAL COMPARTMENT CUSHION (HIGH PROFILE Dual Compartment
Cushion)

ROHO QUADTRO SELECT® LOW PROFILE® CUSHION (QUADTRO SELECT LOW PROFILE)
ROHO QUADTRO SELECT MID PROFILE™ CUSHION (QUADTRO SELECT MID PROFILE)
ROHO QUADTRO SELECT HIGH PROFILE® CUSHION (QUADTRO SELECT HIGH PROFILE)
ROHO CONTOUR SELECT® CUSHION (CONTOUR SELECT)

ROHO ENHANCER® CUSHION (ENHANCER)

ROHO, Inc. recommends that a clinician such as a physician or therapist experienced in
seating and positioning be consulted to determine if the ROHO DRY FLOATATION cushion is
appropriate for the user's particular seating needs.

If you are using a wheelchair with a sling seat, ROHO, Inc. recommends the use of the
ROHO Contour Base, the ROHO Solid Seat Insert, or a solid seat platform in conjunction
with your wheelchair cushion for best positioning results.

*Cushion must be properly sized to client.

PRODUCT SPECIFICATIONS:

MATERIALS:

The wheelchair cushions in this manual are made of neoprene rubber with nickel plated
brass valves. The SELECT cushions also have ISOFLO Memory Control®. The top and
bottom of the ISOFLO Memory Control is polycarbonate, the knobs are polypropylene and
the spindle is polypropylene molded over aluminum.

2

PRODUCT SPECIFICATIONS CONTINUED:

STANDARD CUSHION DIMENSIONS AND WEIGHTS:

CUSHION HEIGHT AVERAGE WEIGHT*

LOW PROFILE SINGLE COMPARTMENT CUSHION

LOW PROFILE DUAL COMPARTMENT CUSHION

QUADTRO SELECT LOW PROFILE

MID PROFILE SINGLE COMPARTMENT CUSHION

MID PROFILE DUAL COMPARTMENT CUSHION

QUADTRO SELECT MID PROFILE

HIGH PROFILE SINGLE COMPARTMENT CUSHION

HIGH PROFILE DUAL COMPARTMENT CUSHION

QUADTRO SELECT HIGH PROFILE

CONTOUR SELECT

ENHANCER

*Note: The average weights are based on 9x9 cell (16.5 in. x 16.5 in., 42.0 cm x 42.0 cm) cushions.

SMALLEST WIDTH SMALLEST DEPTH LARGEST WIDTH LARGEST DEPTH

CUSHION

LOW PROFILE SINGLE

COMPARTMENT CUSHION

LOW PROFILE DUAL

COMPARTMENT CUSHION

QUADTRO SELECT LOW

PROFILE

MID PROFILE SINGLE

COMPARTMENT CUSHION

MID PROFILE DUAL

COMPARTMENT CUSHION

QUADTRO SELECT MID

PROFILE

HIGH PROFILE SINGLE

COMPARTMENT CUSHION

HIGH PROFILE DUAL

COMPARTMENT CUSHION

QUADTRO SELECT HIGH

PROFILE

CONTOUR SELECT 8 15.5 39.5 8 15.25 38.5 13 24.5 62.5 12 22.0 56.0

ENHANCER 8 14.75 37.5 8 14.75 37.5 11 20.0 50.5 11 20.0 50.5

#

in. cm

cells

6 11.5 29.0 6 11.5 29.0 11 20.0 50.5 11 20.0 50.5

6 11.5 29.0 6 11.5 29.0 11 20.0 50.5 11 20.0 50.5

6 12.25 31.0 6 11.75 30.0 13 24.5 62.5 12 22.0 56.0

7 13.25 33.5 7 13.25 33.5 11 20.0 50.5 11 20.0 50.5

8 14.75 37.5 9 16.5 42.0 8 14.75 37.5 9 16.5 42.0

8 15.5 39.5 8 15.25 38.5 10 19.0 48.5 10 18.5 47.0

6 11.5 29.0 6 11.5 29.0 15 26.75 68.0 12 21.75 55.0

6 11.5 29.0 6 11.5 29.0 11 20.0 50.5 11 20.0 50.5

6 12.25 31.0 6 11.75 30.0 13 24.0 61.0 12 22.0 56.0

cells

2.25 in. (5.5 cm) 2.5 lbs. (1.1 kg)

2.25 in. (5.5 cm) 2.5 lbs. (1.1 kg)

2.25 in. (5.5 cm) 2.5 lbs. (1.1 kg)

3.25 in. (8.5 cm) 3.0 lbs. (1.4 kg)

3.25 in. (8.5 cm) 3.0 lbs. (1.4 kg)

3.25 in. (8.5 cm) 3.0 lbs. (1.4 kg)

4.25 in. (10.5 cm) 3.25 lbs. (1.5 kg)

4.25 in. (10.5 cm) 3.25 lbs. (1.5 kg)

4.25 in. (10.5 cm) 3.25 lbs. (1.5 kg)

2.25 to 4.25 in. (5.5 to 10.5 cm) 3.5 lbs. (1.6 kg)

2.25 to 4.25 in. (5.5 to 10.5 cm) 3.5 lbs. (1.6 kg)

#

in. cm

cells

#

in. cm

#

cells

in. cm

Note: Refer to Customer Service for specific cushion sizes.
