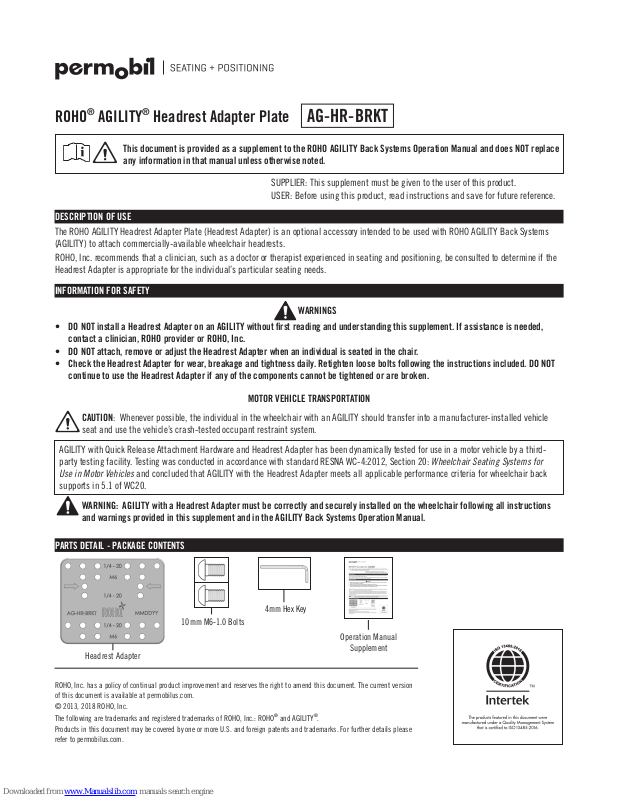

ROHO® AGILITY® Headrest Adapter Plate
AG-HR-BRKT
This document is provided as a supplement to the ROHO AGILITY Back Systems Operation Manual and does NOT replace
any information in that manual unless otherwise noted.
SUPPLIER: This supplement must be given to the user of this product.
USER: Before using this product, read instructions and save for future reference.
DESCRIPTION OF USE
The ROHO AGILITY Headrest Adapter Plate (Headrest Adapter) is an optional accessory intended to be used with ROHO AGILITY Back Systems
(AGILITY) to attach commercially-available wheelchair headrests.
ROHO, Inc. recommends that a clinician, such as a doctor or therapist experienced in seating and positioning, be consulted to determine if the
Headrest Adapter is appropriate for the individual’s particular seating needs.
INFORMATION FOR SAFETY
WARNINGS
• DO NOT install a Headrest Adapter on an AGILITY without first reading and understanding this supplement. If assistance is needed,
contact a clinician, ROHO provider or ROHO, Inc.
• DO NOT attach, remove or adjust the Headrest Adapter when an individual is seated in the chair.
• Check the Headrest Adapter for wear, breakage and tightness daily. Retighten loose bolts following the instructions included. DO NOT
continue to use the Headrest Adapter if any of the components cannot be tightened or are broken.
MOTOR VEHICLE TRANSPORTATION
CAUTION: Whenever possible, the individual in the wheelchair with an AGILITY should transfer into a manufacturer-installed vehicle
seat and use the vehicle’s crash-tested occupant restraint system.
AGILITY with Quick Release Attachment Hardware and Headrest Adapter has been dynamically tested for use in a motor vehicle by a thirdparty testing facility. Testing was conducted in accordance with standard RESNA WC-4:2012, Section 20: Wheelchair Seating Systems for
Use in Motor Vehicles and concluded that AGILITY with the Headrest Adapter meets all applicable performance criteria for wheelchair back
supports in 5.1 of WC20.
WARNING: AGILITY with a Headrest Adapter must be correctly and securely installed on the wheelchair following all instructions
and warnings provided in this supplement and in the AGILITY Back Systems Operation Manual.

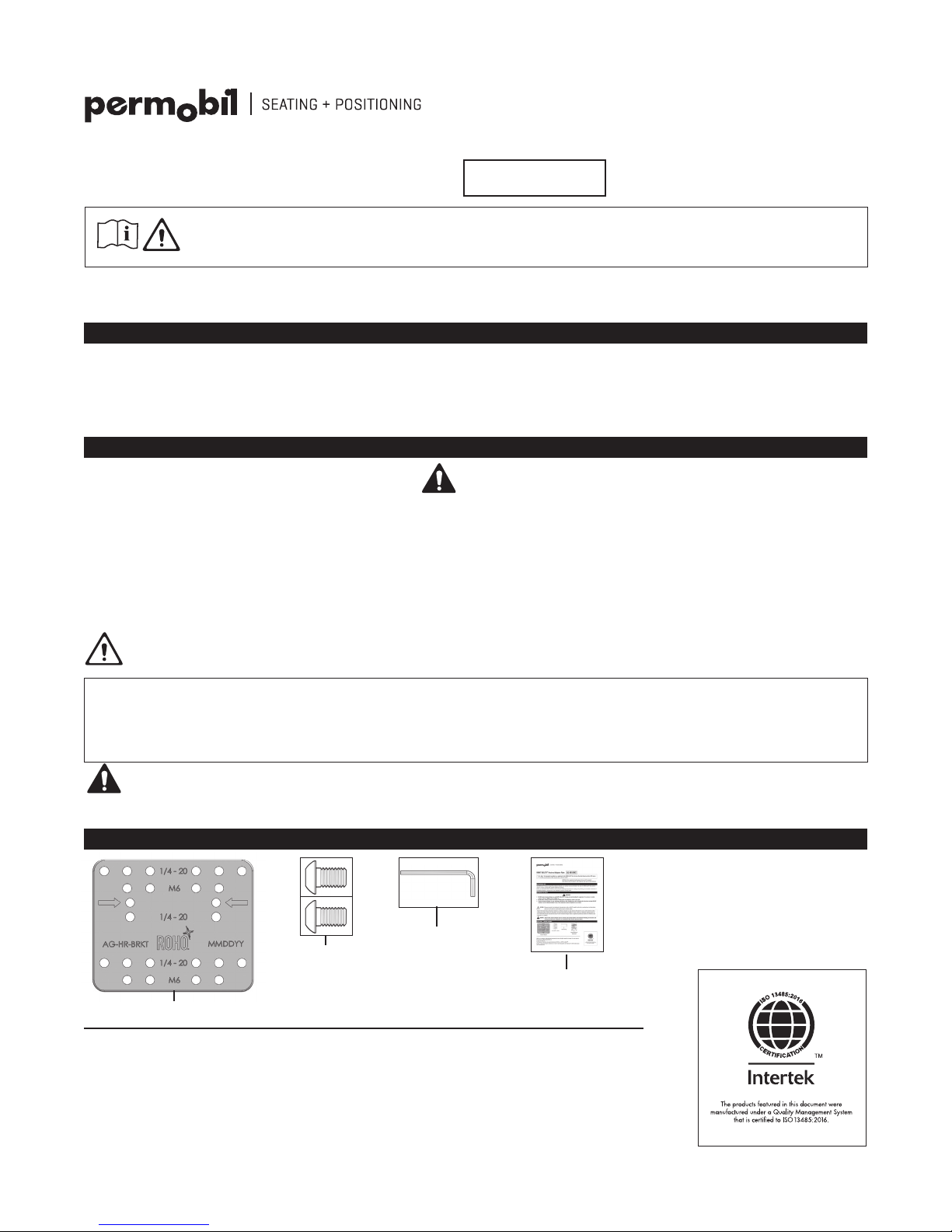

PARTS DETAIL - PACKAGE CONTENTS
4mm Hex Key
10mm M6-1.0 Bolts
Operation Manual
Headrest Adapter
ROHO, Inc. has a policy of continual product improvement and reserves the right to amend this document. The current version
of this document is available at permobilus.com.
© 2013, 2018 ROHO, Inc.
The following are trademarks and registered trademarks of ROHO, Inc.: ROHO
Products in this document may be covered by one or more U.S. and foreign patents and trademarks. For further details please
refer to permobilus.com.
®
and AGILITY®.
Supplement
Page 2
PRODUCT SPECIFICATIONS*
Material: Black Anodized Aluminum
Weight: 0.25 lbs. (0.13 kg)
Width x Length x Depth: 3.5 in. x 2.9 in. x 0.3 in.
(89mm x 73mm x 8mm)
Headrest Compatibility: Compatible with OEM headrests that have the
following center to center bolt spacing:
1/4-20 Thread M6 (1.0) Thread
Horizontal: 1 in., 1-7/8 in., 2 in. and 3 in. 25.4mm and 50.8mm
Vertical: 2 in. 50.8mm
*NOTE: All measurements are approximate.

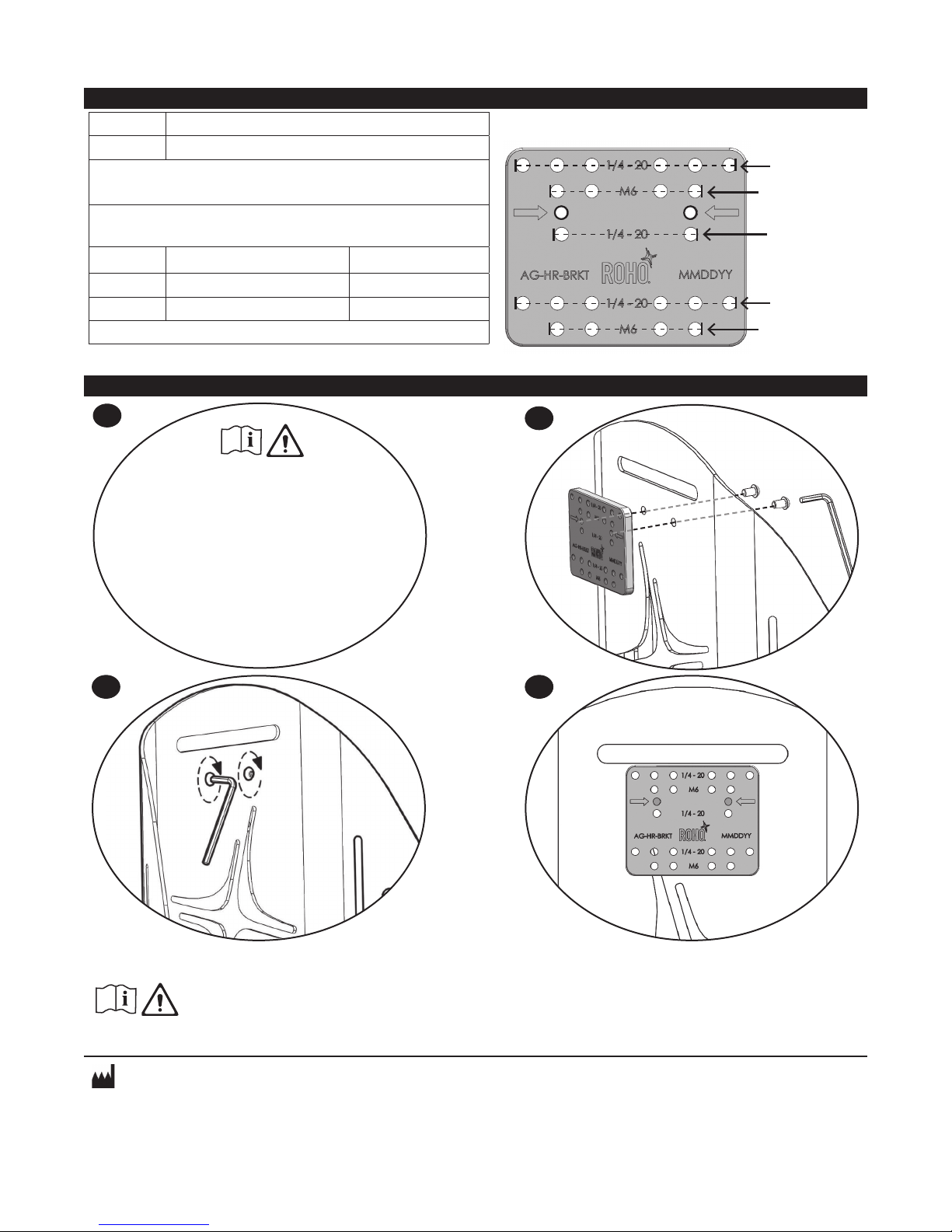

HEADREST ADAPTER ATTACHMENT
1/4-20 Bolt Holes
M6 Bolt Holes
Attachment Holes
1/4-20 Bolt Holes
1/4-20 Bolt Holes
M6 Bolt Holes
1
Remove the AGILITY cover to allow access to
the pre-drilled holes. After Headrest Adapter
attachment is complete, the AGILITY cover may
be re-installed.
Refer to AGILITY Back Systems Operation Manual
- COVER REMOVAL AND INSTALLATION
and ACCESSORIES.
3 4
2
For detailed information regarding CLEANING AND DISINFECTING and LIMITED WARRANTY of back shell hardware, refer to the
AGILITY Back Systems Operation Manual.
Manufactured by ROHO, Inc.
Administrative Offices:
Mailing/Shipping Address: 1501 South 74th Street, Belleville, IL 62223-5900, USA
permobilus.com.
U.S.A.: 800-851-3449, Fax 888-551-3449 e-mail: [email protected]
Outside the U.S.A.: 618-277-9150, Fax 618-277-6518 e-mail: [email protected]
100 North Florida Avenue, Belleville, Illinois 62221-5429
Item # T20222
Rev. 2018-10-18
