Rohm SENSEKIT1-EVK-101, SENSEKIT2-EVK-101 User Manual

Sensor
Evaluation Kit

ROHM-SENSEKIT1-EVK-101
SENSEKIT2-EVK-101

USER MANUAL

Sensor Evaluation Kit User Manual Rev1.0

Contents

1. General Information and Introduction ........................................................................................ 3

1.1 Introduction .......................................................................................................................... 3

1.2 Quick Start Guide ................................................................................................................. 3

1.3. Supported Sensor Products .............................................................................................. 4

2. Base Board Overview ................................................................................................................. 5

2.1. Hardware ............................................................................................................................. 5

2.2. Software .............................................................................................................................. 9

3. Breakout Board Overview .......................................................................................................... 10

3.1. Hall Sensor Breakout Board.............................................................................................. 10

3.2. Ambient Light Sensor Breakout Boards ........................................................................... 12

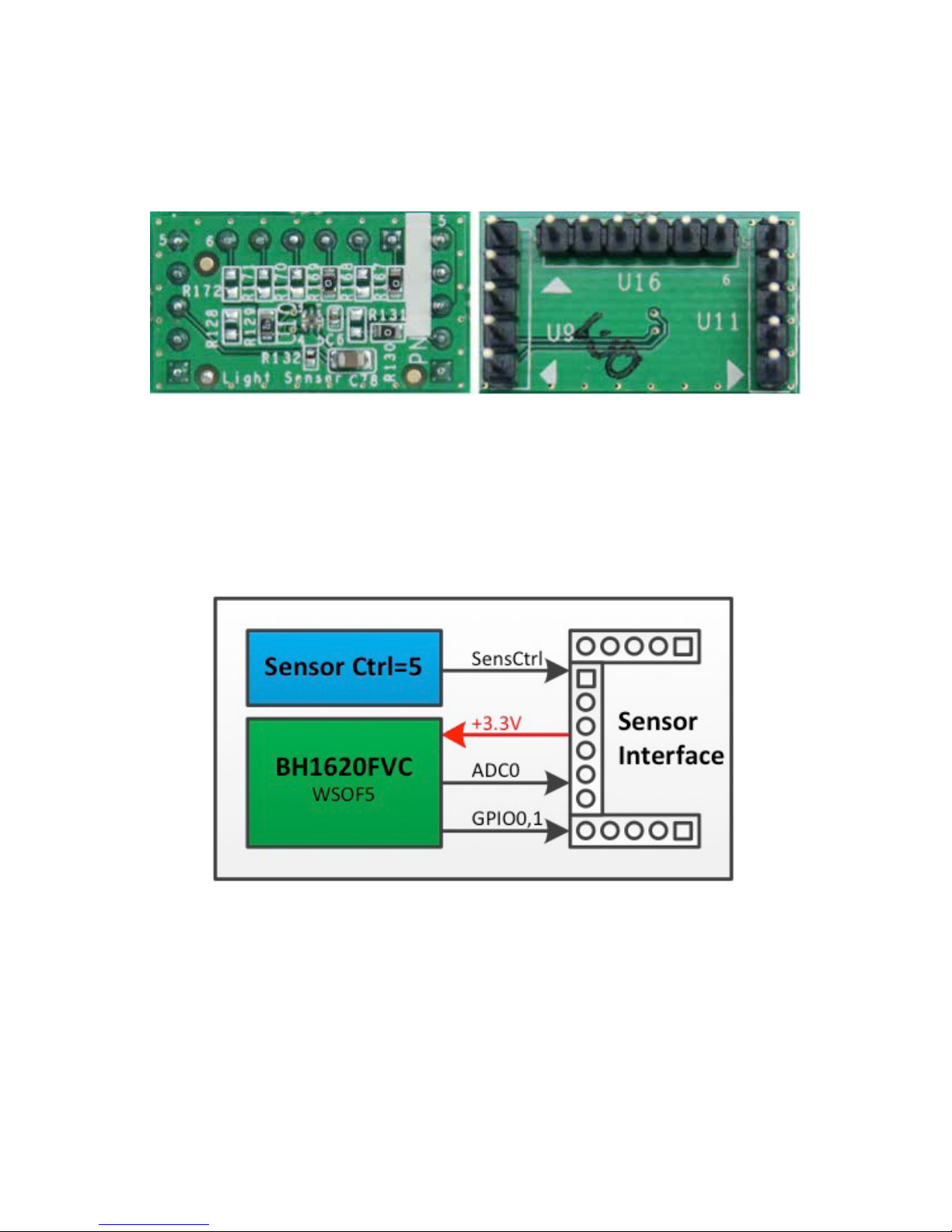

3.2.1. BH1620FVC Breakout Board ................................................................................12

3.2.2. BH1721FVC Breakout Board ............................................................................... 14

3.3 UV Sensor Breakout Board .................................................................................................. 16

3.3.1. ML8511 Breakout Board ...................................................................................... 16

3.4. MEMS Sensor Breakout Board ......................................................................................... 18

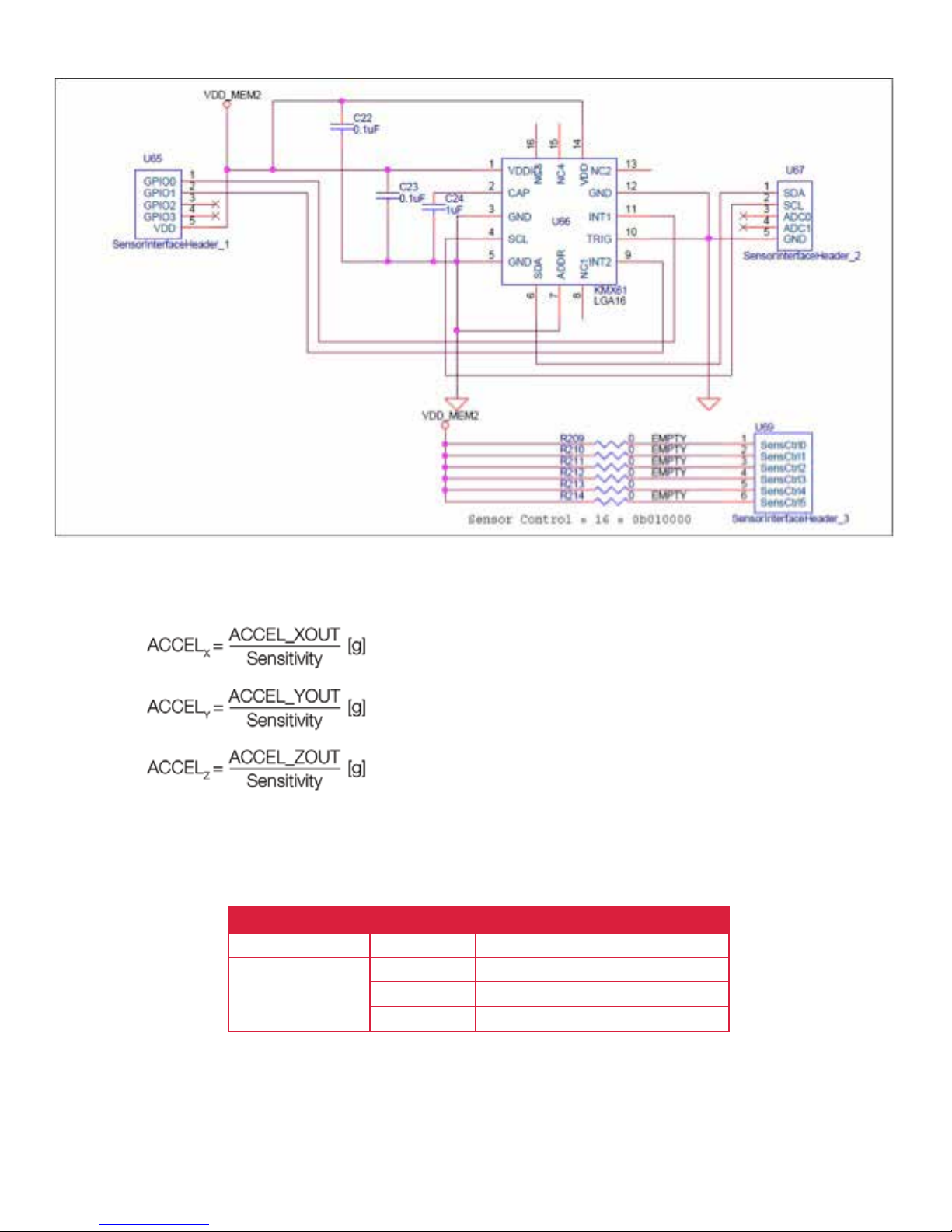

3.4.1. KMX61 Breakout Board ....................................................................................... 18

3.5. Temperature Sensor Breakout Board ................................................................................ 21

3.5.1. BDE0600G Breakout Board ................................................................................. 21

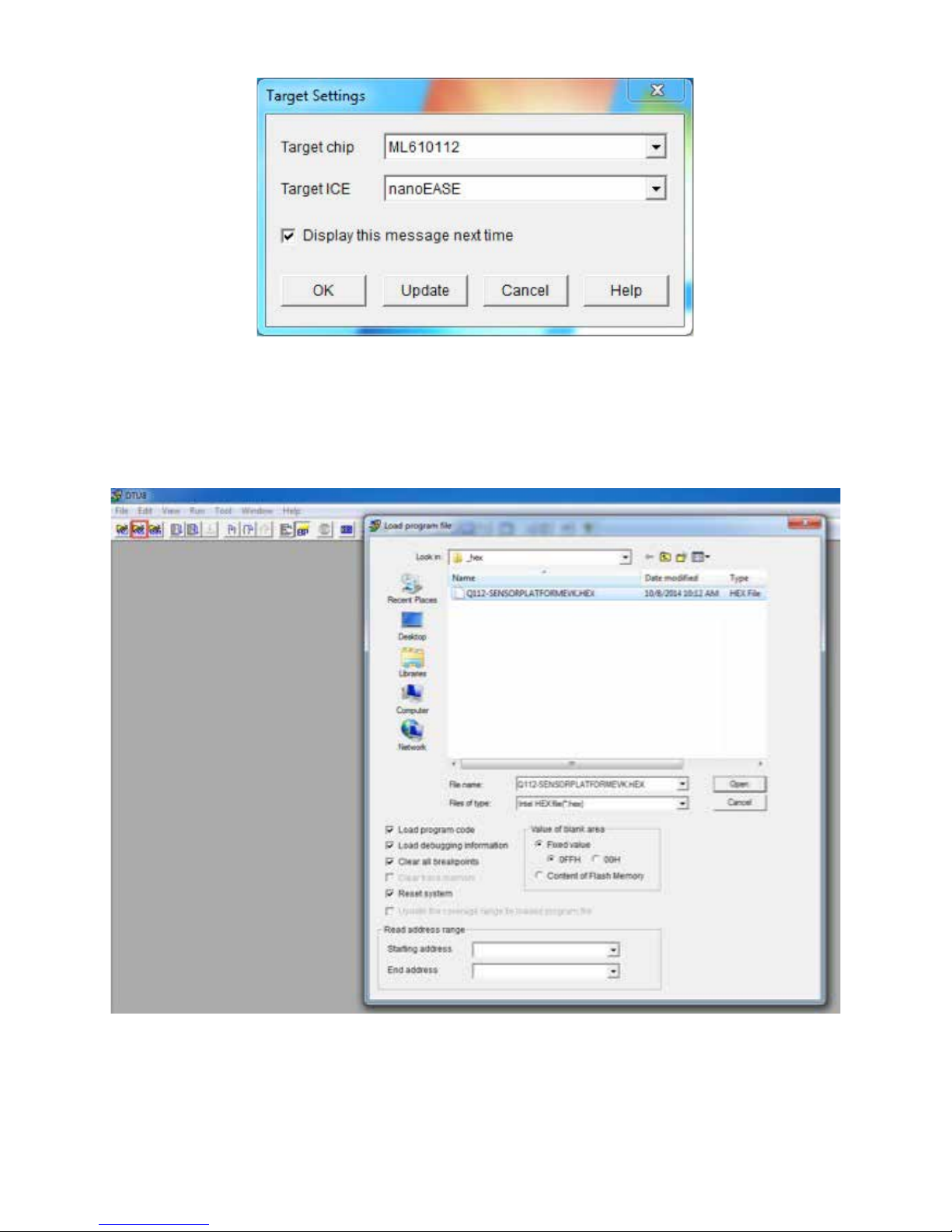

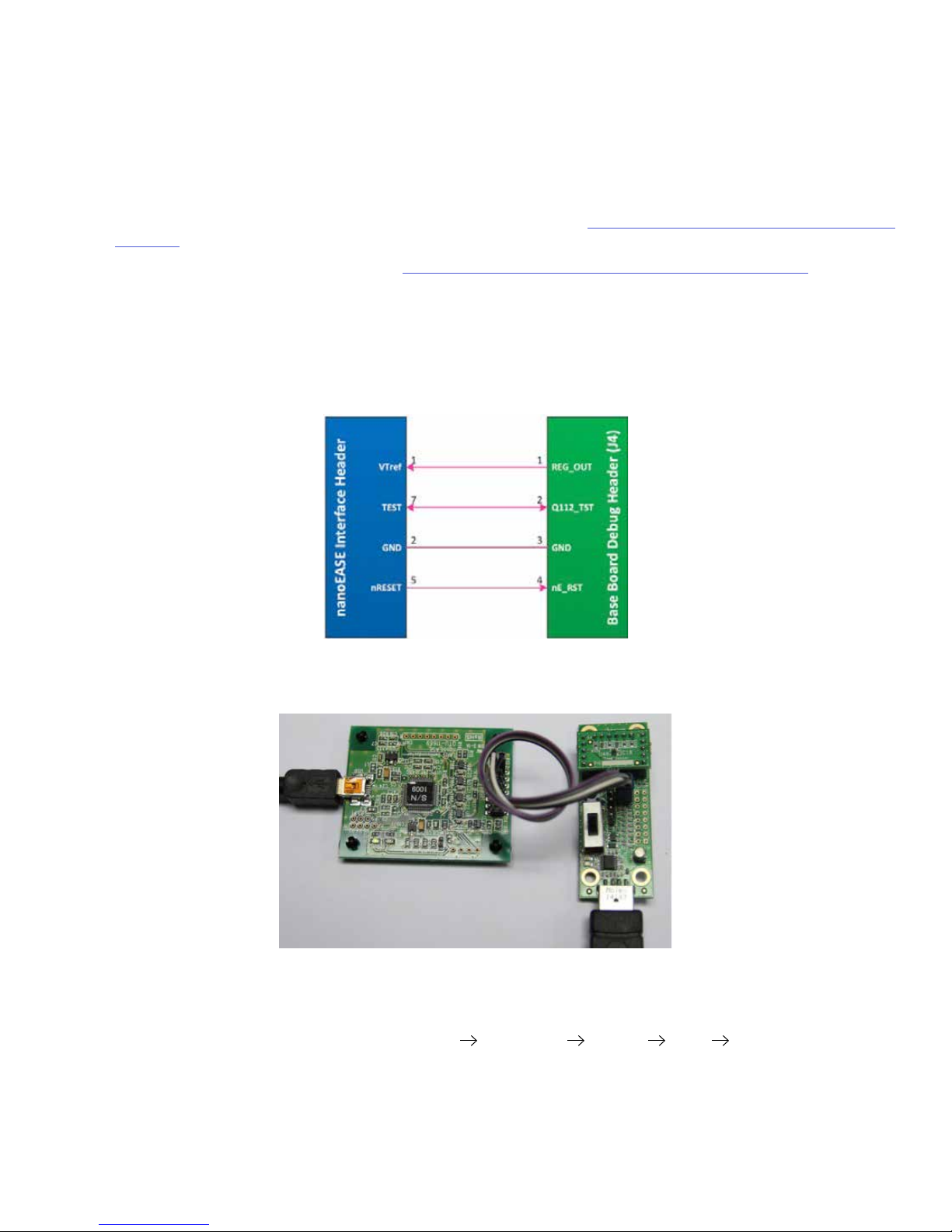

Appendix A: Programming the Base Board Instructions ........................................................... 23

2

Sensor Evaluation Kit User Manual Rev1.0

1. General Information and Introduction

1.1 Introduction

The Sensor Evaluation Kit is designed to test the functional operation of various sensor types. It includes one Base Board
and several Breakout Boards. The Base Board is a controller board with a LAPIS MCU. The Breakout boards are sensor
boards containing different types of sensor ICs.

This guide will help you understand how to connect Breakout Boards to the Base Board. It will also show how the Base
Board obtains data from sensors, and converts and displays the results on a computer screen.

Figure 1: Sensor Evaluation Kit

1.2 Quick Start Guide

Step 1: Check to make sure the latest drivers are installed on your computer for communicating with the Base Board
(LAPIS MCU) via USB. If not, please go to http://www.ftdichip.com/Support/Documents/InstallGuides.htm to access the
driver files.

Step 2: Verify that the jumper settings are set as follows:

• Power Selection Switch (J1) is in the VBUS position (position 3).

• Reset Selection Header (J2) is in the USR_RST position (connect pins 1 and 2).

Step 3: Plug the Sensor Breakout Board into the Base Board.

Step 4: Connect the Base Board + Breakout Board to the computer via USB cable.

Step 5: Run the Serial Terminal tool (PuTTy), configure PuTTy to run in Serial mode with a data rate of 9600bps .The output

data will be displayed on the terminal screen. If no output is displayed, please go to Appendix A: Programming the Base
Board Instructions to program/re-program the Base Board.

Figure 2: Base Board and Breakout Board Connection

3

Sensor Evaluation Kit User Manual Rev1.0

1.3. Supported Sensor Products

Figure 3: Pu TTy Configuration

Figure 4: Base Board Sample Output (without Breakout Board)

Part Number Sensor Type Sensor Control Code

BU52011HFV

BH1620FVC

BH1721FVC 8

ML8511

KMX61

BDE0600G

Hall Sensor

Ambient Light Sensor

UV Sensor

MEMs

Temperature Sensor

Table 1: Supported Sensor Products

4

2

5

10

16

22

Sensor Evaluation Kit User Manual Rev1.0

2. Base Board Overview

2.1. Hardware

The block diagram of the Base Board is shown in Figure 5. LAPIS Semiconductor's ML610Q112 MCU is used to interface
with the Breakout Board via Sensor Interface Headers and with the PC via the UART-to-USB IC FT230XS-R.

Figure 5: Base Board Hardware Block Diagram

Figure 6: Base Board (Top View)

5

Sensor Evaluation Kit User Manual Rev1.0

Designator Position Description

J1 1 (EXT_PWR) External Power Source selected

2 (OPEN) No Power Source selected

3 (VBUS) VBUS Source selected

J2 2-1 (USR_RST) User Reset selected

2-3 (nE_RST) nanoEASE Reset selected

Table 2: Base Board - Jumper/Switch Configurations

The ML610Q112 is a high-performance 8bit CMOS microcontroller that incorporates a variety of peripheral circuits, such as
timers, PWM/UART/I2C bus interface (master/slave), synchronous serial port, voltage level supervisor, analog comparators,
and 10-bit successive approximation type A/D converter, around an 8bit nX-U8/100 CPU. The nX-U8/100 is capable of
efficient instruction execution at 1 instruction per clock cycle via parallel processing and pipeline architecture. The Flash
ROM installed as program memory and on-chip debugging function enable program debugging and programming on the
customer’s board.

The Base Board is powered by the VBUS pin in the USB connector or an external power source connected via Header J3.
Switch J1 is used to select the power source.

Figure 7: Base Board - Q112 MCU Schematic

6

Sensor Evaluation Kit User Manual Rev1.0

Figure 8: Base Board - Power Supply Schematic

The debugging function of ML610Q112 is extremely useful. You will be able to single-step through your code to quickly
find problems and solutions as well as set breakpoints and create and save watch lists of variables to help you better
understand what is going on inside your code. To manually reset the micro using Button S1, move J2 to the USR_RST
position.

The Sensor Interface Headers

Figure 9: Base Board - Reset and Debugger Schematic

Figure 10: Base Board - Sensor Interface Schematic

7

The feedback LEDs

The UART to USB Block

Sensor Evaluation Kit User Manual Rev1.0

Figure 11: Base Board - Feedback LED Schematic

Figure 12: Base Board - USB to UART Schematic

8
