ROHM QS8M12 Technical data

4V Drive Nch + Pch MOSFET



QS8M12

Data Sheet

 Structure

Silicon N-channel MOSFET/
Silicon P-channel MOSFET

Features

1) Low on-resistance.

2) High power package(TSMT8).

3) Low voltage drive(4V drive).

 Application

Switching

 Packaging specifications

Package Taping

Type

Code TCR
Basic ordering unit (pieces) 3000

QS8M12 

 Absolute maximum ratings (Ta = 25C)

Parameter

Drain-source voltage V

Gate-source voltage V

Drain current

Source current
(Body Diode)

Continuous I

Pulsed I
Continuous I

Pulsed I

Power dissipation

Symbol

DSS

GSS

D

DP

s

sp

P

D

Tr1 : N-ch Tr2 : P-ch

*1

*1

*2

Channel temperature Tch C
Range of storage temperature Tstg C

*1 Pw10s, Duty cycle1%

*2 Mounted on a ceramic board.

Limits

Unit

30 30 V

20 20 V

4 4A

12 12 A

1.0

1.0 A

12 12 A

1.5

1.25

W / TOTAL

W / ELEMENT

150

55 to 150

Dimensions (Unit : mm)

TSMT8

(8) (7) (5)(6)

(1) (2) (4)(3)

Abbreviated symbol : M12

Inner circuit

(8) (7)

(1) Tr1 Source
(2) Tr1 Gate
(3) Tr2 Source
(4) Tr2 Gate
(5) Tr2 Drain
(6) Tr2 Drain
(7) Tr1 Drain
(8) Tr1 Drain

∗2

∗1

(1) (2)

∗1 ESD PROTECTION DIODE
∗2 BODY DIODE

(6) (5)

∗2

∗1

(3) (4)

www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.

1/10

2011.05 - Rev.A

www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.

Data Sheet

QS8M12

 Electrical characteristics (Ta = 25 C)

<Tr1(Nch)>

Symbol Min. Typ. Max. Unit

Gate-source leakage I

Drain-source breakdown voltage V

Zero gate voltage drain current I

Gate threshold voltage V

Static drain-source on-state
resistance

R

GSS

(BR)DSS

DSS

GS (th)

DS (on)

--10 AVGS=±20V, VDS=0V

30 - - V ID=1mA, VGS=0V

--1AVDS=30V, VGS=0V

1.0 - 2.5 V VDS=10V, ID=1mA

-3042 I

*

-4056 I

m

ConditionsParameter

=4A, VGS=10V

D

=4A, VGS=4.5V

D

45 63 ID=4A, VGS=4V

iss

oss

rss

d(on)

d(off)

gd

*

- 250 - pF VDS=10V

- 90 - pF VGS=0V

- 45 - pF f=1MHz

*

-7-nsI

*

r

f

g

gs

- 30 - ns VGS=10V

*

- 30 - ns RL=7.5

-5-nsR

*
*

- 3.4 - nC ID=4A, VDD 15V

*

- 1.2 - nC VGS=5V

*

- 1.3 - nC

=2A, VDD 15V

D

=10

G

Forward transfer admittance l Yfs l 2.5 - - S VDS=10V, ID=4A

Input capacitance C

Output capacitance C

Reverse transfer capacitance C

Turn-on delay time t

Rise time t

Turn-off delay time t

Fall time t

Total gate charge Q

Gate-source charge Q

Gate-drain charge Q

*Pulsed

Body diode characteristics (Source-Drain) (Ta = 25C)

Parameter Conditions

Forward Voltage V

*Pulsed

Symbol Min. Typ. Max. Unit

*

SD

- - 1.2 V Is=4A, VGS=0V

2/10

2011.05 - Rev.A

www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.

Data Sheet

QS8M12

 Electrical characteristics (Ta = 25 C)

<Tr2(Pch)>

Parameter Conditions

Gate-source leakage I

Drain-source breakdown voltage V

Zero gate voltage drain current I

Gate threshold voltage V

Static drain-source on-state
resistance

Forward transfer admittance l Yfs l3 - - SVDS=10V, ID=4A

Input capacitance C

Output capacitance C

Reverse transfer capacitance C

Turn-on delay time t

Rise time t

Turn-off delay time t

Fall time t

Total gate charge Q

Gate-source charge Q

Gate-drain charge Q

*Pulsed

Symbol Min. Typ. Max. Unit

GSS

(BR)DSS

DSS

GS (th)

--10 AVGS=20V, VDS=0V

30 - - V ID=1mA, VGS=0V

- 1 AVDS=30V, VGS=0V

1.0 - 2.5 V VDS=10V, ID=1mA

-4056 I

*

R

DS (on)

-5577 I

m

-6084 I

*

iss

oss

rss

d(on)

r

d(off)

f

g

gs

gd

- 800 - pF VDS=10V

- 120 - pF VGS=0V

- 110 - pF f=1MHz

-8-nsI

*

*

- 20 - ns VGS=10V

*

*

- 80 - ns RL=7.5

*

*

- 50 - ns RG=10

*

*

- 8.4 - nC ID=4A, VDD 15V

*

*

- 3.0 - nC VGS=5V

*

*

- 3.5 - nC

*

*

=4A, VGS=10V

D

=2A, VGS=4.5V

D

=2A, VGS=4.0V

D

=2A, VDD 15V

D

Body diode characteristics (Source-Drain) (Ta = 25C)

Parameter

Forward Voltage V

*Pulsed

Symbol Min. Typ. Max. Unit

*

SD

--1.2 V Is=4A, VGS=0V

Conditions

3/10

2011.05 - Rev.A

www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.

Data Sheet

QS8M12

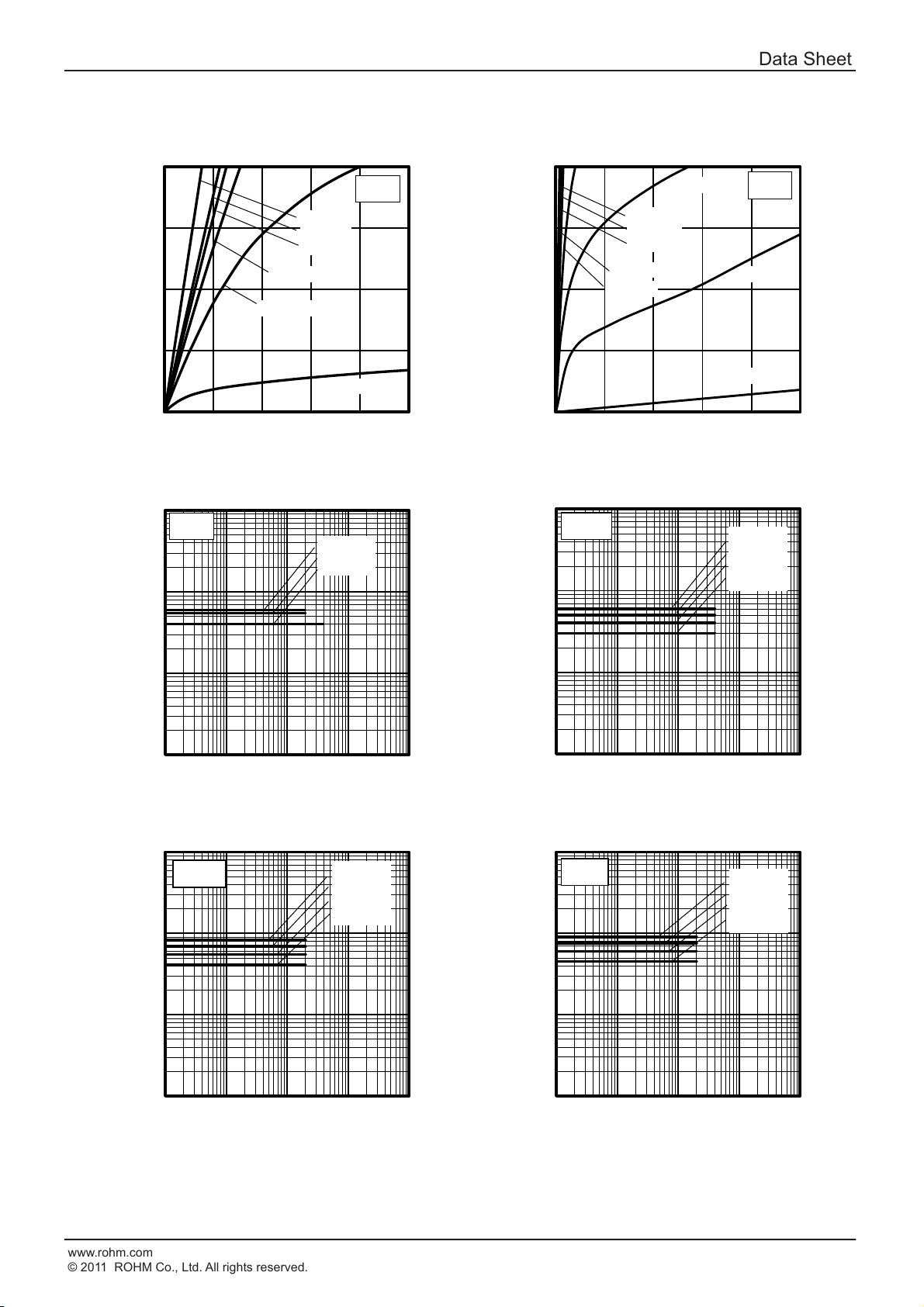

Electrical characteristic curves (Ta=25C)

〈Tr.1(Nch)〉

0

1

2

3

4

0 0.2 0.4 0.6 0.8 1

Drain Current : I

D

[A]

Drain-Source Voltage : VDS [V]

Fig.1 Typical Output Characteristics (Ⅰ)

VGS=2.5V

VGS=10.0V

VGS=4.0V

VGS=4.5V

VGS=2.8V

VGS=3.5V

Ta=25℃

Pulsed

0

1

2

3

4

0 2 4 6 8 10

Drain Current : I

D

[A]

Drain-Source Voltage : VDS [V]

Fig.2 Typical Output Characteristics (Ⅱ)

VGS=2.5V

VGS=10.0V

VGS=4.0V

VGS=4.5V

VGS=3.0V

VGS=2.8V

Ta=25℃

Pulsed

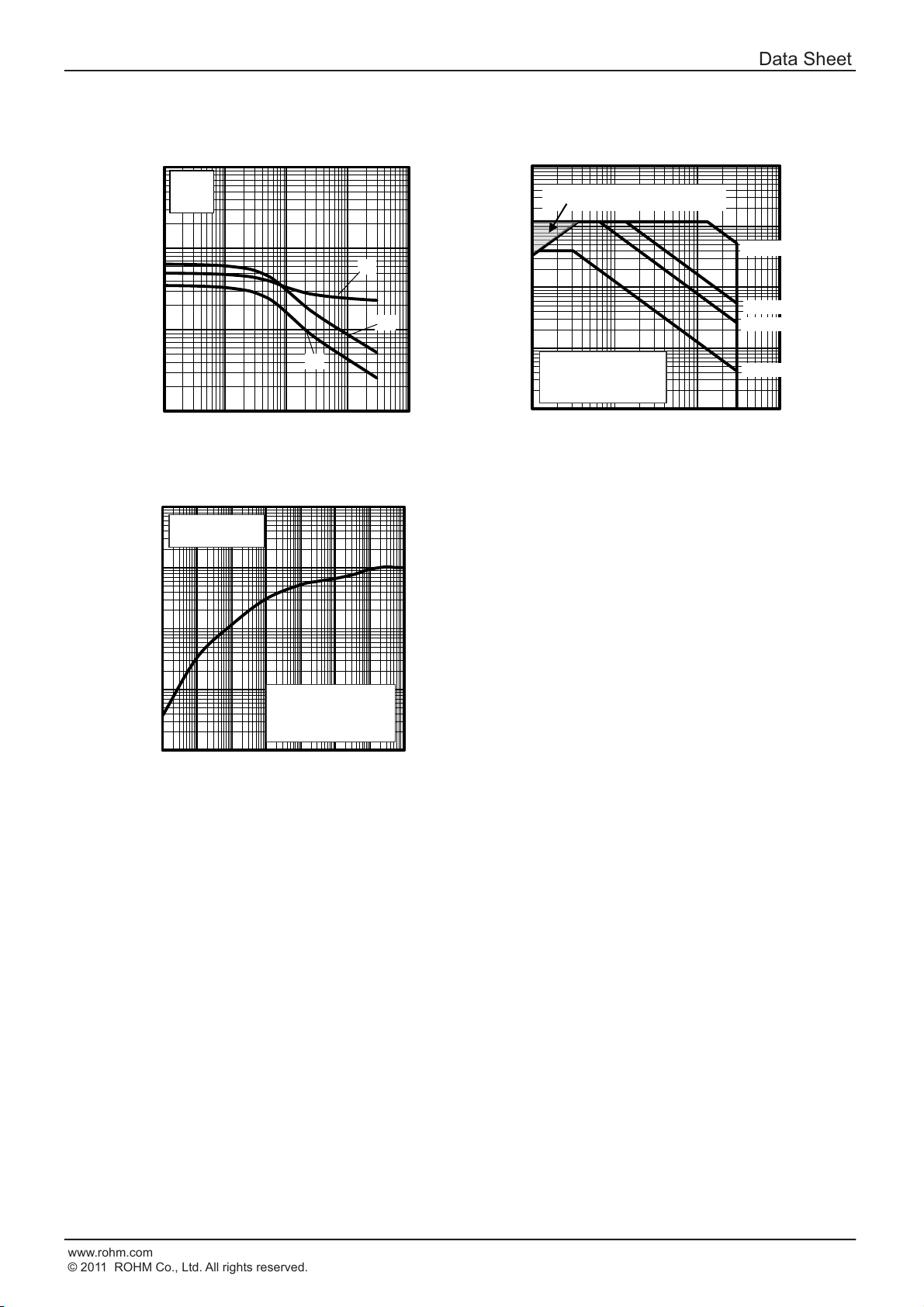

10

100

1000

0.01 0.1 1 10

Static Drain-Source On-State Resistance

R

DS(on)

[mΩ]

Drain Current : ID [A]

Fig.3 Static Drain-Source On-State Resistance vs. Drain Current

VGS=4.0V
VGS=4.5V

VGS=10V

Ta=25℃

Pulsed

10

100

1000

0.01 0.1 1 10

Static Drain-Source On-State Resistance

R

DS(on)

[mΩ]

Drain Current : ID [A]

Fig.4 Static Drain-Source On-State Resistance vs. Drain Current

VGS=10V
pulsed

Ta= 125℃

Ta= 75°C
Ta= 25°C

Ta= - 25°C

10

100

1000

0.01 0.1 1 10

Static Drain-Source On-State Resistance

R

DS(on)

[mΩ]

Drain Current : ID [A]

Fig.5 Static Drain-Source On-State Resistance vs. Drain Current

VGS=4.5V
pulsed

Ta= 125℃

Ta= 75°C
Ta= 25°C

Ta= - 25°C

10

100

1000

0.01 0.1 1 10

Static Drain-Source On-State Resistance

R

DS(on)

[mΩ]

Drain Current : ID [A]

Fig.6 Static Drain-Source On-State Resistance vs. Drain Current

VGS=4V
pulsed

Ta= 125℃

Ta= 75°C
Ta= 25°C

Ta= - 25°C

4/10

2011.05 - Rev.A

www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.

Data Sheet

QS8M12

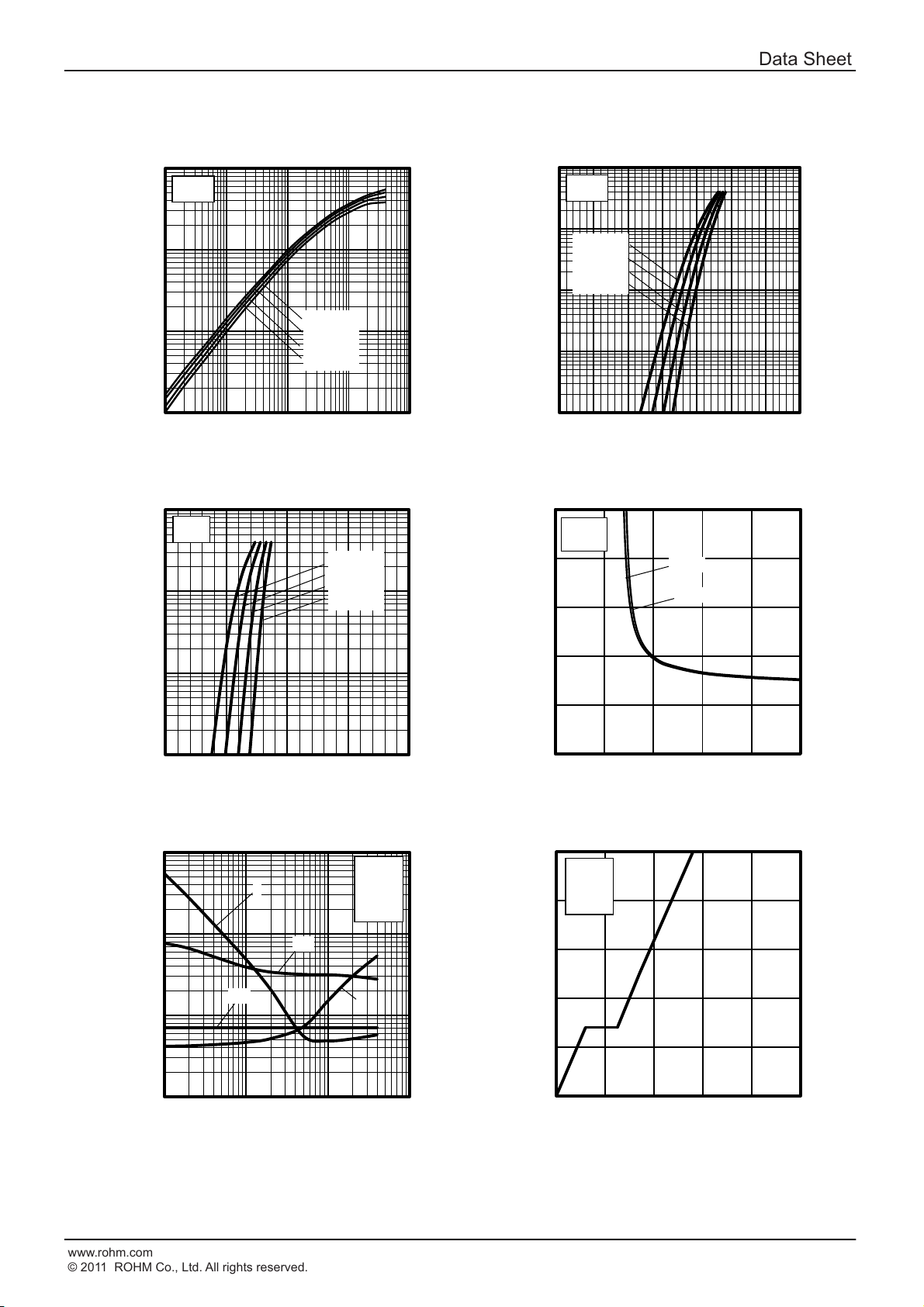

0.01

0.1

1

10

0.001 0.01 0.1 1 10

Forward Transfer Admittance

Y

fs

[S]

Drain Current : ID [A]

Fig.7 Forward Transfer Admittance vs. Drain Current

VDS=10V
pulsed

Ta= 125℃
Ta= 75°C
Ta= 25°C
Ta= - 25°C

0.001

0.01

0.1

1

10

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5

Drain Currnt : I

D

[A]

Gate-Source Voltage : VGS [V]

Fig.8 Typical Transfer Characteristics

VDS=10V
pulsed

Ta= 125℃

Ta= 75°C
Ta= 25°C

Ta= - 25°C

0.01

0.1

1

10

0.0 0.5 1.0 1.5 2.0

Source Current : I

s

[A]

Source-Drain Voltage : VSD [V]

Fig.9 Source Current vs. Source-Drain Voltage

VGS=0V
pulsed

Ta= 125℃
Ta= 75°C
Ta= 25°C
Ta= - 25°C

0

20

40

60

80

100

0 2 4 6 8 10

Static Drain-Source On-State Resistance

R

DS(on)

[mΩ]

Gate-Source Voltage : VGS [V]

Fig.10 Static Drain-Source On-State Resistance vs. Gate-Source Voltage

ID=4.0A

ID=2.0A

Ta=25℃

Pulsed

1

10

100

1000

0.01 0.1 1 10

Switching Time : t [ns]

Drain Current : ID [A]

Fig.11 Switching Characteristics

t

d(on)

tr t

d(off)

t

f

VDD≒15V
V

GS

=10V

R

G

=10Ω

T

a

=25°C

Pulsed

0

2

4

6

8

10

0 2 4 6 8 10

Gate-Source Voltage : V

GS

[V]

Total Gate Charge : Qg [nC]

Fig.12 Dynamic Input Characteristics

T

a

=25°C

V

DD

=15V

I

D

=4A

Pulsed

5/10

2011.05 - Rev.A

www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.

Data Sheet

QS8M12

10

100

1000

10000

0.01 0.1 1 10 100

Capacitance : C [pF]

Drain-Source Voltage : VDS [V]

Fig.13 Typical Capacitance vs. Drain-Source Voltage

T

a

=25

°C

f=1MHz
VGS=0V

C

iss Coss

C

rss

0.001

0.01

0.1

1

10

0.0001 0.001 0.01 0.1 1 10 100 1000

Normalized Transient Thermal Resistance : r(t)

Pulse width : Pw (s)

Fig.15 Normalized Transient Thermal Resistance v.s. Pulse Width

Ta=25°C
Single Pulse : 1Unit

Mounted on a ceramic board.
(30mm × 30mm × 0.8mm)

Rth

(ch-a)

=100°C/W

Rth

(ch-a)

(t)=r(t)×Rth

(ch-a)

0.01

0.1

1

10

100

0.1 1 10 100

Drain Current : I

D

[ A ]

Drain-Source Voltage : VDS [ V ]

Fig.14 Maximum Safe Operating Area

Ta=25°C
Single Pulse : 1Unit

Mounted on a ceramic board.
(30mm × 30mm × 0.8mm)

Operation in this area is limited by R

DS(on)

(VGS = 10V)

DC Operation

PW = 100μs

PW = 1ms

PW = 10ms

6/10

2011.05 - Rev.A

www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.

Data Sheet

QS8M12

〈Tr.2(Pch)〉

0

1

2

3

4

0 0.2 0.4 0.6 0.8 1

Drain Current : -I

D

[A]

Drain-Source Voltage : -VDS [V]

Fig.1 Typical Output Characteristics (Ⅰ)

VGS=-10.0V

VGS=-4.0V

VGS=-4.5V

VGS=-3.0V

VGS=-3.5V

VGS=-2.5V

Ta=25°C
Pulsed

0

1

2

3

4

0 2 4 6 8 10

Drain Current : -I

D

[A]

Drain-Source Voltage : -VDS [V]

Fig.2 Typical Output Characteristics (Ⅱ)

VGS=-10.0V

VGS=-4.0V

VGS=-4.5V

VGS=-3.5V

VGS=-3.0V

VGS=-2.8V

VGS=-2.6V

VGS=-2.2V

Ta=25°C
Pulsed

1

10

100

1000

0.01 0.1 1 10 100

Static Drain-Source On-State Resistance

R

DS(on)

[mΩ]

Drain Current : -ID [A]

Fig.3 Static Drain-Source On-State Resistance vs. Drain Current

V

GS

=-4.0V

V

GS

=-4.5V

VGS=-10V

Ta=25°C
Pulsed

1

10

100

1000

0.01 0.1 1 10 100

Static Drain-Source On-State Resistance

R

DS(on)

[mΩ]

Drain Current : -ID [A]

Fig.4 Static Drain-Source On-State Resistance vs. Drain Current

V

GS

=-10V

pulsed

Ta= 125°C
Ta= 75°C
Ta= 25°C
Ta= - 25°C

1

10

100

1000

0.01 0.1 1 10 100

Static Drain-Source On-State Resistance

R

DS(on)

[mΩ]

Drain Current : -ID [A]

Fig.5 Static Drain-Source On-State Resistance vs. Drain Current

V

GS

=-4.5V

pulsed

Ta= 125°C
Ta= 75°C
Ta= 25°C
Ta= - 25°C

1

10

100

1000

0.01 0.1 1 10 100

Static Drain-Source On-State Resistance

R

DS(on)

[mΩ]

Drain Current : -ID [A]

Fig.6 Static Drain-Source On-State Resistance vs. Drain Current

V

GS

=-4V

pulsed

Ta= 125°C
Ta= 75°C
Ta= 25°C
Ta= - 25°C

7/10

2011.05 - Rev.A

www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.

Data Sheet

QS8M12

0.01

0.1

1

10

100

0.001 0.01 0.1 1 10 100

Forward Transfer Admittance

Y

fs

[S]

Drain Current : -ID [A]

Fig.7 Forward Transfer Admittance vs. Drain Current

V

DS

=-10V

pulsed

Ta= 125°C
Ta= 75°C
Ta= 25°C
Ta= - 25°C

0.001

0.01

0.1

1

10

100

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5

Drain Currnt : -I

D

[A]

Gate-Source Voltage : -VGS [V]

Fig.8 Typical Transfer Characteristics

V

DS

=

-10V

pulsed

Ta= 125°C

Ta= 75°C
Ta= 25°C

Ta= - 25°C

0.01

0.1

1

10

100

0.0 0.5 1.0 1.5 2.0

Source Current : -I

s

[A]

Source-Drain Voltage : -VSD [V]

Fig.9 Source Current vs. Source-Drain Voltage

VGS=0V
pulsed

Ta= 125°C
Ta= 75°C
Ta= 25°C
Ta= - 25°C

0

50

100

150

200

0 2 4 6 8 10

Static Drain-Source On-State Resistance

R

DS(on)

[mΩ]

Gate-Source Voltage : -VGS [V]

Fig.10 Static Drain-Source On-State Resistance vs. Gate-Source Voltage

ID=-4A

ID=-2A

Ta=25°C
Pulsed

1

10

100

1000

0.01 0.1 1 10 100

Switching Time : t [ns]

Drain Current :- ID [A]

Fig.11 Switching Characteristics

t

d(on) tr

t

d(off)

t

f

VDD≒-15V
V

GS

=-10V

R

G

=10Ω

T

a

=25°C

Pulsed

0

2

4

6

8

10

0 2 4 6 8 10 12 14

Gate-Source Voltage : -V

GS

[V]

Total Gate Charge : Qg [nC]

Fig.12 Dynamic Input Characteristics

T

a

=25°C

V

DD

=-15V

I

D

=-4A

Pulsed

8/10

2011.05 - Rev.A

www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.

Data Sheet

QS8M12

10

100

1000

10000

0.01 0.1 1 10 100

Capacitance : C [pF]

Drain-Source Voltage : -VDS [V]

Fig.13 Typical Capacitance vs. Drain-Source Voltage

T

a

=25°C

f=1MHz
VGS=0V

C

iss Coss

C

rss

0.01

0.1

1

10

100

0.1 1 10 100

Drain Current : - I

D

[ A ]

Drain-Source Voltage : - VDS [ V ]

Fig.14 Maximum Safe Operating Area

T

a

=25°C

Single Pulse:1Unit
Mounted on a ceramic board.
(30mm × 30mm × 0.8mm)

Operation in this area is limited by R

DS(on)

(VGS = -10V)

PW = 100μs

PW = 1ms

PW = 10ms

DC Operation

0.001

0.01

0.1

1

10

0.0001 0.001 0.01 0.1 1 10 100 1000

Normalized Transient Thermal Resistance : r（t）

Pulse width : Pw (s)

Fig.15 Normalized Transient Thermal Resistance v.s. Pulse Width

T

a

=25°C

Single Pulse : 1Unit

Mounted on a ceramic board.
(30mm

× 30mm × 0.8mm)

Rth

(ch-a)

=100°C/W

Rth

(ch-a)

(t)=r(t)×Rth

(ch-a)

9/10

2011.05 - Rev.A

www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.

Data Sheet

QS8M12

S

%

V
V

V

S

V

V

V

S

 Measurement circuits

<Tr1(Nch)>

V

GS

R

G

D.U.T.

Pulse width

D

I

V

D

R

L

V

DD

50%

10%

GS
DS

10% 10%

t

d(on)

t

on

90%

50%

90% 90

t

d(off)

t

r

t

off

t

f

Fig.1-1 Switching Time Measurement Circuit

VGS

IG(Const.)

D.U.T.

D

I

Fig.2-1 Gate Charge Measurement Circuit

<Tr2(Pch)>

V

GS

R

G

I

D.U.T.

D

R

V

Fig.1-2　Switching Waveforms

V

G

VD

RL

GS

VDD

QgsQ

Q

g

gd

Charge

Fig.2-2 Gate Charge Waveform

Pulse Width

GS

V

DS

L

DD

10%

50%

90%

50%

10% 10%

DS

90% 90%

t

d(on)

t

r

t

on

t

d(off)

t

f

t

off

Fig.1-1 Switching Time Measurement Circuit

D

I

G(Const.)

V

I

GS

D.U.T.

V

D

R

L

V

DD

Fig.1-2　Switching Waveforms

V

G

Q

g

GS

QgsQ

gd

Charge

Fig.2-1 Gate Charge Measurement Circuit

Fig.2-2 Gate Charge Waveform

 Notice

This product might cause chip aging and breakdown under the large electrified environment. Please consider to design
ESD protection circuit.

10/10

2011.05 - Rev.A

Notes

Notice

www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.

Thank you for your accessing to ROHM product informations.
More detail product informations and catalogs are available, please contact us.

ROHM Customer Support System

http://www.rohm.com/contact/

R1120A
