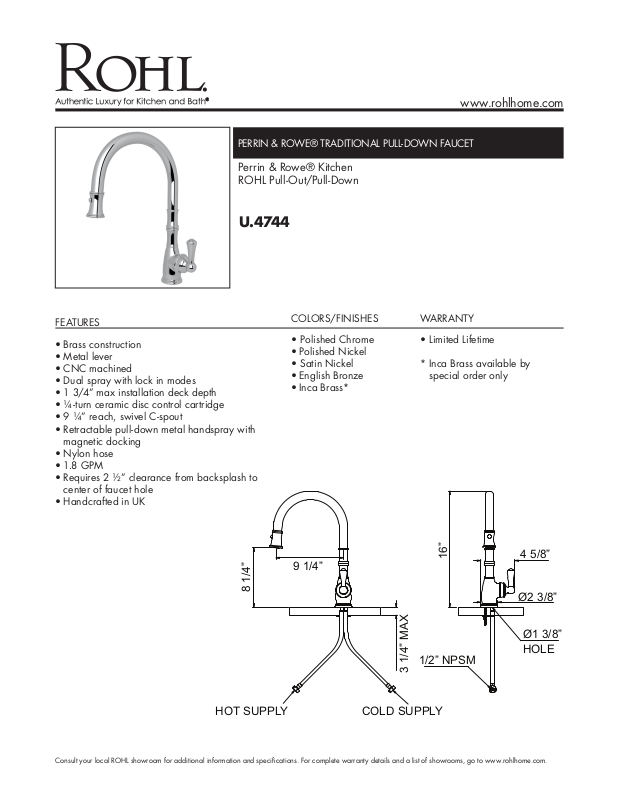

Rohl U.4744 Specifications

www.rohlhome.com

PERRIN & ROWE® TRADITIONAL PULL-DOWN FAUCET

Perrin & Rowe® Kitchen
ROHL Pull-Out/Pull-Down

U. 474 4

FEATURES

• Brass construction

• Metal lever

• CNC machined

• Dual spray with lock in modes

• 1 3/4” max installation deck depth

• ¼-turn ceramic disc control cartridge

• 9 ¼” reach, swivel C-spout

• Retractable pull-down metal handspray with
magnetic docking

• Nylon hose

• 1.8 GPM

• Requires 2 ½” clearance from backsplash to
center of faucet hole

• Handcrafted in UK

8 1/4”

COLORS/FINISHES

• Polished Chrome

• Polished Nickel

• Satin Nickel

• English Bronze

• Inca Brass*

9 1/4”

WARRANTY

• Limited Lifetime

* Inca Brass available by
special order only

16”

4 5/8”

Ø2 3/8”

Ø1 3/8”
HOLE

1/2” NPSM

3 1/4” MAX

HOT SUPPLY COLD SUPPLY

Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

INSTALLATION INSTRUCTIONS

The Country Kitchen Collection

Installation & User Guide

U.4744 Country Kitchen Pull Down

www.rohlhome.com

9 1/2"

16 1/8"

1 3/8" Hole

Temp Range:

Min 1°C/34°F
Max 85°C/185°F

Recommended
Working Pressure:

Min 1bar/15psi
Max 5bar/75psi

Ideal performance obtained with equal hot & cold pressures.

Hot In

1/2"

1 3/4"

Max

Cold In

1/2"

8 3/4"
