www.rohlhome.com
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

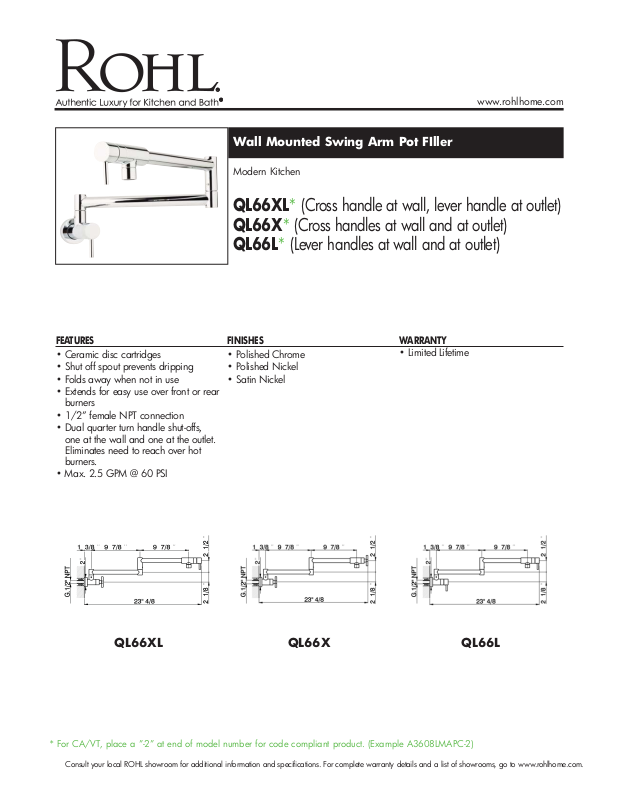

Wall Mounted Swing Arm Pot FIller
Modern Kitchen
FEATURES
• Ceramic disc cartridges
• Shut off spout prevents dripping
• Folds away when not in use
• Extends for easy use over front or rear
burners
• 1/2” female NPT connection
• Dual quarter turn handle shut-offs,
one at the wall and one at the outlet.
Eliminates need to reach over hot
burners.
• Max. 2.5 GPM @ 60 PSI
FINISHES
• Polished Chrome
• Polished Nickel
• Satin Nickel
WARRANTY
• Limited Lifetime
QL66XL* (Cross handle at wall, lever handle at outlet)
QL66X
* (Cross handles at wall and at outlet)
QL66L
* (Lever handles at wall and at outlet)
QL66XL QL66X QL66L
* For CA/VT, place a ”-2” at end of model number for code compliant product. (Example A3608LMAPC-2)
www.rohlhome.com
QL66 Spare Parts
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
Cross Handle
Lever Handle
Fixing ring
www.rohlhome.com
QL66 Spare Parts
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
TECHNICAL DATA
- Minimum dynamic pressure ……………….7.25 psi
- Maximum operational pressure (static)……145 psi
- Recommended operational pressure (static)..14.5-72.5 psi
(N.B.: for pressures higher than 72.5 psi we
suggest the installation of a pressure reducer)
- Maximum test pressure (static)……………..232 psi
- Flow rate................................max. 2.5 gpm @ 60 psi
FLOW RATE
PRESSURE FLOW
7.25 psi 0.92 gpm
14.50 psi 1.26 gpm
29.00 psi 1.76 gpm
43.50 psi 1.82 gpm
58.00 psi 1.92 gpm
72.50 psi 1.92 gpm
WARRANTY
Cisal Bath Collection has a limited lifetime warranty.
“Warranty Exclusion: This warranty is for normal domestic use only and
excludes defect or injury caused by or resulting from misuse, abuse, neglect, accidental
damage or improper installation”.
There is no warranty on the finish Tuscan Brass.
FINISH CARE
1. WIPE DOWN AFTER USE TO AVOID SPOTTING
2.
USE A SOFT BRUSH FOR DETAIL CLEANING
3. DO NOT USE SPRAY CLEANERS WITH AMMONIA, ALCOHOL OR BLEACH
4. DO NOT USE ABRASIVES LIKE COMET, AJAX OR BONAMI
FINISH CLEANING CARE
CHROME 50-50 VINEGAR AND WATER FLITZ WAX OR
GAGNON’S SX, SIMICHROME
INCA BRASS
50-50 VINEGAR AND WATER
DO NOT USE FLITZ –
GAGNON’S SX OK
POLISHED
NICKEL
50-50 VINEGAR AND WATER
FLITZ WAX OR
GAGNON’S SX, SIMICHROME
SATIN NICKEL
50-50 VINEGAR AND WATER
FLITZ WAX OR GAGNON’S SX
TUSCAN BRASS
PAT DRY AFTER USE
FLITZ WAX. DO NOT RUB OR
WIPE.
FOR WATER SPOTTING ON POLISHED CHROME, POLISHED NICKEL OR SATIN NICKEL,
USE SIMICHROME PASTE.
POLISHED
