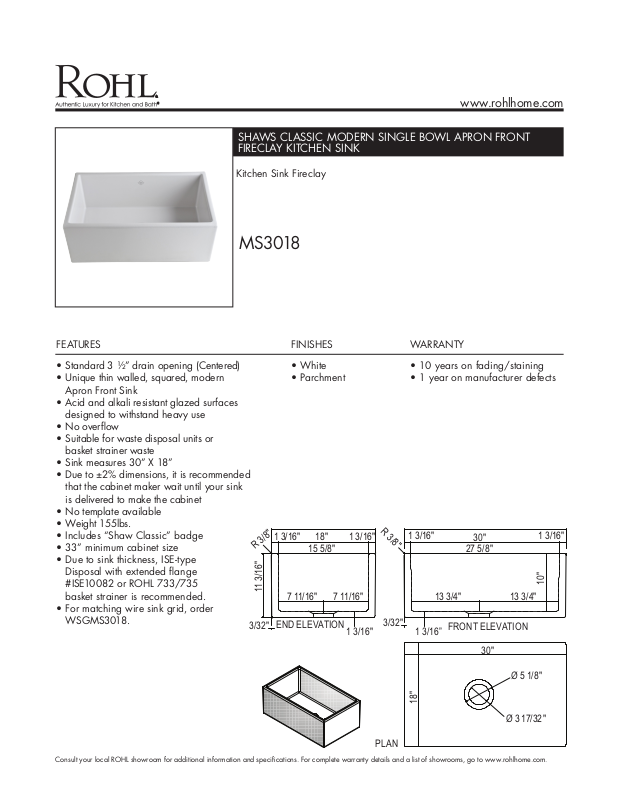

Rohl MS3018WH Specifications

www.rohlhome.com

PLAN

SHAWS CLASSIC MODERN SINGLE BOWL APRON FRONT
FIRECLAY KITCHEN SINK

Kitchen Sink Fireclay

MS3018

FEATURES

• Standard 3 ½” drain opening (Centered)

• Unique thin walled, squared, modern
Apron Front Sink

• Acid and alkali resistant glazed surfaces
designed to withstand heavy use

• No overflow

• Suitable for waste disposal units or
basket strainer waste

• Sink measures 30” X 18”

• Due to ±2% dimensions, it is recommended
that the cabinet maker wait until your sink
is delivered to make the cabinet

• No template available

• Weight 155lbs.

• Includes “Shaw Classic” badge

• 33” minimum cabinet size

• Due to sink thickness, ISE-type
Disposal with extended flange
#ISE10082 or ROHL 733/735
basket strainer is recommended.

• For matching wire sink grid, order
WSG M S3018.

1 3/16"

R 3/8"

11 3/16"

END ELEVATION

3/32"

FINISHES

• White

• Parchment

18"

1 3/16"

15 5/8"

7 11/16" 7 11/16"

1 3/16"

WARRANTY

• 10 years on fading/staining

• 1 year on manufacturer defects

R 3/8"

1 3/16"

30"

27 5/8"

13 3/4" 13 3/4"

3/32"

1 3/16”

FRONT ELEVATION

1 3/16"

10"

30"

Ø 5 1/8"

18"

Ø 3 17/32"

Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
