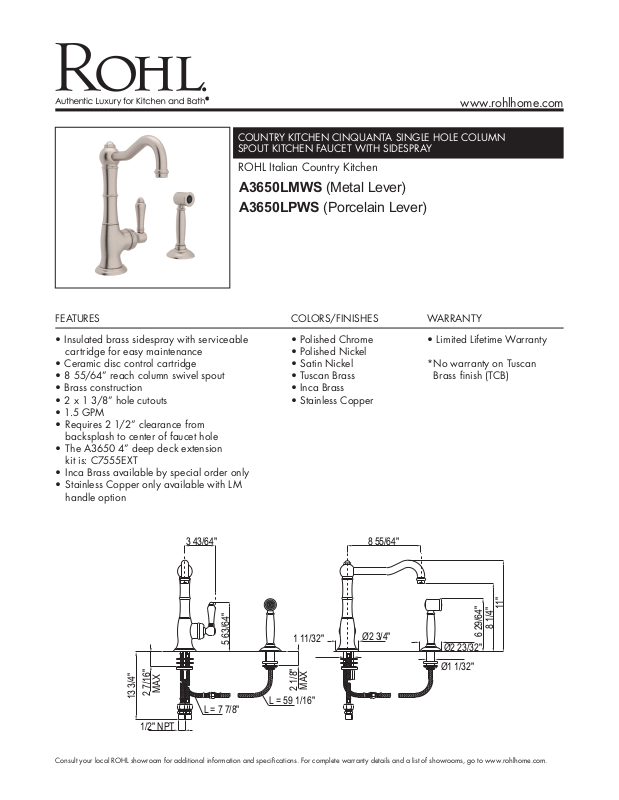

Rohl A3650LMWS, A3650LPWS Specification Sheet
www.rohlhome.com
11"
13 3/4"
COUNTRY KITCHEN CINQUANTA SINGLE HOLE COLUMN
SPOUT KITCHEN FAUCET WITH SIDESPRAY
ROHL Italian Country Kitchen
A3650LMWS (Metal Lever)
A3650LPWS (Porcelain Lever)
FEATURES
• Insulated brass sidespray with serviceable
cartridge for easy maintenance
• Ceramic disc control cartridge
• 8 55/64” reach column swivel spout
• Brass construction
• 2 x 1 3/8” hole cutouts
• 1.5 GPM
• Requires 2 1/2” clearance from
backsplash to center of faucet hole
• The A3650 4” deep deck extension
kit is: C7555EXT
• Inca Brass available by special order only
• Stainless Copper only available with LM
handle option
3 43/64"
COLORS/FINISHES
• Polished Chrome
• Polished Nickel
• Satin Nickel
• Tuscan Brass
• Inca Brass
• Stainless Copper
8 55/64"
WARRANTY
• Limited Lifetime Warranty
*No warranty on Tuscan
Brass finish (TCB)
8 1/4"
6 29/64"
MAX
2 7/16"
5 63/64"
1 11/32"
MAX
2 1/8"
Ø2 3/4"
Ø2 23/32"
Ø1 1/32"
L = 59 1/16"
L = 7 7/8"
1/2" NPT
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

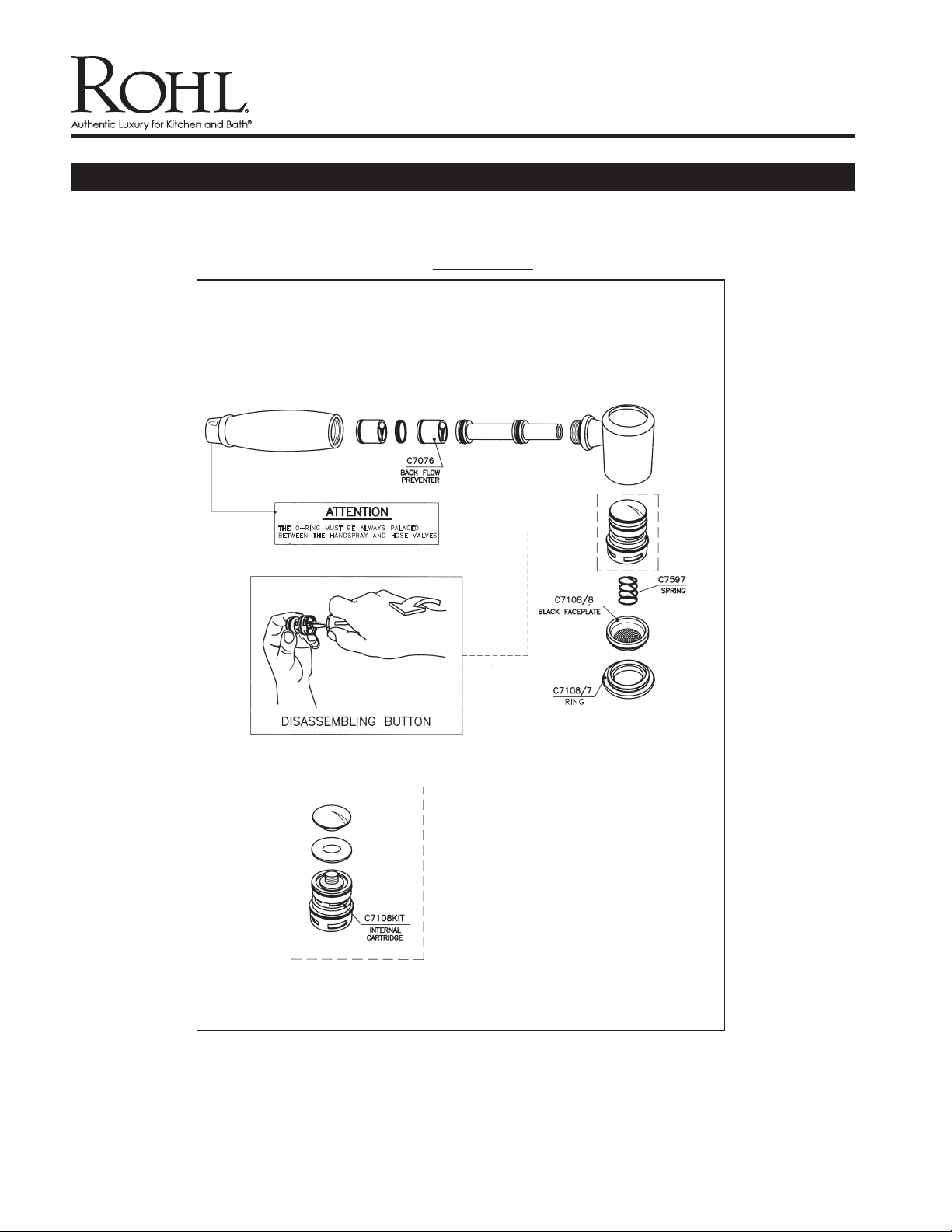

A3650WS Spare Parts
www.rohlhome.com
SPOUT RING SET
C7593SET
C3608/4
C7555
C7775NM
(Metal)
C7776NP
(Porcelain)
C7108N
A5556CR
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
A5556CR
3
Installation Instructions
www.rohlhome.com
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
4
5
Installation Instructions
INSTALLATION AND CARE & MAINTENANCE GUIDE
Installation Guide
www.rohlhome.com
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
6

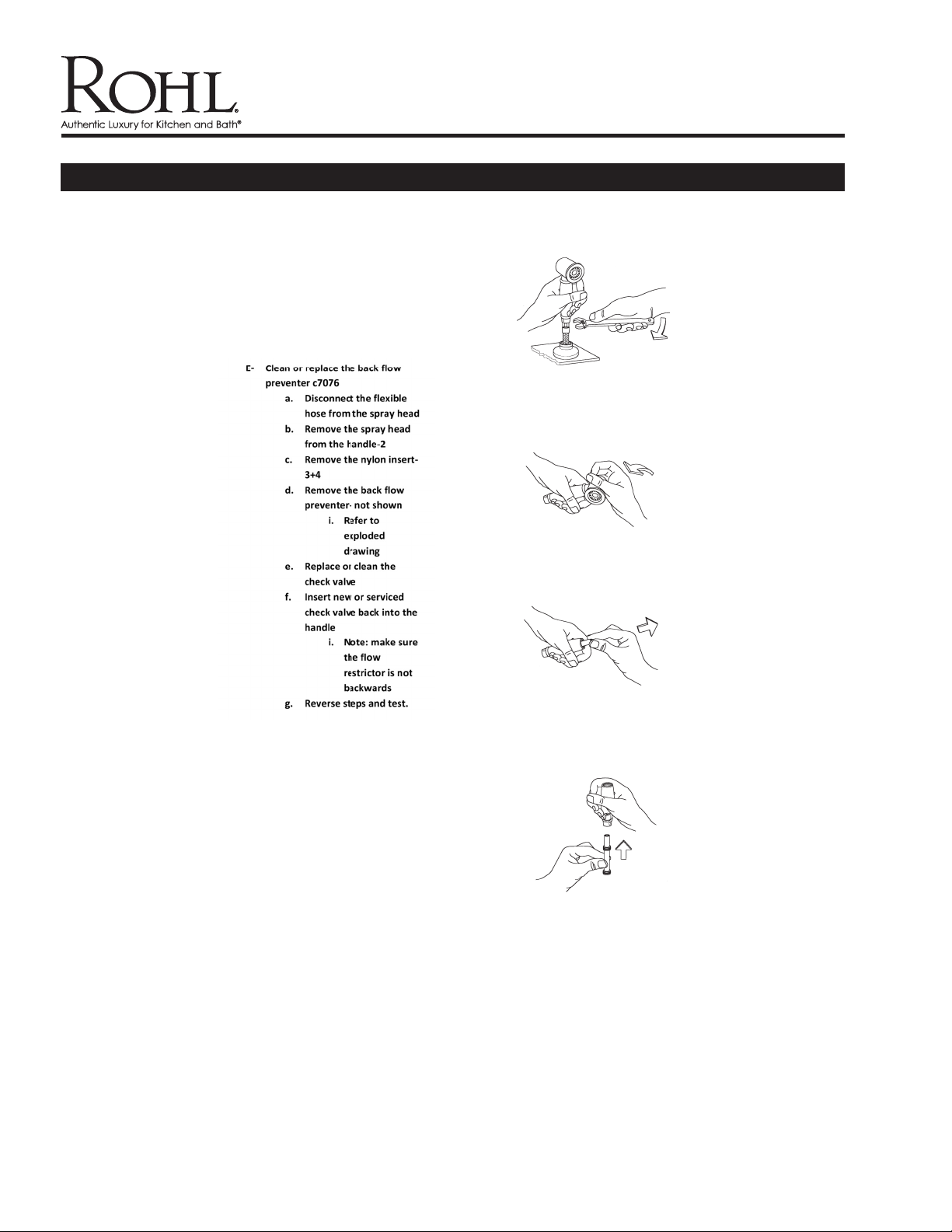

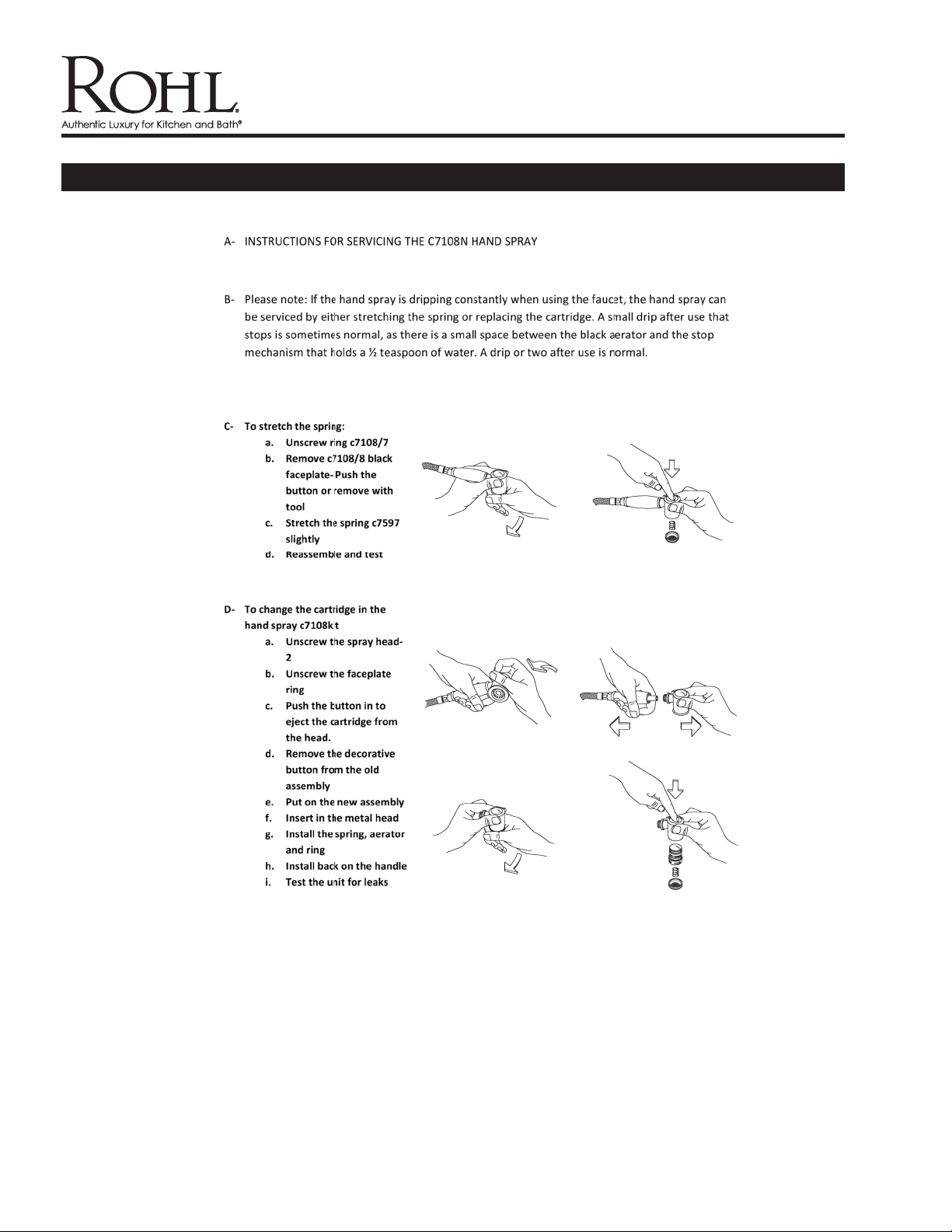

Installation Instructions
www.rohlhome.com
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
