Rohl A1460LMPN, A1460XMTCB, A1460XCTCB, A1460LCTCB, A1460LPAPC Specifications

www.rohlhome.com

Ø1 3/8”

Ø1 5/16”

Ø3/4”

Ø1 5/8”

Ø3/4”

Ø1 3/8”

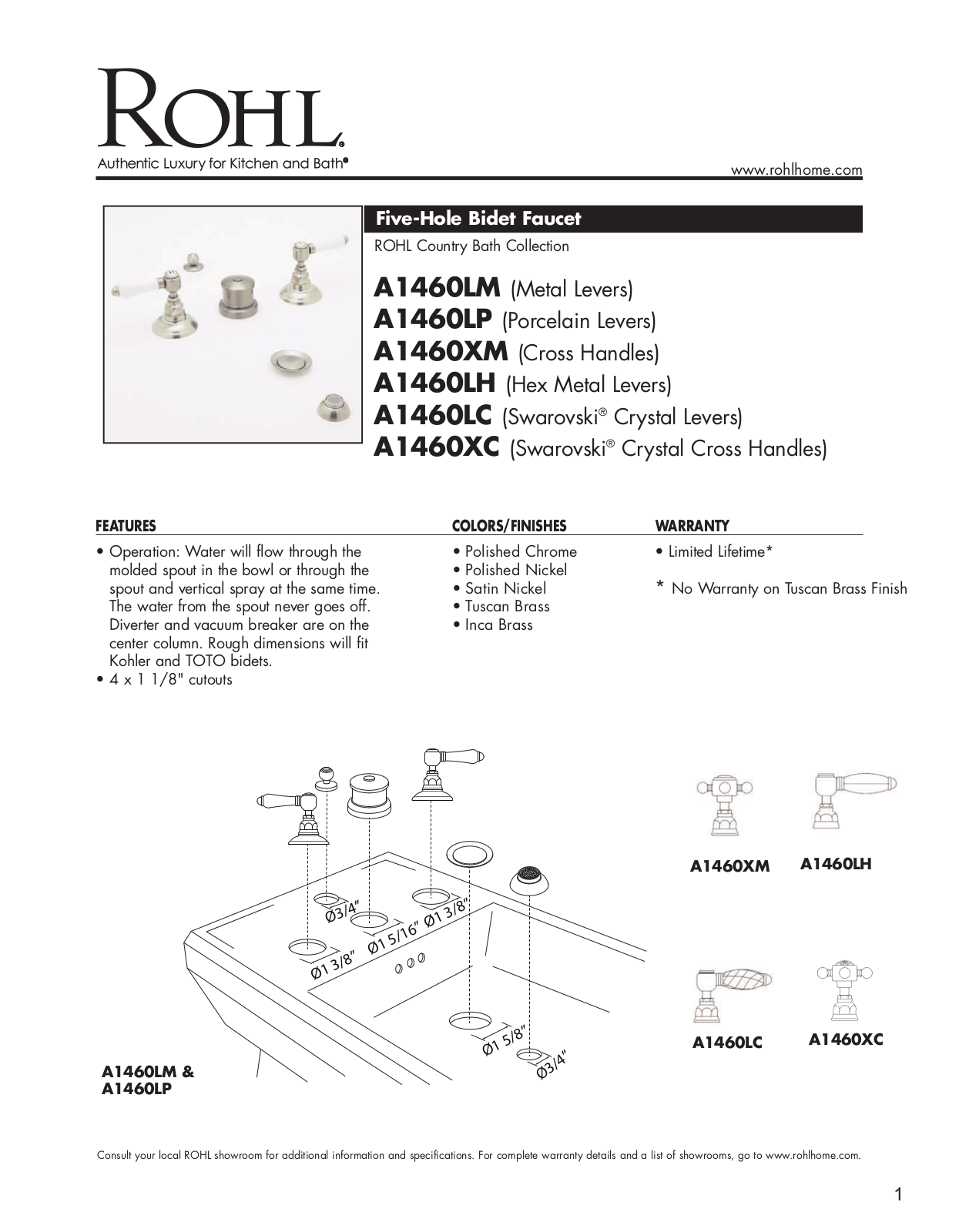

Five-Hole Bidet Faucet

ROHL Country Bath Collection

A1460LM (Metal Levers)
A1460LP (Porcelain Levers)
A1460XM (Cross Handles)
A1460LH (Hex Metal Levers)
A1460LC (Swarovski
A1460XC (Swarovski

FEATURES COLORS/FINISHES WARRANTY

• Operation: Water will flow through the
molded spout in the bowl or through the
spout and vertical spray at the same time.
The water from the spout never goes off.
Diverter and vacuum breaker are on the
center column. Rough dimensions will fit
Kohler and TOTO bidets.

• 4 x 1 1/8" cutouts

• Polished Chrome

• Polished Nickel

• Satin Nickel

• Tuscan Brass

• Inca Brass

®

Crystal Levers)

®

Crystal Cross Handles)

• Limited Lifetime*

* No Warranty on Tuscan Brass Finish

A1460XM

A1460LC

A1460LM &
A1460LP

Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

A1460LH

A1460XC

1

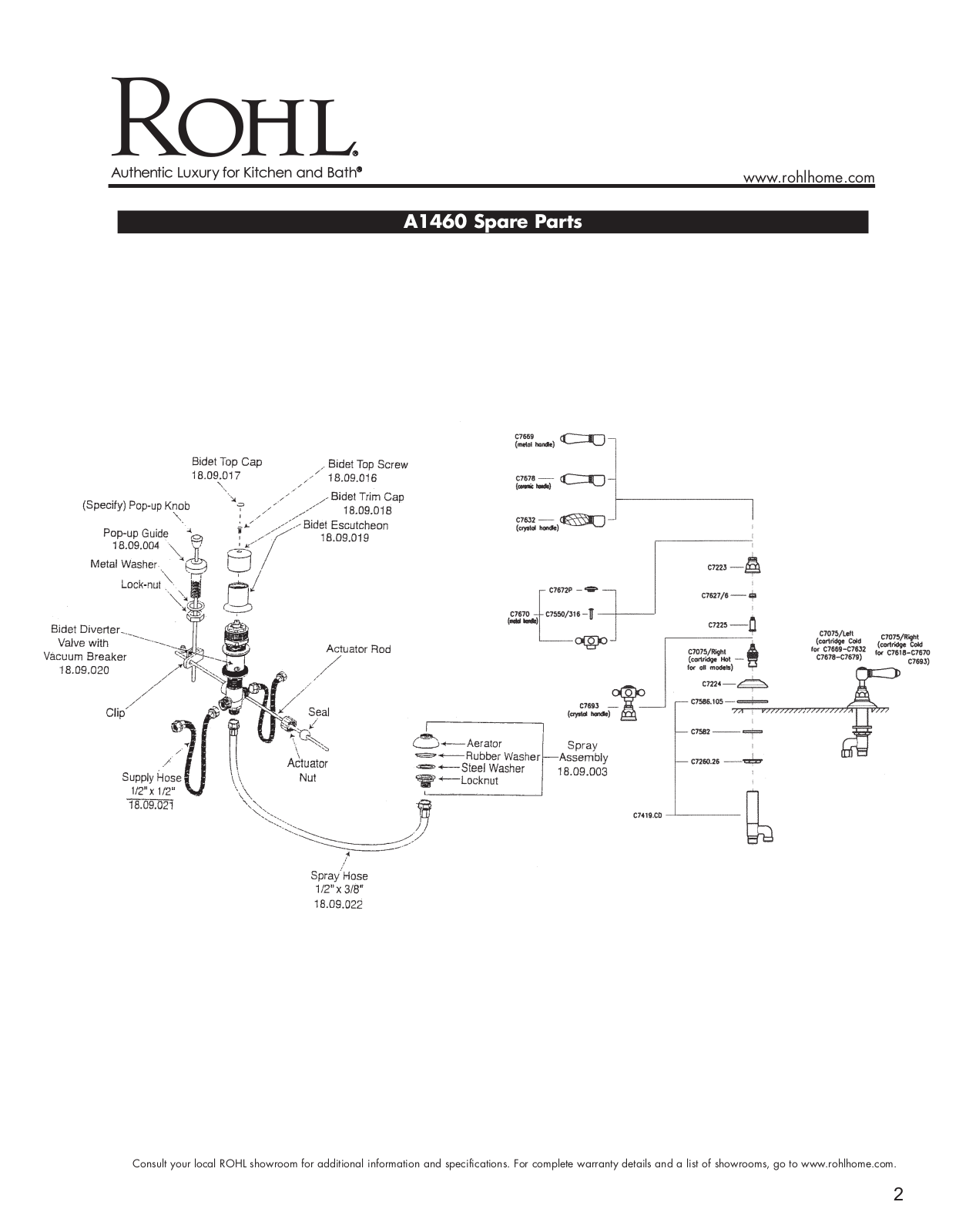

A1460 Spare Parts

www.rohlhome.com

Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

2
