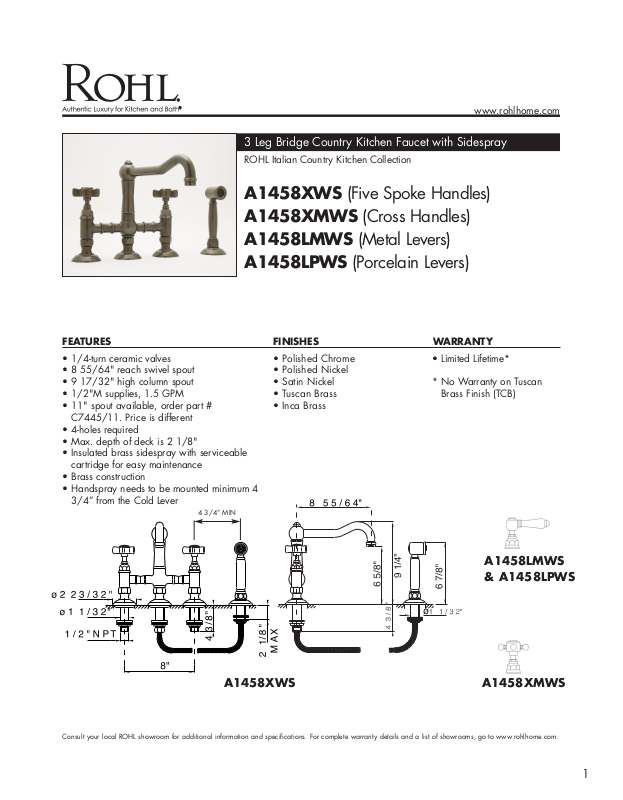

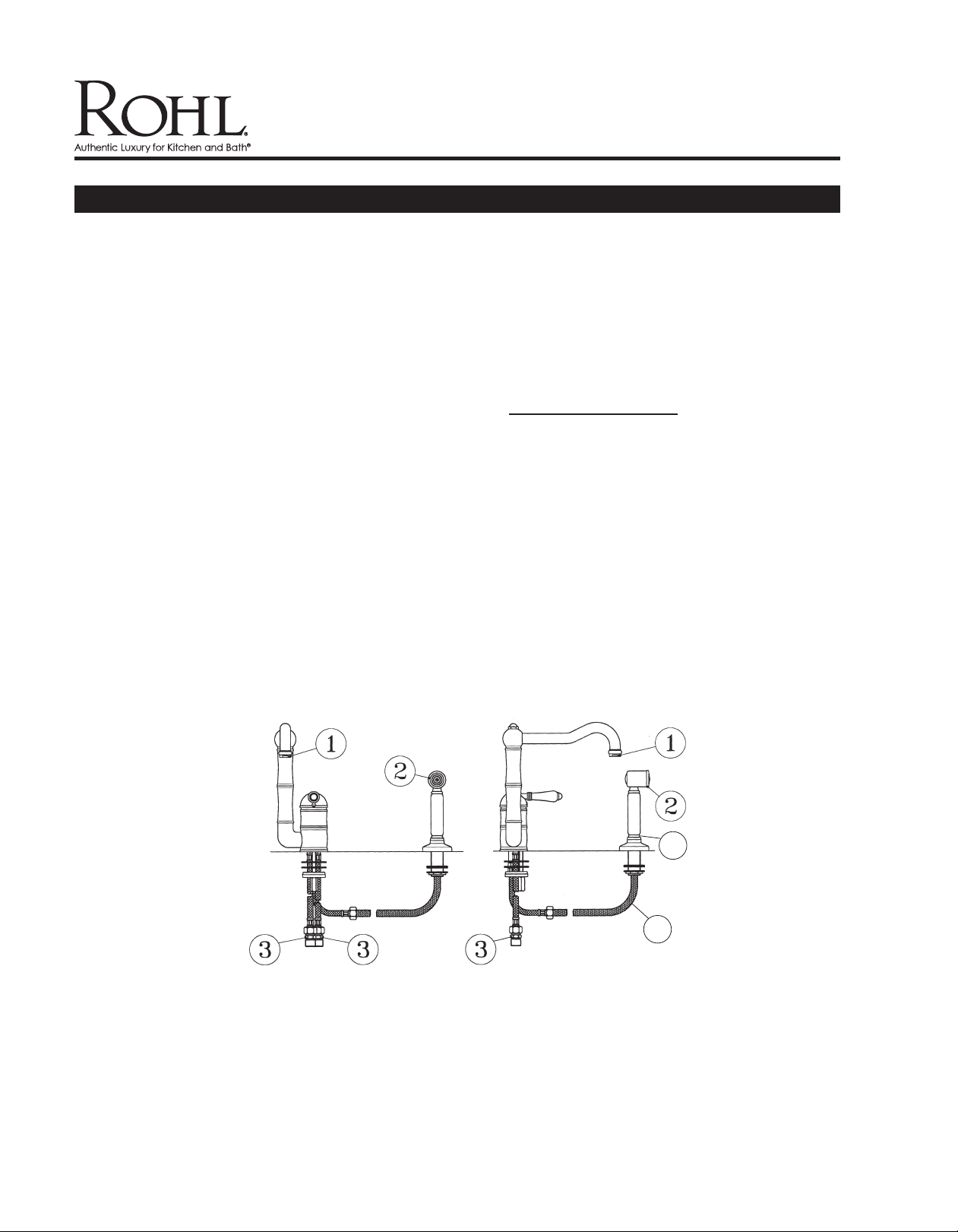

3 Leg Bridge Country Kitchen Faucet with Sidespray
ROHL Italian Country Kitchen Collection
A1458XWS (Five Spoke Handles)
A1458XMWS (Cross Handles)
A1458LMWS (Metal Levers)
A1458LPWS (Porcelain Levers)
FEATURES FINISHES WARRANTY
• 1/4-turn ceramic valves
• 8 55/64" reach swivel spout
• 9 17/32" high column spout
• 1/2"M supplies, 1.5 GPM
• 11" spout available, order part #
C7445/11. Price is different
• 4-holes required
• Max. depth of deck is 2 1/8"

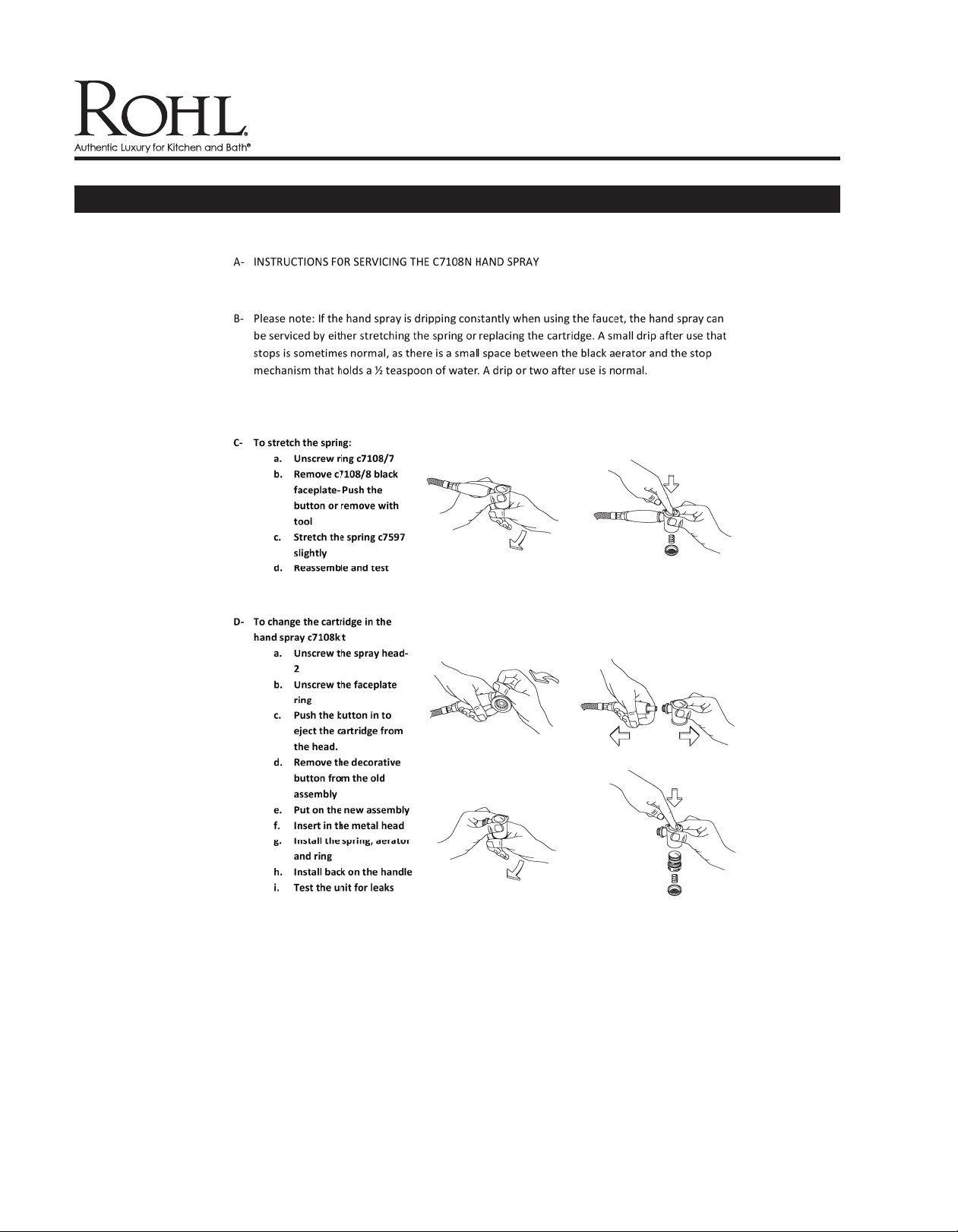

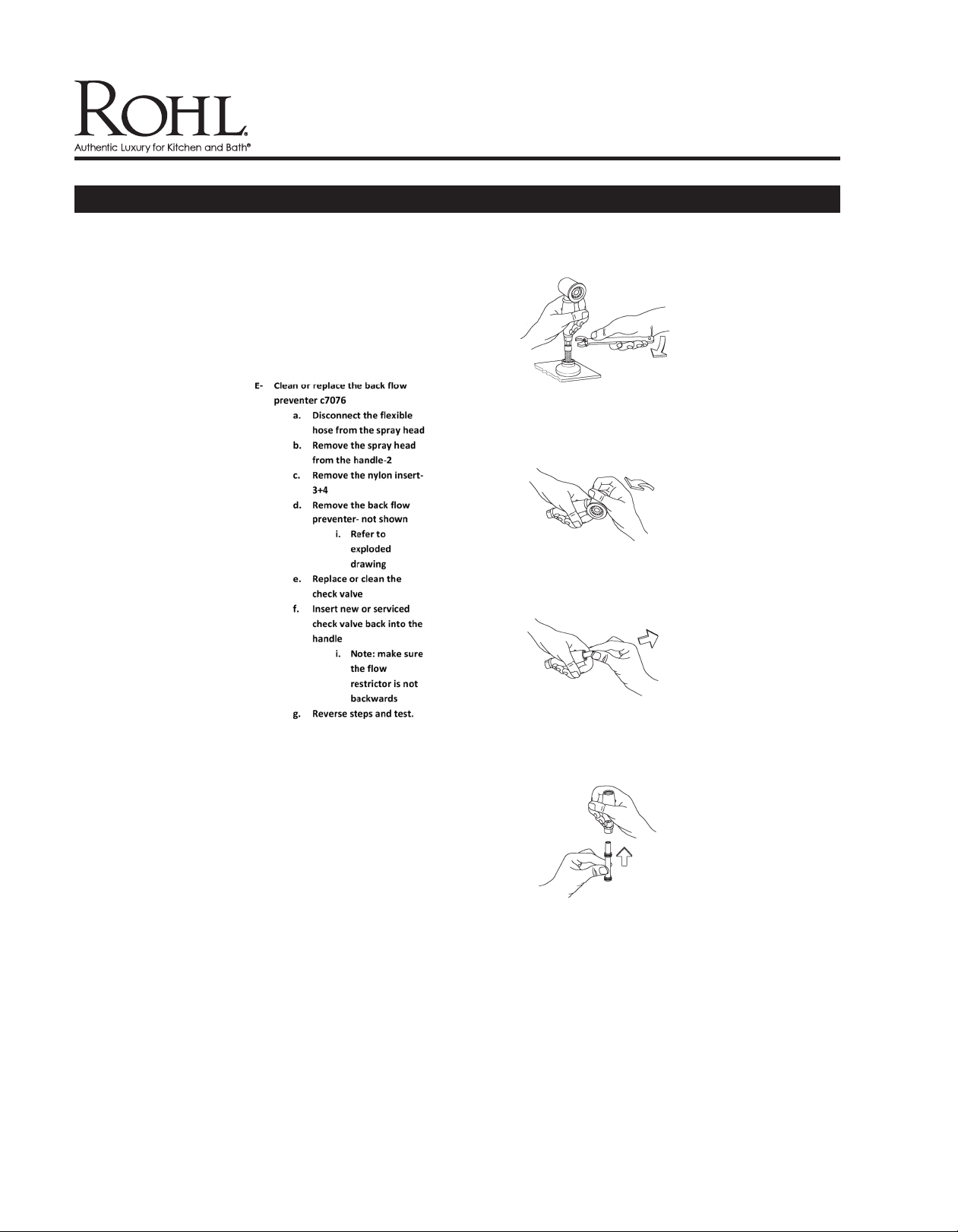

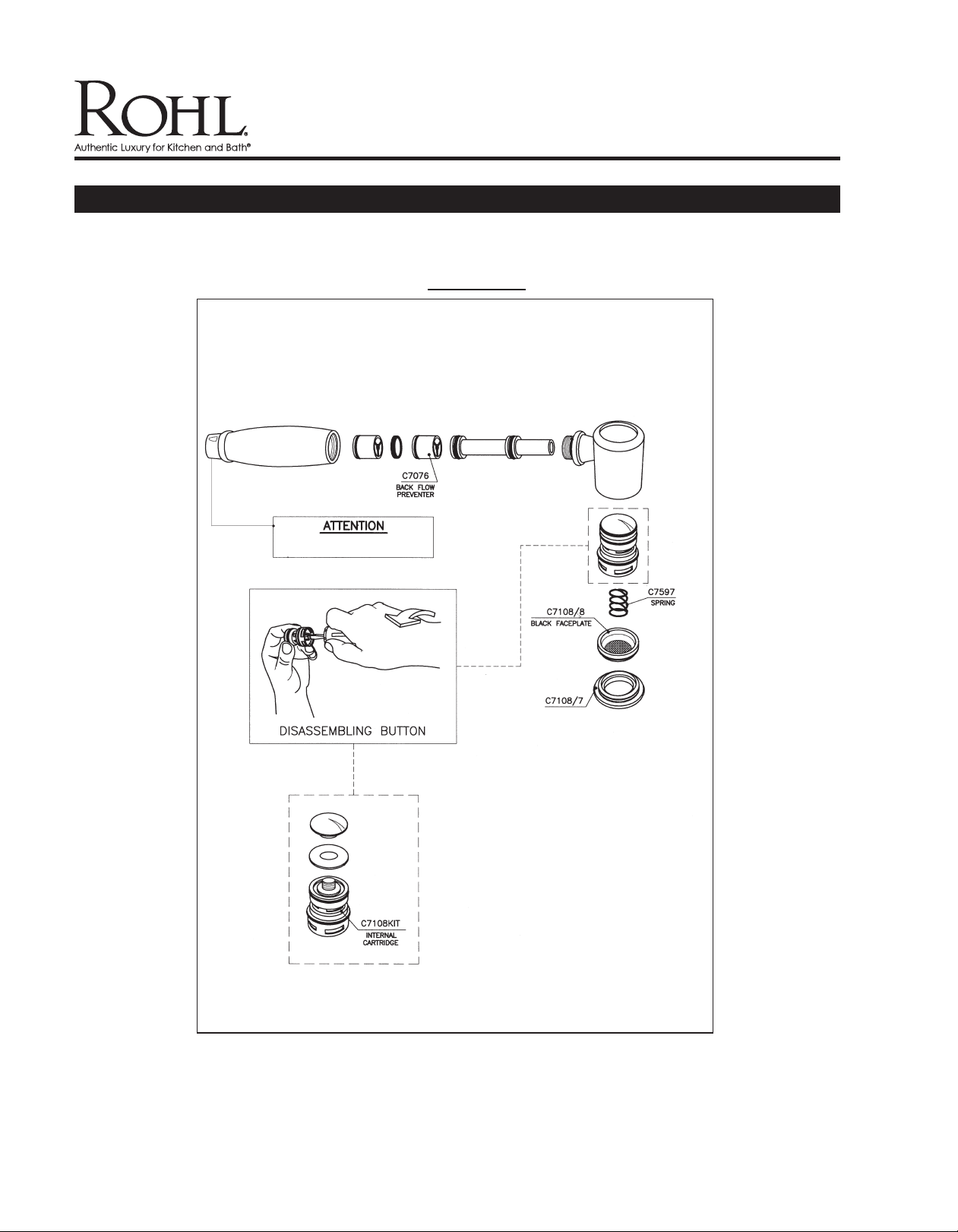

• Insulated brass sidespray with serviceable
cartridge for easy maintenance
• Brass construction
• Handspray needs to be mounted minimum 4
3/4” from the Cold Lever
4 3/4” MIN

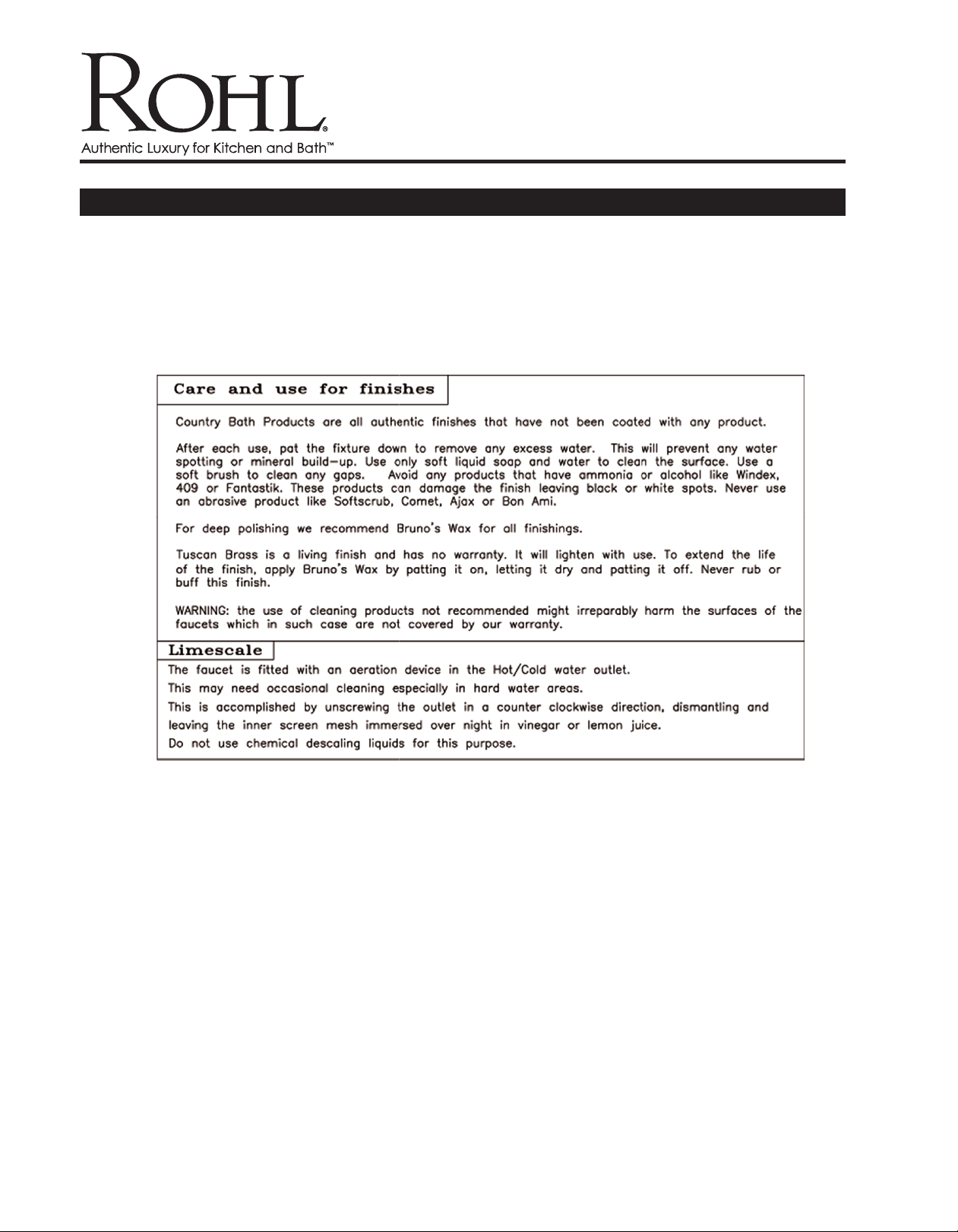

• Polished Chrome
• Polished Nickel
• Satin Nickel
• Tuscan Brass
• Inca Brass

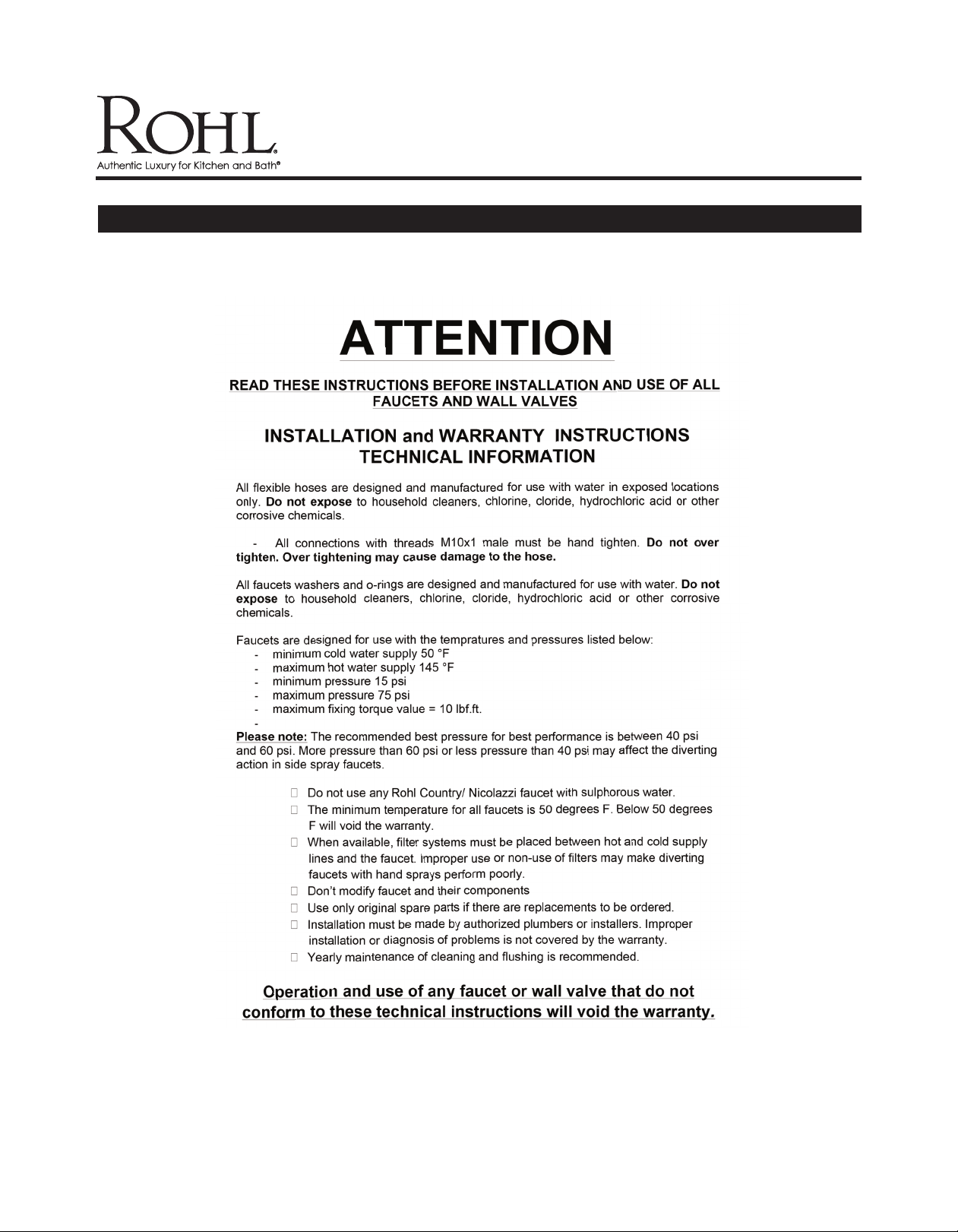

• Limited Lifetime*
* No Warranty on Tuscan
Brass Finish (TCB)
A1458LMWS
& A1458LPWS
A1458XWS
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
A1458XMWS
