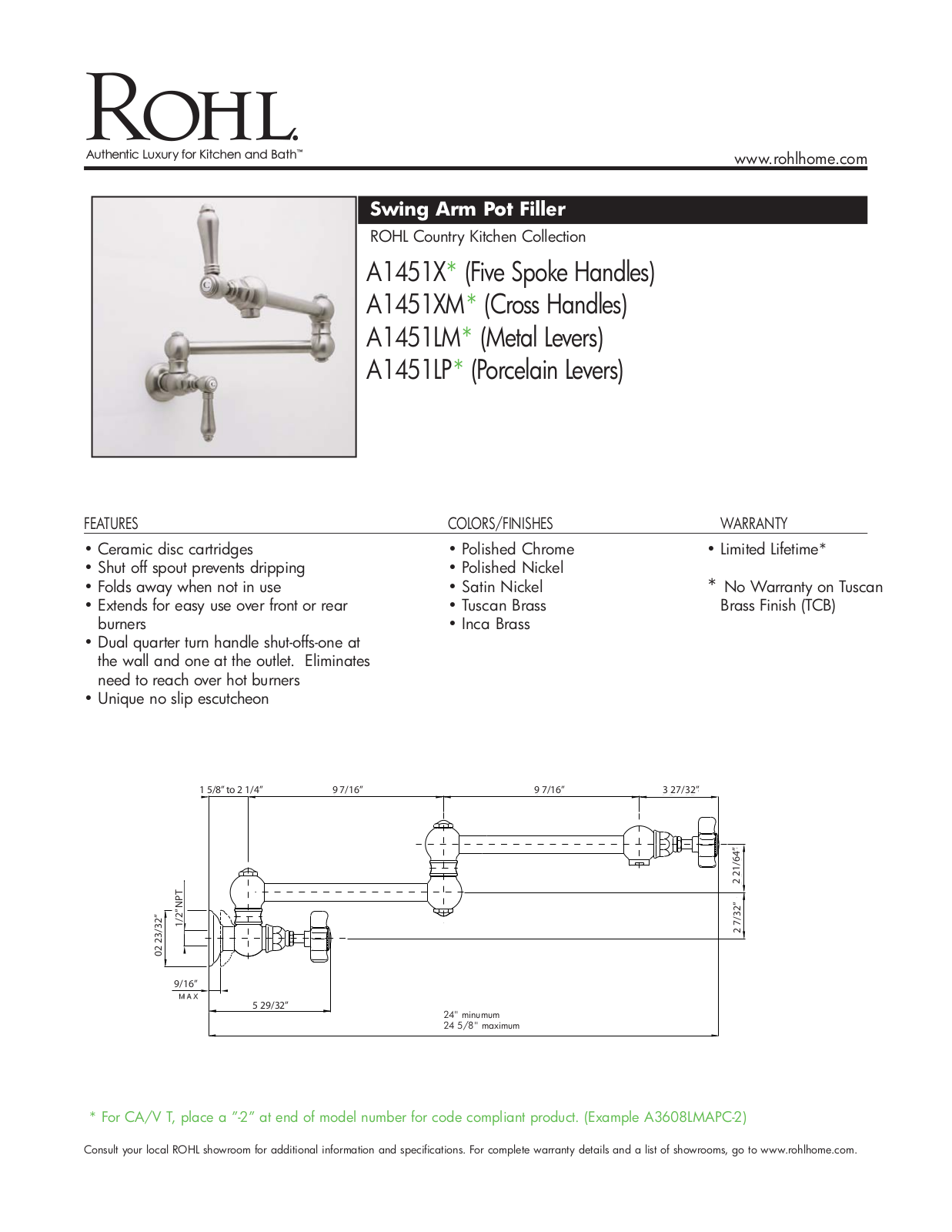

Rohl A1451LMAPC2 Specs

A1451X* (Five Spoke Handles)
A1451XM

* (Cross Handles)

A1451LM

* (Metal Levers)

A1451LP

* (Porcelain Levers)

FEATURES COLORS/FINISHES WARRANTY

www.rohlhome.com

• Ceramic disc cartridges

• Shut off spout prevents dripping

• Folds away when not in use

• Extends for easy use over front or rear
burners

• Dual quarter turn handle shut-offs-one at
the wall and one at the outlet. Eliminates
need to reach over hot burners

• Unique no slip escutcheon

• Polished Chrome

• Polished Nickel

• Satin Nickel

• Tuscan Brass

• Inca Brass

Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

• Limited Lifetime*

* No Warranty on Tuscan

Brass Finish (TCB)

Swing Arm Pot Filler

ROHL Country Kitchen Collection

24" minumum
24 5/8" maximum

* For CA/V T, place a ”-2” at end of model number for code compliant product. (Example A3608LMAPC-2)

1 5/8” to 2 1/4”

1/2” NPT

02 23/32”

9/16”

5 29/32”

9 7/16” 9 7/16”

24 43/64”

3 27/32”

2 21/64”

2 7/32”

www.rohlhome.com

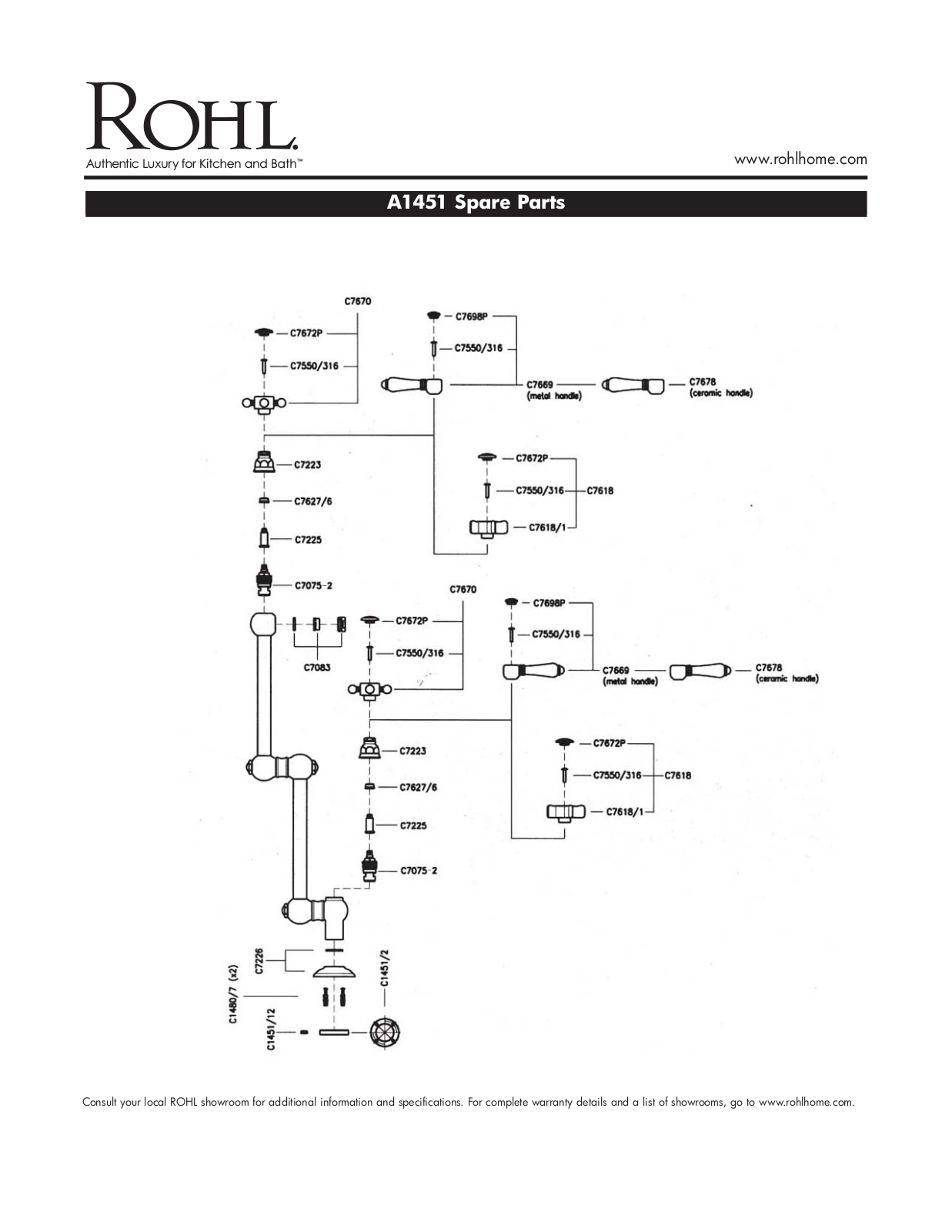

A1451 Spare Parts

Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
