Rohl A1420LMTCB2, A1420LPTCB2, A1420XTCB2, A1420XMTCB2 Specifications

9"

9¹¹⁄₆₄"

6³⁄₈"

8³⁄₈"

ø1¹⁵⁄₁₆"

1¹⁷⁄₆₄"

MAX.

¹⁄₂" NPSM

9"

9¹¹⁄₆₄"

6³⁄₈"

ø1¹⁵⁄₁₆"

1¹⁷⁄₆₄"

MAX.

¹⁄₂" NPSM

8³⁄₈"

ww.rohlhome.com

w

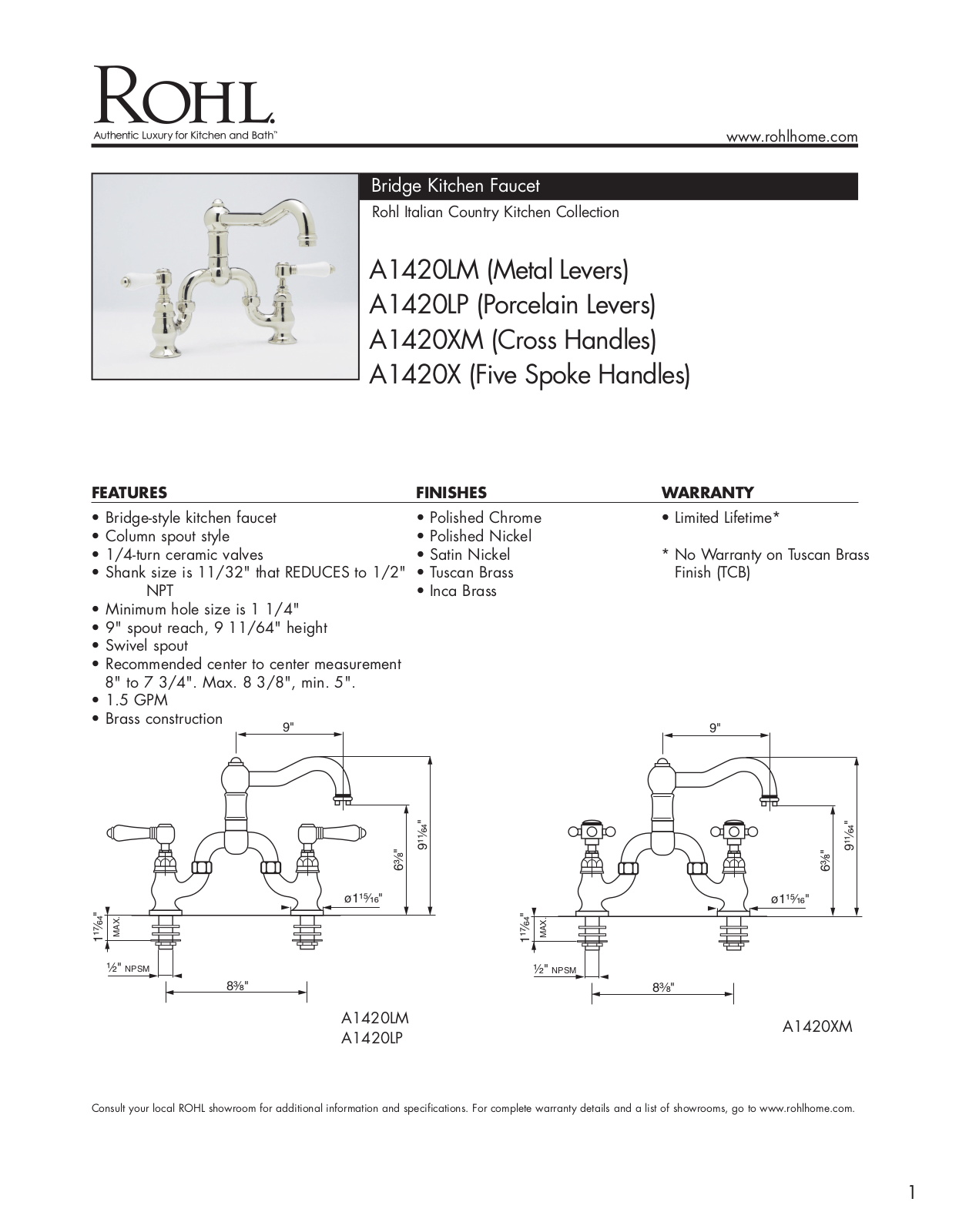

Bridge Kitchen Faucet

Rohl Italian Country Kitchen Collection

A1420LM (Metal Levers)
A1420LP (Porcelain Levers)
A1420XM (Cross Handles)
A1420X (Five Spoke Handles)

FEATURES FINISHES WARRANTY

• Bridge-style kitchen faucet

• Column spout style

• 1/4-turn ceramic valves

• Shank size is 11/32" that REDUCES to 1/2"
NPT

• Minimum hole size is 1 1/4"

• 9" spout reach, 9 11/64" height

• Swivel spout

• Recommended center to center measurement

8" to 7 3/4". Max. 8 3/8", min. 5".

• 1.5 GPM

• Brass construction

• Polished Chrome

• Polished Nickel

• Satin Nickel

• Tuscan Brass

• Inca Brass

• Limited Lifetime*

* No Warranty on Tuscan Brass

Finish (TCB)

A1420LM
A1420LP

Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

A1420XM

1

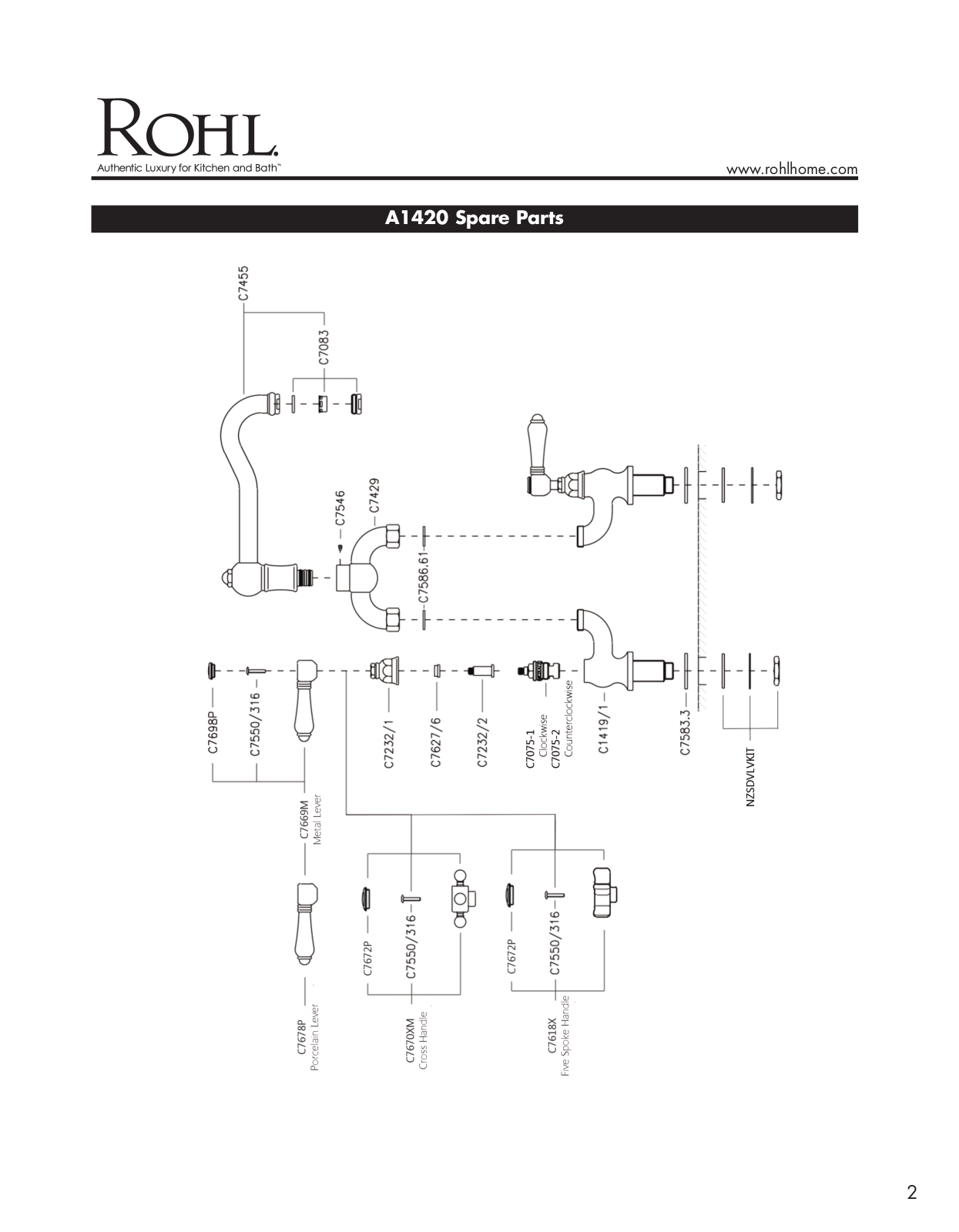

A1420 Spare Parts

www.rohlhome.com

2
