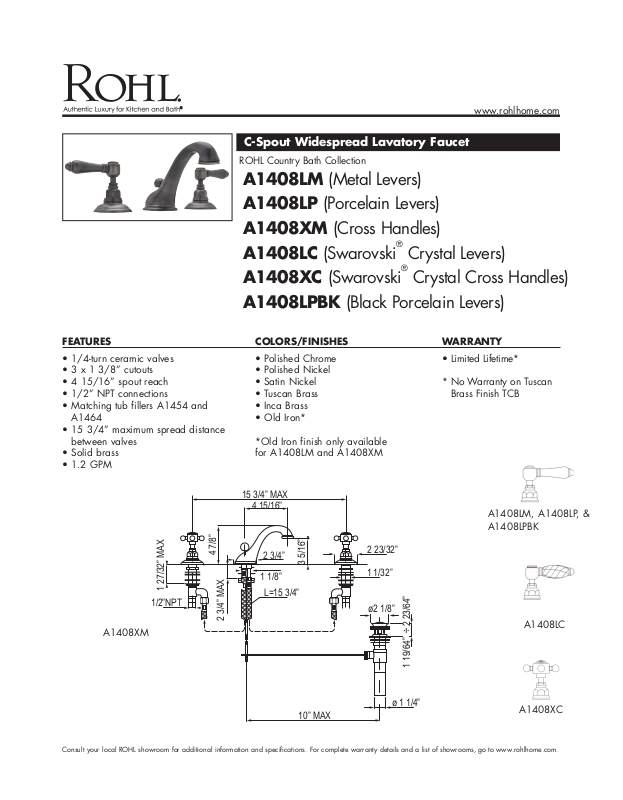

Rohl A1408LPBKTCB2, A1408LCAPC2, A1408LMTCB2, A1408LPTCB2, A1408XCTCB2 Specifications

15 3/4” MAX

4 15/16”

2 23/32”

4 7/8”

1 1/32”

1 1/8”

L=15 3/4”

10” MAX

ø 1 1/4”

ø2 1/8”

3 5/16”

2 3/4” MAX

1/2”NPT

1 27/32” MAX

1 19/64” 2 23/64”

2 3/4”

www.rohlhome.com

C-Spout Widespread Lavatory Faucet

ROHL Country Bath Collection

A1408LM (Metal Levers)
A1408LP (Porcelain Levers)
A1408XM (Cross Handles)

®

A1408LC (Swarovski
A1408XC (Swarovski

Crystal Levers)

®

Crystal Cross Handles)

A1408LPBK (Black Porcelain Levers)

FEATURES COLORS/FINISHES WARRANTY

• 1/4-turn ceramic valves

• 3 x 1 3/8” cutouts

• 4 15/16” spout reach

• 1/2” NPT connections

• Matching tub fillers A1454 and
A1464

• 15 3/4” maximum spread distance
between valves

• Solid brass

2 GPM

• 1.

• Polished Chrome

• Polished Nickel

• Satin Nickel

• Tuscan Brass

• Inca Brass

• Old Iron*

*Old Iron finish only available
for A1408LM and A1408XM

• Limited Lifetime*

* No Warranty on Tuscan

Brass Finish TCB

A1408LM, A1408LP, &
A1408LPBK

Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

A1408XM

A1408LC

A1408XC

(metal cross)

A1408 Spare Parts

ww.rohlhome.com

w

(crystal cross)

C7324/2M
(w/ROHL)
C7324/2
(w/out ROHL)

C7421CDL
(counterclockwise)
C7421
(clockwise)

C7335

C7324

Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

C7324 complete
pop-up assembly

C7324M
(w/ROHL)
C7324
(w/out ROHL)
