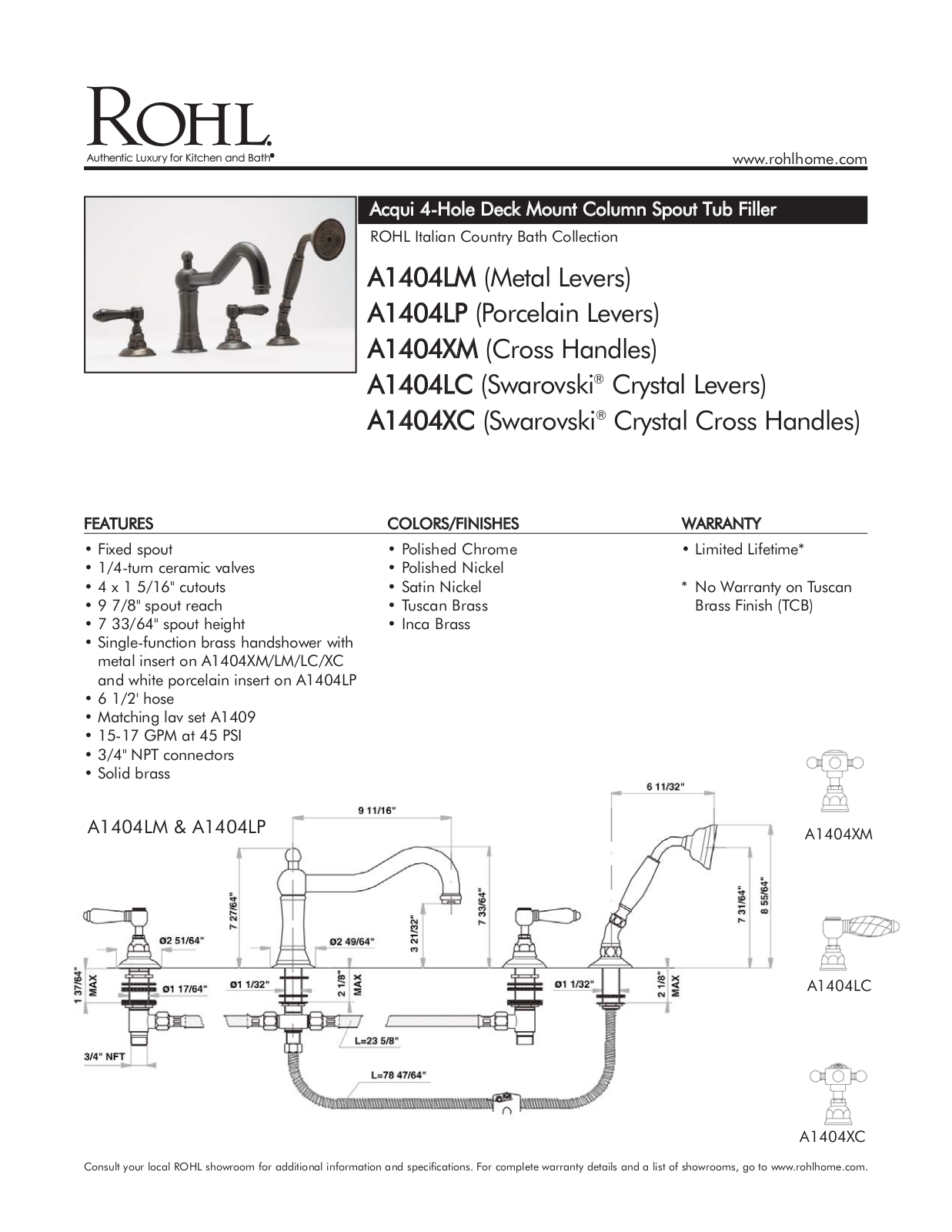

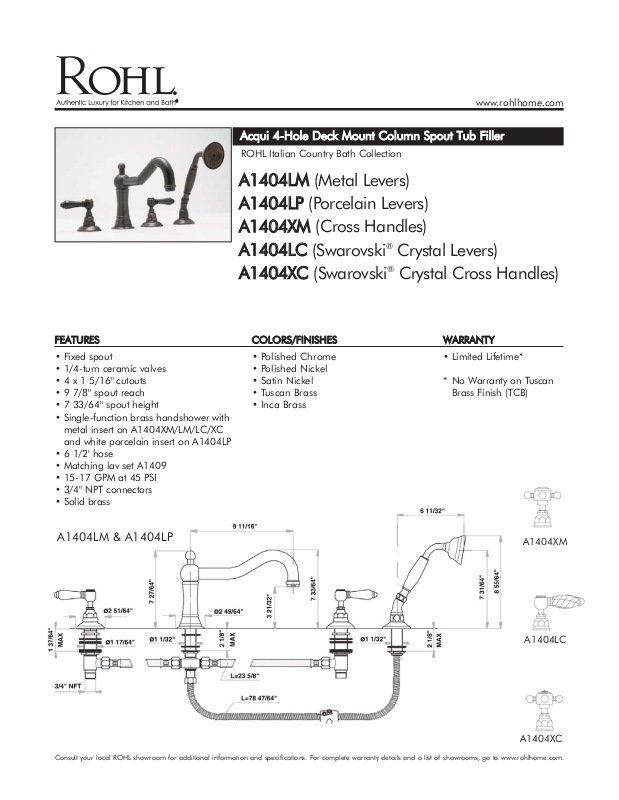

Rohl A1404LMPN, A1404XMPN, A1404LCPN, A1404XCPN, A1404LPPN Specifications

A1404LM (Metal Levers)
A1404LP (Porcelain Levers)
A1404XM (Cross Handles)
A1404LC (Swarovski

®

Crystal Levers)

A1404XC (Swarovski

®

Crystal Cross Handles)

FEATURES COLORS/FINISHES WARRANTY

www.rohlhome.com

• Fixed spout

• 1/4-turn ceramic valves

• 4 x 1 5/16" cutouts

• 9 7/8" spout reach

• 7 33/64" spout height

• Single-function brass handshower with
metal insert on A1404XM/LM/LC/XC
and white porcelain insert on A1404LP

• 6 1/2' hose

• Matching lav set A1409

• 15-17 GPM at 45 PSI

• 3/4" NPT connectors

• Solid brass

• Polished Chrome

• Polished Nickel

• Satin Nickel

• Tuscan Brass

• Inca Brass

Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

• Limited Lifetime*

* No Warranty on Tuscan

Brass Finish (TCB)

Acqui 4-Hole Deck Mount Column Spout Tub Filler

ROHL Italian Country Bath Collection

A1404XM

A1404LC

A1404XC

A1404LM & A1404LP

www.rohlhome.com

Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

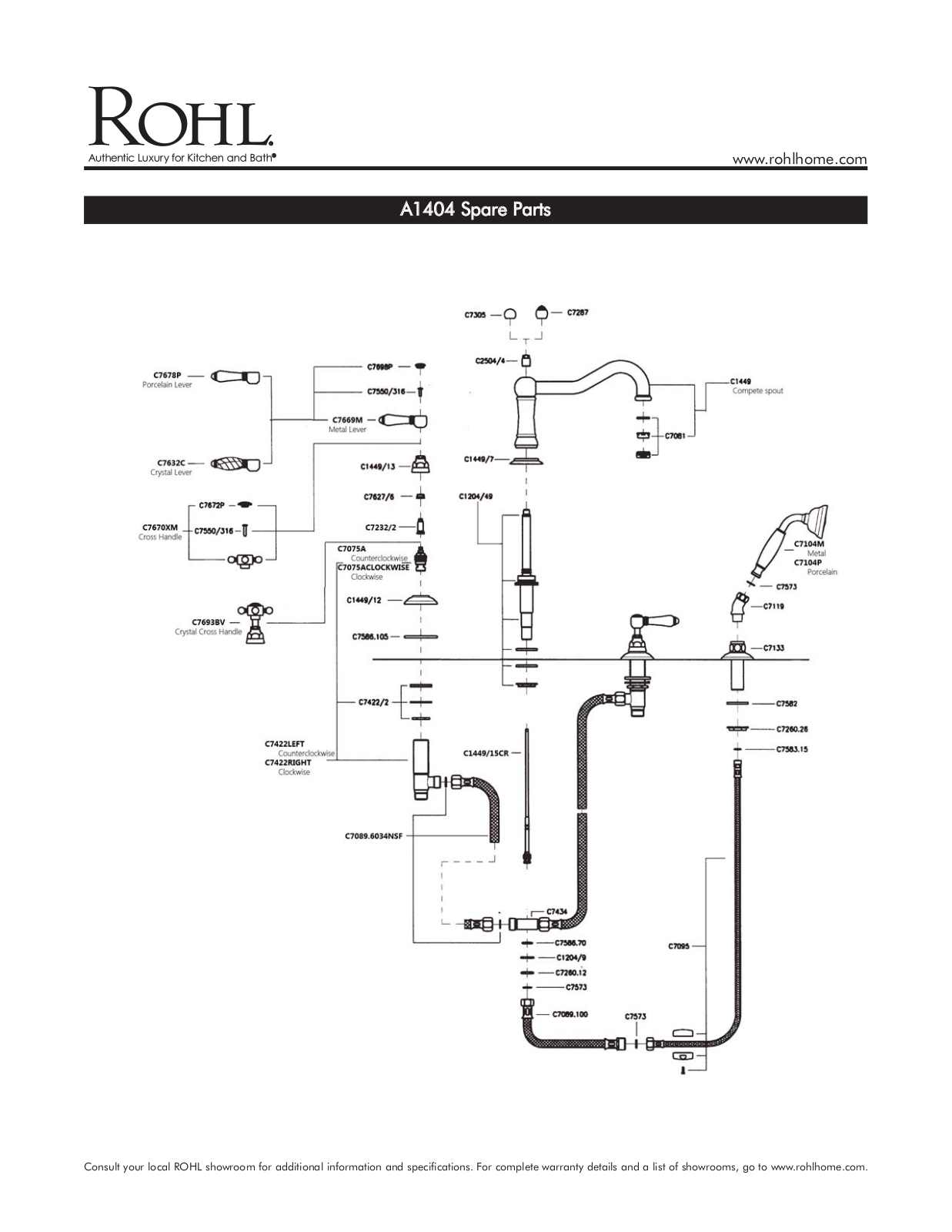

A1404 Spare Parts
