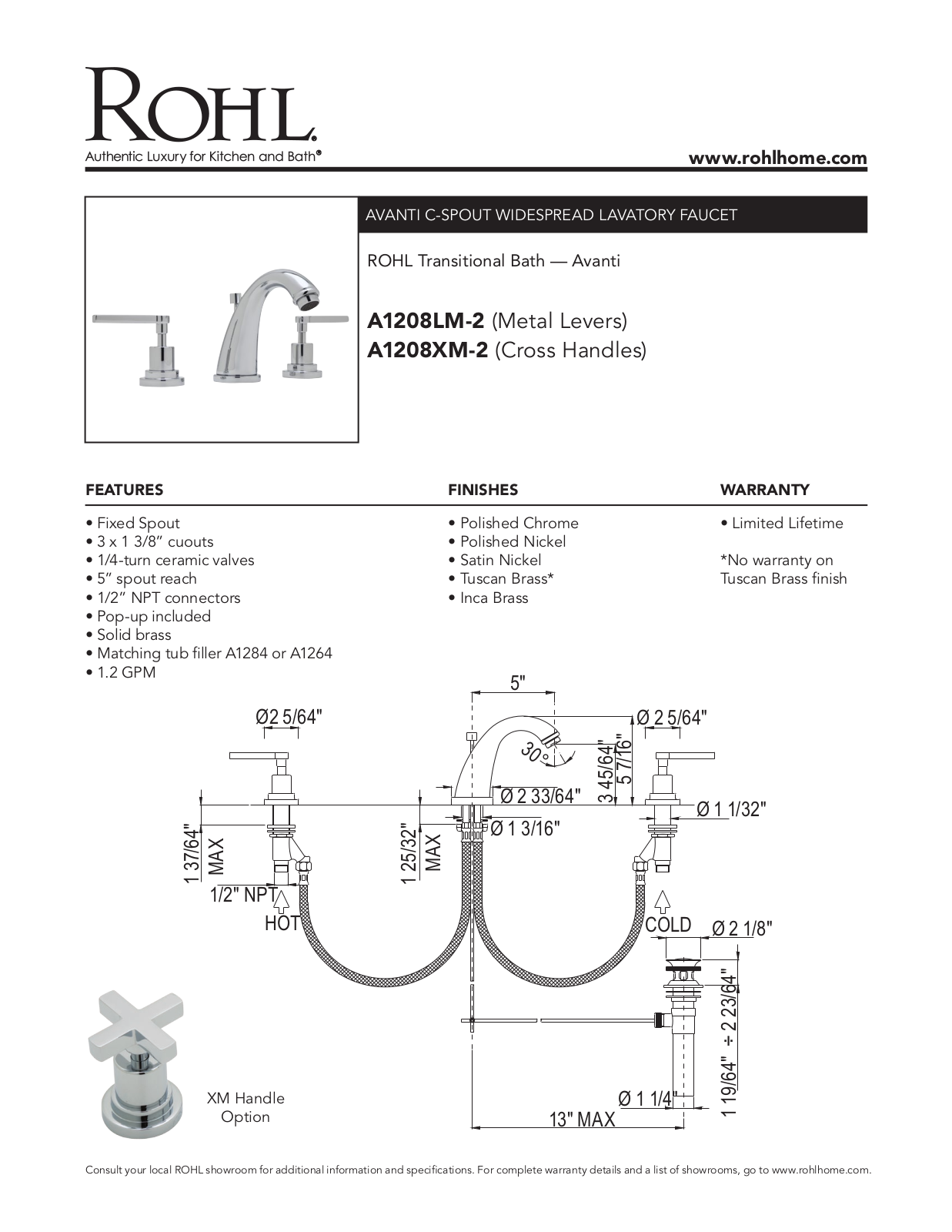

Rohl A1264LMSTN, A1208XMSTN2 Specifications

www.rohlhome.com

5"

AVANTI C-SPOUT WIDESPREAD LAVATORY FAUCET

ROHL Transitional Bath — Avanti

A1208LM-2 (Metal Levers)
A1208XM-2 (Cross Handles)

FEATURES

• Fixed Spout

• 3 x 1 3/8” cuouts

• 1/4-turn ceramic valves

• 5” spout reach

• 1/2” NPT connectors

• Pop-up included

• Solid brass

• Matching tub filler A1284 or A1264

• 1.2 GPM

Ø2 5/64"

1 37/64"

MAX

1/2" NPT

HOT

FINISHES

• Polished Chrome

• Polished Nickel

• Satin Nickel

• Tuscan Brass*

• Inca Brass

Ø 2 33/64"

Ø 1 3/16"

1 25/32"

MAX

30°

Ø 2 5/64"

5 7/16"

3 45/64"

COLD

WARRANTY

• Limited Lifetime

*No warranty on
Tuscan Brass finish

Ø 1 1/32"

Ø 2 1/8"

XM Handle

Option

Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

13" MAX

Ø 1 1/4"

1 19/64" ÷ 2 23/64"

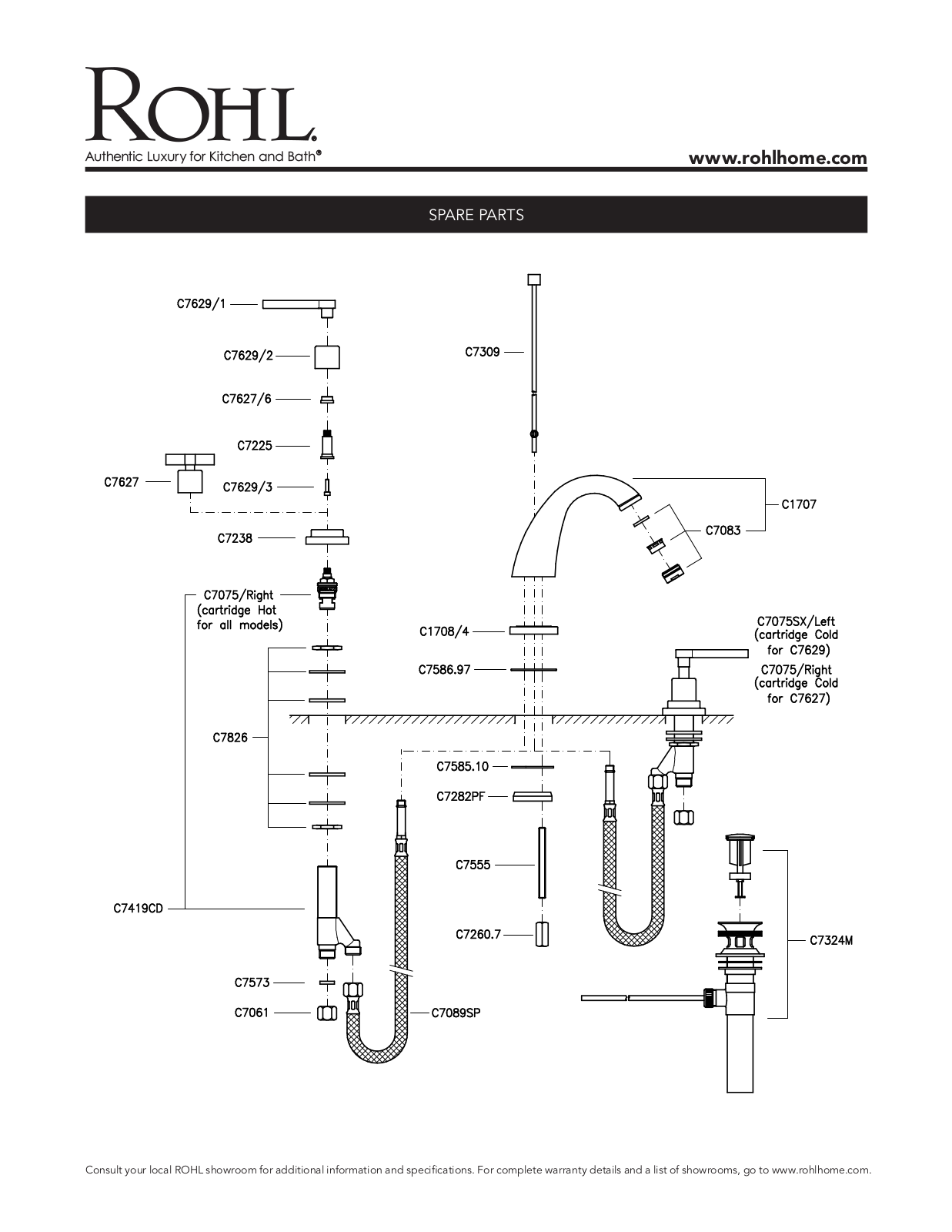

SPARE PARTS

www.rohlhome.com

Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
