R&S
ZCxxx
Converters
Getting Started
(;ÛÁÆ2)
1177515602
Version 05
This manual describes the R&S®ZCxxx family of frequency converters, jointly
manufactured by Rohde & Schwarz and RPG-Radiometer Physics, a Rohde &
Schwarz company:
●
R&S®ZC75, millimeterwave converter WR15 (order no. 1323.8259.02)
●
R&S®ZC90, millimeterwave converter WR12 (order no. 1323.7600.02)
●
R&S®ZC90E, millimeterwave converter WR12 with electronic attenuator
(order no. 1323.7600.04)
●
R&S®ZC110, millimeterwave converter WM-2540 (order no. 1323.7617.02)
●
R&S®ZC140, millimeterwave converter WM-2032 (order no. 1323.7623.02)
●
R&S®ZC170, millimeterwave converter WM-1651 (order no. 1323.7630.02)
●
R&S®ZC220, millimeterwave converter WM-1295 (order no. 1323.7646.02)
●
RPG ZC260, millimeterwave converter WM-1092 (order no. 3628.5682.02)
●
R&S®ZC330, millimeterwave converter WM-864 (order no. 1323.7669.02)
●
RPG ZC400, millimeterwave converter WM-710 (order no. 3656.9220.02)
●
R&S®ZC500, millimeterwave converter WM-570 (order no. 1323.7681.02)
●
RPG ZC750, millimeterwave converter WM-380 (order no. 1323.7717.02)
●
RPG ZC1100, millimeterwave converter WM-250 (order no. 1323.7723.02)
Throughout this manual, the converter R&S®ZC330 is used as a representation
for converters of the R&S®ZCxxx family.
© 2022 Rohde & Schwarz GmbH & Co. KG
Muehldorfstr. 15, 81671 Muenchen, Germany
Phone: +49 89 41 29 - 0
Email: info@rohde-schwarz.com
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1177.5156.02 | Version 05 | R&S®ZCxxx
Throughout this manual R&S® is abbreviated as R&S.
R&S®ZCxxx
Contents
1 Safety and regulatory information....................................... 5
1.1 Labels on the product.......................................................................... 5
1.2 Warning messages in the documentation..........................................6
1.3 Korea certification class B...................................................................6
2 Key features........................................................................... 7
3 Preparing for use................................................................... 9
3.1 Unpacking and checking......................................................................9
3.2 Choosing the operating site.............................................................. 10
Contents
3.3 Setting up the converter.....................................................................10
3.4 Considerations for test setup............................................................ 10
3.5 Connecting the converter to the DC supply..................................... 11
3.6 Switching the converter on................................................................ 11
3.7 Connecting the converter to the VNA via USB................................ 12
4 Instrument tour.................................................................... 13
4.1 Test port adapter (waveguide flange)................................................13
4.2 Output power-adjusting knob............................................................15
4.3 Rear panel............................................................................................16
5 RF connections....................................................................20
5.1 Connection procedure........................................................................22
5.2 Input connectors (RF IN, LO IN)........................................................ 23
5.3 Output connectors (MEAS OUT, REF OUT)......................................24
5.4 Adaption kits R&S ZCAKN................................................................. 24
6 Basic operation....................................................................26
6.1 Required equipment........................................................................... 26
3Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
6.2 Configuration and measurement steps............................................ 27
6.3 Configuring the converter setup....................................................... 27
6.4 Establishing the RF connections...................................................... 30
6.5 Scalar power calibration and leveling (optional)............................. 30
6.6 System error correction..................................................................... 34
6.7 Measurement.......................................................................................34
6.8 Additional information........................................................................35
Contents
7 Maintenance and disposal.................................................. 36
7.1 Cleaning...............................................................................................36
7.2 Disposal............................................................................................... 36
8 Contacting customer support............................................ 37
Annex....................................................................................38
A Setup and operation with R&S ZVA/ZVT........................... 38
A.1 Connecting the RF cables..................................................................38
A.2 Basic Operation.................................................................................. 42
Index..................................................................................... 48
4Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Safety and regulatory information
Labels on the product
1 Safety and regulatory information
The product documentation helps you use the product safely and efficiently. Follow the instructions provided here and in the following chapters.
Intended use
Millimeterwave converters R&S ZCxxx are designed to be used with Rohde &
Schwarz vector network analyzers R&S ZNA, R&S ZVA or R&S ZVT. They are
intended for the development, production and verification of electronic components and devices in industrial, administrative, and laboratory environments. Only
use them for their designated purpose. Observe the operating conditions and performance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you of potential
dangers and gives instructions on how to prevent personal injury or damage
caused by dangerous situations. Safety information is provided as follows:
●
Multilingual safety information is delivered with the converter power supply
R&S ZCPS and your Rohde & Schwarz vector network analyzer.
●
Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.
1.1 Labels on the product
Labels on the casing inform about:
●
Product and environment safety
●
Identification of the product
Table 1-1: Labels regarding environment safety
Labeling in line with EN 50419 for disposal of electrical and electronic equipment after
the product has come to the end of its service life. For more information, see "Dispos-
ing electrical and electronic equipment" on page 36.
5Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Safety and regulatory information
Korea certification class B
1.2 Warning messages in the documentation
A warning message points out a risk or danger that you need to be aware of. The
signal word indicates the severity of the safety hazard and how likely it will occur
if you do not follow the safety precautions.
NOTICE
Potential risks of damage. Could result in damage to the supported product or to
other property.
1.3 Korea certification class B
이 기기는 가정용(B급) 전자파 적합기기로서 주로 가정에서 사용하는 것을 목적으
로 하며, 모든 지역에서 사용할 수 있습니다.
6Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Key features
2 Key features
Intended use
Millimeterwave converters R&S ZCxxx extend the frequency range of a
R&S ZNA, R&S ZVA or R&S ZVT up to 1.1 THz.
They feature wide dynamic range and high output power. Except for R&S ZC90,
R&S ZC90E, R&S ZC110 and RPG ZC1100, the R&S ZCxxx converters have an
integrated variable mechanical attenuator.
Thanks to their unique USB interface, all relevant operating parameters of an individual converter are automatically transferred to the base VNA without the need
to enter these parameters manually.
When used together with an R&S ZNA, the R&S ZCxxx converters can play to
their strength:
●
They seamlessly integrate into the user interface of the base VNA.
●
The R&S ZNA supports mixed configurations with different converter models
and native test ports without converter, which is particularly useful for frequency-converting measurements.
●
Automatic level control (ALC), in conjunction with the integrated output power
linearization ("leveling") functionality, allow the converters to provide precise
and stable source power over a wide power range.
Millimeterwave converters R&S ZCxxx supervise their own health state regarding
temperature, fan operation and DC supply.
7Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
The R&S ZC90E is equipped with an electronic attenuator and a corresponding control interface.
●
The R&S ZVA supports this control interface via hardware option
R&S ZVA-B8.
For a description of the corresponding connectors, their cabling and
operational aspects, see the Getting Started of the predecessor
R&S ZVA-Z90E. It can be downloaded from the manual page of the
R&S ZVA-Zxxx converter family (https://www.rohde-schwarz.com/
manual/zvaz/).
●
R&S ZNA and R&S ZVT do not offer the external attenuator control
interface. With these analyzers, you can use the R&S ZC90E like a regular R&S ZC90, but with lower maximum output power and dynamic
range. See the data sheet of the R&S ZCxxx family for details.
Key features
8Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Unpacking and checking
Preparing for use
3 Preparing for use
Here, you can find basic information about setting up the product for the first time.
3.1 Unpacking and checking
When you receive the converter, please take the following steps:
1. Unpack the converter and the other contents from the cardboard shipping box.
2. Retain the original packing material. Use it when transporting or shipping the
product later.
3. Using the delivery notes, check the equipment for completeness.
The shipment must include the following items:
● Converter
● DC supply cable
● USB cable
● IF cable EXT REF
● IF cable EXT MEAS
● External attenuator control cable (R&S ZC90E only)
● Plastic case with 8 flange screws 4-40 UNC 7.6 and 4 flange screws 4-40
UNC 9.24
● Plastic case with 8 precision dowels 1.566 mm ± 0.001 mm
● 3/32” hex ball driver
● Getting Started (this document)
4. Inspect the frequency converter, especially the test port adapter and the test
port flange surface, to make sure that no damages occurred during shipment.
If you observe any damages, immediately notify the shipping company and
keep the packing material.
9Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Considerations for test setup
Preparing for use
3.2 Choosing the operating site
Specific operating conditions ensure proper operation and avoid damage to the
product and connected devices. For information on environmental conditions
such as ambient temperature and humidity, see the data sheet.
3.3 Setting up the converter
The frequency converter is designed for use under laboratory conditions on a flat
bench top or mounted on a wafer probe station. Four M8 threads are provided on
all long sides of the converter to allow for mounting the converter on a flat surface. Some on-wafer measurement applications can require the converter to be
tilted to bring the test port closer to the chuck. In these cases, an additional bent
waveguide adapter can be necessary in front of the test port adapter to compensate for the tilt angle.
Adjusting the feet of the converter
The instrument can be used with four feet attached to the respective bottom side
(depending on the orientation). When the DUT is mounted between two converters (see "Mounting a DUT" on page 14), use the feet for alignment of the complete setup. A bubble level can help you to align each converter horizontally
before fitting the DUT.
3.4 Considerations for test setup
Cable selection and electromagnetic interference (EMI)
Electromagnetic interference (EMI) can affect the measurement results.
To suppress electromagnetic radiation during operation:
●
Use high-quality shielded RF cables.
●
Always terminate open cable ends.
10Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Switching the converter on
Signal input and output levels
Information on signal levels is provided in the data sheet. Keep the signal levels
within the specified ranges to avoid damage to the product and connected devices.
Preventing electrostatic discharge (ESD)
Electrostatic discharge is most likely to occur when you connect or disconnect a
DUT.
► NOTICE! Risk of electrostatic discharge. Electrostatic discharge can damage
the electronic components of the product and the device under test (DUT).
Ground yourself to prevent electrostatic discharge damage:
a) Use a wrist strap and cord to connect yourself to ground.
b) Use a conductive floor mat and heel strap combination.
Preparing for use
3.5 Connecting the converter to the DC supply
The converter power supply R&S ZCPS has been designed for use with converters of the R&S ZCxxx family. Do not use other power supplies.
1. Switch the converter power supply R&S ZCPS off.
2. Connect the R&S ZCxxx to either output CONVERTER 1 or CONVERTER 2
of the R&S ZCPS, using the enclosed DC supply cable.
3.6 Switching the converter on
Before switching on the connected converter power supply, make sure that the
following conditions are fulfilled:
●
Converter covers are in place and all fasteners are tightened.
●
Ventilation openings are unobstructed.
●
The converter is dry and does not show condensation.
11Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Connecting the converter to the VNA via USB
To power up the converter:
► Switch on the connected converter power supply R&S ZCPS
After a short time, both the LED of the power output to which the converter is
connected and the LED on the rear panel of the converter should light up
green.
If the converter LED lights up red, at least one supply voltage is missing. Contact
R&S service in this case. For the meaning of the LED colors, refer to Chap-
ter 4.3.1, "Power supply connector and status LED", on page 17.
After power-up, a warm-up time of one hour is required to ensure accurate
measurements.
Preparing for use
3.7 Connecting the converter to the VNA via USB
Connect the R&S ZCxxx to the VNA using the enclosed USB cable.
A R&S ZCxxx must be connected to the VNA at least once to transfer the characteristic data of the converter to the VNA. After that, the converter remains known
to the VNA and can be selected (by type and serial number) in the corresponding
converter configuration GUI.
12Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Test port adapter (waveguide flange)
Instrument tour
4 Instrument tour
This chapter gives an overview of the controls and connectors of the frequency
converter.
4.1 Test port adapter (waveguide flange)
The test port with a mounted test port adapter is located at the front of the instrument. The device under test (DUT) has to be connected to the test port adapter.
Figure 4-1: Front of the converter R&S ZC330
The precision waveguide flange of the test port adapter, which is compatible to
standard IEEE 1785, consists of an outer ring and a protruding inner contacting
surface with the waveguide. On the outer ring there are four UNC 4-40 threads,
two dowels and two holes as counterparts of the DUT dowels (see Figure 4-2).
Two additional holes in the inner flange surface allow the insertion of precision
dowels (delivered with the converter). To enhance the accuracy of the connection,
use additional dowels if the flange of the DUT also has holes for them.
13Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Figure 4-2: Test port adapter of R&S ZC330
Risk of damaging waveguide flanges
Instrument tour
Test port adapter (waveguide flange)
The waveguide flanges of the converter and of the test port adapters must
be protected against scratches and other mechanical damages. Furthermore the waveguides must be shielded from dust.
Protect the waveguide flange of the converter by leaving the test port
adapter mounted. When the converter is not in use, slip a protective cap
onto the adapter.
Mounting a DUT
Mount the DUT to the test port adapter at the front of the converter. Use the included screws and hex ball driver. For higher precision, a torque-controlled hex ball
driver R&S ZV-Z1000 is available as an accessory (order number 1314.5467.02).
An angled hex ball driver facilitates working in the tight space between rear side
of the test port adapter flange and converter front side (see Figure 4-3).
Rohde&Schwarz offers three variants:
●
R&S ZCAW (order number 1175.1960.00) without torque control
●
R&S ZCTW with 0.58 N·m torque limit (order no. 1175.2014.02)
●
R&S ZCTW with 0.2 N·m torque limit (order no. 1175.2014.03)
14Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Instrument tour
Output power-adjusting knob
Figure 4-3: Angled hex ball driver R&S ZCAW (accessory)
For precision calibrations and measurements, use the inner dowels at the test
port adapter. A tight and accurate connection is important to ensure precise measurement results.
For a two- or n-port measurement, setup converters and DUT have to be aligned
accurately, using the adjustable instrument feet. Use a bubble level for proper
alignment.
4.2 Output power-adjusting knob
The knurled knob steeped in the upper surface of the converter housing
adjusts an integrated variable mechanical attenuator that allows you to
control the output power at the waveguide test port manually. Such an
attenuator is available for all R&S ZCxxx converters, except the R&S ZC90,
R&S ZC90E, R&S ZC110 and RPG ZC1100.
Turning the knob clockwise reduces the output power while turning it counterclockwise increases the output power. The minimum power is reached at the stop
in clockwise direction while maximum power is reached at the stop in counterclockwise direction. The knob cannot be turned so far in counter-clockwise sense
that it protrudes the upper surface of the R&S ZCxxx. So there is no danger that
the mechanism of the variable attenuator is damaged when the frequency con-
15Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
verter is mounted upside down, e.g. on a wafer prober. If you turn the knob, a
receiver power calibration remains valid, while a system error calibration has to
be repeated if it refers to more than one port.
To set a flat output power over frequency just by entering a dBm value in the VNA
firmware, the leveling functionality of option R&S ZNA-K8 can be used. Leveling
records the frequency-dependent relationship between the input power at RF IN
and the output power at the waveguide port. The resulting data set can then be
applied by the VNA firmware. For further details, refer to the R&S ZNA online
help.
Since version 2.40, the leveling functionality is part of the R&S ZNA firmware. It is enabled with option R&S ZNA-K8, and integrated into the standard power calibration routines.
The output power of the VNA is set to a fixed value optimized for the selected
type of converter.
Instrument tour
Rear panel
4.3 Rear panel
The rear panel of the frequency converter provides the connectors and control
elements described in the following subsections.
16Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Instrument tour
Rear panel
Figure 4-4: Rear view of the frequency converter
4.3.1 Power supply connector and status LED
To supply the R&S ZCxxx with power, connect it to the external
DC power supply R&S ZCPS. Always switch the power supply off
before removing the DC cable. For details, see the User Manual of
the R&S ZCPS.
The following table lists all possible colors of the converter LED,
along with their associated error condition:
Table 4-1: R&S ZCPS LED colors and error conditions
Color Error conditions
green No error.
yellow At least one fan is not working properly (rotational speed is out of range or
fan stands still).
orange Temperature is out of range. If it exceeds a critical level, the power supply is
switched off.
red At least one supply voltage is out of range or missing.
17Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
If an error occurs, a warning message on the VNA indicates the current
error condition (fan, voltage, temperature). Warning message and converter
LED remain in the respective state as long as the error condition persists. If
more than one error condition applies, warning message and LED show the
most severe one.
4.3.2 RF connectors – IN
Two 2.92 mm female input connectors: LO IN (local oscillator signal
input) and RF IN (RF source signal input).
For correct cabling, refer to Chapter 5.2, "Input connectors (RF IN,
LO IN)", on page 23.
Instrument tour
Rear panel
4.3.3 RF connectors – OUT
Two SMA female output connectors: MEAS OUT (measurement
signal output) and REF OUT (reference signal output).
For correct cabling, refer to Chapter 5.3, "Output connectors
(MEAS OUT, REF OUT)", on page 24.
4.3.4 USB connector
The USB Type B connector is used to connect the R&S ZCxxx to the
VNA (control connection).
4.3.5 Attenuator control connector (R&S ZC90E only)
The R&S ZC90E is equipped with an electronic attenuator that can
be controlled from the R&S ZVA via hardware option R&S ZVA-B8.
The three-pin control connector receives the control signal.
R&S ZNA and R&S ZVT do not offer the external attenuator control interface.
18Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Connecting the control cable
Connect the control connector to one of the EXTATT CTRL front panel connectors of an R&S ZVA equipped with option R&S ZVA-B8. The required cable is
supplied with the converter. The numbers below the EXTATT CTRL connectors
denote the controlled analyzer ports. Control connector numbers and analyzer
port numbers must always be the same.
For more details, see the Getting Started of the predecessor R&S ZVA-Z90E. It
can be downloaded from the manual page of the R&S ZVA-Zxxx converter family
(https://www.rohde-schwarz.com/manual/zvaz/).
Instrument tour
Rear panel
19Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
RF connections
5 RF connections
The R&S ZNA offers various possibilities to connect and operate one or more frequency converters R&S ZCxxx.
In the following descriptions, we focus on the standard setups for 2 and 4 converters, which use the following hardware options:
●
Direct IF access (R&S ZNA-B26)
●
Converter LO output (R&S ZNA-B8)
With the standard setup, two (four) converters can be operated with a two-port
(four-port) R&S ZNA, without external generator.
R&S ZNA-B8 (rear panel LO output)
R&S ZV-Z195
Var. 37
required for R&S ZNA50/67
Port adapters
(included in R&S ZCAKN)
Splitter 1-to-2
(included in R&S ZCAKN)
Port adapters
(included in R&S ZCAKN)
R&S ZNA-K8
R&S ZV-Z193
R&S ZV-Z193
RF from test ports
LO from
R&S ZNA-B8
R&S ZV-Z193
R&S ZV-Z193
R&S ZNA-B26 (Direct IF I/O)
Reference & measurement
signals to IF rear inputs
(cables included in delivery)
DC power supply
R&S ZCPS (cables
ZCPS to ZCxxx
included)

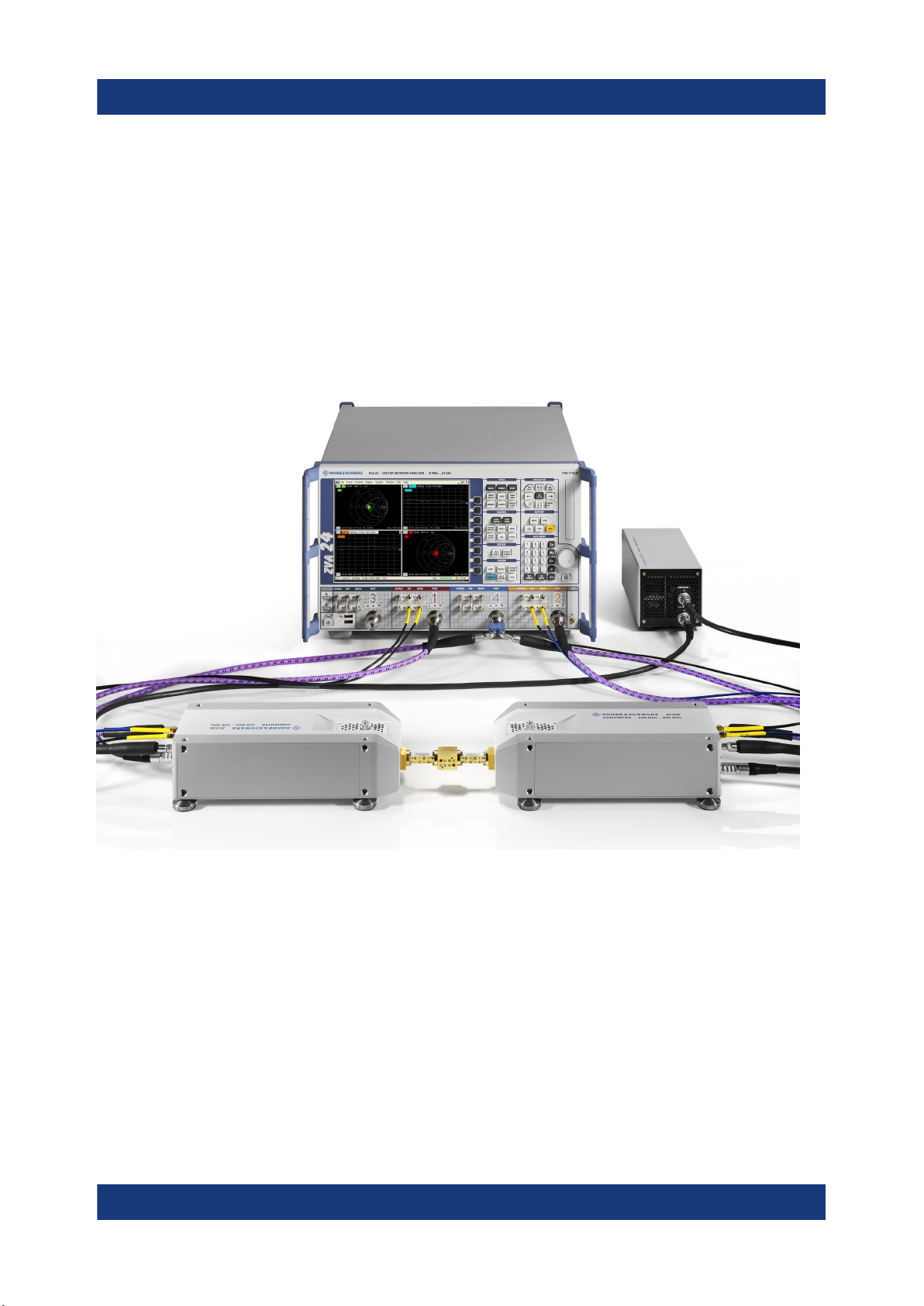

Figure 5-1: Standard 2-port setup (with Rohde & Schwarz accessories)
20Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
R&S ZNA-K8
R&S ZNA-B8 (rear panel LO output)
R&S ZV-Z195
Var. 37
RF connections
R&S ZNA-B26 (Direct IF I/O)
required for R&S ZNA50/67
(included in R&S ZCAKN)
(included in R&S ZCAKN)
(included in R&S ZCAKN)
Port adapters
Splitter 1-to-4
Port adapters
DC power supply
R&S ZCPS
(cables R&S ZCPS to
R&S ZCxxx included)
R&S ZV-Z193
R&S ZV-Z193
RF from test ports
R&S ZV-Z193
R&S ZV-Z193
R&S
ZV-Z193
LO from
R&S ZNA-B8
R&S ZV-Z193
R&S ZV-Z193
R&S ZV-Z193
Reference & measurement
signals to IF rear inputs
(cables included in delivery)
Figure 5-2: Standard 4-port setup (with Rohde & Schwarz accessories)
●
Except otherwise stated, the accessories shown above are not part of
the delivery and must be ordered separately. Use your own cables,
adapters and splitters, if you like. For most converters, the RF IN and
LO IN frequencies do not exceed 20 GHz and hence 3.5 mm cables are
sufficient. Only RPG ZC750 and RPG ZCZC1100 require LO frequencies up to 21 GHz and 23 GHz, respectively.
DC power supply
R&S ZCPS
(cables R&S ZCPS to
R&S ZCxxx included)
●
In addition, the standard setup relies on the frequency converter control
software option R&S ZNA-K8 (available for R&S ZNA firmware V1.90
and higher). Without this option, configuring the port powers and frequencies is extremely tedious and error-prone, and can be hazardous
w.r.t. excessive RF and LO input power levels at the converters.
Tightening RF cables
Tightening RF cables too strongly, can damage cables and connectors. Loose
tightening can result in inaccurate measurement results.
21Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Connection procedure
Therefore always use an appropriate torque wrench, suitable for the type of connector. Rohde & Schwarz offers an optional 5/16” torque wrench that fits for SMA,
3.5 mm, 2.92 mm and 1.85 mm connectors (R&S ZN-ZTW variant 35). Similar
wrenches are available for other sizes of spanner, too. For ordering information,
see the R&S ZCxxx data sheet or product brochure.
RF connections
5.1 Connection procedure
The RF input power at the connectors RF IN and LO IN of the R&S ZCxxx must
not exceed the maximum values quoted in the data sheet. Because these maximum values are below the maximum RF source power of the R&S ZNA, the
R&S ZNA has to be configured carefully, before establishing these connections.
A converter configuration via the graphical user interface of software option
R&S ZNA-K8 ensures compatible source powers. Therefore, proceed as follows:
1. Make sure the R&S ZNA is already running.
2. Connect the frequency converters to their power supply R&S ZCPS and
power up the R&S ZCPS.
3. Establish USB connections between the frequency converters and the
R&S ZNA.
The R&S ZNA then registers the converter, i.e. it reads and persists the characteristic data of the R&S ZCxxx.
4. At the analyzer GUI:
a) Make sure the R&S ZNA firmware has registered all your converters.
Otherwise reestablish the USB connection.
b) Define and configure your converter setup, as described in Chapter 6.3,
"Configuring the converter setup", on page 27.
Now the RF and LO cables can be connected safely.
22Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Input connectors (RF IN, LO IN)
●
Once the R&S ZNA firmware has registered a converter, the USB connection is no longer required.
●
Repeat step 4 whenever you are not sure whether a suitable converter
configuration is already active. Switching the VNA off and on preserves
the converter configuration.
Converter configurations can be saved and loaded via the graphical
user interface of software option R&S ZNA-K8 (System – [Setup] key >
"Frequency Converter" tab > "Save Converter Topology"/"Load Converter Topology").
5.2 Input connectors (RF IN, LO IN)
RF connections
For the R&S ZNA standard setup, proceed as follows:
1. Connect test ports of the R&S ZNA to the RF IN ports of the converters.
2. Use a power splitter to connect the R&S ZNA-B8 Converter LO Out port of the
R&S ZNA to the LO IN ports of the converters.
High-quality cablings using R&S ZV-Z195 and R&S ZV-Z193 test cables are
shown in Figure 5-1 and Figure 5-2. The adapters and splitters that are required
for this cabling, are offered as complementary adaption kits (see Chapter 5.4,
"Adaption kits R&S ZCAKN", on page 24).
The required cable lengths depend on the desired converter arrangement. Always
use cables with low attenuation and excellent phase stability.
23Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Adaption kits R&S ZCAKN
RF connections
5.3 Output connectors (MEAS OUT, REF OUT)
For the R&S ZNA standard setup, proceed as follows:
1. Connect the MEAS OUT connectors of the converters to the IF Meas connectors of the R&S ZNA.
2. Connect the REF OUT connectors of the converters to the IF Reference connectors of the R&S ZNA.
Use the same VNA port number for the RF IN, MEAS OUT, and REF OUT
connection of a converter.
Suitable cables for connecting the output connectors to the network analyzer are
included in the converter shipment. The connectors of these cables are labeled
accordingly.
5.4 Adaption kits R&S ZCAKN
The standard setups shown in Figure 5-1 and Figure 5-2 use the following
Rohde & Schwarz network analyzer accessories:
●
Cables
– R&S ZV-Z195: Test port cable 0 Hz to 40 GHz, 2.92 mm (f) – 2.92 mm (m)
24Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
RF connections
Adaption kits R&S ZCAKN
– R&S ZV-Z193: Test port cable 0 Hz to 26.5 GHz, 3.5 mm (f) – 3.5 mm (m)
Available in different lengths.
●
Splitters
– R&S ZN-Z1229: LO 1-to-2 power divider, 2.92 mm (f) connectors
– R&S ZN-Z1230: LO 1-to-4 power divider, 2.92 mm (f) connectors
Distribute the R&S ZNA-B8 Converter LO Out signal to the converters.
●
Adapters
– R&S ZN-Z1119: Adapter 2.92 mm (m/m) 90°
Used at the splitter outputs.
– R&S ZV-Z1829: Adapter 1.85 mm (f) / 2.92 mm (m)
Used at the R&S ZNA50|67 test ports.
Rohde & Schwarz offers the required splitters and adapters as adaption kits
R&S ZCAKN.
Table 5-1: Adaption kits R&S ZCAKN (order no 1332.6178.xx)
Standard setup Kit
variant
xx
2 converters
R&S ZNA26|43
2 converters,
R&S ZNA50|67
4 converters,
R&S ZNA26|43
4 converters,
R&S ZNA50|67
43 R&S ZN-Z1229 x 2 –
67 x 2
44 R&S ZN-Z1230 x 4 –
68 x 4
Kit content
Splitter Adapters
R&S ZN-Z1119 R&S ZV-Z1829
25Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Basic operation
Required equipment
6 Basic operation
This chapter describes how to configure the standard setup with an R&S ZNA
network analyzer and two frequency converters R&S ZC330, for 2-port transmission measurements.
Measurements using other converters of the R&S ZCxxx family are performed in
an analogous way.
6.1 Required equipment
In general, the standard setup with n frequency converters requires an R&S ZNA
with at least n test ports, equipped with the following hardware options:
●
Direct IF access (R&S ZNA-B26)
●
Converter LO output (R&S ZNA-B8)
The standard RF cabling and the required accessories are described in Chap-
ter 5, "RF connections", on page 20.
To calibrate the measurement setup, the following equipment is required:
●
For power calibration and leveling, a power meter that covers the measured
frequency range:
– VDI Erickson PM5 or PM4 (with suitable taper) for waveguide ports
– Alternatively, R&S NRP75TWG or R&S NRP110TWG for waveguide ports
up to 110 GHz (scalar power calibration only)
– A supported coaxial power meter with an upper frequency limit of 23 GHz
or higher for calibrating the LO IN and RF IN signals at the converter (scalar power calibration)
●
For system error correction, a calibration kit for the respective WM-xxxx waveguide
26Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Configuring the converter setup
Basic operation
6.2 Configuration and measurement steps
Follow the connection sequence described in Chapter 5.1, "Connection pro-
cedure", on page 22.
Configuring the measurement setup and measuring the DUT involves the following steps:
1. Configuring the converter setup
2. Establishing the RF connections between the R&S ZNA and the converters
See Chapter 5, "RF connections", on page 20.
3. Scalar power calibration and leveling (optional for S parameter measurements)
4. System error correction, using a suitable waveguide calibration kit
5. Connecting and measuring the DUT
6.3 Configuring the converter setup
Convenient converter configuration is provided with software option R&S ZNA-K8,
which is available since R&S ZNA firmware version 1.90.
Once the R&S ZNA has registered your converters, the setup can be configured.
1. At the graphical user interface of the R&S ZNA , open the "Converter Configuration" dialog (System – [Setup] key > "Frequency Converter" tab > "Frequency Converter ...").
27Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Configuring the converter setup
"Converter 1" is the converter connected to VNA port 1, "Converter 2" the converter connected to VNA port 2.
Basic operation
2. In the "Converter Configuration" dialog, verify that your R&S ZNA has registered your converters.
The "Converter Type" combo-boxes list R&S ZCxxx converters as "ZCxxx<serial>". If one of your converters is missing, reestablish the USB connection
and wait for it to show up.
3. Still In the "Converter Configuration" dialog, configure the standard setup with
two converters:
a) Select the converter connected to VNA port 1 as "Converter 1", and the
converter connected to VNA port 2 as "Converter 2".
b) For both converter ports, select "Rear IF" as "IF Input".
c) In the combo box above the "Splitter 1" symbol, select "Conv. LO" as LO
source.
d) For both converter ports, select "Splitter 1" as the source for the "Local"
port.
28Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Basic operation
Configuring the converter setup
Figure 6-1: Standard setup with two converters
4. Select "OK" to apply the converter configuration and close the dialog.
The R&S ZNA now adjusts the frequencies and source power levels. The frequencies correspond to the maximum frequency range of the configured converters, the source power levels also take the cable and splitter losses into
account.
Furthermore, low phase noise mode is activated, and automatic level control
(ALC) is deactivated.
5. If you do not use the Rohde & Schwarz cables and accessories displayed in
Figure 5-1, adjust the cable and splitter losses in the "Default Cable and Split-
ter Losses" dialog (System – [Setup] key > "Frequency Converter" tab >
"Default Cable and Splitter Losses ...").
29Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Scalar power calibration and leveling (optional)
The resulting frequency and source power levels can be viewed – and
tweaked – in the port settings dialog (Channel – [Channel Config] key > "Port
Config" tab > "Port Settings ..."). For details, see the R&S ZNA help system or
user manual.
Basic operation
6.4 Establishing the RF connections
Refer to Chapter 5, "RF connections", on page 20.
6.5 Scalar power calibration and leveling (optional)
The output power can be manually set using the adjusting knob (see Chapter 4.2,
"Output power-adjusting knob", on page 15). For standard S parameter measure-
ments which do not require precise power levels at the DUT, a power calibration
is not required.
To take control of the converter input and output levels, proceed as follows:
1. At the graphical user interface of the R&S ZNA, run the scalar power calibration wizard (Channel – [Cal] key > "Start Cal" tab > "Scalar Power Cal ...")
2. On the first page of the wizard, you can perform source flatness calibrations at
the converter inputs.
30Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Scalar power calibration and leveling (optional)
Perform a source flatness calibration, if the default values for cable and splitter losses deviate significantly from the actual ones (sum deviation > 2 dB).
See step 5 in Chapter 6.3, "Configuring the converter setup", on page 27.
3. The second page of the wizard offers several calibration types:
a) "Ref. Receiver"
To perform a reference receiver calibration, connect a power meter with
suitable frequency range to the waveguide port of the respective converter.
During the calibration, the R&S ZNA performs a frequency sweep and
uses the power meter readings to correct the readings of the related reference receiver (transfer calibration). For supported power meters, see the
R&S ZNA help system or user manual.
Basic operation
With the default power calibration method of the R&S ZNA, subsequent
measurement receiver and source flatness calibrations rely on an existing
reference receiver calibration. For output power leveling, an existing reference receiver calibration of the respective port is a prerequisite.
31Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
b) "Meas. Receiver"
A measurement receiver calibration adjusts the power readings at the
receive port, by default based on an existing reference receiver calibration.
With an existing reference receiver calibration for port 1, to calibrate the
measurement receiver of port 1, connect a Short to the waveguide port of
converter 1 and select port 1 as source.
To calibrate the measurement receiver of port 2, connect the waveguide
ports of the converters directly and again use port 1 as source.
Basic operation
Scalar power calibration and leveling (optional)
32Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
c) "Leveling Table (Global)"
Perform leveling if you want the power levels at the waveguide port to be
constant over frequency. Also perform leveling if you want to have frequency-independent, variable, known power levels at the waveguide port.
The latter is necessary for power sweeps, but also for automatic level control (ALC). ALC, in turn, is recommended for all measurements that require
precise power levels at the waveguide port, in particular for measuring
non-linear characteristics of a DUT (compression, intermodulation, spectrum...). For details on ALC, see the R&S ZNA help system or user manual.
Based on an existing reference receiver calibration, the leveling procedure
records the output power on a two-dimensional power/frequency grid with
equidistant RF IN power levels and frequencies. The leveling logic then
uses two-dimensional interpolation to determine the appropriate RF IN
level for the desired output level at a given frequency.
Basic operation
Scalar power calibration and leveling (optional)
Since version 2.40 of the R&S ZNA firmware, leveling is part of software
option R&S ZNA-K8.
d) "Source Flatness"
Based on an existing reference receiver calibration, the R&S ZNA varies
the frequency and adjusts its source power so that the reference receiver
readings correspond to the desired output power at the waveguide port of
the converter.
If leveling data is available for a port, a source flatness calibration is not
necessary for this port.
For converter setups, reduce the convergence factor to 0.3, or 0.1 for high
frequency converters (Channel – [Cal] key > "Power Cal Settings" tab >
"Convergence").
33Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Basic operation
Measurement
6.6 System error correction
For precise S-parameter measurements, a system error correction is recommended. System error correction requires a calibration kit for the waveguide band of
the specific R&S ZCxxx converter.
The (universal data of the) R&S ZVA-WRxx kits are pre-installed in the R&S ZNA
firmware. They are assigned, however, to R&S WM-xxxx connectors, as far as
the WRxx waveguide bands are identical to the newer WM-xxxx bands. In addition to these kits, dedicated R&S ZC-WM-xxxx kits are provided for the WM-xxxx
bands. Their characteristic data are supplied on USB sticks, and must be installed
manually, before they can be used. The standards in these calibration kits allow
for OSM, TOSM, UOSM, TOM, TRM and TRL calibrations.
With an additional reference receiver calibration at one of the converter
ports, a full n-port system error correction at n > 1 converter ports of the
same waveguide band can be extended to a SMARTerCal. A SMARTerCal
enables phase and level accurate measurements of all involved a- and bwaves.
Refer to the documentation of your calibration kit and to the R&S ZNA help system or user manual for details.
6.7 Measurement
After power calibration and system error correction, mount the DUT (see "Mount-
ing a DUT" on page 14).
Measurements involving converters can be performed like other measurements.
All measured quantities (S parameters, wave quantities, ratios etc.) are available.
Power sweeps and ALC can only be activated, if leveling data are available (see
Chapter 6.5, "Scalar power calibration and leveling (optional)", on page 30). The
"Port Settings" dialog (Channel – [Channel Config] key > "Port Config" tab > "Port
Settings ...") shows the frequency and power sweep ranges of all implied signals,
including RF IN, LO IN and IF output.
Refer to the R&S ZNA help system or user manual for details.
34Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
●
After power-up, a warm-up time of one hour is required to ensure accurate measurements.
●
Measurement results can be degraded if the setup is exposed to an
electromagnetic field at the IF frequency (default: 279 MHz).
●
For pulsed signals, the default IF frequency of 279 MHz cannot be used,
because a narrow-band filter is applied at this frequency. Use the "Converter Configuration" dialog to select an IF frequency in the direct path
between 30 kHz and 30 MHz instead (see Figure 6-1).
●
If a power splitter is used and the phases of Sij and Sji deviate or drift by
equal magnitude, but opposite sign, check the phase stability of the LO
paths of the converters.
Basic operation
Additional information
6.8 Additional information
For a comprehensive description of the frequency converter mode, including
remote control, refer to the R&S ZNA help system or user manual.
More information is available on the R&S internet site:
●
R&S ZCxxx product pages: https://www.rohde-schwarz.com/product/zcxxx/
●
R&S ZNA product pages: https://www.rohde-schwarz.com/product/zna/
35Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Maintenance and disposal
Disposal
7 Maintenance and disposal
The product does not require regular maintenance. It only requires occasional
cleaning. It is however advisable to check the nominal data from time to time.
7.1 Cleaning
Cleaning the product
Use a dry, lint-free cloth to clean the product. When cleaning, keep in mind that
the casing is not waterproof. Do not use liquid cleaning agents.
Do not use any liquids for cleaning. Cleaning agents, solvents (thinners, acetone),
acids and bases can damage the front panel labeling, plastic parts and display.
7.2 Disposal
Rohde & Schwarz is committed to making careful, ecologically sound use of natural resources and minimizing the environmental footprint of our products. Help us
by disposing of waste in a way that causes minimum environmental impact.
Disposing electrical and electronic equipment
A product that is labeled as follows cannot be disposed of in normal household
waste after it has come to the end of its service life. Even disposal via the municipal collection points for waste electrical and electronic equipment is not permitted.
Figure 7-1: Labeling in line with EU directive WEEE
Rohde & Schwarz has developed a disposal concept for the eco-friendly disposal
or recycling of waste material. As a manufacturer, Rohde & Schwarz completely
fulfills its obligation to take back and dispose of electrical and electronic waste.
Contact your local service representative to dispose of the product.
36Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Contacting customer support
8 Contacting customer support
Technical support – where and when you need it
For quick, expert help with any Rohde & Schwarz product, contact our customer
support center. A team of highly qualified engineers provides support and works
with you to find a solution to your query on any aspect of the operation, programming or applications of Rohde & Schwarz products.
Contact information
Contact our customer support center at www.rohde-schwarz.com/support, or fol-
low this QR code:
Figure 8-1: QR code to the Rohde & Schwarz support page
37Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Setup and operation with R&S ZVA/ZVT
Connecting the RF cables
Annex
A Setup and operation with R&S ZVA/ZVT
A.1 Connecting the RF cables
The connectors RF IN, LO IN, MEAS OUT and REF OUT have to be connected
to the VNA; LO IN can alternatively be connected to an external generator.
Switch off the converter power supply R&S ZCPS before connecting the RF
cables.
Risk of connector and cable damage
Tightening the cables too strongly may damage cables and connectors.
Loose tightening may result in inaccurate measurement results.
Therefore always use an appropriate torque wrench, suitable for the type of
connector. Rohde & Schwarz offers an optional 5/16” torque wrench that fits
for SMA, 3.5 mm, 2.92 mm and 1.85 mm connectors (order number
1328.8534.35). Similar wrenches are available for other sizes of spanner,
too. See ordering information in R&S ZCxxx data sheet or product brochure.
A.1.1 Input powers RF IN and LO IN
The RF input power at the connectors RF IN and LO IN must not exceed the
maximum values quoted in the data sheet. These maximum values are below the
maximum RF source power of the network analyzer. The frequency converter
modes for the R&S ZCxxx models that are provided by the R&S ZVA/ZVT firmware V3.40 and higher, ensure compatible source powers. Therefore, activate
this mode before you connect your frequency converter's RF IN and LO IN to the
VNA.
38Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Connection Procedure
1. Connect the frequency converter to the power supply R&S ZCPS and power
up R&S ZVA/ZVT and R&S ZCPS.
2. Establish a USB connection between frequency converter and VNA
.
3. At the analyzer GUI, when prompted to configure a two-port measurement
setup, select "Yes"
Now the RF and LO cables can be connected safely.
You have to repeat this procedure whenever you are not sure if the frequency converter mode for your particular R&S ZCxxx model is already
active.
Switching the VNA off and on preserves the selected frequency converter
mode.
Setup and operation with R&S ZVA/ZVT
Connecting the RF cables
A.1.2 Connecting the input connectors (RF IN, LO IN)
The type of cable required for connecting the input connectors depends on the
type of the network analyzer / external generator. Since the converter inputs are
fitted with 2.92 mm female connectors, the cable should ideally have male connectors of the same type (e.g. R&S ZV-Z195, order number 1306.4536.xx). Alternatively, 3.5 mm or SMA male connectors are possible. These are mechanically
compatible with 2.92 mm connectors while providing tolerable electrical mismatch
(e.g. R&S ZV-Z193, order number 1306.4520.xx).
For a complete test setup for a 2-port transmission measurement – as shown in
Figure A-1 – a cable length of about 1 m is recommended. For a setup with only
one converter shorter cables may be sufficient. Always use cables with low
attenuation and excellent phase stability.
Depending on the VNA model, additional 1.85 mm to 2.92 mm adapters may be
required to connect the cables.
1. Connect port 1 or port 2 of the analyzer to RF IN of the converter.
2. Connect port 3 or port 4 of the analyzer to LO IN of the converter.
For VNAs with 4 sources (R&S ZVA24 var. 28, R&S ZVA40 var. 48 or
R&S ZVA67), connect LO IN to port 4 only. For these VNA models, or in case
39Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
an external generator is used, a power splitter is required for a two-port converter setup. If the outputs of the splitter are so close that two cables cannot
be mounted in parallel, additional angled adapters are required. This setup is
shown in Figure A-1 below.
If a power splitter is used and the phases of S21 and S12 deviate or drift by
equal magnitude, but opposite sign, check the phase stability of the LO paths
of both converters.
The required adapters and splitters are offered as complementary adaption kits
(see Chapter A.1.4, "Adaption Kits R&S ZCAK", on page 41).
Setup and operation with R&S ZVA/ZVT
Connecting the RF cables
Figure A-1: Test setup for 2-port transmission measurement with a VNA with two sources
A.1.3 Connecting the output connectors (MEAS OUT, REF OUT)
Suitable cables for connecting the output connectors to the network analyzer are
included in the converter shipment. The connectors of these cables are labeled
accordingly.
40Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
R&S ZVA50 and R&S ZVA67 require additional 1.85 mm to 2.92 mm adapters to
connect the cables. These adapters are offered as complementary adaption kits
(see Chapter A.1.4, "Adaption Kits R&S ZCAK", on page 41).
1. Connect MEAS OUT of the converter to the VNA. Use the MEAS IN connector
of the VNA port that provides the RF source signal.
2. Connect REF OUT of the converter to the REF IN connector of the same VNA
port.
Setup and operation with R&S ZVA/ZVT
Connecting the RF cables
Figure A-2: Test setup for 2-port transmission measurement with a VNA with four sources
A.1.4 Adaption Kits R&S ZCAK
As explained in the previous sections, depending on the VNA model, additional
adapters, power splitters and angled adapters may be required to connect the
cables. Rohde & Schwarz offers three different adaption kits R&S ZCAK to meet
the requirements of different VNAs:
●
For the R&S ZVA24 var. 28 and the R&S ZVA40 var. 48 (VNAs with four sources), Rohde & Schwarz offers the adaption kit R&S ZCAK Var. 24 (order number 1323.7746.24).
41Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
It includes a power splitter and two right angled SMA (m-m) adapters.
●
For the R&S ZVA50, Rohde & Schwarz offers the adaption kit R&S ZCAK Var.
50 (order number 1323.7746.50).
It includes four 1.85 mm (f) to 2.92 mm (m) adapters and four 1.85 mm (m) to
2.92 mm (f) adapters.
●
For the R&S ZVA67, Rohde & Schwarz offers the adaption kit R&S ZCAK Var.
67 (order number 1323.7746.67).
It includes a power splitter and two right angled SMA (m-m) adapters, three
1.85 mm (f) to 2.92 mm (m) adapters and four 1.85 mm (m) to 2.92 mm (f)
adapters.
Setup and operation with R&S ZVA/ZVT
Basic Operation
A.2 Basic Operation
This chapter describes the use of an R&S ZVA vector network analyzer and two
frequency converters R&S ZCxxx for 2-port transmission measurements.
Measurements using other converters of the R&S ZCxxx family are performed in
an analogous way.
A.2.1 Required equipment
Measurements with frequency converters can be carried out with the following
equipment:
●
n frequency converters for an n-port measurement
●
Vector network analyzer (VNA) R&S ZVA or R&S ZVT with an upper frequency limit of 20 GHz or higher (R&S ZVT20, R&S ZVA24, R&S ZVA40 ...).
The network analyzer must provide one test port for each converter. In addition, a common LO signal must be applied to all converters. For R&S ZVT20
with at least 4 ports, R&S ZVA24 var.26, R&S ZVA40 var. 42 and R&S ZVA50
var. 52 the LO can be supplied by two different test ports that are fed by the
same internal source. If the VNA is a four-source model R&S ZVA24 var. 28,
R&S ZVA40 var. 48 or R&S ZVA67, the signal must be supplied by a single
port and split by an external power splitter. For the R&S ZVA67, a mm-wave
adapter kit (order number 1323.7746.00) is available which includes the
power splitter and all necessary adapters.
The required adapters and splitters are offered as complementary adaption
kits (see Chapter A.1.4, "Adaption Kits R&S ZCAK", on page 41).
42Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
●
Option R&S ZVAxx-B16/R&S ZVT20-B16, "Direct Generator/Receiver Access"
at each port
●
Option R&S ZVA-K8, "Converter Control"
●
Calibration kit for the respective WM-xxxx waveguide
Special requirements for particular converter models
●
The electronic attenuator of an R&S ZC90E can only be controlled by an
R&S ZVA that is equipped with hardware option R&S ZVA-B8. The
R&S ZVT does not offer this option.
For a description of the corresponding connector, see Chapter 4.3.5,
"Attenuator control connector (R&S ZC90E only)", on page 18. For
cabling and operational aspects, see the Getting Started of the predecessor R&S ZVA-Z90E. It can be downloaded from the manual page of
the R&S ZVA-Zxxx converter family (https://www.rohde-schwarz.com/
manual/zvaz/).
Setup and operation with R&S ZVA/ZVT
Basic Operation
●
The RPG ZC1100 requires an R&S ZVA40 or R&S ZVA67. Operation
with an R&S ZVT20 is not possible.
Firmware and Operating System Requirements
Support of the R&S ZCxxx converters requires firmware version 3.40 or higher to
be installed on the VNA. If the operating system of the VNA is Windows® XP,
make sure that it has been upgraded at least up to service pack 2. Otherwise
USB communication between VNA and converter is not possible. In case an
upgrade of the operating system is needed, please contact your local Rohde &
Schwarz service.
A.2.2 Measurement principle
The measurement involves the following steps:
1. Activation of the converter mode
2. Connection of the frequency converters
3. Calibration using a suitable waveguide calibration kit
4. Connection of the DUT and measurement
43Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Setup and operation with R&S ZVA/ZVT
Basic Operation
A.2.3 Activating the frequency converter mode
To activate the converter mode for a setup without external generator, establish a
USB connection between converter and VNA. Wait for the dialog box to appear
and confirm the prompt "Configure Two-Port Measurement Setup…?". The VNA
then readd the characteristic data of the R&S ZCxxx via USB and automatically
enter the appropriate converter mode.
Analyzer settings with active frequency converter
In frequency converter mode, the frequency and level settings of the network analyzer are automatically set to be compatible with the selected frequency converters. If the VNA allows for low phase noise mode, it is activated. Automatic Level Control (ALC) is disabled. Frequency and source
power levels of all ports are displayed in the port configuration dialog
("Channel > Mode > Port Config").
If a USB connection between VNA and converter is not possible, but has been
established previously, the characteristic data of the frequency converter are
already available at the VNA. In this case, open the "System Configuration" dialog
("System > System Config") and activate the "Frequency Converter" tab. Select
the adequate converter model in the "Type" combobox, select the LO sources in
"Use of External Sources", check the port assignment table and press "Apply" to
activate the setting.
44Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Setup and operation with R&S ZVA/ZVT
Basic Operation
Figure A-3: Frequency Converter tab in System Configuration dialog
A.2.4 Connecting the frequency converters
Each frequency converter must be connected to power supply, analyzer and DUT.
Please refer to the following sections for details.
●
Power supply: Chapter 3.5, "Connecting the converter to the DC supply",
on page 11
●
Analyzer ports: Chapter A.1, "Connecting the RF cables", on page 38
●
DUT (usually connected after calibration): "Mounting a DUT" on page 14
A.2.5 Calibration
The output power can be manually set using the adjusting knob (see Chapter 4.2,
"Output power-adjusting knob", on page 15). A normal power flatness calibration
via "Channel" > "Calibration" > "Start Power Cal" > "Source Power Cal" can be
performed, but requires a small convergence factor (0.3 down to 0.1 for high frequency converters). With the help of a receiver power calibration, however, precise monitoring of the output power of a converter port is possible by measuring
45Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
the corresponding a-wave. See section "Power Calibration for Converters without
Electronic Attenuators" in the R&S ZVA/ZVT online help for details.
Accepting some limitations w.r.t. temperature stability, the R&S ZVA Frequency
Converter Leveling Tool can be applied for the linearization of output power in the
frequency range of interest. For further details, refer to the R&S ZVA/ZVT online
help (description of "RF In Power (and Electronic Attenuator) with Data Set"
option), and the Getting Started document of R&S ZVA Frequency Converter Leveling Tool.
For precise S-parameter measurements, a system error correction is recommended. System error correction requires a calibration kit for the waveguide band of
the specific R&S ZCxxx converter. Activating the frequency converter mode for a
R&S ZCxxx does not imply automatic installation of a suitable R&S waveguide kit
in the analyzer firmware, as it is the case for the R&S ZVA-Zxxx converters. To
have at least one cal kit defined when getting started with a R&S ZCxxx converter, the R&S ZVA-WRxx kits have been pre-installed in the R&S ZVA/ZVT firmware. They are assigned, however, to WM-xxxx connectors, as far as the WRxx
waveguide bands are identical to the newer WM-xxxx bands.
Setup and operation with R&S ZVA/ZVT
Basic Operation
The standards in the calibration kits allow for OSM, TOSM, UOSM, TOM, TRM
and TRL calibrations. Refer to the documentation of the calibration kit or the
R&S ZVA/ZVT online help for details.
A.2.6 Measurement
After power calibration and system error correction, the mm-wave measurement
can be performed like any other network analyzer measurement. The port configuration dialog ("Channel > Mode > Port Configuration") shows the frequency and
power sweep ranges of all implied signals, including RF IN, LO IN and IF output.
All measured quantities (S-parameters, wave quantities, ratios etc.) are available.
Flat power and power sweep are only available if a power correction data set has
been previously taken with the R&S Converter Leveling Tool.
The R&S Converter Leveling Tool is a separate software that can be installed on the R&S ZVA/ZVT or on a separate PC. Installer and documentation
are available on the R&S ZVA software page https://www.rohde-
schwarz.com/software/zva/.
46Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Please note that measurement results can be degraded if the setup is exposed to
an electromagnetic field at the R&S ZVA/ZVT receiver frequency (typically 279
MHz).
Setup and operation with R&S ZVA/ZVT
Basic Operation
A.2.7 Additional information
For a comprehensive description of the frequency converter mode, including
remote control, refer to the R&S ZVA/ZVT online help system or to the printable
operating manual, which is available for download from the Rohde & Schwarz
web site (www.rohde-schwarz.com).
Application notes related to frequency converters are also available for download
(currently for the R&S ZVA-Zxxx series only).
The text book "Fundamentals of Vector Network Analysis" by Michael Hiebel is an
ideal complement for the information given in the user documentation. The book
combines theoretical background and practical measurements on an R&S ZVA
network analyzer. If you are interested, please contact your local R&S office.
47Getting Started 1177.5156.02 ─ 05
R&S®ZCxxx
Index
Index
A
Adjusting knob .........................................15
Attenuator control connector (R&S ZC90E
only) .........................................................18
B
Basic operation ..................................26, 42
C
Calibration ......................................... 34, 45
Casing
Labels ................................................... 5
Checking the delivery ................................ 9
Converter setup .................................10, 27
Customer support ....................................37
D
Disposal ...................................................36
F
Frequency converter mode ..................... 44
I
Input powers ............................................18
L
REF OUT .................................................18
Required Equipment ..........................26, 42
RF connection ................................... 20, 38
RF connector inputs ................................ 18
RF connector outputs .............................. 18
RF IN ....................................................... 18
S
Safety instructions
Warning messages ............................... 6
Scalar power calibration .......................... 30
Standard setup ........................................ 20
System Configuration .............................. 45
System error correction ..................... 34, 46
T
Test port ...................................................13
Test port adapter ..................................... 13
U
Unpacking ................................................. 9
USB connector ........................................ 18
W
Warning messages ....................................6
Waveguide flange ....................................13
Labels on casing ....................................... 5
Leveling ................................................... 30
LO IN ....................................................... 18
M
Maintenance ............................................36
MEAS OUT ..............................................18
Measurement .................................... 34, 46
Measurement principle ...................... 27, 43
P
Power adjusting knob .............................. 15
Power calibration .....................................45
Power supply connector .......................... 17
Preparing for use .................................9, 13
R
R&S ZC90E
Attenuator control connector ...............18
Rear panel ...............................................16
48Getting Started 1177.5156.02 ─ 05
Loading...
