Rohde&Schwarz FPL1003, FPL1007, FPL1014, FPL1026 Getting started

®
R&S
FPL1000 Spectrum Analyzer Getting Started
1179465702 Version 15
This manual applies to the following R&S®FPL1000 models with firmware version
2.00 and later:
R&S®FPL1003 (1304.0004K03) - FPL1000 with maximum frequency 3 GHz
R&S®FPL1007 (1304.0004K07) - FPL1000 with maximum frequency 7.5 GHz
R&S®FPL1014 (1304.0004K14) - FPL1000 with maximum frequency 14 GHz
R&S®FPL1026 (1304.0004K26) - FPL1000 with maximum frequency
26.5 GHz
In addition to the base unit, the following options are described:
R&S FPL1-B4, OCXO (1323.1902.02)
R&S FPL1-B5, Additional Interfaces (1323.1883.02)
R&S FPL1-B9, Internal Generator (1323.1925.03/1323.1925.07)
R&S FPL1-B10, GPIB interface (1323.1890.02)
R&S FPL1-B11, YIG preselector bypass (1323.1619.02)
R&S FPL1-B22, preamplifier (1323.1719.02)
R&S FPL1-B25, electronic attenuator (1323.1990.02)
R&S FPL1-B30, DC power supply (1323.1877.02)
R&S FPL1-B31, Li-Ion battery pack and charger (1323.1725.02)
R&S FPL1-K9, Power Sensor Support (1323.1754.02)
© 2022 Rohde & Schwarz GmbH & Co. KG
Muehldorfstr. 15, 81671 Muenchen, Germany
Phone: +49 89 41 29 - 0
Email: info@rohde-schwarz.com
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
All other trademarks are the properties of their respective owners.
1179.4657.02 | Version 15 | R&S®FPL1000
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol , e.g. R&S®FPL1000 is indicated as R&S FPL1000, R&S® FPL1-Bxx/-Kxx is indicated as R&S FPL1-Bxx/-Kxx.
R&S®FPL1000

Contents

1 Safety and regulatory information....................................... 7
1.1 Safety instructions................................................................................7
1.2 Labels on R&S FPL1000..................................................................... 11
1.3 Warning messages in the documentation........................................12
1.4 Korea certification class A.................................................................12
2 Documentation overview.................................................... 13
2.1 Getting started manual.......................................................................13
2.2 User manuals and help.......................................................................13
Contents
2.3 Service manual....................................................................................14
2.4 Instrument security procedures........................................................ 14
2.5 Printed safety instructions.................................................................14
2.6 Data sheets and brochures................................................................14
2.7 Release notes and open source acknowledgment (OSA)...............15
2.8 Application notes, application cards, white papers, etc................. 15
2.9 Calibration certificate......................................................................... 15
3 Key features......................................................................... 16
4 Preparing for use................................................................. 17
4.1 Lifting and carrying............................................................................ 17
4.2 Unpacking and checking....................................................................17
4.3 Choosing the operating site.............................................................. 18
4.4 Setting up the R&S FPL1000..............................................................18
4.5 Connecting to power.......................................................................... 21
4.6 Switching on or off............................................................................. 24
4.7 Connecting to LAN............................................................................. 25
3Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
4.8 Connecting a keyboard...................................................................... 27
4.9 Connecting an external monitor........................................................27
4.10 Windows operating system................................................................29
4.11 Logging on.......................................................................................... 31
4.12 Checking the supplied options..........................................................33
4.13 Performing a self-alignment.............................................................. 34
4.14 Considerations for test setup............................................................ 34
Contents
5 Instrument tour.................................................................... 36
5.1 Front panel view..................................................................................36
5.2 Rear panel view...................................................................................43
6 Trying out the instrument................................................... 51
6.1 Measuring a basic signal................................................................... 51
6.2 Displaying a spectrogram.................................................................. 53
6.3 Activating additional measurement channels..................................55
6.4 Performing sequential measurements..............................................60
6.5 Setting and moving a marker.............................................................61
6.6 Displaying a marker peak list............................................................ 63
6.7 Zooming into the display................................................................... 64
6.8 Saving settings................................................................................... 68
6.9 Printing and saving results................................................................70
7 Operating the instrument....................................................72
7.1 Understanding the display information - spectrum mode.............. 72
7.2 Accessing the functionality............................................................... 81
7.3 Entering data....................................................................................... 87
7.4 Touchscreen gestures........................................................................89
7.5 Getting help......................................................................................... 92
4Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Contents
8 Customer support................................................................94
8.1 Collecting information for support....................................................94
8.2 Contacting customer support............................................................96
Index..................................................................................... 98
5Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Contents
6Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Safety and regulatory information
Safety instructions

1 Safety and regulatory information

The product documentation helps you use the product safely and efficiently. Fol­low the instructions provided here and in the following chapters.
Intended use
The product is intended for the development, production and verification of elec­tronic components and devices in industrial, administrative, and laboratory envi­ronments. Use the product only for its designated purpose. Observe the operating conditions and performance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you of potential dangers and gives instructions on how to prevent personal injury or damage caused by dangerous situations. Safety information is provided as follows:
In Chapter 1.1, "Safety instructions", on page 7. The same information is provided in many languages as printed "Safety Instructions". The printed "Safety Instructions" are delivered with the product.
Throughout the documentation, safety instructions are provided when you need to take care during setup or operation.

1.1 Safety instructions

Products from the Rohde & Schwarz group of companies are manufactured according to the highest technical standards. To use the products safely, follow the instructions provided here and in the product documentation. Keep the prod­uct documentation nearby and offer it to other users.
Use the product only for its intended use and within its performance limits. Inten­ded use and limits are described in the product documentation such as the data sheet, manuals and the printed "Safety Instructions". If you are unsure about the appropriate use, contact Rohde & Schwarz customer service.
Using the product requires specialists or specially trained personnel. These users also need sound knowledge of at least one of the languages in which the user interfaces and the product documentation are available.
7Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Never open the casing of the product. Only service personnel authorized by Rohde & Schwarz are allowed to repair the product. If any part of the product is damaged or broken, stop using the product. Contact Rohde & Schwarz customer service at http://www.customersupport.rohde-schwarz.com.
Lifting and carrying the product
The maximum weight of the product is provided in the data sheet. To move the product safely, you can use lifting or transporting equipment such as lift trucks and forklifts. Follow the instructions provided by the equipment manufacturer.
Choosing the operating site
Only use the product indoors. The product casing is not waterproof. Water that enters can electrically connect the casing with live parts, which can lead to elec­tric shock, serious personal injury or death if you touch the casing. If Rohde & Schwarz provides accessories designed for your product, e.g. a carrying bag, you can use the product outdoors.
Safety and regulatory information
Safety instructions
Unless otherwise specified, you can operate the product up to an altitude of 2000 m above sea level. The product is suitable for pollution degree 2 environ­ments where nonconductive contamination can occur. For more information on environmental conditions such as ambient temperature and humidity, see the data sheet.
Setting up the product
Always place the product on a stable, flat and level surface with the bottom of the product facing down. If the product is designed for different positions, secure the product so that it cannot fall over.
If the product has foldable feet, always fold the feet completely in or out to ensure stability. The feet can collapse if they are not folded out completely or if the prod­uct is moved without lifting it. The foldable feet are designed to carry the weight of the product, but not an extra load.
If stacking is possible, keep in mind that a stack of products can fall over and cause injury.
If you mount products in a rack, ensure that the rack has sufficient load capacity and stability. Observe the specifications of the rack manufacturer. Always install the products from the bottom shelf to the top shelf so that the rack stands securely. Secure the product so that it cannot fall off the rack.
8Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Connecting to power
The product is an overvoltage category II product. Connect the product to a fixed installation used to supply energy-consuming equipment such as household appliances and similar loads. Keep in mind that electrically powered products have risks, such as electric shock, fire, personal injury or even death.
Take the following measures for your safety:
Before switching on the product, ensure that the voltage and frequency indica­ted on the product match the available power source. If the power adapter does not adjust automatically, set the correct value and check the rating of the fuse.
If a product has an exchangeable fuse, its type and characteristics are indica­ted next to the fuse holder. Before changing the fuse, switch off the product and disconnect it from the power source. How to change the fuse is described in the product documentation.
Safety and regulatory information
Safety instructions
Only use the power cable delivered with the product. It complies with country­specific safety requirements. Only insert the plug into an outlet with protective conductor terminal.
Only use intact cables and route them carefully so that they cannot be dam­aged. Check the power cables regularly to ensure that they are undamaged. Also ensure that nobody can trip over loose cables.
If the product needs an external power supply, use the power supply that is delivered with the product or that is recommended in the product documenta­tion or a power supply that conforms to the country-specific regulations.
Only connect the product to a power source with a fuse protection of maxi­mum 20 A.
Ensure that you can disconnect the product from the power source at any time. Pull the power plug to disconnect the product. The power plug must be easily accessible. If the product is integrated into a system that does not meet these requirements, provide an easily accessible circuit breaker at the system level.
Handling batteries safely
The product contains exchangeable or built-in lithium polymer or lithium ion cells or batteries. The use of the word battery in the following always means all types. Only the battery contents are potentially hazardous. As long as a battery is undamaged and the seals remain intact, there is no danger.
9Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Impact, shock or heat can cause damage such as dents, punctures and other deformations. A damaged battery poses a risk of personal injury. Handle a dam­aged or leaking battery with extreme care. Immediately ventilate the area since the battery releases harmful gases. If you come into contact with the battery fluid, immediately remove all contaminated clothing. Irritation can occur if the battery fluid comes in contact with your skin or eyes. Immediately and thoroughly rinse your skin or eyes with water and seek medical aid.
For safe handling, follow these rules:
Do not short-circuit the battery.
Do not mechanically damage the battery. Do not open or disassemble the bat­tery.
Do not expose the battery to high temperatures such as open flames, hot sur­faces and sunlight.
Only use the battery with the designated Rohde & Schwarz product.
Safety and regulatory information
Safety instructions
Only use the appropriate Rohde & Schwarz charger to charge the batteries. If the batteries are improperly charged, there is a risk of explosion. For charging and discharging temperature ranges, see the product documentation.
Replace exchangeable batteries only with the same battery type.
Store the battery in the product or use the product packaging.
Dispose of exchangeable batteries separately from normal household waste as specified by the local waste disposal agency.
If you disregard these rules, you risk serious personal injury or even death due to explosion, fire or hazardous chemical substances. The product documentation provides further details.
If exchangeable batteries or products with built-in batteries are defective, contact the Rohde & Schwarz customer service. Rohde & Schwarz classifies the severity of the defect. When returning batteries or Rohde & Schwarz products containing batteries, use a carrier qualified to transport dangerous goods and notify the car­rier of this classification. Follow the carrier’s transport stipulations in line with IATA-DGR, IMDG-Code, ADR or RID.
Using headphones
Take the following measures to prevent hearing damage. Before using head­phones, check the volume and reduce it if necessary. If you monitor varying sig­nal levels, take off the headphones and wait until the signal has settled. Then adjust the volume.
10Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Safety and regulatory information
Labels on R&S FPL1000
Cleaning the product
Use a dry, lint-free cloth to clean the product. When cleaning, keep in mind that the casing is not waterproof. Do not use liquid cleaning agents.
Meaning of safety labels
Safety labels on the product warn against potential hazards.
Potential hazard Read the product documentation to avoid personal injury or product damage.
Electrical hazard Indicates live parts. Risk of electric shock, fire, personal injury or even death.
Hot surface Do not touch. Risk of skin burns. Risk of fire.
Protective conductor terminal Connect this terminal to a grounded external conductor or to protective ground. This
connection protects you against electric shock if an electric problem occurs.

1.2 Labels on R&S FPL1000

Labels on the casing inform about:
Personal safety, see "Meaning of safety labels" on page 11
Product and environment safety, see Table 1-1
Identification of the product, see Chapter 5.2.14, "Device ID", on page 49
Table 1-1: Labels regarding R&S FPL1000 and environment safety
Labeling in line with EN 50419 for disposal of electrical and electronic equipment after the product has come to the end of its service life.
For more information, see the product user manual, chapter "Disposal".
Labeling in line with directive 2006/66/EC for disposal of batteries after they have come to the end of their service life.
For more information, see the product user manual, chapter "Disposal".
11Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Safety and regulatory information
Korea certification class A

1.3 Warning messages in the documentation

A warning message points out a risk or danger that you need to be aware of. The signal word indicates the severity of the safety hazard and how likely it will occur if you do not follow the safety precautions.
CAUTION
Potentially hazardous situation. Could result in minor or moderate injury if not avoided.
NOTICE
Potential risks of damage. Could result in damage to the supported product or to other property.

1.4 Korea certification class A

이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하 시기 바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.
12Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Documentation overview
User manuals and help

2 Documentation overview

This section provides an overview of the R&S FPL1000 user documentation. Unless specified otherwise, you find the documents at:
www.rohde-schwarz.com/manual/FPL1000

2.1 Getting started manual

Introduces the R&S FPL1000 and describes how to set up and start working with the product. Includes basic operations, typical measurement examples, and gen­eral information, e.g. safety instructions, etc.
A printed version is delivered with the instrument. A PDF version is available for download on the Internet.

2.2 User manuals and help

Separate user manuals are provided for the base unit and the firmware applica­tions:
Base unit manual Contains the description of all instrument modes and functions. It also pro­vides an introduction to remote control, a complete description of the remote control commands with programming examples, and information on mainte­nance, instrument interfaces and error messages. Includes the contents of the getting started manual.
Firmware application manual Contains the description of the specific functions of a firmware application, including remote control commands. Basic information on operating the R&S FPL1000 is not included.
The contents of the user manuals are available as help in the R&S FPL1000. The help offers quick, context-sensitive access to the complete information for the base unit and the firmware applications.
All user manuals are also available for download or for immediate display on the Internet.
13Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Documentation overview
Data sheets and brochures

2.3 Service manual

Describes the performance test for checking compliance with rated specifications, firmware update, troubleshooting, adjustments, installing options and mainte­nance.
The service manual is available for registered users on the global Rohde & Schwarz information system (GLORIS):
https://gloris.rohde-schwarz.com

2.4 Instrument security procedures

Deals with security issues when working with the R&S FPL1000 in secure areas. It is available for download on the Internet.

2.5 Printed safety instructions

Provides safety information in many languages. The printed document is deliv­ered with the product.

2.6 Data sheets and brochures

The data sheet contains the technical specifications of the R&S FPL1000. It also lists the firmware applications and their order numbers, and optional accessories.
The brochure provides an overview of the instrument and deals with the specific characteristics.
See www.rohde-schwarz.com/brochure-datasheet/FPL1000
14Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Documentation overview
Calibration certificate
2.7 Release notes and open source acknowledg­ment (OSA)
The release notes list new features, improvements and known issues of the cur­rent firmware version, and describe the firmware installation.
The software makes use of several valuable open source software packages. An open-source acknowledgment document provides verbatim license texts of the used open source software.
See www.rohde-schwarz.com/firmware/FPL1000

2.8 Application notes, application cards, white papers, etc.

These documents deal with special applications or background information on particular topics.
See www.rohde-schwarz.com/application/FPL1000

2.9 Calibration certificate

The document is available on https://gloris.rohde-schwarz.com/calcert. You need the device ID of your instrument, which you can find on a label on the rear panel.
15Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Key features

3 Key features

The R&S FPL1000 sets standards in RF performance and usability. Outstanding key features are:
One instrument for multiple applications
Spectrum analysis
Signal analysis of analog and digitally modulated signals
Power measurements with power sensors
Noise figure and gain measurements
Phase noise measurements
Solid RF performance
Low spurious response
Low displayed average noise level (DANL)
40 MHz signal analysis bandwidth
Low level measurement uncertainty
Precise spectral measurements due to low phase noise
Intuitive user interface
High-resolution display
Multipoint touchscreen
Flexible arrangement of results and MultiView
Toolbar
Quiet operation
Fully portable
Battery pack and 12 V/24 V power supply
Carrying bag and shoulder harness
Low power consumption
16Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Unpacking and checking
Preparing for use

4 Preparing for use

Here, you can find basic information about setting up the product for the first time.
Lifting and carrying..........................................................................................17
Unpacking and checking................................................................................. 17
Choosing the operating site............................................................................ 18
Setting up the R&S FPL1000.......................................................................... 18
Connecting to power....................................................................................... 21
Switching on or off...........................................................................................24
Connecting to LAN.......................................................................................... 25
Connecting a keyboard................................................................................... 27
Connecting an external monitor...................................................................... 27
Windows operating system............................................................................. 29
Logging on...................................................................................................... 31
Checking the supplied options........................................................................ 33
Performing a self-alignment............................................................................ 34
Considerations for test setup.......................................................................... 34

4.1 Lifting and carrying

The carrying handles are designed to lift or carry the instrument. Do not apply excessive external force to the handles.
See "Lifting and carrying the product" on page 8.

4.2 Unpacking and checking

1. Unpack the R&S FPL1000 carefully.
2. Retain the original packing material. Use it when transporting or shipping the
R&S FPL1000 later.
3. Using the delivery notes, check the equipment for completeness.
17Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Setting up the R&S FPL1000
4. Check the equipment for damage.
If the delivery is incomplete or equipment is damaged, contact Rohde & Schwarz.
Preparing for use

4.3 Choosing the operating site

Specific operating conditions ensure proper operation and avoid damage to the product and connected devices. For information on environmental conditions such as ambient temperature and humidity, see the data sheet.
See also "Choosing the operating site" on page 8.
Electromagnetic compatibility classes
The electromagnetic compatibility (EMC) class indicates where you can operate the product. The EMC class of the product is given in the data sheet.
Class B equipment is suitable for use in:
Residential environments
Environments that are directly connected to a low-voltage supply network
that supplies residential buildings
Class A equipment is intended for use in industrial environments. It can cause radio disturbances in residential environments due to possible conducted and radiated disturbances. It is therefore not suitable for class B environments. If class A equipment causes radio disturbances, take appropriate measures to eliminate them.

4.4 Setting up the R&S FPL1000

The R&S FPL1000 is designed for use either on a bench top or in a rack, or as a portable instrument (with optional battery operation) in a transport bag in the field.
See also:
"Setting up the product" on page 8
"Intended use" on page 7
18Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Setting up the R&S FPL1000
Preparing for use

4.4.1 Placing the R&S FPL1000 on a bench top

To place the product on a bench top
1. Place the product on a stable, flat and level surface.
2. CAUTION! The top surface of the product is too small for stacking. If you
stack another product on top of the product, the stack can fall over and cause injury.
If you want to save space, mount several products in a rack.
3. CAUTION! Foldable feet can collapse. See "Setting up the product"
on page 8.
Always fold the feet completely in or out. With folded-out feet, do not place anything on top or underneath.
4. NOTICE! Overheating can damage the product.
Prevent overheating as follows:
Keep a minimum distance of 10 cm between the fan openings of the prod-
uct and any object in the vicinity.
Do not place the product next to heat-generating equipment such as radia­tors or other products.

4.4.2 Mounting the R&S FPL1000 in a rack

To prepare the rack
1. Observe the requirements and instructions in "Setting up the product" on page 8.
2. NOTICE! Insufficient airflow can cause overheating and damage the product.
Design and implement an efficient ventilation concept for the rack.
19Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Setting up the R&S FPL1000
To mount the R&S FPL1000 in a rack
1. Use an adapter kit to prepare the R&S FPL1000 for rack mounting.
a) Order the rack adapter kit designed for the R&S FPL1000. For the order
number, see the data sheet.
b) Mount the adapter kit. Follow the assembly instructions provided with the
adapter kit.
2. Lift the R&S FPL1000 to shelf height.
3. Grab the handles and push the R&S FPL1000 onto the shelf until the rack brackets fit closely to the rack.
4. Tighten all screws in the rack brackets with a tightening torque of 1.2 Nm to secure the R&S FPL1000 in the rack.
To unmount the R&S FPL1000 from a rack
Preparing for use
1. Loosen the screws at the rack brackets.
2. Remove the R&S FPL1000 from the rack.
3. If placing the R&S FPL1000 on a bench top again, unmount the adapter kit from the R&S FPL1000. Follow the instructions provided with the adapter kit.

4.4.3 Portable operation

An optional carrying bag designed specifically for the R&S FPL1000 allows you to protect the instrument while working in the field. The bag includes ventilation areas at the position of the ventilation outlets in the casing to ensure air circula­tion. The transparent cover allows you to operate the instrument without removing it from the bag. With the help of the optional vest holster, you can carry the R&S FPL1000 in its bag and keep your hands free. Together with the optional battery pack (see Chapter 4.5.3, "Optional battery pack (R&S FPL1-B31)", on page 23), and packed in the dedicated carrying bag, the R&S FPL1000 is ideally suited for operation directly in the field, even in rough environments.
20Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Preparing for use
Connecting to power
► Inspect the carrying bag for wear and tear before placing the instrument in it.
For details on optional accessories, see the R&S FPL1000 data sheet.

4.5 Connecting to power

There are various options to supply power to the R&S FPL1000.
The R&S FPL1000 is equipped with an AC power supply connector.
The R&S FPL1000 can also be equipped with an optional (internal) DC power supply connector (R&S FPL1-B30).
The R&S FPL1000 allows for battery operation if option R&S FPL1-B31 is installed.

4.5.1 Connecting the AC power

The R&S FPL1000 can be used with different AC power voltages and adapts itself automatically to it. Refer to the datasheet for the requirements of voltage and frequency.
For safety information, see "Connecting to power" on page 9.
21Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
To connect the AC power
1. Plug the AC power cable into the AC power connector on the rear panel of the instrument. Only use the AC power cable delivered with the R&S FPL1000.
2. Plug the AC power cable into a power outlet with ground contact.
The required ratings are listed next to the AC power connector and in the data sheet.
For details on the connector, refer to Chapter 5.2.1, "AC power supply connection
and main power switch", on page 44.
Preparing for use
Connecting to power

4.5.2 Connecting an optional DC power supply (R&S FPL1-B30)

The R&S FPL1000 can also be equipped with an optional DC power supply con­nector (R&S FPL1-B30). If installed, the R&S FPL1000 can be operated by a DC voltage of +12 V to +24 V. For details on the connector see Chapter 5.2.2, "Li-Ion
battery packs and DC power connector", on page 45.
If you use an external power supply unit to supply safety extra-low DC voltage (SELV) to the instrument, be sure to meet the requirements for reinforced/double insulation in accordance with DIN/EN/IEC 61010 (UL 3111, CSA C22.2 No.
1010.1) or DIN/EN/IEC 60950 (UL 1950, CSA C22.2 No. 950). Provide current
limitation in accordance with DIN EN 61010-1 Appendix F2.1. Use a cable no lon­ger than 3 m.
Also see "Connecting to power" on page 9.
22Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
DC connection
► Connect the DC power connector on the rear panel of the R&S FPL1000 to
the DC power source using a cable as described above.
Preparing for use
Connecting to power

4.5.3 Optional battery pack (R&S FPL1-B31)

As an alternative to the fixed AC or DC power supply, the R&S FPL1000 also allows for battery operation. The "Battery Pack" option R&S FPL1-B31 comprises two Li-ion batteries and an internal charger. The internal charger charges the bat­teries whenever the instrument is connected to AC power. During operation, if neither DC nor AC power is supplied, the R&S FPL1000 automatically switches to battery operation.
The battery pack can be retrofitted by Rohde & Schwarz service.
For safety information, see "Handling batteries safely" on page 9.
Charging batteries
Charge the batteries before using battery operation for the first time. Following a long storage period, it can be necessary to charge and discharge the batteries several times to reach full capacity.
For batteries from third parties, follow the instructions provided by the manufac­turer. For batteries manufactured by Rohde & Schwarz, observe the following:
If inserted in the R&S FPL1000, batteries are charged via the common AC or DC power supply.
You can also use the external battery charger R&S FSV-B34 to charge up to 4 batteries.
Charge in a temperature range from +0 °C to +45 °C. If the temperature is above or below these values, or the temparature varies strongly, charging is interrupted. If the battery temperature rises above +53 °C, charging is stop­ped.
Try not to overcharge the battery too often because overcharging reduces the service life of the battery.
23Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Preparing for use
Switching on or off
When the battery is being charged in standby mode, the [Power] LED blinks. During operation, the status bar indicates that the battery is
being charged.
Spare battery pack (R&S FPL1-Z4)
In addition to the internal battery pack (option R&S FPL1-B31), spare batteries are available for the R&S FPL1000. The spare battery pack R&S FPL1-Z4 com­prises two additional Li-ion batteries.
Outside the R&S FPL1000, batteries can be charged using the external battery charger R&S FSV-B34. Even during battery operation, you can exchange the internal batteries while the R&S FPL1000 is running, as long as one battery remains in the instrument. However, it is not recommended to operate the R&S FPL1000 with only one battery for a longer period.

4.6 Switching on or off

Table 4-1: Overview of power states
Status LED on Power key Position of main power switch
Off
Standby
Ready
gray
orange
green
To switch on the R&S FPL1000
The R&S FPL1000 is off but connected to power.
1. Set the switch on the power supply to position [I]. See Chapter 5.2.1, "AC power supply connection and main power switch", on page 44.
The LED of the Power key is orange.
See Chapter 5.1.2, "Power key", on page 38.
[0]
[I]
[I]
Note: If the R&S FPL1000 was disconnected from power before it was switched off regularly, it automatically switches back on when the power is reconnected. Using a LAN-controlled power switch, you can take advantage of this behavior to switch the device on and off remotely.
24Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
2. Press the Power key.
The LED changes to green. The instrument operates on battery, DC, or AC power, whichever is supplied. The R&S FPL1000 boots.
After booting, the instrument is ready for operation.
To shut down the product
The product is in the ready state.
► Press the [Power] key.
The operating system shuts down. The LED changes to orange.
To disconnect from power
The R&S FPL1000 is in the standby state.
Preparing for use
Connecting to LAN
1. NOTICE! Risk of data loss. If you disconnect the product from power when it is in the ready state, you can lose settings and data. Shut it down first.
Set the switch on the power supply to position [0]. See Chapter 5.2.1, "AC power supply connection and main power switch", on page 44.
The LED of the standby key is switched off.
2. Disconnect the R&S FPL1000 from the power source.

4.7 Connecting to LAN

You can connect the instrument to a LAN for remote operation via a PC.
For details on the connector, see Chapter 5.2.12, "LAN", on page 49.
Provided the network administrator has assigned you the appropriate rights and adapted the Windows firewall configuration, you can use the interface, for exam­ple:
To transfer data between a controlling device and the test device, e.g. to run a remote control program
To access or control the measurement from a remote computer using the "Remote Desktop" application (or a similar tool)
To connect external network devices (e.g. printers)
25Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
To transfer data from a remote computer and back, e.g. using network folders
Network environment
Before connecting the product to a local area network (LAN), consider the follow­ing:
Install the latest firmware to reduce security risks.
For internet or remote access, use secured connections, if applicable.
Ensure that the network settings comply with the security policies of your com­pany. Contact your local system administrator or IT department before con­necting your product to your company LAN.
When connected to the LAN, the product may potentially be accessed from the internet, which may be a security risk. For example, attackers might mis­use or damage the product. For more information about IT security and how to operate the product in a secure LAN environment, see the Rohde & Schwarz white paper 1EF96: Malware Protection Windows 10.
Preparing for use
Connecting to LAN
NOTICE! Risk of network failure.
Consult your network administrator before performing the following tasks:
Connecting the instrument to the network
Configuring the network
Changing IP addresses
Exchanging hardware
Errors can affect the entire network.
Connect the R&S FPL1000 to the LAN via the LAN interface on the rear panel of the instrument.
Windows automatically detects the network connection and activates the required drivers.
By default, the R&S FPL1000 is configured to use DHCP and no static IP address is configured.
The default instrument name is <Type><variant>-<serial_number>, for example, FPL1003-123456. For information on determining the serial num­ber, see Chapter 5.2.14, "Device ID", on page 49.
For more information on LAN configuration, see the R&S FPL1000 user manual.
26Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Connecting an external monitor
Preparing for use

4.8 Connecting a keyboard

The keyboard is detected automatically when it is connected. The default input language is English – US.
However, you can also connect foreign language keyboards; currently the follow­ing languages are supported for the R&S FPL1000:
German
Swiss
French
Russian
To configure the keyboard language
1. To access the Windows operating system, press the Windows key on the external keyboard.
2. Select "Start > Settings > Time & language > Region & language > Add a lan­guage" .

4.9 Connecting an external monitor

You can connect an external monitor (or projector) to the "DVI" connector on the rear panel of the R&S FPL1000 (see also Chapter 5.2.13, "DVI", on page 49).
27Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Connecting an external monitor
Screen resolution and format
The touchscreen of the R&S FPL1000 is calibrated for a 16:10 format. If you connect a monitor or projector using a different format (e.g. 4:3), the calibra­tion is not correct and the screen does not react to your touch actions prop­erly.
The touchscreen has a screen resolution of 1280x800 pixels. Usually, the display of the external monitor is a duplicate of the instrument's monitor.
If you configure the external monitor to be used as the only display in the Windows configuration dialog box ("Show only on 2"), the maximum screen resolution of the monitor is used. In this case, you can maximize the R&S FPL1000 application window and see even more details. You cannot change the monitor's screen resolution via the standard Windows configura­tion dialog box.
The R&S FPL1000 supports a minimum resolution of 1280x768 pixels.
Preparing for use
1. Connect the external monitor to the R&S FPL1000.
2. Press the [Setup] key.
3. Press the "Display" softkey.
4. Select the "Configure Monitor" tab in the "Display" dialog box.
The standard Windows "Screen Resolution" dialog box is displayed.
28Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Preparing for use
Windows operating system
5. If necessary, change the screen resolution. Consider the information in the note above.
6. Select the instrument for display:
"Display 1" : internal monitor only
"Display 2" : external monitor only
"Duplicate" : both internal and external monitor
7. Tap "Apply" to try out the settings before they are accepted permanently, then you can easily return to the previous settings, if necessary.
8. Select "OK" if the settings are suitable.

4.10 Windows operating system

The instrument contains the Windows operating system which has been config­ured according to the instrument's features and needs. Changes in the system setup are only required when peripherals like a keyboard or a printer are installed or if the network configuration does not comply with the default settings. After the R&S FPL1000 is started, the operating system boots and the instrument firmware is started automatically.
29Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Windows operating system
Tested software
The drivers and programs used on the instrument under Windows are adapted to the instrument. Only install update software released by Rohde & Schwarz to modify existing instrument software.
You can install additional software on the instrument; however, additional soft­ware can impair instrument function. Thus, run only programs that Rohde & Schwarz has tested for compatibility with the instrument software.
The following program packages have been tested:
Symantec Endpoint Security – virus-protection software
FileShredder - for reliable deletion of files on the hard disk
Service packs and updates
Microsoft regularly creates security updates and other patches to protect Win­dows-based operating systems. They are released through the Microsoft Update website and associated update server. Update instruments using Windows regu­larly, especially instruments that connect to a network.
Preparing for use
Firewall settings
A firewall protects an instrument by preventing unauthorized users from gaining access to it through a network. Rohde & Schwarz highly recommends using the firewall on your instrument. Rohde & Schwarz instruments are shipped with the Windows firewall enabled. All ports and connections for remote control are enabled.
Note that changing firewall settings requires administrator rights.
Virus protection
Take appropriate steps to protect your instruments from infection. Use strong fire­wall settings and scan any removable storage device used with a Rohde & Schwarz instrument regularly. It is also recommended that you install anti-virus software on the instrument. Rohde & Schwarz does NOT recommend running anti-virus software in the background ("on-access" mode) on Windows­based instruments, due to potentially degrading instrument performance. How­ever, Rohde & Schwarz does recommend running it during non-critical hours.
For details and recommendations, see the following Rohde & Schwarz white paper:
1EF96: Malware Protection Windows 10
30Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
To access the "Start" menu
The Windows "Start" menu provides access to the Windows functionality and installed programs.
► Press the "Windows" key on the front panel, or press the "Windows" key or
the [CTRL + ESC] key combination on the (external) keyboard.
The "Start" menu and the Windows taskbar are displayed.
All necessary system settings can be defined in the "Start > Settings" menu.
For required settings, refer to the Windows documentation and to the hardware description.
Preparing for use
Logging on

4.11 Logging on

Windows requires that users identify themselves by entering a user name and password in a login window. By default, the R&S FPL1000 provides two user accounts:
"Instrument" : a standard user account with limited access
"Admin" or "Administrator" (depends on firmware image): an administrator account with unrestricted access to the computer/domain
Some administrative tasks require administrator rights (e.g. the configuration of a LAN network). Refer to the description of the basic instrument Setup ([Setup] menu) to find out which functions are affected.
Passwords
For all default user accounts, the initial password is 894129. Note that this pass­word is very weak, and we strongly recommend that you change the password for both users after initial login. An administrator can change the password in Win­dows for any user at any time via "Start > Settings > Account > SignIn Options > Password > Change".
Auto-login
When shipped, the instrument automatically logs on the default "Instrument" user to Windows using the default password. This function is active until an administra­tor explicitly deactivates it or changes the password.
31Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Changing the password and use of auto-login function
Note that when you change the default password, the default auto-login function no longer works!
In this case, you must enter the new password manually to log on.
Adapting the auto-login function to a new password
If you change the password that is used during auto-login, this function no longer works. Adapt the settings for the auto-login function first.
1. Select the "Windows" icon in the toolbar to access the operating system of the R&S FPL1000 (see also "To access the "Start" menu" on page 31).
2. Open the
C:\Users\Public\Documents\Rohde-Schwarz\Analyzer\user\ user\AUTOLOGIN.REG file in any text editor (e.g. Notepad).
Preparing for use
Logging on
3. In the line "DefaultPassword"="894129", replace the default password (894129) by the new password for automatic login.
4. Save the changes to the file.
5. In the Windows "Start" menu, select "Run". The "Run" dialog box is displayed.
6. Enter the command
C:\Users\Public\Documents\Rohde-Schwarz\Analyzer\user\ user\AUTOLOGIN.REG.
7. Press the [ENTER] key to confirm. The auto-login function is reactivated with the changed password. It will be applied the next time the instrument is switched on.
32Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Checking the supplied options
Switching users when using the auto-login function
Which user account is used is defined during login. If auto-login is active, the login window is not displayed. However, you can switch the user account to be used even when the auto-login function is active.
1. Select the "Windows" icon in the toolbar to access the operating system of the R&S FPL1000 (see also "To access the "Start" menu" on page 31).
2. Press [CTRL] + [ALT] + [DEL], then select "Sign out".
The "Login" dialog box is displayed, in which you can enter the different user account name and password.
For information on deactivating and reactivating the auto-login function, see the R&S FPL1000 user manual.
Preparing for use

4.12 Checking the supplied options

The instrument can be equipped with both hardware and firmware options. To check whether the installed options correspond to the options indicated on the delivery note, proceed as follows.
1. Press the [SETUP] key.
2. Press the "System Config" softkey.
3. Switch to the "Versions + Options" tab in the "System Configuration" dialog box.
A list with hardware and firmware information is displayed.
4. Check the availability of the hardware options as indicated in the delivery note.
33Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Considerations for test setup
Preparing for use

4.13 Performing a self-alignment

When temperature changes occur in the environment of the R&S FPL1000, or after updating the firmware, you have to perform a self-alignment to align the data to a reference source.
During self-alignment, do not connect a signal to the RF input connector. Running a self-alignment with a signal connected to the RF input can lead to false mea­surement results.
Performing a self-alignment
Before performing this alignment, make sure that the instrument has reached its operating temperature (for details, refer to the data sheet).
A message in the status bar ( "Instrument warming up..." ) indicates that the oper­ating temperature has not yet been reached.
Depending on the installation settings, an automatic self-alignment is performed each time the instrument is switched on. A dialog box is displayed indicating how much warm-up time is still required before self-alignment can be performed.
1. Press the [Setup] key.
2. Press the "Alignment" softkey.
3. Select the "Start Self Alignment" button in the "Alignment" dialog box.
Once the system correction values have been calculated successfully, a mes­sage is displayed.
To display the alignment results again later
Press the [SETUP] key.
Press the "Alignment" softkey.

4.14 Considerations for test setup

Cable selection and electromagnetic interference (EMI)
Electromagnetic interference (EMI) can affect the measurement results.
34Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Considerations for test setup
To suppress electromagnetic radiation during operation:
Use high-quality shielded cables, for example, double-shielded RF and LAN cables.
Always terminate open cable ends.
Ensure that connected external devices comply with EMC regulations.
Preventing electrostatic discharge (ESD)
Electrostatic discharge is most likely to occur when you connect or disconnect a DUT.
NOTICE! Electrostatic discharge can damage the electronic components of
the product and the device under test (DUT).
Ground yourself to prevent electrostatic discharge damage:
a) Use a wrist strap and cord to connect yourself to ground. b) Use a conductive floor mat and heel strap combination.
Preparing for use
Signal input and output levels
Information on signal levels is provided in the data sheet and on the instrument, next to the connector. Keep the signal levels within the specified ranges to avoid damage to the R&S FPL1000 and connected devices.
35Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Instrument tour
Front panel view

5 Instrument tour

5.1 Front panel view

This chapter describes the front panel, including all function keys and connectors.
4 5 6
3
2
1
Figure 5-1: Front panel view of R&S FPL1000
1 = Power key 2 = USB (2.0) connectors 3 = System keys 4 = Touchscreen 5 = Function keys 6 = Keypad + navigation controls 7 = RF input 50 Ω connector 8 = Internal generator output 50 Ω connector (requires option R&S FPL1-B9)

5.1.1 Touchscreen

78
All measurement results are displayed on the screen on the front panel. Addition­ally, the screen display provides status and setting information and allows you to switch between various measurement tasks. The screen is touch-sensitive, offer-
36Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Instrument tour
Front panel view
ing an alternative means of user interaction for quick and easy handling of the instrument.

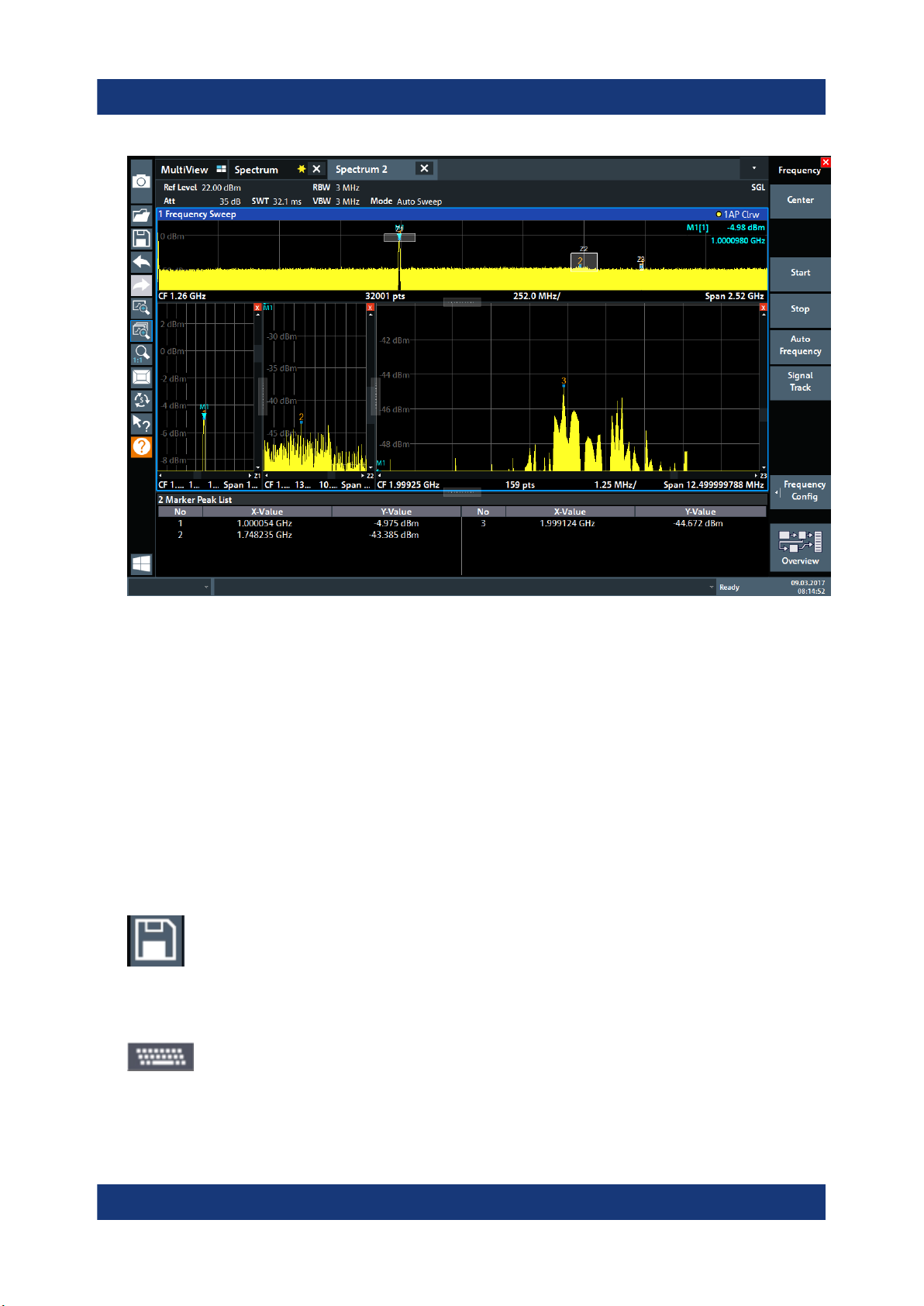

1 2 3 4 5
6
8
Figure 5-2: Touchscreen elements
1 = Toolbar with standard application functions, e.g. print, save/open file etc. 2 = Tabs for individual channel setups 3 = Channel setup bar for firmware and measurement settings 4 = Measurement results area 5 = Window title bar with diagram-specific (trace) information 6 = Softkeys for function access 7 = Diagram footer with diagram-specific information, depending on application 8 = Instrument status bar with error messages and date/time display
7
Any user interface elements that react to a click by a mouse pointer also react to a tap on the screen, and vice versa. Using touchscreen gestures, you can per­form the following tasks (among others).
(See Chapter 6, "Trying out the instrument", on page 51)
Changing a setting
Changing the display
37Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Changing the displayed result range in a diagram
Moving a marker
Zooming into a diagram
Selecting a new evaluation method
Scrolling through a result list or table
Saving or printing results and settings
To imitate a right-click by mouse using the touchscreen, for example to open a context-sensitive menu for a specific item, press the screen for about 1 second.
For details on touchscreen gestures, see Chapter 7.4, "Touchscreen gestures", on page 89.
Instrument tour
Front panel view

5.1.2 Power key

The [Power] key is located on the lower left corner of the front panel. It starts up and shuts down the instrument.
See also "Connecting to power" on page 9 and Chapter 4.5, "Connecting to
power", on page 21.

5.1.3 USB

The front panel provides two female USB connectors (USB-A, 2.0 standard) to connect devices like a keyboard or a mouse. A memory stick can be connected to store and reload instrument settings and measurement data.
The rear panel provides further USB connectors (standard 3.0), see Chap-
ter 5.2.11, "USB", on page 49.

5.1.4 System keys

System keys set the instrument to a predefined state, change basic settings, and provide print and display functions.
A detailed description of the corresponding functions is provided in the R&S FPL1000 user manual.
38Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Table 5-1: System keys
System key Assigned functions
[Preset] Resets the instrument to the default state.
Instrument tour
Front panel view
[Setup]
[Mode] Manages channel setups
[Print] Provides configuration settings for the print function
[FILE] Provides save/recall functions for instrument settings and mea-
Provides basic instrument configuration functions, e.g.:
Reference frequency (external/internal)
Date, time, display configuration
LAN interface
Firmware update and enabling of options
Information about instrument configuration incl. firmware ver­sion and system error messages
Service support functions (self-test etc.)
Self-alignment (with spectrum analysis option)
surement results
Switches between the on-screen keyboard display:
At the top of the screen
At the bottom of the screen
Off

5.1.5 Function keys

Function keys provide access to the most common measurement settings and functions.
A detailed description of the corresponding functions is provided in the R&S FPL1000 user manual.
Table 5-2: Function keys
Function key Assigned functions
[Freq] Sets the center frequency and the start and stop frequencies for
the frequency range under consideration. This key is also used to set the frequency offset and the signal track function.
[Span] Sets the frequency span to be analyzed
[Ampt] Sets the reference level, the displayed dynamic range, the RF
attenuation and the unit for the level display Sets the level offset and the input impedance Activates the (optional) preamplifier
[BW] Sets the resolution bandwidth and the video bandwidth.
39Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Instrument tour
Front panel view
Function key Assigned functions
[Sweep] Sets the sweep time and the number of measurement points
Selects continuous measurement or single measurement
[Trace] Configures the graphical analysis of the measurement data
[Meas] Provides the measurement functions:
Measurement of multicarrier adjacent channel power (Ch Power ACLR)
Carrier to noise spacing (C/N C/N0)
Occupied bandwidth (OBW) Spectrum emission mask measurement (Spectrum Emission
Mask) Spurious emissions (Spurious Emissions) Measurement of time domain power (Time Domain Power) Third-order intercept point (TOI) AM modulation depth (AM Mod Depth)
[Meas Config] Used to configure measurements and data input and output
[Lines] Configures display lines and limit lines
[Mkr] Sets and positions the absolute and relative measurement mark-
ers (markers and delta markers) Selects special marker functions
[Mkr->] Used for search functions of the measurement markers (maxi-
mum/minimum of the trace) Assigns the marker frequency to the center frequency, and the
marker level to the reference level Restricts the search area (Search Limits) and characterizes the
maximum points and minimum points (Peak Excursion)
[Trig] Sets the trigger mode, the trigger threshold, the trigger delay, and
the gate configuration for gated sweep
[Peak] Performs a peak search for active marker. If no marker is active,
normal marker 1 is activated and the peak search is performed for it.
[Run Single] Starts and stops a single new measurement (Single Sweep
Mode)
[Run Cont] Starts and stops a continuous measurement (Continuous Sweep
Mode)
40Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Instrument tour
Front panel view

5.1.6 Keypad

The keypad is used to enter numeric parameters, including the corresponding units. It contains the following keys:
Table 5-3: Keys on the keypad
Type of key Description
Decimal point Inserts a decimal point "." at the cursor position.
Sign key Changes the sign of a numeric parameter. For alphanumeric
parameters, inserts a "-" at the cursor position.
Unit keys (GHz/-dBm MHz/dBm,
kHz/dB, Hz/dB etc.)
[ESC] Closes all kinds of dialog boxes, if the edit mode is not active.
(BACKSPACE)
[ENTER]
Adds the selected unit to the entered numeric value and com­plete the entry.
For level entries (e.g. in dB) or dimensionless values, all units have the value "1" as multiplying factor. Thus, they have the same function as an [ENTER] key.
Quits the edit mode, if the edit mode is active. In dialog boxes that contain a "Cancel" button it activates that button.
For "Edit" dialog boxes the following mechanism is used:
If data entry has been started, it retains the original value and closes the dialog box.
If data entry has not been started or has been completed, it closes the dialog box.
If an alphanumeric entry has already been started, this key dele­tes the character to the left of the cursor.
Concludes the entry of dimensionless entries. The new value is accepted.
With other entries, this key can be used instead of the "Hz/dB" unit key.
In a dialog box, selects the default or focused element.

5.1.7 Navigation controls

The navigation controls include a rotary knob and navigation keys. They allow you to navigate within the display or within dialog boxes.
41Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Navigating in tables
The easiest way to navigate within tables (both in result tables and configu­ration tables) is to scroll through the entries with your finger on the touch­screen.
5.1.7.1 Rotary knob
The rotary knob has several functions:
For numeric entries: increments (clockwise direction) or decrements (counter­clockwise direction) the instrument parameter at a defined step width
In lists: toggles between entries
Instrument tour
Front panel view
For markers, limit lines, and other graphical elements on the screen: moves their position
For active scroll bars: moves the scroll bar vertically
For dialog boxes: Same effect as the Enter key when pressed
5.1.7.2 Navigation keys
The navigation keys can be used alternatively to the rotary knob to navigate through dialog boxes, diagrams or tables.
Arrow Up/Arrow Down Keys
The <arrow up> or <arrow down> keys do the following:
For numeric entries: increments (Arrow Up) or decrements (Arrow Down) the instrument parameter at a defined step width
In a list: scrolls forward and backward through the list entries
In a table: moves the selection bar vertically
In windows or dialog boxes with a vertical scroll bar: moves the scroll bar
Arrow Left/Arrow Right Keys
The <arrow left> or <arrow right> keys do the following:
In an alphanumeric edit dialog box, move the cursor.
42Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
In a list, scroll forward and backward through the list entries.
In a table, move the selection bar horizontally.
In windows or dialog boxes with horizontal scroll bar, move the scroll bar.
Instrument tour
Rear panel view

5.1.8 RF INPUT 50 ohm

Provides RF input from a connected device under test (DUT) to the R&S FPL1000, which is then analyzed in an RF measurement. Connect the DUT to the "RF Input" on the R&S FPL1000 via a cable equipped with an appropriate connector. Do not overload the input. For maximum allowed values, see the data sheet.
See also Chapter 4.14, "Considerations for test setup", on page 34.
The specific connector type depends on the instrument model:
R&S FPL1003/1007: N female
R&S FPL1014: N female
R&S FPL1026: Test port adapter, 2.92 mm female (standard) or N female

5.1.9 GEN output 50 ohm

Provides signal output from the (optional) internal generator (requires Internal Generator option R&S FPL1-B9). Output levels range from -60 dBm to +10 dBm, with a resolution of 0.1 dB. For details, see the data sheet.

5.2 Rear panel view

This figure shows the rear panel view of the R&S FPL1000. The individual ele­ments are described in more detail in the subsequent sections.
43Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Instrument tour
Rear panel view

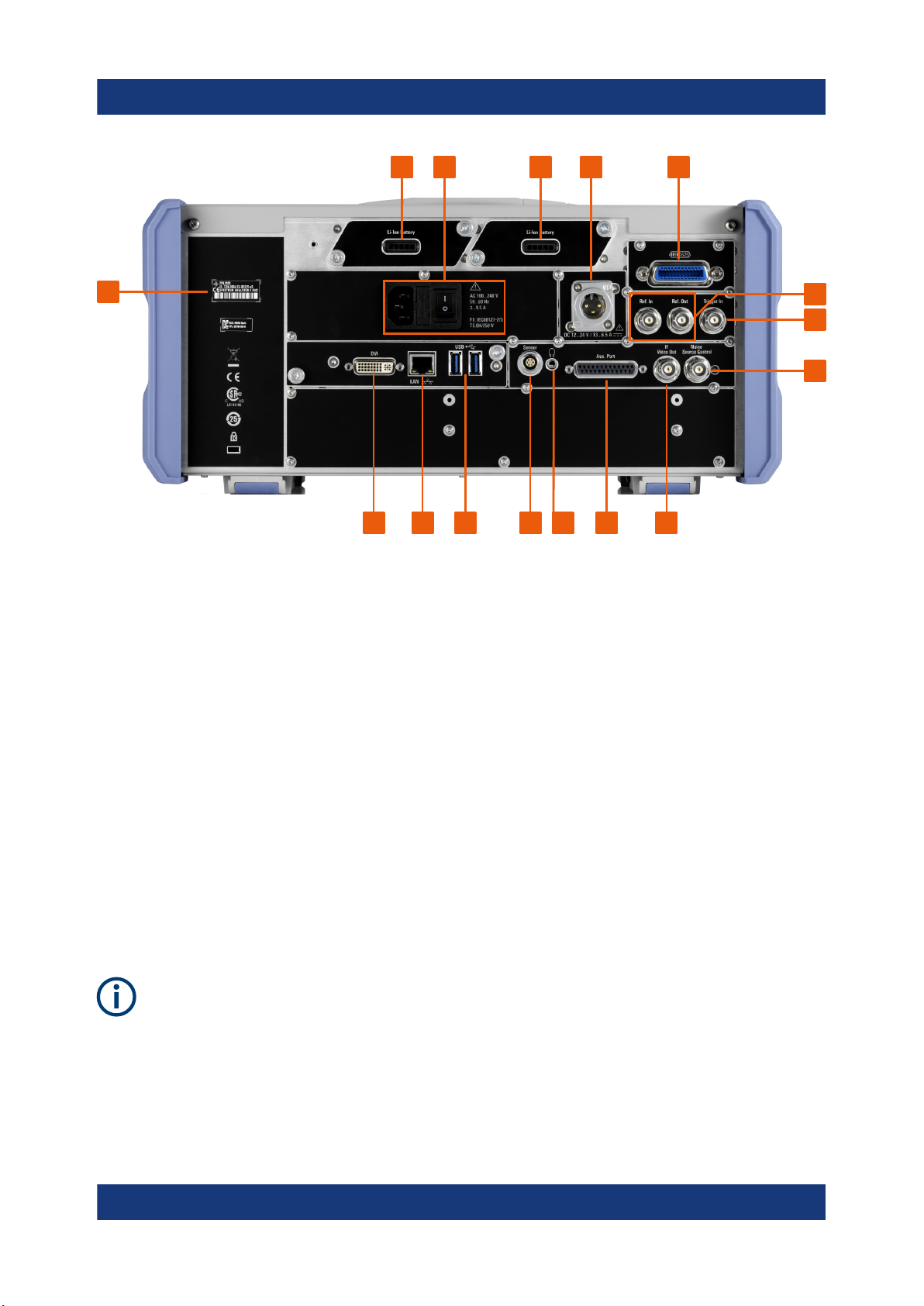

1 2 3 4 5
16
Figure 5-3: Rear panel view
1+3 = Removable, rechargeable Li-ion batteries 2 = AC power supply connection and main power switch with fuse 4 = DC power connector 5 = GPIB (IEC 625) interface 6 = Reference clock connectors 7 = Trigger input connector 8 = Noise source control *) 9 = "IF/Video out" connector *) 10 = Aux. Port *) 11 = Headphones connector *) 12 = Power sensor connector *) 13 = "USB" (3.0) connectors 14 = "LAN" connector 15 = "DVI" connector for external display 16 = Device ID with serial number and other labels
6
7
8
9101112131415
*) requires the "Additional Interfaces" option R&S FPL1-B5.
The meanings of the labels on the R&S FPL1000 are described in Chap-
ter 1.2, "Labels on R&S FPL1000", on page 11.

5.2.1 AC power supply connection and main power switch

An AC power supply connector and main power switch are located in a unit on the rear panel of the instrument.
44Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Instrument tour
Rear panel view
Main power switch function:
Position 1: The instrument is in operation.
Position O: The entire instrument is disconnected from the AC power supply.
For details, refer to "Connecting to power" on page 9 and Chapter 4.5, "Connect-
ing to power", on page 21.

5.2.2 Li-Ion battery packs and DC power connector

With the Li-ion battery pack (option R&S FPL1-B31), the R&S FPL1000 can be operated independently of an AC or DC power supply. The instrument can house 2 Li-ion batteries which can be charged both via AC or DC power supply.
For safety information concerning batteries, see "Handling batteries safely" on page 9.
As an alternative, a DC power supply connector (option R&S FPL1-B30) is availa­ble. DC power supplies from +12 V to +24 V and from 13 A to 6.5 A can be used. Connect the connector according to the following diagram:
1 2
3
Pin Description
1 Plus
2 Ground
3 Not used
If you use an external power supply unit to supply safety extra-low DC voltage (SELV) to the instrument, be sure to meet the requirements for reinforced/double insulation in accordance with DIN/EN/IEC 61010 (UL 3111, CSA C22.2 No.
1010.1) or DIN/EN/IEC 60950 (UL 1950, CSA C22.2 No. 950). Provide current
limitation in accordance with DIN EN 61010-1 Appendix F2.1.
Also see "Connecting to power" on page 9.

5.2.3 GPIB interface

The optional GPIB interface (R&S FPL1-B10) is in compliance with IEEE488 and SCPI. A computer for remote control can be connected via this interface. To set up the connection, a shielded cable is recommended.
45Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Instrument tour
Rear panel view
For more details, refer to "Setting Up Remote Control" in the user manual.

5.2.4 Ref. In / Ref. Out

The Ref. In connectors are used to provide an external reference signal to the R&S FPL1000.
The Ref. Out connectors can be used to provide a reference signal from the R&S FPL1000 to other devices that are connected to this instrument.
Various connectors are provided for different reference signals:
Connector Reference signal Usage
Ref. In 10 MHz
10 dBm
Ref. Out 10 MHz
10 dBm
To provide an external reference signal on the R&S FPL1000.
To provide the internal reference signal from the R&S FPL1000 to another device continuously.
For the R&S FPL1000, this is also used to pro­vide the optional OCXO reference signal to another device.

5.2.5 Trigger In

Use the female Trigger In connector to input an external trigger or gate data. Thus, you can control the measurement using an external signal. The voltage level is 1.4 V. The typical input impedance is 10 kΩ.

5.2.6 Noise Source Control

The Noise Source Control female connector is used to provide the supply voltage for an external noise source. For example, use it to measure the noise figure and gain of amplifiers and frequency converting devices.
This connector is only available if the R&S FPL1-B5 option is installed.
Conventional noise sources require a voltage of +28 V to be switched on and 0 V to be switched off. The output supports a maximum load of 100 mA.
46Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Instrument tour
Rear panel view

5.2.7 IF/Video Output

The female BNC connector can be used for various outputs in the Spectrum application:
Intermediate frequency (IF) output of approximately 20 MHz
Video output (1V)
Which output is provided is defined in the software ( "Overview" > "Output" ).
This connector is only available if the R&S FPL1-B5 option is installed.
For details, see the user manual.

5.2.8 Aux. Port

A 25-pole SUB-D male connector used as an input and output for low-voltage TTL control signals (max. 5 V). This connector is provided by the "Additional Interfaces" option R&S FPL1-B5.
13
25
1
14
Short-circuit hazard
Always observe the designated pin assignment. A short-circuit can damage the port.
Table 5-4: Pin assignment for optional AUX port
Pin Signal Description
1 GND Ground
2
3 GND Ground
4
not used for spectrum analysis
not used for spectrum analysis
5 GND Ground
6
not used for spectrum analysis
47Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Pin Signal Description
7 GND Ground
Instrument tour
Rear panel view
8 to 11
12 GND Ground
13 +5 V / max. 250 mA Supply voltage for external circuits
14 to 19 I/O_<no.> Control lines for user ports (see user manual)
20 GND Ground
21 READY FOR TRIG-
22 to 25
23 GND Ground
24 to 25
GER
not used for spectrum analysis
Signal indicating that the instrument is ready to receive a trigger signal.
The signal polarity is configurable. (See the R&S FPL1000 user manual.)
not used for spectrum analysis
not used for spectrum analysis

5.2.9 Headphones connector

The R&S FPL1000 provides demodulators for AM, FM and PM signals, which can be routed to the headphone connector. With headphones or an external loud­speaker connected to the 3.5 mm headphone socket, the displayed signal can be identified acoustically.
This connector is only available if the R&S FPL1-B5 option is installed.
Note the safety information provided in "Using headphones" on page 10.
For details, see the user manual.

5.2.10 Sensor connector

The LEMOSA female connector is used to connect power sensors of the R&S NRP-Zxy family. For a detailed list of supported sensors, see the data sheet.
For details on configuring and using power sensors, see the user manual.
This connector is provided by the "Additional Interfaces" option R&S FPL1­B5.
48Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Instrument tour
Rear panel view

5.2.11 USB

The rear panel provides two additional female USB (3.0 standard) connectors to connect devices like a keyboard, a mouse or a memory stick (see also Chap-
ter 5.2.11, "USB", on page 49).

5.2.12 LAN

The R&S FPL1000 is equipped with a 1 GBit Ethernet IEEE 802.3u network inter­face with Auto-MDI(X) functionality. The assignment of the RJ-45 connector sup­ports twisted-pair category 5 UTP/STP cables in a star configuration (UTP stands for unshielded twisted pair, and STP for shielded twisted pair).
For details, see the R&S FPL1000 user manual.

5.2.13 DVI

You can connect an external monitor or other display device to the R&S FPL1000 via the DVI (Digital visual interface) connector to provide an enlarged display.
For details, see Chapter 4.14, "Considerations for test setup", on page 34.

5.2.14 Device ID

The unique device identifier is provided as a barcode sticker on the rear panel of the R&S FPL1000.
It consists of the device order number and a serial number.
49Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
The serial number is used to define the default instrument name, which is:
<Type><variant>-<serial_number>
For example, FPL1003-123456.
The instrument name is required to establish a connection to the instrument in a LAN.
Instrument tour
Rear panel view
50Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Measuring a basic signal

6 Trying out the instrument

This chapter introduces the most important functions and settings of the R&S FPL1000 step by step. The complete description of the functionality and its usage is given in the R&S FPL1000 User Manual. Basic instrument operation is described in Chapter 7, "Operating the instrument", on page 72.
Prerequisites
The instrument is set up, connected to the mains system, and started up as described in Chapter 4, "Preparing for use", on page 17.
For these first measurements, you use the internal calibration signal, so you do not need any additional signal source or instruments. Try out the following:
Measuring a basic signal.................................................................................51
Displaying a spectrogram................................................................................53
Activating additional measurement channels..................................................55
Performing sequential measurements............................................................ 60
Setting and moving a marker.......................................................................... 61
Displaying a marker peak list.......................................................................... 63
Zooming into the display................................................................................. 64
Saving settings................................................................................................68
Printing and saving results.............................................................................. 70

6.1 Measuring a basic signal

We will start out by measuring a basic signal, using the internal calibration signal as the input.
To display the internal 50 MHz calibration signal
1. Press the [Preset] key to start out in a defined instrument configuration.
2. Press the [Setup] key.
3. Tap the "Service + Support" softkey.
4. Tap the "Calibration Signal" tab.
5. Tap the "Calibration Frequency RF" option. Leave the frequency at the default 50 MHz.
51Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Measuring a basic signal
6. Close the dialog box.
The calibration signal is now sent to the RF input of the R&S FPL1000. By default, a continuous frequency sweep is performed, so that the spectrum of the calibration signal is now displayed in the standard level versus frequency diagram.
Figure 6-1: Calibration signal as RF input
Instrument warmup time
Note that the instrument requires an initial warmup time after switching it on. A message in the status bar ("Instrument warming up...") indicates that the operating temperature has not yet been reached. Wait until this message is no longer displayed before you start a measurement to ensure accurate results.
To optimize the display
To optimize the display for the calibration signal, we will adjust the main measure­ment settings.
1. Set the center frequency to the calibration frequency:
a) Tap the "Overview" softkey to display the configuration "Overview" .
52Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
b) Tap the "Frequency" button. c) In the "Center" field, enter 50 on the number pad on the front panel. d) Press the "MHz" key next to the number pad.
2. Reduce the span to 20 MHz:
a) In the "Span" field of the "Frequency" dialog box, enter 20 b) Close the "Frequency" dialog box.
3. Average the trace to eliminate noise:
a) In the configuration "Overview" , tap the "Analysis" button. b) In the "Traces" tab, select the trace mode "Average" . c) Enter the "Average Count" : 100. d) Close the "Analysis" dialog box.
The display of the calibration signal is now improved. The maximum at the center frequency (=calibration frequency) of 50 MHz becomes visible.
Trying out the instrument
Displaying a spectrogram
MHz.
Figure 6-2: Calibration signal with optimized display settings

6.2 Displaying a spectrogram

In addition to the standard "level versus frequency" spectrum display, the R&S FPL1000 also provides a spectrogram display of the measured data. A spectrogram shows how the spectral density of a signal varies over time. The x­axis shows the frequency, the y-axis shows the time. A third dimension, the power level, is indicated by different colors. Thus you can see how the strength of the signal varies over time for different frequencies.
1. Tap the "Overview" softkey to display the general configuration dialog box.
53Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Displaying a spectrogram
2. Tap the "Display Config" button.
The SmartGrid mode is activated, and the evaluation bar with the available evaluation methods is displayed.
3.
Drag the "Spectrogram" icon from the evaluation bar to the diagram area. The blue area indicates that the new diagram would replace the previous spectrum display. Since we do not want to replace the spectrum, drag the icon to the lower half of the display to add an additional window instead.
Figure 6-3: Adding a Spectrogram to the display
Drop the icon.
4. Close the SmartGrid mode by tapping the "Close" icon at the top right corner of the toolbar.
54Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Activating additional measurement channels
5. Close the "Overview" .
You see the spectrogram compared to the standard spectrum display. Since the calibration signal does not change over time, the color of the frequency levels does not change over time, i.e. vertically. The legend at the top of the spectrogram window describes the power levels the colors represent.
Trying out the instrument
Figure 6-4: Spectrogram of the calibration signal

6.3 Activating additional measurement channels

The R&S FPL1000 features multiple measurement channels, i.e. you can define several measurement configurations in parallel and then switch between the channel setups automatically to perform the measurements sequentially. We will demonstrate this feature by activating additional measurement channels for a dif­ferent frequency range, a zero span measurement, and an I/Q analysis.
To activate additional measurement channels
1. Press the [Mode] key on the front panel.
55Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Activating additional measurement channels
2. On the "New Channel Setup" tab of the "Mode" dialog box, tap the "Spectrum" button.

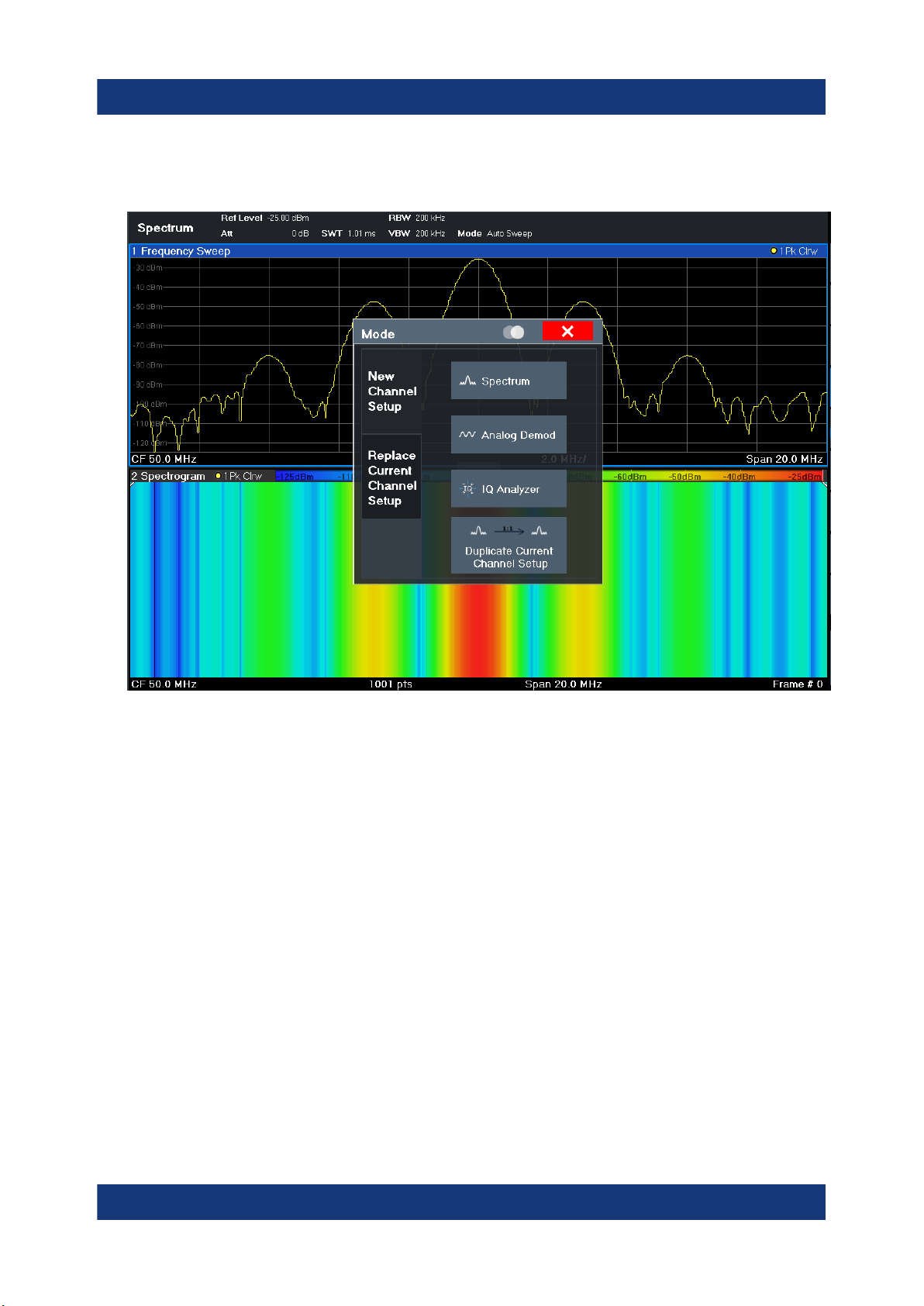

Figure 6-5: Adding a new measurement channel
3. Change the frequency range for this spectrum display: In the "Frequency" dialog box, set the center frequency to 500 MHz and the
span to 1 GHz.
56Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Activating additional measurement channels
Figure 6-6: Frequency spectrum of the calibration signal with a larger span
4. Repeat the previous steps to activate a third Spectrum window.
5. Change the frequency range for this spectrum display: In the "Frequency" dialog box, set the center frequency to 50 MHz and tap "Zero Span" .
6. Increase the reference level so you can see the level of the calibration signal at 1 dBm.
a) In the "Amplitude" dialog box, set the "Reference Level" value to +10
dBm.
As the calibration signal does not vary over time, the level versus time dia­gram displays a straight line.
57Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Activating additional measurement channels
Figure 6-7: Time domain display of the calibration signal
7. Create a new measurement channel for I/Q analysis:
a) Press the [Mode] key. b) Tap the "IQ Analyzer" button to activate a measurement channel for the I/Q
Analyzer application.
c) Tap the "Display Config" softkey to activate the SmartGrid mode.
58Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Activating additional measurement channels
d) Drag the "Real/Imag (I/Q)" icon from the evaluation bar to the SmartGrid to
replace the default "Magnitude" display.

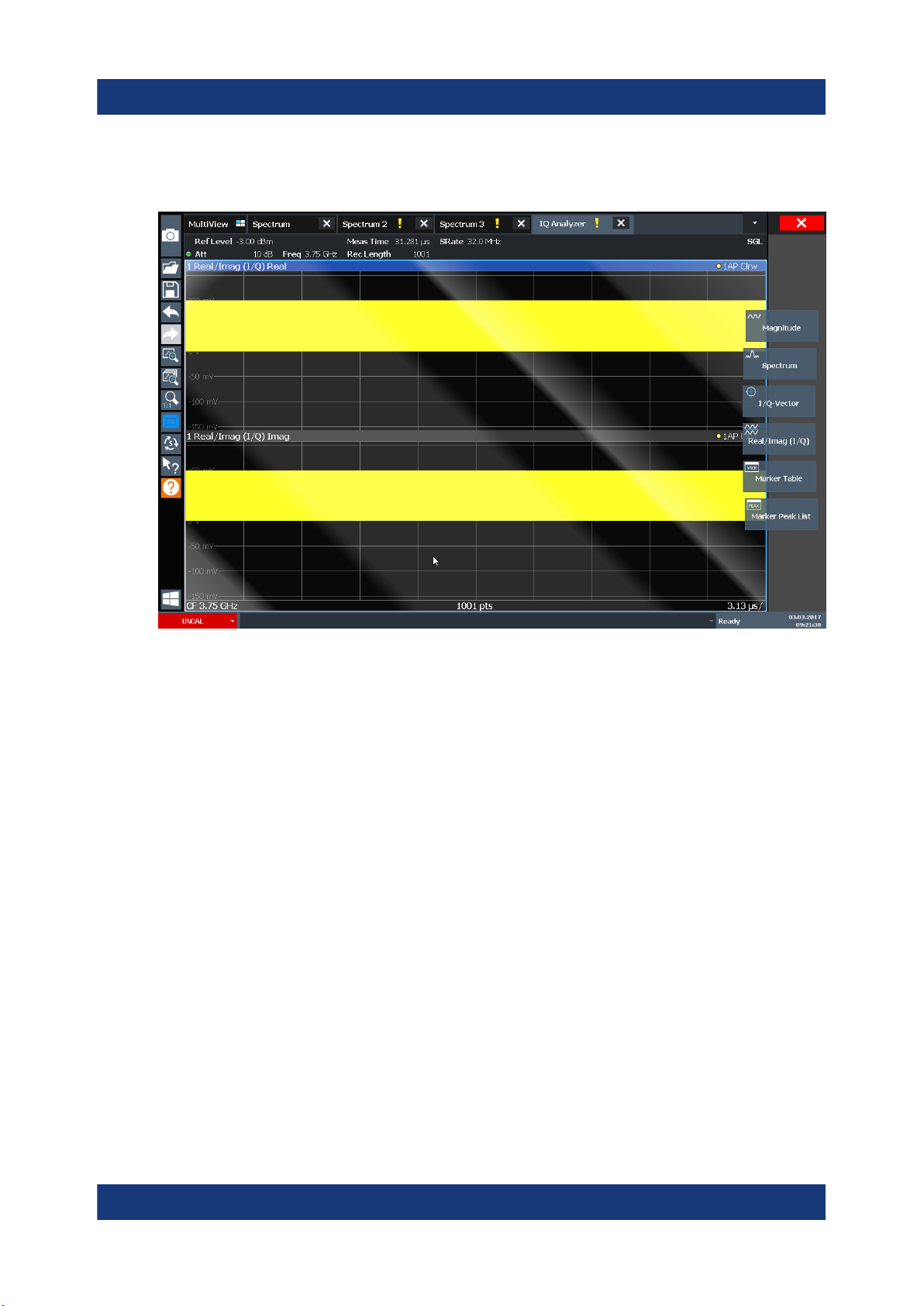

Figure 6-8: Inserting a Real/Imag diagram for I/Q analysis
e) Close the SmartGrid mode.
The "IQ Analyzer" measurement channel displays the real and imaginary sig­nal parts in separate windows.
To display the MultiView tab
An overview of all active measurement channels is provided in the "MultiView" tab. This tab is always displayed if more than one measurement channel is active and cannot be closed.
► Tap the "MultiView" tab.
59Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Performing sequential measurements
Figure 6-9: The "MultiView" tab

6.4 Performing sequential measurements

Although only one measurement can be performed at any one time, the measure­ments configured in the active channel setups can be performed sequentially, that means: one after the other, automatically, either once or continuously.
1. Tap the "Sequencer" icon in the toolbar.
2. Toggle the "Sequencer" softkey in the "Sequencer" menu to "On" .
A continuous sequence is started, i.e. each channel setup measurement is performed one after the other until the Sequencer is stopped.
60Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Setting and moving a marker
Figure 6-10: "MultiView" tab with active Sequencer
In Figure 6-10, the "Spectrum 2" measurement is currently active (indicated by the "channel active" icon in the tab label).
3. Stop the Sequencer by tapping the "Sequencer" softkey again.

6.5 Setting and moving a marker

Markers are useful to determine the position of particular effects in the trace. The most common use is to determine a peak, which is the default setting when you activate a marker. We will set a marker on the peak in our first Spectrum mea­surement.
1. In the "MultiView" tab, double-tap the "Spectrum" window (frequency sweep with spectrogram display) to return to the "Spectrum" measurement channel.
2. Tap the spectrum display to set the focus on that window.
61Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
3. Double-tap the spectrum window to maximize it, as we currently do not need the spectrogram display.
4. Press the [Run Single] key on the front panel to perform a single sweep so we have a fixed trace to set a marker on.
5. Press the [Mkr] key on the front panel to display the "Marker" menu.
Marker 1 is activated and automatically set to the maximum of trace 1. The marker position and value is indicated in the diagram area as M1[1].
Trying out the instrument
Setting and moving a marker
6. Now you can move the marker by tapping and dragging it to a different posi­tion. The current position is indicated by a dotted blue line. Notice how the position and value change in the marker area of the diagram.
62Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Displaying a marker peak list

6.6 Displaying a marker peak list

The marker peak list determines the frequencies and levels of peaks in the spec­trum automatically. We will display a marker peak list for the "Spectrum 2" mea­surement channel.
1. Tap the "Spectrum 2" tab.
2. Press the [Run Single] key on the front panel to perform a single sweep for which we will determine the peaks.
3. Tap the "SmartGrid" icon in the toolbar to activate SmartGrid mode.
4. Drag the "Marker Peak List" icon from the evaluation bar to the lower half of the display to add a new window for the peak list.
5. Close the SmartGrid mode.
63Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
6. To obtain a more conclusive peak list that does not contain noise peaks, for example, define a threshold that is higher than the noise floor:
a) Press the [Mkr] key on the front panel. b) Tap the "Marker Config" softkey in the "Marker" menu. c) Tap the "Search" tab in the "Marker" dialog box. d) In the "Threshold" field, enter -68 dBm. e) Tap the "State" box for "Threshold" to activate its use.
Only peaks that are larger than -90 dBm will be included in the peak list.
f) Close the "Marker" dialog box.
The marker peak list displays the determined peaks that are above the defined threshold.
Trying out the instrument
Zooming into the display

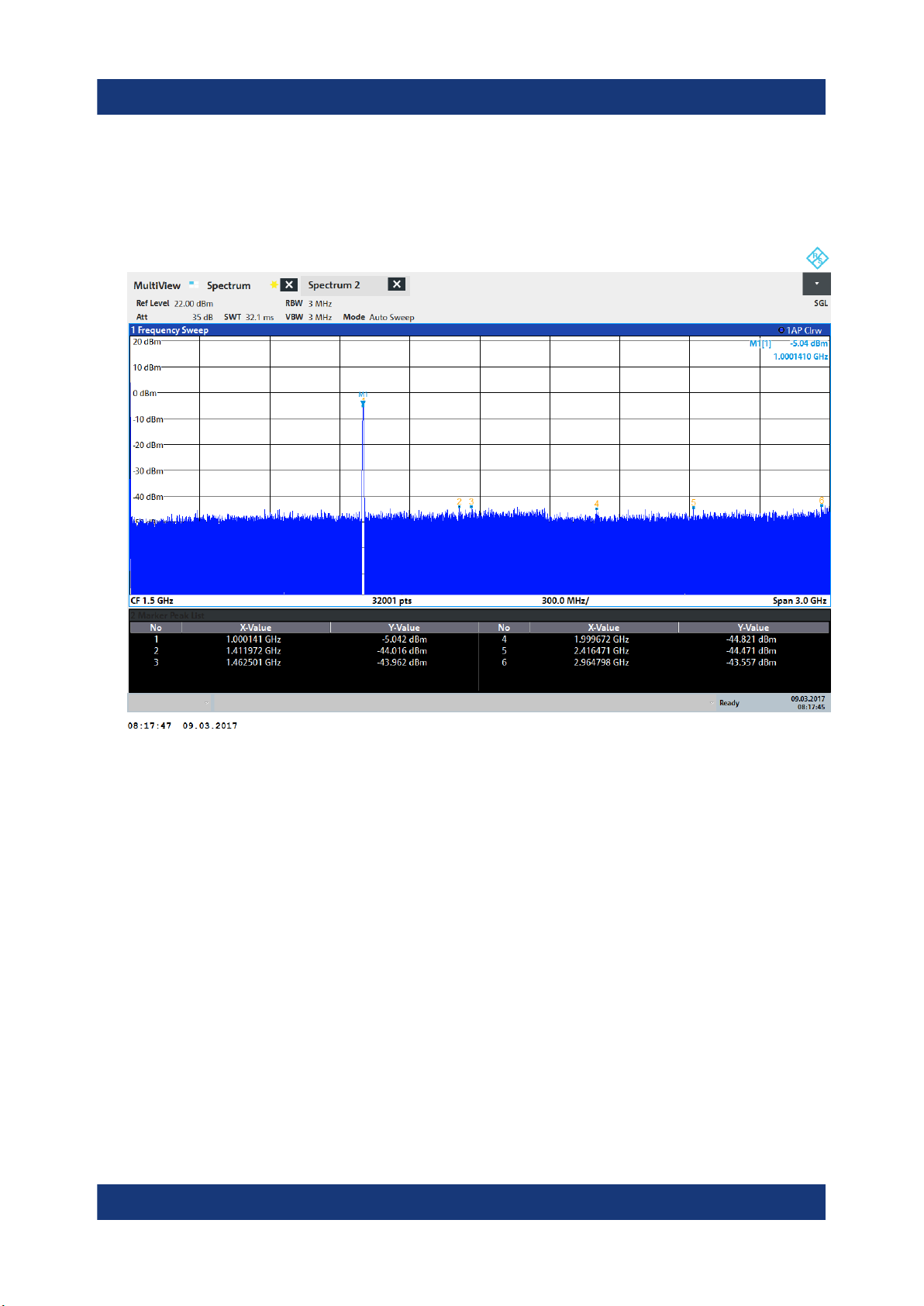

Figure 6-11: Marker Peak List

6.7 Zooming into the display

To analyze the areas around the peak levels in more detail, we will zoom into the top 3 peaks.
64Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Zooming into the display
1. Tap the "Multiple Zoom" icon in the toolbar.
The icon is highlighted to indicate that multiple zoom mode is active.
2. Tap the diagram near the first peak and drag your finger to the opposite corner of the zoom area. A white rectangle is displayed from the point where you tap­ped to the current position.
Figure 6-12: Defining the zoom area
When you remove your finger, the zoom area is enlarged in a second (sub-)window.
Figure 6-13: Zoomed display around a peak
3. In Figure 6-14, the enlarged peak is represented by a very thick trace. This is due to the insufficient number of sweep points. The missing sweep points for the zoomed display are interpolated, which provides poor results. To optimize
65Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Zooming into the display
the results, we will increase the number of sweep points from the default 1001 to 32001.
a) Press the [Sweep] key on the front panel. b) Tap the "Sweep Config" softkey in the "Sweep" menu. c) In the "Sweep Points" field, enter 32001. d) Close the "Bandwidth" dialog box. e) Press the [Run Single] key on the front panel to perform a new sweep with
the increased number of sweep points.
Figure 6-14: Zoomed peak with increased number of sweep points
Note that the trace becomes much more precise.
66Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Zooming into the display
4. Tap the "Multiple Zoom" icon in the toolbar again and define a zoom area around markers M2, M3 and M4.
Figure 6-15: Multiple zoom windows
5. Tap the "Multiple Zoom" icon in the toolbar again and define a zoom area around marker M5.
6. To increase the size of the third zoom window, drag the "splitter" between the windows to the left or right or up or down.
67Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Saving settings
Figure 6-16: Enlarged zoom window

6.8 Saving settings

To restore the results of our measurements later, we will store the instrument set­tings to a file.
To save the instrument settings to a file
1. Tap the "Save" icon in the toolbar.
2. Press the keyboard key on the front panel to display the online keyboard, as you will have to enter text in the next step.
3. In the "Save" dialog box, tap the "File Name" field and enter MyMultiView- Setup using the keyboard.
68Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Trying out the instrument
Saving settings
Keep the default "File Type" setting "Instrument with all Channel Setups" to store the configuration of all channel setups.
Figure 6-17: Saving the instrument settings to a file
4. Tap the "Save" button.
The file MyMultiViewSetup.dfl is stored in the default directory C:\Users\Public\Documents\Rohde-Schwarz\Analyzer\Save.
To load stored instrument settings
You can restore the settings to the instrument at any time using the settings file.
1. Press the [Preset] button to restore the default instrument settings so you can check that the stored user settings are actually restored afterwards.
69Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
2. Tap the "Load" icon in the toolbar.
3. In the "Load" dialog box, select the MyMultiViewSetup.dfl file in the default directory C:\Users\Public\Documents\Rohde-Schwarz\Analyzer\Save.
4. Tap the "Load" button.
All instrument settings are restored and the display should resemble the instrument display right before the settings were stored.
Trying out the instrument
Printing and saving results

6.9 Printing and saving results

Finally, after a successful measurement, we will document our results. First we will export the numeric trace data, then we will create a screenshot of the graphi­cal display.
To export the trace data
1. Press the [Trace] key on the front panel.
2. Tap the "Trace Config" softkey.
3. Tap the "Trace / Data Export" tab.
4. Tap the "Export Trace to ASCII File" button.
5. Enter the file name MyMultiViewResults.
The trace data is stored to MyMultiViewResults.DAT
To create a screenshot of the display
1. Tap the "Print immediately" icon in the toolbar.
A screenshot of the current display is created. Note that the colors on the screen are inverted in the screenshot to improve printout results.
70Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
2. In the "Save Hardcopy as" > "Portable Network Graphics (PNG)" dialog box, enter a file name, e.g. MyMultiViewDisplay.
The screenshot is stored to MyMultiViewDisplay.png.
Trying out the instrument
Printing and saving results
71Getting Started 1179.4657.02 ─ 15
R&S®FPL1000

Understanding the display information - spectrum mode

Operating the instrument

7 Operating the instrument

This chapter provides an overview on how to work with the R&S FPL1000.
Remote control
In addition to working with the R&S FPL1000 interactively, located directly at the instrument, it is also possible to operate and control it from a remote PC. Various methods for remote control are supported:
Connecting the instrument to a (LAN) network
Using the web browser interface in a LAN network
Using the Windows Remote Desktop application in a LAN network
Connecting a PC via the GPIB interface
How to configure the remote control interfaces is described in the R&S FPL1000 user manual.
Understanding the display information - spectrum mode................................72
Accessing the functionality..............................................................................81
Entering data...................................................................................................87
Touchscreen gestures..................................................................................... 89
Getting help.....................................................................................................92
7.1 Understanding the display information - spec-
trum mode
The following figure shows a measurement diagram in Spectrum mode. All differ­ent information areas are labeled. They are explained in more detail in the follow­ing sections.
72Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
21 3
Operating the instrument
Understanding the display information - spectrum mode
4
5
1 = Channel bar for firmware and measurement settings 2 = Window title bar with diagram-specific (trace) information 3 = Diagram area with marker information 4 = Diagram footer with diagram-specific information, depending on measurement application 5 = Instrument status bar with error messages and date/time display
Hiding elements in the display
You can hide some of the elements in the display, for example the status bar or channel bar, to enlarge the display area for the measurement results. ( "Setup" > "Display" > "Displayed Items" )
For details, see the R&S FPL1000 User Manual.
Channel setup bar...........................................................................................74
Window title bar...............................................................................................77
Marker information.......................................................................................... 78
73Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Understanding the display information - spectrum mode
Frequency and span information in diagram footer.........................................79
Instrument and status information...................................................................80
Error information............................................................................................. 80
Operating the instrument

7.1.1 Channel setup bar

Using the R&S FPL1000 you can handle several different measurement tasks (channels) at the same time (although they can only be performed asynchro­nously). For each channel, a separate tab is displayed on the screen. To switch from one channel display to another, simply select the corresponding tab.
If many tabs are displayed, select the tab selection list icon at the right end of the channel bar. Select the channel you want to switch to from the list.
MultiView tab
An additional tab labeled "MultiView" provides an overview of all active channels at a glance. In the "MultiView" tab, each individual window contains its own chan­nel bar with an additional button. Tap this button, or double-tap in any window, to switch to the corresponding channel display quickly.
74Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Operating the instrument
Understanding the display information - spectrum mode
Icons in the channel bar
The yellow star icon on the tab label (sometimes referred to as a "dirty flag") indicates that invalid or inconsistent data is displayed, that is: the trace no longer matches the displayed instrument settings. This can happen, for example, when you change the measurement bandwidth, but the displayed trace is still based on the old bandwidth. As soon as a new measurement is performed or the display is updated, the icon disappears.
The icon indicates that an error or warning is available for that channel setup. This is particularly useful if the MultiView tab is displayed.
The icon indicates the currently active channel during an automatic measure­ment sequence (Sequencer functionality).
Channel-specific settings
Beneath the channel name, information on channel-specific settings for the mea­surement is displayed in the channel bar. Channel information varies depending on the active application.
In the Spectrum application, the R&S FPL1000 shows the following settings:
Table 7-1: Channel settings displayed in the channel bar in the spectrum application
Ref Level Reference level
Att RF attenuation applied to input
Ref Offset Reference level offset
SWT Sweep time that has been set.
If the sweep time does not correspond to the value for automatic coupling, a bullet is displayed in front of the field. The color of the bullet turns red if the sweep time is set below the value for auto­matic coupling. In addition, the UNCAL flag is shown. In this case, the sweep time must be increased.
For FFT sweeps, an estimated duration for data capture and pro- cessing is indicated behind the sweep time in the channel bar.
RBW Resolution bandwidth that has been set.
(CISPR) indicates that a CISPR bandwidth filter is being used, e.g. due to an active CISPR trace detector.
For details see the EMI measurement in the R&S FPL1000 user manual.
If the bandwidth does not correspond to the value for automatic coupling, a green bullet appears in front of the field.
75Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Operating the instrument
Understanding the display information - spectrum mode
VBW Video bandwidth that has been set.
If the bandwidth does not correspond to the value for automatic coupling, a green bullet is displayed in front of the field.
Compatible Compatible device mode (FSL, FSV, default; default not dis-
played)
Mode Indicates which sweep mode type is used:
"Auto FFT" : automatically selected FFT sweep mode
"Auto sweep" : automatically selected swept sweep mode
Pwr.Swp Indicates the power sweep range for power sweep measurements
using an optional internal tracking generator
Icons for individual settings
A bullet next to the setting indicates that user-defined settings are used, not auto­matic settings. A green bullet indicates this setting is valid and the measurement is correct. A red bullet indicates an invalid setting that does not provide useful results.
Common settings
The channel bar above the diagram not only displays the channel-specific set­tings. It also displays information on instrument settings that affect the measure­ment results even though it is not immediately apparent from the display of the measured values. This information is displayed in gray font and only when appli­cable for the current measurement, as opposed to the channel-specific settings that are always displayed.
The following types of information are displayed, if applicable.
Table 7-2: Common settings displayed in the channel bar
SGL The sweep is set to single sweep mode.
Sweep Count The current signal count for measurement tasks that involve a specific number
of subsequent sweeps (see "Sweep Count" setting in "Sweep Settings" in the User Manual)
76Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Understanding the display information - spectrum mode
TRG Trigger source
(for details see "Trigger settings" in the User Manual)
EXT: External
IFP: IF power (+trigger bandwidth)
PSE: Power sensor
TIM: Time
VID: Video
PA The preamplifier is activated.
Operating the instrument
"YIG Bypass"
GAT The frequency sweep is controlled via the "TRIGGER INPUT" connector.
TDF The specified transducer factor is activated.
75 Ω The input impedance of the instrument is set to 75 Ω.
FRQ A frequency offset 0 Hz is set.
CWSource:
<level>
<"NOR" | "APX">
/Trk.Gen
The YIG filter is deactivated.
Internal generator in operation as independant CW source with specified level (requires option R&S FPL1-B9).
Internal generator in operation as tracking generator (requires option R&S FPL1-B9).
NOR: the measurements are normalized with the results of the internal genera­tor calibration
APX (approximation): the measurements are normalized with the results of the internal generator calibration; however, the measurement settings have been changed since calibration
If neither label is displayed, no calibration has been performed yet or normali­zation is not active.
For details, see the "Internal Generator" section in the R&S FPL1000 User Manual.
Changing the Channel setup Name
The channel setups are labeled with their default name. If that name already exists, a sequential number is added. You can change the name of the channel setup by double-tapping the name in the channel bar and entering a new name.

7.1.2 Window title bar

Each channel in the R&S FPL1000 display can contain several windows. Each window can display either a graph or a table as a result of the channel measure­ment. The window title bar indicates which type of evaluation is displayed.
77Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Operating the instrument
Understanding the display information - spectrum mode
Trace Information in Window Title Bar
Information on the displayed traces is indicated in the window title bar.
2
1 3 4 5
(1) Trace color
(2) Trace no.
(3) Detector
(4) Trace Mode
AP AUTOPEAK detector
Pk MAX PEAK detector
Mi MIN PEAK detector
Sa SAMPLE detector
Av AVERAGE detector
Rm RMS detector
Clrw CLEAR/WRITE
Max MAX HOLD
Min MIN HOLD
Color of trace display in diagram
Trace number (1 to 6)
Selected detector:
Sweep mode:
Avg AVERAGE (Lin/Log/Pwr)
View VIEW
(5) Smoothing factor Smth Smoothing factor, if enabled.

7.1.3 Marker information

Marker information is provided either in the diagram grid or in a separate marker table, depending on the configuration.
Marker information in diagram grid
Within the diagram grid, the x-axis and y-axis positions of the last two markers or delta markers that were set are displayed, if available, as well as their index. The
78Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Operating the instrument
Understanding the display information - spectrum mode
value in the square brackets after the index indicates the trace to which the marker is assigned. (Example: M2[1] defines marker 2 on trace 1.) For more than two markers, a separate marker table is displayed beneath the diagram by default.
Marker information in marker table
In addition to the marker information displayed within the diagram grid, a separate marker table may be displayed beneath the diagram. This table provides the fol­lowing information for all active markers:
"Type" Marker type: N (normal), D (delta), T (temporary, internal), PWR
(power sensor)
"Ref" Reference (for delta markers)
"Trc" Trace to which the marker is assigned
"X-value" X-value of the marker
"Y-Value" Y-value of the marker
"Function" Activated marker or measurement function
"Function Result" Result of the active marker or measurement function
The functions are indicated with the following abbreviations:
"FXD" Fixed reference marker
"Phase Noise" Phase noise measurement
"Signal Count" Signal count
"TRK" Signal tracking
"Noise Meas" Noise measurement
"MDepth" AM modulation depth
"TOI" Third order intercept measurement

7.1.4 Frequency and span information in diagram footer

The information in the diagram footer (beneath the diagram) depends on the cur­rent application, measurement, and result display.
For a default measurement in the Spectrum mode, the Diagram result display contains the following information, for example:
79Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Operating the instrument
Understanding the display information - spectrum mode
Label Information
CF Center frequency
Span Frequency span (frequency domain display)
ms/ Time per division (time domain display)
Pts Number of sweep points or (rounded) number of currently displayed points
in zoom mode

7.1.5 Instrument and status information

Global instrument settings and functions, the instrument status and any irregulari­ties are indicated in the status bar beneath the diagram.
In the MultiView tab, the status bar always displays the information for the cur­rently selected measurement.
The following information is displayed:
Instrument status
The instrument is configured for operation with an external reference.
Battery loading status
Date and time
The date and time settings of the instrument are displayed in the status bar.

7.1.6 Error information

If errors or irregularities are detected, a keyword and an error message, if availa­ble, are displayed in the status bar.
80Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Operating the instrument
Accessing the functionality
Depending on the type of message, the status message is indicated in varying colors.
Table 7-3: Status bar information - color coding
Color Type Description
Red Error An error occurred at the start or during a measurement, e.g. due to
missing data or wrong settings, so that the measurement cannot be started or completed correctly.
Orange Warning An irregular situation occurred during measurement, e.g. the set-
tings no longer match the displayed results, or the connection to an external device was interrupted temporarily.
Gray Information Information on the status of individual processing steps.
No color No errors No message displayed - normal operation.
Green Measurement
successful
Some applications visualize that the measurement was successful by showing a message.
If any error information is available for a channel setup, an exclamation mark is displayed next to the channel setup name ( ). This is particularly useful when the MultiView tab is displayed, as the status bar in the Multi­View tab always displays the information for the currently selected channel setup only.

7.2 Accessing the functionality

All tasks necessary to operate the instrument can be performed using this user interface. Apart from instrument specific keys, all other keys that correspond to an external keyboard (e.g. arrow keys, ENTER key) operate as specified by Micro­soft.
For most tasks, there are at least 2 alternative methods to perform them:
Using the touchscreen
Using other elements provided by the front panel, e.g. the keypad, rotary knob, or arrow and position keys.
The measurement and instrument functions and settings can be accessed by selecting one of the following elements:
System and function keys on the front panel of the instrument
81Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Softkeys on the touchscreen
Context menus for specific elements on the touchscreen
Icons on the tool bar in the touchscreen
Displayed setting on the touchscreen
Operating the instrument
Accessing the functionality

7.2.1 Toolbar functions

Standard functions can be performed via the icons in the toolbar at the top of the screen.
You can hide the toolbar display, e.g. when using remote control, to enlarge the display area for the measurement results ( "Setup" > "Display" > "Dis­played Items" ).
See the R&S FPL1000 User Manual.
Print immediately.................................................................................................. 82
Open.....................................................................................................................83
Save......................................................................................................................83
Report Generator..................................................................................................83
Undo..................................................................................................................... 83
Redo..................................................................................................................... 83
Zoom mode...........................................................................................................83
Multiple zoom mode..............................................................................................83
Zoom off................................................................................................................83
SmartGrid ............................................................................................................ 83
Sequencer ........................................................................................................... 83
Gen On/Off........................................................................................................... 84
Gen Config............................................................................................................84
Help (+ Select)......................................................................................................84
Help...................................................................................................................... 84
Disconnect RF2.................................................................................................... 84
Frequency lock..................................................................................................... 84
Windows............................................................................................................... 84
Print immediately
Prints the current display (screenshot) as configured.
82Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Open
Opens a file from the instrument ( "Save/Recall" menu).
Save
Stores data on the instrument ( "Save/Recall" menu).
Report Generator
Displays the "Report" menu to configure a report.
Undo
Reverts last operation, i.e. the status before the previous action is retrieved.
The undo function is useful, for example, if you are performing a zero span mea­surement with several markers and a limit line defined and accidentally select a different measurement. In this case, many settings would be lost. However, if you press [UNDO] immediately afterwards, the previous status is retrieved, i.e. the zero span measurement and all settings.
Operating the instrument
Accessing the functionality
Note: The [UNDO] function is not available after a [PRESET] or "Recall" opera­tion. When these functions are used, the history of previous actions is deleted.
Redo
Repeats previously reverted operation
Zoom mode
Displays a dotted rectangle in the diagram that can be expanded to define the zoom area.
Multiple zoom mode
Multiple zoom areas can be defined for the same diagram.
Zoom off
Displays the diagram in its original size.
SmartGrid
Activates "SmartGrid" mode to configure the screen layout.
Sequencer
Opens the "Sequencer" menu to perform consecutive measurements.
83Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Gen On/Off
Enables/disables the internal generator.
Gen Config
Opens the dialog box to configure the internal generator.
Help (+ Select)
Allows you to select an object for which context-specific help is displayed
See Chapter 7.5, "Getting help", on page 92
Help
Displays context-sensitive help topic for the most recently selected ele­ment
See Chapter 7.5, "Getting help", on page 92
Operating the instrument
Accessing the functionality
Disconnect RF2
RF2 input off: Signal applied to the RF2 input is not measured (instead the signal path of the calibration signal is used).
Frequency lock
Frequency does not change when you turn the rotary knob.
Only applies to the frequency. You can still change other parameters with the rotary knob.
Windows
Displays the Windows "Start" menu and task bar.
See "To access the "Start" menu" on page 31.

7.2.2 Softkeys

Softkeys are virtual keys provided by the software. Thus, more functions can be provided than those that can be accessed directly via the function keys on the instrument. Softkeys are dynamic, i.e. depending on the selected function key, a different list of softkeys is displayed on the right side of the screen.
A list of softkeys for a certain function key is also called a menu. Softkeys can either perform a specific function or open a dialog box.
84Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Operating the instrument
Accessing the functionality
The "More" softkey indicates that the menu contains more softkeys than can be displayed at once on the screen. When pressed, it displays the next set of soft­keys.
Recognizing the softkey status by color
Color Meaning
Orange Associated dialog box is open
Blue Associated function is active; for toggle keys: currently active state
Gray Instrument function is temporarily not available due to a specific setting or
missing option
You can hide the softkey display, e.g. when using remote control, to enlarge the display area for the measurement results ( "Setup" > "Display" > "Dis­played Items" ). See the User Manual for details.

7.2.3 Context menus

Several items in the diagram area have context menus (for example markers, traces or the channel bar). If you right-click on one of these items (or tap it for about 1 second), a menu is displayed which contains the same functions as the corresponding softkey. This is useful, for example, when the softkey display is hidden.
85Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Operating the instrument
Accessing the functionality

7.2.4 On-screen keyboard

The on-screen keyboard is an additional means of interacting with the instrument without having to connect an external keyboard.
The on-screen keyboard display can be switched on and off as desired using the "On-Screen Keyboard" function key beneath the screen.
When you press this key, the display switches between the following options:
Keyboard displayed at the top of the screen
Keyboard displayed at the bottom of the screen
86Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
No keyboard displayed
You can use the TAB key on the on-screen keyboard to move the focus from one field to another in dialog boxes.
Operating the instrument
Entering data

7.3 Entering data

Data can be entered in dialog boxes using one of the following methods:
Using the touchscreen, via the online keyboard
Using other elements provided by the front panel, e.g. the keypad, rotary knob, or navigation keys The rotary knob acts like the [ENTER] key when it is pressed.
Using a connected external keyboard
Transparent dialog boxes
You can change the transparency of the dialog boxes to see the results in the windows behind the dialog box. Thus, you can see the effects that the changes you make to the settings have on the results immediately.
To change the transparency, select the transparency icon at the top of the dialog box. A slider is displayed. To hide the slider, select the transparency icon again.
(The title bar of the dialog box is always slightly transparent and is not affec­ted by the slider.)
Particularities in windows dialog boxes
In some cases, e.g. if you want to install a printer, original Windows dialog boxes are used. In these dialog boxes, the rotary knob and function keys do not work. Use the touchscreen instead.
87Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Entering numeric parameters
If a field requires numeric input, the keypad provides only numbers.
1. Enter the parameter value using the keypad, or change the currently used parameter value by using the rotary knob (small steps) or the [UP] or [DOWN] keys (large steps).
2. After entering the numeric value via keypad, press the corresponding unit key. The unit is added to the entry.
3. If the parameter does not require a unit, confirm the entered value by pressing the [ENTER] key or any of the unit keys. The editing line is highlighted to confirm the entry.
Entering Alphanumeric Parameters
If a field requires alphanumeric input, you can use the on-screen keyboard to enter numbers and (special) characters (see Chapter 7.2.4, "On-screen key-
board", on page 86).
Operating the instrument
Entering data
Correcting an entry
1. Using the arrow keys, move the cursor to the right of the entry you want to delete.
2. Press the [Backspace] key.
The entry to the left of the cursor is deleted.
3. Enter your correction.
Completing the entry
► Press the [ENTER] key or the rotary knob.
Aborting the entry
► Press the [ESC] key.
The dialog box is closed without changing the settings.
88Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Operating the instrument
Touchscreen gestures

7.4 Touchscreen gestures

A touchscreen allows you to interact with the software using various finger ges­tures on the screen. The basic gestures supported by the software and most applications are described here. Further actions using the same gestures may be possible.
Note: Inappropriate tools or excessive force can damage the touchscreen.
For instructions on cleaning the screen, see "Cleaning the product" on page 11.
Tapping
Touch the screen quickly, usually on a specific element.
You can tap most elements on the screen; in particular, any elements you can also click on with a mouse pointer.
Figure 7-1: Tapping
Double-tapping
Tap the screen twice, in quick succession.
Double-tap a diagram or the window title bar to maximize a window in the display, or to restore the original size.
Dragging
Move your finger from one position to another on
the display, keeping your finger on the display the whole time.
By dragging your finger over a table or diagram you can pan the displayed area of the table or diagram to show results that were previously out of view.
89Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Operating the instrument
Touchscreen gestures
Figure 7-2: Dragging
Pinching and spreading two fingers
Move two fingers together on the display (pinch) or
move two fingers apart on the display (spread).
When you pinch two fingers in the display, you decrease the size of the currently displayed area, showing the surrounding areas previously out of view.
When you spread two fingers in the display, you increase the size of the currently displayed area, showing more details.
You can pinch or spread your fingers vertically, horizontally, or diagonally. The direction in which you move your fingers determines which dimension of the dis­play is changed.
Figure 7-3: Pinching
90Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Figure 7-4: Spreading
Touch gestures in diagrams change measurement settings
When you change the display using touch gestures, the corresponding mea­surement settings are adapted. This is different to selecting an area on the screen in zoom mode, where merely the resolution of the displayed trace points is changed temporarily (graphical zoom).
Operating the instrument
Touchscreen gestures
Mouse vs. touch actions
Any user interface elements that react to actions by a mouse pointer also react to finger gestures on the screen, and vice versa. The following touch actions corre­spond to mouse actions:
Table 7-4: Correlation of mouse and touch actions
Mouse operation Touch operation
Click Tap
Double-click Double-tap
Click and hold Touch and hold
Right-click Touch, hold for 1 second and release
Drag-&-drop (= click and hold, then drag and release)
n.a. (Change hardware settings) Spread and pinch two fingers
Mouse wheel to scroll up or down Swipe
Dragging scrollbars to scroll up or down, left or right
Touch, then drag and release
Swipe
In (graphical) Zoom mode only: dragging the borders of the displayed rectangle to change its size
Touch, then drag and release
91Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Example:
You can scroll through a long table in conventional mouse operation by clicking in the table's scrollbar repeatedly. In touch operation, you would scroll through the table by dragging the table up and down with your finger.
Operating the instrument
Getting help

7.5 Getting help

If any questions or problems concerning the R&S FPL1000 arise, an extensive online help system is provided on the instrument and can be consulted at any time. The help system is context-sensitive and provides information specifically for the current operation or setting to be performed. In addition, general topics provide an overview on complete tasks or function groups as well as background information.
The online help can be opened at any time by selecting one of the "Help" icons on the toolbar or by pressing the [F1] key on an external or the on-screen key­board.
To call context-sensitive help
► To display the "Help" dialog box for the currently focused screen element, e.g.
a softkey or a setting in an opened dialog box, select the "Help" icon on the toolbar.
The "Help" dialog box "View" tab is displayed. A topic containing information about the focused screen element is displayed. If no context-specific help topic is available, a more general topic or the "Con­tent" tab is displayed.
For standard Windows dialog boxes (e.g. File Properties, Print dialog etc.), no context-sensitive help is available.
to display a help topic for a screen element not currently focused
1. Select the "Help pointer" icon on the toolbar.
92Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
The pointer changes its shape to a "?" and an arrow.
2. Select the screen element to change the focus.
A topic containing information about the selected (now focused) screen ele­ment is displayed.
Operating the instrument
Getting help
93Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Collecting information for support
Customer support

8 Customer support

8.1 Collecting information for support

If problems occur, the instrument generates error messages which in most cases will be sufficient for you to detect the cause of an error and find a remedy.
Error messages are described in the "Troubleshooting" section of the user man­uals.
In addition, our customer support centers are there to assist you in solving any problems that you may encounter with your R&S FPL1000. We will find solutions more quickly and efficiently if you provide us with the information listed below.
Windows Event Log Files
Windows records important actions of applications and the operating system in event logs. You can create event log files to summarize and save the exist­ing event logs (see "To create windows event log files" on page 95).
System Configuration: The "System Configuration" dialog box (in the "Setup" menu) provides information on:
Hardware Info: hardware assemblies
Versions and Options: the status of all software and hardware options
installed on your instrument
System Messages: messages on any errors that may have occurred
An .xml file with information on the system configuration ( "Device Footprint" ) can be created automatically (using the DIAGnostic:SERVice:SINFo com­mand or as described in "To collect the support information" on page 95).
Error Log: The RSError.log file (in the C:\ProgramData\Rohde-Schwarz\ZNL-FPL\log directory) contains a
chronological record of errors.
Support file: a *.zip file with important support information can be created automatically (in the C:\ProgramData\Rohde-Schwarz\ZNL-FPL\user directory). The *.zip file contains the system configuration information ( "Device Footprint" ), the current eeprom data and a screenshot of the screen display.
94Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Collecting information for support
To collect the support information
1. Press the [Setup] key.
2. Select "Service" > "R&S Support" and then "Create R&S Support Informa­tion" .
The file is stored as
C:\Users\Public\Documents\Rohde-Schwarz\Analyzer\user\ <inst_model>_<serial-no>_<date_and_time>.zip
For example
C:\ProgramData\Rohde-Schwarz\ZNL-FPL\user\FPL1003__20160803_145113.zip
To create windows event log files
1. Select the "Windows Start Button" in the bottom left corner.
Customer support
2. Enter Event Viewer and select "Enter".
3. Select and expand "Windows Logs" in the "Console Tree".
4. Right-click on each subsection and select "Save All Events As...".
95Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Customer support
Contacting customer support
Figure 8-1: Event Viewer
5. Enter a file name and select "Save"
Collect the error information and attach it to an email in which you describe the problem. Send the email to the customer support address for your region as listed in Chapter 8.2, "Contacting customer support", on page 96.

8.2 Contacting customer support

Technical support – where and when you need it
For quick, expert help with any Rohde & Schwarz product, contact our customer support center. A team of highly qualified engineers provides support and works with you to find a solution to your query on any aspect of the operation, program­ming or applications of Rohde & Schwarz products.
96Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Customer support
Contacting customer support
Contact information
Contact our customer support center at www.rohde-schwarz.com/support, or fol- low this QR code:
Figure 8-2: QR code to the Rohde & Schwarz support page
97Getting Started 1179.4657.02 ─ 15
R&S®FPL1000

Index

Index
Symbols
75 Ω (channel bar) ...................................77
A
Alphanumeric parameters ....................... 88
AP (trace information) ............................. 78
Application cards ..................................... 15
Application notes ..................................... 15
APX (channel bar) ................................... 77
Arrow keys ...............................................42
Att (channel setting) ................................ 75
Aux. Port
Connector ........................................... 47
AV (trace information) ..............................78
B
Brochures ................................................ 14
C
Calibration
Signal, as RF input ............................. 51
Calibration certificate ...............................15
Channel bar
Changing names .................................77
Information ..........................................74
Channel settings
Display .......................................... 74, 75
Channels
Switching ............................................ 74
Trying out ............................................55
CLRW (trace information) ........................78
CNT (marker functions) ........................... 79
Compatible mode (channel setting) .........76
Connector
AC power supply .................................44
Aux. Port ............................................. 47
Display Port ........................................ 49
DVI ......................................................49
GPIB interface .................................... 45
Headphones ....................................... 48
IF/VIDEO/DEMOD .............................. 47
LAN .....................................................49
Noise source control ........................... 46
Power sensor ......................................48
Ref. In ................................................. 46
Ref. Out .............................................. 46
RF Input 50...................................... 43
Trigger In .............................................46
USB .............................................. 38, 49
Context menus ........................................ 85
Customer support ....................................96
CWSource (channel setting) ................... 77
D
Data sheets ............................................. 14
Diagram area
Channel settings ................................. 75
Status display ..................................... 80
Trace information ................................78
Diagram footer .........................................79
Dialog boxes
Slider ...................................................87
Transparency ......................................87
Dirty flag
see Invalid data icon ........................... 75
Display
Information ..........................................72
Display Port
Connector ........................................... 49
DVI
Connector ........................................... 49
E
Entering data ........................................... 87
Error log ...................................................94
Error messages
see User Manual .................................80
Status bar ........................................... 80
Evaluation
Trying out ............................................53
EXT REF
Status message .................................. 80
Ext.Gen (channel bar) ............................. 77
External monitor
Connectors ......................................... 49
External reference
Status message .................................. 80
F
Firmware updates
see User Manual .................................17
Frq (channel bar) .....................................77
98Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Index
Function keys
Details - see user manual ................... 39
Overview .............................................39
FXD (marker functions) ........................... 79
G
GAT (channel bar) ................................... 77
Getting started .........................................13
GPIB interface
Configuring - see user manual ............45
Connector ........................................... 45
Graphical zoom ....................................... 91
H
Hardcopy
see Screenshots ................................. 70
Headphones
Connector ........................................... 48
Help ......................................................... 92
I
I/Q Analyzer
Trying out ............................................55
IF/VIDEO/DEMOD
Connector ........................................... 47
Instrument security procedures ............... 14
Invalid data
Icon ..................................................... 75
K
Key
DOWN ................................................ 42
LEFT ................................................... 42
Power ..................................................38
RIGHT .................................................42
UP .......................................................42
Keyboard
On-screen ........................................... 86
Keypad
Overview .............................................41
L
LAN
Connector ........................................... 49
Loading
Trying out ............................................69
M
Marker
Information ..........................................78
Marker table
Information ..........................................79
Markers
Trying out ............................................61
MAXH (trace information) ........................78
Measurement zoom .................................91
Menus
Context-sensitive ................................ 85
MI (trace information) .............................. 78
MINH (trace information) ......................... 78
MOD (marker functions) .......................... 79
Mode (channel setting) ............................76
MultiView
Status display ..................................... 80
Trying out ............................................59
N
Navigation
Controls .............................................. 42
in tables .............................................. 42
Navigation keys ....................................... 42
NCor (enhancement label) ...................... 78
NOI (marker functions) ............................ 79
Noise source control
Connector ........................................... 46
NOR (channel bar) .................................. 77
Numeric parameters ................................88
O
Offset (channel setting) ........................... 75
On-screen keyboard ..........................86, 88
Online help
Working with ....................................... 92
Optimizing
Calibration signal display .................... 52
P
Pa (channel bar) ......................................77
Parameters
Entering .............................................. 88
Peak list
Trying out ............................................63
PHN (marker functions) ...........................79
PK (trace information) ............................. 78
Power
Key ......................................................38
Power sensors
Configuring - see user manual ............48
Connector ........................................... 48
Using - see user manual .....................48
99Getting Started 1179.4657.02 ─ 15
R&S®FPL1000
Index
Power supply
Connector ........................................... 44
Printing
Trying out ............................................70
Pwr. Swp (channel setting) ...................... 76
R
RBW (channel setting) ............................ 75
Rear panel
Overview .............................................43
Ref Level (channel setting) ......................75
Ref. In
Connector ........................................... 46
Ref. Out
Connector ........................................... 46
Release notes ......................................... 15
RF Input
Connector ........................................... 43
RM (trace information) .............................78
Rotary knob ............................................. 42
S
SA (trace information) ............................. 78
Safety instructions ............................... 7, 14
Saving
Trying out ......................................68, 70
Screenshots
Trying out ............................................70
Search settings
Trying out ............................................63
Security procedures ................................ 14
Sequencer ............................................... 75
Trying out ............................................60
Service manual ........................................14
Sgl (channel bar) ..................................... 76
SmartGrid
Trying out ............................................53
Softkeys
Status ..................................................84
Spectrograms
Trying out ............................................53
Star (yellow)
see Invalid data icon ........................... 75
Status bar
Color coding ........................................81
Error messages .................................. 80
Status display .......................................... 80
Support ....................................................94
SWT (channel setting) .............................75
System
Keys ....................................................38
T
Tabs
MultiView ............................................ 74
Switching ............................................ 74
Tdf (channel bar) ..................................... 77
Technical support .................................... 94
TOI (marker functions) ............................ 79
Touchscreen
Overview .............................................36
Trace information .....................................78
Detector type ...................................... 78
Trace number ......................................78
Window title bar .................................. 78
TRG (channel bar) ...................................77
Trigger In
Connector ........................................... 46
TRK (marker functions) ........................... 79
Trk.Gen (channel setting) ........................77
Troubleshooting
see User Manual .................................80
Trying out
Prerequisites .......................................51
U
USB
Connector ........................................... 49
Connectors ......................................... 38
V
VBW (channel setting) .............................76
W
White papers ........................................... 15
Window title bar .......................................77
Windows
Access ................................................ 29
Dialog boxes ....................................... 87
Y
Yellow star
see Invalid data icon ........................... 75
YIG Bypass (channel bar) ....................... 77
Z
Zoom
Graphical ............................................ 91
Measurement ......................................91
100Getting Started 1179.4657.02 ─ 15
Loading...
