R&S
FPL1000
Spectrum Analyzer
Getting Started
(=G@22)
1323160202
Version 07
Getting Started
This manual applies to the following R&S®FPL1000 models with firmware version
1.50 and higher:
●
R&S®FPL1003 (1304.0004K03) - FPL1000 with maximum frequency 3 GHz
●
R&S®FPL1007 (1304.0004K07) - FPL1000 with maximum frequency 7.5 GHz
In addition to the base unit, the following options are described:
●
R&S FPL1-B4, OCXO (1323.1902.02)
●
R&S FPL1-B5, Additional Interfaces (1323.1883.02)
●
R&S FPL1-B9, Internal Generator (1323.1925Kxx)
●
R&S FPL1-B10, GPIB interface (1323.1890.02)
●
R&S FPL1-B22, preamplifier (1323.1719.02)
●
R&S FPL1-B25, electronic attenuator (1323.1990.02)
●
R&S FPL1-B30, DC power supply (1323.1877.02)
●
R&S FPL1-B31, Li-Ion battery pack and charger (1323.1725.02)
●
R&S FPL1-K9, Power Sensor Support (1323.1754.02)
© 2019 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: +49 89 41 29 - 0
Fax: +49 89 41 29 12 164
Email: info@rohde-schwarz.com
Internet: www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1323.1602.02 | Version 07 | R&S®FPL1000
The following abbreviations are used throughout this manual: R&S®FPL1000 is abbreviated as
R&S FPL1000.
R&S®FPL1000
Contents
1 Safety and Regulatory Information...................................... 7
1.1 Safety Instructions................................................................................7
1.2 Labels on R&S FPL1000..................................................................... 11
1.3 Korea Certification Class A................................................................12
2 Documentation-Overview................................................... 13
2.1 Getting Started Manual.......................................................................13
2.2 User Manuals and Help...................................................................... 13
2.3 Service Manual....................................................................................14
Contents
2.4 Instrument Security Procedures....................................................... 14
2.5 Basic Safety Instructions................................................................... 14
2.6 Data Sheets and Brochures............................................................... 14
2.7 Release Notes and Open Source Acknowledgment (OSA).............15
2.8 Application Notes, Application Cards, White Papers, etc...............15
2.9 Calibration Certificate.........................................................................15
3 Key Features........................................................................ 16
4 Preparing for Use.................................................................17
4.1 Lifting and Carrying............................................................................17
4.2 Unpacking and Checking................................................................... 17
4.3 Choosing the Operating Site............................................................. 18
4.4 Setting Up the R&S FPL1000............................................................. 18
4.5 Connecting to Power.......................................................................... 21
4.6 Switching On or Off............................................................................ 24
4.7 Connecting to LAN............................................................................. 25
4.8 Connecting a Keyboard......................................................................26
3Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
4.9 Connecting an External Monitor........................................................27
4.10 Windows Operating System...............................................................29
4.11 Logging On..........................................................................................30
4.12 Checking the Supplied Options.........................................................32
4.13 Performing a Self-Alignment............................................................. 32
4.14 Considerations for Test Setup...........................................................33
Contents
5 Instrument Tour................................................................... 34
5.1 Front Panel View................................................................................. 34
5.2 Rear Panel View.................................................................................. 41
6 Trying Out the Instrument...................................................49
6.1 Measuring a Basic Signal...................................................................49
6.2 Displaying a Spectrogram..................................................................51
6.3 Activating Additional Measurement Channels.................................53
6.4 Performing Sequential Measurements............................................. 58
6.5 Setting and Moving a Marker............................................................. 59
6.6 Displaying a Marker Peak List........................................................... 61
6.7 Zooming into the Display................................................................... 62
6.8 Saving Settings................................................................................... 66
6.9 Printing and Saving Results.............................................................. 68
7 Operating the Instrument....................................................70
7.1 Understanding the Display Information - Spectrum Mode............. 70
7.2 Accessing the Functionality.............................................................. 79
7.3 Entering Data.......................................................................................82
7.4 Touchscreen Gestures....................................................................... 84
7.5 Getting Help.........................................................................................87
8 Customer Support............................................................... 89
4Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
8.1 Collecting Information for Support................................................... 89
8.2 Contacting Customer Support...........................................................91
Contents
Index..................................................................................... 93
5Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Contents
6Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Safety and Regulatory Information
Safety Instructions
1 Safety and Regulatory Information
The product documentation helps you use the R&S FPL1000 safely and efficiently. Follow the instructions provided here and in the Chapter 1.1, "Safety
Instructions", on page 7.
Intended use
The R&S FPL1000 is intended for the development, production and verification of
electronic components and devices in industrial, administrative, and laboratory
environments. Use the R&S FPL1000 only for its designated purpose. Observe
the operating conditions and performance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you of potential
dangers and gives instructions on how to prevent personal injury or damage
caused by dangerous situations. Safety information is provided as follows:
●
In Chapter 1.1, "Safety Instructions", on page 7. The same information is
provided in many languages as printed "Safety Instructions". The printed
"Safety Instructions" are delivered with the R&S FPL1000.
●
Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.
1.1 Safety Instructions
Products from the Rohde & Schwarz group of companies are manufactured
according to the highest technical standards. To use the products safely, follow
the instructions provided here and in the product documentation. Keep the product documentation nearby and offer it to other users.
Use the product only for its intended use and within its performance limits. Intended use and limits are described in the product documentation such as the data
sheet, manuals and the printed safety instructions. If you are unsure about the
appropriate use, contact Rohde & Schwarz customer service.
Using the product requires specialists or specially trained personnel. These users
also need sound knowledge of at least one of the languages in which the user
interfaces and the product documentation are available.
7Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
If any part of the product is damaged or broken, stop using the product. Never
open the casing of the product. Only service personnel authorized by
Rohde & Schwarz are allowed to repair the product. Contact Rohde & Schwarz
customer service at http://www.customersupport.rohde-schwarz.com.
Lifting and carrying the product
Some products are heavy. A safety label on the casing indicates if a product
weighs more than 18 kg. To safely move the product, you can use lifting or transporting equipment such as lift trucks, cranes, forklifts and hand trucks. Secure the
product, but not by its handles. Excessive force can break the handles.
Choosing the operating site
Only use the product indoors. The product casing is not waterproof and water that
enters can electrically connect the casing with live parts. This can lead to electric
shock, serious personal injury or death if you touch the casing.
Safety and Regulatory Information
Safety Instructions
Unless otherwise specified, you can operate the product up to an altitude of
2000 m above sea level. The product is suitable for pollution degree 2 environments where nonconductive contamination can occur. For more information on
environmental conditions such as ambient temperature and humidity, see the
data sheet.
Setting up the instrument
Always place the instrument on a stable, flat and level surface with the bottom of
the instrument facing down.
To save space, you can mount several instruments in a rack. If you stack instruments, keep in mind that a stack of instruments can tilt over and cause injury.
If the instrument has foldable feet, always fold the feet completely in or out to
ensure stability. The feet can collapse if they are not folded out completely or if
the instrument is moved without lifting it. The foldable feet are designed to carry
the weight of the instrument, but not an extra load.
Connecting to power
The product is an overvoltage category II product and has to be connected to a
fixed installation used to supply energy-consuming equipment such as household
appliances and similar loads. Be aware that electrically powered products have
risks, such as electric shock, fire, personal injury or even death.
8Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Take the following measures for your safety:
●
Before switching on the product, ensure that the voltage and frequency indicated on the product match the available power source. If the power adapter
does not adjust automatically, set the correct value and check the rating of the
fuse.
●
If a product has an exchangeable fuse, its type and characteristics are indicated next to the fuse holder. Before changing the fuse, switch off the instrument
and disconnect it from the power source. How to change the fuse is described
in the product documentation.
●
Only use the power cable delivered with the product. It complies with countryspecific safety requirements. Only insert the plug into an approved grounded
outlet.
●
Only use intact cables and route them carefully so that they cannot be damaged. Check the power cables regularly to ensure that they are undamaged.
Also ensure that nobody can trip over loose cables.
Safety and Regulatory Information
Safety Instructions
●
If the product needs an external power supply, use the power supply that is
delivered with the product or that is recommended in the product documentation or a power supply that conforms to the country-specific regulations.
●
Only connect the product to a power source with a fuse protection of maximum 20 A.
●
Ensure that you can disconnect the product from the power source at any
time. Pull the power plug to disconnect the product. The power plug must be
easily accessible. If the product is integrated into a system that does not meet
these requirements, provide an easily accessible circuit breaker at the system
level.
Cleaning the product
Use a dry, lint-free cloth to clean the product. When cleaning, keep in mind that
the casing is not waterproof. Do not use liquid cleaning agents.
Meaning of safety labels
Safety labels on the product warn against potential hazards.
9Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Potential hazard
Read the product documentation to avoid personal injury or product damage.
Heavy product
Be careful when lifting, moving or carrying the product. Carrying the product requires
at least two people or transport equipment.
Electrical hazard
Indicates live parts. Risk of electric shock, fire, personal injury or even death.
Hot surface
Do not touch. Risk of skin burns. Risk of fire.
Protective conductor terminal
Connect this terminal to a grounded external conductor or to protective ground. This
protects you against electric shock should an electric problem occur.
Handling batteries safely
Safety and Regulatory Information
Safety Instructions
The product contains a Lithium ion cell or battery, both referred to as battery in
the following. It is the contents of the battery that is potentially hazardous. As long
as the battery is undamaged and the seals remain intact, there is no danger.
Impact, shock or heat can cause damage such as dents, punctures and other
deformations. A damaged battery poses a risk of personal injury. Handle a damaged or leaking battery with extreme care. Immediately ventilate the area since
the battery releases harmful gases. If you come into contact with the battery fluid,
immediately remove all contaminated clothing. Irritation can occur if the battery
fluid comes in contact with your skin or eyes. Immediately and thoroughly rinse
your skin or eyes with water and seek medical aid.
For safe handling, follow these rules:
●
Do not short-circuit the battery.
●
Do not mechanically damage the battery. Do not open or disassemble the battery.
●
Do not expose the battery to high temperatures such as open flames, hot surfaces and sunlight.
●
Only use the battery with the designated Rohde & Schwarz product.
●
Only use the appropriate Rohde & Schwarz charger to charge the batteries. If
the batteries are improperly charged, there is a risk of explosion. For charging
and discharging temperature ranges, see the product documentation.
10Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Safety and Regulatory Information
Labels on R&S FPL1000
●
Store the battery at room temperature (approximately 20 °C) enclosed in the
original packaging.
●
Dispose of batteries separately from normal household waste as specified by
the local waste disposal agency.
If you disregard these rules, you risk serious personal injury or even death due to
explosion, fire or hazardous chemical substances. The product documentation
provides further details.
When replacing a defective battery, only use the same Rohde & Schwarz battery
type. When returning batteries to Rohde & Schwarz subsidiaries, choose a carrier
qualified to transport dangerous goods and follow the carrier’s transport stipulations in line with IATA-DGR, IMDG-Code, ADR or RID. If you need assistance,
contact the carrier or Rohde & Schwarz customer service.
Connecting headphones
Take the following measures to avoid hearing damage. Before using headphones,
check the volume and reduce it if necessary. If you monitor varying signal levels,
take off the headphones and wait until the signal has settled. Then adapt the volume.
1.2 Labels on R&S FPL1000
Labels on the casing inform about:
●
Personal safety, see "Meaning of safety labels" on page 9
●
Product and environment safety, see Table 1-1
●
Identification of the product, see Chapter 5.2.14, "Device ID", on page 47
Table 1-1: Labels regarding R&S FPL1000 and environment safety
Labeling in line with EN 50419 for disposal of electrical and electronic equipment after
the product has come to the end of its service life. For more information, see the product user manual, chapter "Disposal".
Labeling in line with directive 2006/66/EC for disposal of batteries after they have come
to the end of their service life. For more information, see the R&S FPL1000 user manual, chapter "Disposal".
11Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Safety and Regulatory Information
Korea Certification Class A
1.3 Korea Certification Class A
이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하
시기 바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.
12Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Documentation-Overview
User Manuals and Help
2 Documentation-Overview
This section provides an overview of the R&S FPL1000 user documentation.
Unless specified otherwise, you find the documents on the R&S FPL1000 product
page at:
www.rohde-schwarz.com/manual/FPL1000
2.1 Getting Started Manual
Introduces the R&S FPL1000 and describes how to set up and start working with
the product. Includes basic operations, typical measurement examples, and general information, e.g. safety instructions, etc.
A printed version is delivered with the instrument. A PDF version is available for
download on the Internet.
2.2 User Manuals and Help
Separate user manuals are provided for the base unit and the firmware applications:
●
Base unit manual
Contains the description of all instrument modes and functions. It also provides an introduction to remote control, a complete description of the remote
control commands with programming examples, and information on maintenance, instrument interfaces and error messages. Includes the contents of the
getting started manual.
●
Firmware application manual
Contains the description of the specific functions of a firmware application,
including remote control commands. Basic information on operating the
R&S FPL1000 is not included.
The contents of the user manuals are available as help in the R&S FPL1000. The
help offers quick, context-sensitive access to the complete information for the
base unit and the firmware applications.
13Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
All user manuals are also available for download or for immediate display on the
Internet.
Documentation-Overview
Data Sheets and Brochures
2.3 Service Manual
Describes the performance test for checking the rated specifications, module
replacement and repair, firmware update, troubleshooting and fault elimination,
and contains mechanical drawings and spare part lists.
The service manual is available for registered users on the global
Rohde & Schwarz information system (GLORIS):
https://gloris.rohde-schwarz.com
2.4 Instrument Security Procedures
Deals with security issues when working with the R&S FPL1000 in secure areas.
It is available for download on the Internet.
2.5 Basic Safety Instructions
Contains safety instructions, operating conditions and further important information. The printed document is delivered with the instrument.
2.6 Data Sheets and Brochures
The data sheet contains the technical specifications of the R&S FPL1000. It also
lists the firmware applications and their order numbers, and optional accessories.
The brochure provides an overview of the instrument and deals with the specific
characteristics.
See www.rohde-schwarz.com/brochure-datasheet/FPL1000
14Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Documentation-Overview
Calibration Certificate
2.7 Release Notes and Open Source Acknowledgment (OSA)
The release notes list new features, improvements and known issues of the current firmware version, and describe the firmware installation.
The open-source acknowledgment document provides verbatim license texts of
the used open source software.
See www.rohde-schwarz.com/firmware/FPL1000
2.8 Application Notes, Application Cards, White Papers, etc.
These documents deal with special applications or background information on
particular topics.
See www.rohde-schwarz.com/application/FPL1000
2.9 Calibration Certificate
The document is available on https://gloris.rohde-schwarz.com/calcert. You need
the device ID of your instrument, which you can find on a label on the rear panel.
15Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Key Features
3 Key Features
The R&S FPL1000 sets standards in RF performance and usability. Outstanding
key features are:
One instrument for multiple applications
●
Spectrum analysis
●
Signal analysis of analog and digitally modulated signals
●
Power measurements with power sensors
●
Noise figure and gain measurements
Solid RF performance
●
Low spurious response
●
Low displayed average noise level (DANL)
●
40 MHz signal analysis bandwidth
●
Low level measurement uncertainty
●
Precise spectral measurements due to low phase noise
Intuitive user interface
●
High-resolution display
●
Multipoint touchscreen
●
Flexible arrangement of results and MultiView
●
Toolbar
●
Quiet operation
Fully portable
●
Battery pack and 12 V/24 V power supply
●
Carrying bag and shoulder harness
●
Low power consumption
16Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Unpacking and Checking
Preparing for Use
4 Preparing for Use
This chapter describes the basic steps to be taken when setting up the
R&S FPL1000 for the first time.
● Lifting and Carrying......................................................................................... 17
● Unpacking and Checking................................................................................ 17
● Choosing the Operating Site........................................................................... 18
● Setting Up the R&S FPL1000......................................................................... 18
● Connecting to Power.......................................................................................21
● Switching On or Off......................................................................................... 24
● Connecting to LAN.......................................................................................... 25
● Connecting a Keyboard...................................................................................26
● Connecting an External Monitor......................................................................27
● Windows Operating System............................................................................29
● Logging On......................................................................................................30
● Checking the Supplied Options.......................................................................32
● Performing a Self-Alignment........................................................................... 32
● Considerations for Test Setup......................................................................... 33
4.1 Lifting and Carrying
The carrying handles are designed to lift or carry the instrument. Do not apply
excessive external force to the handles.
See "Lifting and carrying the product" on page 8.
4.2 Unpacking and Checking
1. Unpack the R&S FPL1000 carefully.
2. Retain the original packing material. Use it when transporting or shipping the
R&S FPL1000 later.
3. Using the delivery notes, check the equipment for completeness.
17Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Setting Up the R&S FPL1000
4. Check the equipment for damage.
If the delivery is incomplete or equipment is damaged, contact
Rohde & Schwarz.
Preparing for Use
4.3 Choosing the Operating Site
Specific operating conditions ensure accurate measurements and avoid damage
to the R&S FPL1000 and connected devices. For information on environmental
conditions such as ambient temperature and humidity, see the data sheet.
See also "Choosing the operating site" on page 8.
Electromagnetic compatibility classes
The electromagnetic compatibility (EMC) class indicates where you can operate
the R&S FPL1000. The EMC class of the R&S FPL1000 is given in the data sheet
under "General data".
●
Class B equipment is suitable for use in:
– Residential environments
– Environments that are directly connected to a low-voltage supply network
that supplies residential buildings
●
Class A equipment is intended for use in industrial environments. It can cause
radio disturbances in residential environments due to possible conducted and
radiated disturbances. It is therefore not suitable for class B environments.
If class A equipment causes radio disturbances, take appropriate measures to
eliminate them.
4.4 Setting Up the R&S FPL1000
The R&S FPL1000 is designed for use either on a bench top or in a rack, or as a
portable instrument (with optional battery operation) in a transport bag in the field.
See also:
●
"Setting up the instrument" on page 8
●
"Intended use" on page 7
18Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Setting Up the R&S FPL1000
Preparing for Use
4.4.1 Placing the R&S FPL1000 on a Bench Top
To place the R&S FPL1000 on a bench top
1. Place the R&S FPL1000 on a stable, flat and level surface. Ensure that the
surface can support the weight of the R&S FPL1000. For information on the
weight, see the data sheet.
2. CAUTION! Foldable feet can collapse. See "Setting up the instrument"
on page 8.
Always fold the feet completely in or out. If they are folded out, do not place
anything on top or underneath.
3. CAUTION! R&S FPL1000 can fall over and cause injury. The top surface is
too small for stacking. Never stack another instrument on top of the
R&S FPL1000.
As an alternative, you can mount several instruments in a rack.
4. NOTICE! Overheating can damage the R&S FPL1000.
Prevent overheating as follows:
● Keep a minimum distance of 10 cm between the fan openings of the
R&S FPL1000 and any object in the vicinity.
● Do not place the R&S FPL1000 next to heat-generating equipment such
as radiators or other instruments.
4.4.2 Mounting the R&S FPL1000 in a Rack
To prepare the rack
1. Observe the requirements and instructions in "Setting up the instrument"
on page 8.
19Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Setting Up the R&S FPL1000
2. NOTICE! Insufficient airflow can cause overheating and damage the
R&S FPL1000.
Design and implement an efficient ventilation concept for the rack.
To mount the R&S FPL1000 in a rack
1. Use an adapter kit to prepare the R&S FPL1000 for rack mounting.
a) Order the rack adapter kit designed for the R&S FPL1000. For the order
number, see data sheet.
b) Mount the adapter kit. Follow the assembly instructions provided with the
adapter kit.
2. Lift the R&S FPL1000 to shelf height.
3. Grab the handles and push the R&S FPL1000 onto the shelf until the rack
brackets fit closely to the rack.
Preparing for Use
4. Tighten all screws in the rack brackets with a tightening torque of 1.2 Nm to
secure the R&S FPL1000 in the rack.
To unmount the R&S FPL1000 from a rack
1. Loosen the screws at the rack brackets.
2. Remove the R&S FPL1000 from the rack.
3. If placing the R&S FPL1000 on a bench top again, unmount the adapter kit
from the R&S FPL1000. Follow the instructions provided with the adapter kit.
4.4.3 Portable Operation
An optional carrying bag designed specifically for the R&S FPL1000 allows you to
protect the instrument while working in the field. The bag includes ventilation
areas at the position of the ventilation outlets in the casing to ensure air circulation. The transparent cover allows you to operate the instrument without removing
it from the bag. With the help of the optional vest holster, you can carry the
R&S FPL1000 in its bag and keep your hands free. Together with the optional
battery pack (see Chapter 4.5.3, "Connecting an Optional Battery Pack
(R&S FPL1-B31)", on page 23), and packed in the dedicated carrying bag, the
R&S FPL1000 is ideally suited for operation directly in the field, even in rough
environments.
20Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Preparing for Use
Connecting to Power
► Inspect the carrying bag for wear and tear before placing the instrument in it.
For details on optional accessories, see the R&S FPL1000 data sheet.
4.5 Connecting to Power
There are various options to supply power to the R&S FPL1000.
●
The R&S FPL1000 is equipped with an AC power supply connector.
●
The R&S FPL1000 can also be equipped with an optional (internal) DC power
supply connector (R&S FPL1-B30).
●
The R&S FPL1000 can be operated by a battery pack if the option R&S FPL1B31 is installed.
4.5.1 Connecting the AC Power
The R&S FPL1000 can be used with different AC power voltages and adapts
itself automatically to it. Refer to the datasheet for the requirements of voltage
and frequency.
For safety information, see "Connecting to power" on page 8.
21Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
To connect the AC power
1. Plug the AC power cable into the AC power connector on the rear panel of the
instrument. Only use the AC power cable delivered with the R&S FPL1000.
2. Plug the AC power cable into a power outlet with ground contact.
The required ratings are listed next to the AC power connector and in the data
sheet.
For details on the connector, refer to Chapter 5.2.2, "AC Power Supply Connec-
tion and Main Power Switch", on page 43.
Preparing for Use
Connecting to Power
4.5.2 Connecting an Optional DC Power Supply (R&S FPL1-
B30)
The R&S FPL1000 can also be equipped with an optional DC power supply connector (R&S FPL1-B30). If installed, the R&S FPL1000 can be operated by a DC
voltage of +12 V to +24 V.
If you use an external power supply unit to supply safety extra-low DC voltage
(SELV) to the instrument, be sure to meet the requirements for reinforced/double
insulation in accordance with DIN/EN/IEC 61010 (UL 3111, CSA C22.2 No.
1010.1) or DIN/EN/IEC 60950 (UL 1950, CSA C22.2 No. 950). Provide current
limitation in accordance with DIN EN 61010-1 Appendix F2.1.
Also see "Connecting to power" on page 8.
DC connection
► Connect the DC power connector on the rear panel of the R&S FPL1000 to
the DC power source.
22Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Preparing for Use
Connecting to Power
4.5.3 Connecting an Optional Battery Pack (R&S FPL1-B31)
As an alternative to the fixed AC or DC power supply, the R&S FPL1000 can be
operated by a battery pack if the option R&S FPL1-B31 is installed. If the battery
pack is installed and neither DC nor AC power is supplied, the R&S FPL1000
automatically switches to battery operation (during operation).
The R&S FPL1000 comes with the battery pack already installed if the battery
option was ordered together with the instrument. Otherwise, insert the battery
packs in the slots at the top of the rear panel.
For safety information, see "Handling batteries safely" on page 10.
Charging batteries
Charge the battery before using it for the first time. Following a long storage
period, it can be necessary to charge and discharge the battery several times to
reach full capacity.
For batteries from third parties, follow the instructions provided by the manufacturer. For batteries manufactured by Rohde & Schwarz, observe the following:
●
For charging, use the R&S FPL1000. The battery pack is charged via the
common AC or DC power supply.
●
Charge in a temperature range from +0 °C to +45 °C. If the temperature is
above or below these values, or the temparature varies strongly, charging is
interrupted. If the battery temperature rises above +53 °C, charging is stopped.
●
Try not to overcharge the battery too often because overcharging reduces the
service life of the battery.
When the battery is being charged in standby mode, the [Power] LED
blinks. During operation, the status bar indicates that the battery is
being charged.
23Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Preparing for Use
Switching On or Off
Additional battery packs (R&S FPL1-Z4)
In addition to the internal battery pack option (R&S FPL1-B30), spare battery
packs are available for the R&S FPL1000 (R&S FPL1-Z4). You can exchange the
batteries while the R&S FPL1000 is running, as long as one battery remains in
the instrument. However, it is not recommended that you operate the
R&S FPL1000 with only one battery for a longer period. Additional battery packs
can also be charged using the external battery charger option R&S FSV-B34.
4.6 Switching On or Off
Table 4-1: Overview of power states
Status LED on Power key Position of main power switch
Off
Standby
Ready
gray
orange
green
[0]
[I]
[I]
To switch on the R&S FPL1000
The R&S FPL1000 is off but connected to power.
1. Set the switch on the power supply to position [I].
See Chapter 5.2.2, "AC Power Supply Connection and Main Power Switch",
on page 43.
The LED of the Power key is orange.
See Chapter 5.1.2, "Power Key", on page 36.
2. Press the Power key.
See Table 4-1.
The LED changes to green.
The instrument operates on battery, DC, or AC power, whichever is supplied.
The R&S FPL1000 boots.
After booting, the instrument is ready for operation.
To shut down the R&S FPL1000
The R&S FPL1000 is in the ready state.
► Press the Power key.
24Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
The operating system shuts down. The LED changes to orange.
To disconnect from power
The R&S FPL1000 is in the standby state.
1. NOTICE! Risk of data loss. If you disconnect the R&S FPL1000 from power
when it is in the ready state, you can lose settings and data. Shut it down first.
Set the switch on the power supply to position [0].
See Chapter 5.2.2, "AC Power Supply Connection and Main Power Switch",
on page 43.
The LED of the standby key is switched off.
2. Disconnect the R&S FPL1000 from the power source.
Preparing for Use
Connecting to LAN
4.7 Connecting to LAN
You can connect the instrument to a LAN for remote operation via a PC. For
details on the connector, see Chapter 5.2.7, "LAN", on page 44.
► NOTICE! Risk of network failure.
Consult your network administrator before performing the following tasks:
● Connecting the instrument to the network
● Configuring the network
● Changing IP addresses
● Exchanging hardware
Errors can affect the entire network.
Connect the R&S FPL1000 to the LAN via the LAN interface on the rear panel
of the instrument.
Windows automatically detects the network connection and activates the
required drivers.
By default, the R&S FPL1000 is configured to use DHCP and no static IP
address is configured.
The default instrument name is <Type><variant>-<serial_number>, for
example, FPL1003-123456. For information on determining the serial
number, see Chapter 5.2.14, "Device ID", on page 47.
25Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
For more information on LAN configuration, see the R&S FPL1000 user manual.
Preparing for Use
Connecting a Keyboard
4.7.1 Virus Protection
Take appropriate steps to protect your instruments from infection. Use strong firewall settings and scan any removable storage device used with a
Rohde & Schwarz instrument regularly. It is also recommended that you install
anti-virus software on the instrument. Rohde & Schwarz does NOT recommend
running anti-virus software in the background ("on-access" mode) on Windowsbased instruments, due to potentially degrading instrument performance. However, Rohde & Schwarz does recommend running it during non-critical hours.
For details and recommendations, see the following Rohde & Schwarz white
paper:
●
1EF96: Malware Protection Windows 10
4.8 Connecting a Keyboard
The keyboard is detected automatically when it is connected. The default input
language is English – US.
However, you can also connect foreign language keyboards; currently the following languages are supported for the R&S FPL1000:
●
German
●
Swiss
●
French
●
Russian
To configure the keyboard language
1. To access the Windows operating system, press the Windows key on the
external keyboard.
2. Select "Start > Settings > Time & language > Region & language > Add a language" .
26Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Connecting an External Monitor
Preparing for Use
4.9 Connecting an External Monitor
You can connect an external monitor (or projector) to the "DVI" connector on the
rear panel of the R&S FPL1000 (see also Chapter 5.2.6, "DVI", on page 44).
Screen resolution and format
The touchscreen of the R&S FPL1000 is calibrated for a 16:10 format. If
you connect a monitor or projector using a different format (e.g. 4:3), the
calibration is not correct and the screen does not react to your touch actions
properly.
The touchscreen has a screen resolution of 1280x800 pixels. Most external
monitors have a higher screen resolution. If the screen resolution of the
monitor is set higher than the instrument's resolution, the application window uses an area of 1280x800 pixels on the monitor display. For full screen
display, adjust the monitor's screen resolution.
The R&S FPL1000 supports a minimum resolution of 1280x768 pixels.
1. Connect the external monitor to the R&S FPL1000.
2. Press the [Setup] key.
3. Press the "Display" softkey.
4. Select the "Configure Monitor" tab in the "Display" dialog box.
The standard Windows "Screen Resolution" dialog box is displayed.
27Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Preparing for Use
Connecting an External Monitor
5. If necessary, change the screen resolution. Consider the information in the
note above.
6. Select the instrument for display:
● "Display 1": internal monitor only
● "Display 2": external monitor only
● "Duplicate": both internal and external monitor
7. Tap "Apply" to try out the settings before they are accepted permanently, then
you can easily return to the previous settings, if necessary.
8. Select "OK" if the settings are suitable.
Fixing a wrong touchscreen mapping
If an external monitor is connected, the touchscreen function is erroneously mapped to the external monitor by default. This mismatch is particularly cumbersome
in extended display mode, where touch gestures on the instrument screen
actually operate on the external screen. Also in duplicate mode, touch screen
operation malfunctions if the resolutions of internal and external display do not
match.
28Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Windows Operating System
To fix the mapping between touchscreen and display, connect an external monitor
to the R&S FPL1000 and proceed as follows:
1. Select [Setup] > "Display" > "Configure Monitor" > "Display Switch" to bring up
the Windows 10 "PROJECT" notification window.
Or press [Win]+[P] on a connected keyboard.
2. Select "Extend".
3. In the Windows task bar, search for "tablet" and select "Tablet PC Settings"
4. In the "Tablet PC Settings" dialog, select "Setup…". Enter the administrator
password to proceed.
Observe the message "Touch this screen to identify it as the touchscreen" on
the internal touch screen.
5. Tap on the internal touch screen.
6. Press [ENTER].
Preparing for Use
Observe the message "Touch this screen to identify it as the touchscreen" on
the external screen.
7. If the external monitor is also a touchscreen, tap on it.
8. Press [ENTER].
Touch screen operation functions correctly now. Use the "PROJECT" flyout
again to select the appropriate display mode.
4.10 Windows Operating System
The instrument contains the Windows operating system which has been configured according to the instrument's features and needs. Changes in the system
Setup are only required when peripherals like a keyboard or a printer are installed
or if the network configuration does not comply with the default settings. After the
R&S FPL1000 is started, the operating system boots and the instrument firmware
is started automatically.
Tested software
The drivers and programs used on the instrument under Windows are adapted to
the instrument. Only install update software released by Rohde & Schwarz to
modify existing instrument software.
29Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
You can install additional software on the instrument; however, additional software can impair instrument function. Thus, run only programs that
Rohde & Schwarz has tested for compatibility with the instrument software.
The following program packages have been tested:
●
Symantec Endpoint Security – virus-protection software
●
FileShredder - for reliable deletion of files on the hard disk
To access the "Start" menu
The Windows "Start" menu provides access to the Windows functionality and
installed programs.
► Select the "Windows" icon in the toolbar, or press the "Windows" key or the
[CTRL + ESC] key combination on the (external) keyboard.
Preparing for Use
Logging On
All necessary system settings can be defined in the "Start > Settings" menu.
For required settings, refer to the Windows documentation and to the hardware
description.
4.10.1 Service Packs and Updates
Microsoft regularly creates security updates and other patches to protect Windows-based operating systems. These are released through the Microsoft Update
website and associated update server. Instruments using Windows, especially
those that connect to a network, should be updated regularly.
For details and recommendations, see the following Rohde & Schwarz white
paper:
●
1EF96: Malware Protection Windows 10
4.11 Logging On
Windows requires that users identify themselves by entering a user name and
password in a login window. By default, the R&S FPL1000 provides two user
accounts:
30Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
●
"Instrument": a standard user account with limited access
●
"Administrator": an administrator account with unrestricted access to the
computer/domain
Some administrative tasks require administrator rights (e.g. the configuration of a
LAN network). Refer to the description of the basic instrument Setup ([Setup]
menu) to find out which functions are affected.
Automatic login
When shipped, the instrument automatically logs on the default "Instrument" user
to Windows using the default password. This function is active until an administrator explicitly deactivates it or changes the password.
For information on how to deactivate or reactivate the automatic login, refer to the
R&S FPL1000 user manual.
Preparing for Use
Logging On
Passwords
For all default user accounts, the initial password is 894129. Note that this password is very weak, and it is recommended that you change the password for both
users after initial login. An administrator can change the password in Windows for
any user at any time via "Start > Settings > Account > SignIn Options > Password
> Change".
Switching users when using the automatic login function
Which user account is used is defined during login. If automatic login is active, the
login window is not displayed. However, you can also switch the user account to
be used when the automatic login function is active.
1. Select the "Windows" icon in the toolbar to access the operating system of the
R&S FPL1000 (see also "To access the "Start" menu" on page 30).
2. Press [CTRL] + [ALT] + [DEL], then select "Sign out".
The "Login" dialog box is displayed, in which you can enter the different user
account name and password.
31Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Performing a Self-Alignment
Preparing for Use
4.12 Checking the Supplied Options
The instrument can be equipped with both hardware and firmware options. To
check whether the installed options correspond to the options indicated on the
delivery note, proceed as follows.
1. Press the [Setup] key.
2. Press the "System Config" softkey.
3. Switch to the "Versions + Options" tab in the "System Configuration" dialog.
A list with hardware and firmware information is displayed.
4. Check the availability of the hardware options as indicated in the delivery
note.
4.13 Performing a Self-Alignment
When strong temperature changes occur in the environment of the
R&S FPL1000, or after updating the firmware, you have to perform a self-alignment to align the data to a reference source.
Performing a self-alignment
Before performing this functional test, make sure that the instrument has reached
its operating temperature (for details, refer to the data sheet).
A message in the status bar ("Instrument warming up...") indicates that the operating temperature has not yet been reached.
Depending on the installation settings, an automatic self-alignment is performed
each time the instrument is switched on. A dialog is displayed indicating how
much warm-up time is still required before self-alignment can be performed.
1. Press the [Setup] key.
2. Press the "Alignment" softkey.
3. Select the "Start Self Alignment" button in the "Alignment" dialog box.
Once the system correction values have been calculated successfully, a message is displayed.
32Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
To display the alignment results again later
●
Press the [Setup] key.
●
Press the "Alignment" softkey.
Considerations for Test Setup
Preparing for Use
4.14 Considerations for Test Setup
Cable selection and electromagnetic interference (EMI)
Electromagnetic interference (EMI) can affect the measurement results.
To suppress electromagnetic radiation during operation:
●
Use high-quality shielded cables, for example, double-shielded RF and LAN
cables.
●
Always terminate open cable ends.
●
Ensure that connected external devices comply with EMC regulations.
Preventing electrostatic discharge (ESD)
Electrostatic discharge is most likely to occur when you connect or disconnect a
DUT.
► NOTICE! Risk of electrostatic discharge. Electrostatic discharge can damage
the electronic components of the R&S FPL1000 and the device under test
(DUT).
Ground yourself to prevent electrostatic discharge damage:
a) Use a wrist strap and cord to connect yourself to ground.
b) Use a conductive floor mat and heel strap combination.
Signal input and output levels
Information on signal levels is provided in the data sheet. Keep the signal levels
within the specified ranges to avoid damage to the R&S FPL1000 and connected
devices.
33Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Instrument Tour
Front Panel View
5 Instrument Tour
5.1 Front Panel View
This chapter describes the front panel, including all function keys and connectors.
5
3
4
2
1
Figure 5-1: Front panel view of R&S FPL1000
1 = Power key
2 = USB (2.0) connectors
3 = System keys
4 = Touchscreen
5 = Function keys
6 = Keypad
7 = Navigation controls
8 = RF input 50 Ω connector
9 = Internal generator output 50 Ω connector *)
6 7
9
8
*) requires Internal Generator option R&S FPL1-B9
5.1.1 Touchscreen
All measurement results are displayed on the screen on the front panel. Additionally, the screen display provides status and setting information and allows you to
switch between various measurement tasks. The screen is touch-sensitive, offer-
34Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Instrument Tour
Front Panel View
ing an alternative means of user interaction for quick and easy handling of the
instrument.
21
4
5
6
3
7
8
Figure 5-2: Touchscreen elements
1 = Toolbar with standard application functions, e.g. print, save/open file etc.
2 = Tabs for individual channel setups
3 = Softkeys for function access
4 = Channel Setup bar for firmware and measurement settings
5 = Window title bar with diagram-specific (trace) information
6 = Measurement results area
7 = Diagram footer with diagram-specific information, depending on application
8 = Instrument status bar with error messages and date/time display
Using touchscreen gestures, you can perform the following tasks (among others).
(See Chapter 6, "Trying Out the Instrument", on page 49)
●
Changing a setting
●
Changing the display
●
Changing the displayed result range in a diagram
●
Moving a marker
35Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
●
Zooming into a diagram
●
Selecting a new evaluation method
●
Scrolling through a result list or table
●
Saving or printing results and settings
To imitate a right-click by mouse using the touchscreen, for example to open a
context-sensitive menu for a specific item, press the screen for about 1 second.
For details on touchscreen gestures, see Chapter 7.4, "Touchscreen Gestures",
on page 84.
Instrument Tour
Front Panel View
5.1.2 Power Key
The [Power] key is located on the lower left corner of the front panel. It starts up
and shuts down the instrument.
See also "Connecting to power" on page 8 and Chapter 4.5, "Connecting to
Power", on page 21.
5.1.3 USB
The front panel provides two female USB connectors (USB-A, 2.0 standard) to
connect devices like a keyboard or a mouse. A memory stick can be connected to
store and reload instrument settings and measurement data.
The rear panel provides further USB connectors (standard 3.0), see Chap-
ter 5.2.8, "USB", on page 45.
5.1.4 System Keys
System keys set the instrument to a predefined state, change basic settings, and
provide print and display functions.
A detailed description of the corresponding functions is provided in the
R&S FPL1000 user manual.
36Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Table 5-1: System keys
System key Assigned functions
[Preset] Resets the instrument to the default state.
Instrument Tour
Front Panel View
[Setup]
[Mode] Manages channel setups
[Print] Provides configuration settings for the print function
[FILE] Provides save/recall functions for instrument settings and mea-
Provides basic instrument configuration functions, e.g.:
●
Reference frequency (external/internal)
●
Date, time, display configuration
●
LAN interface
●
Firmware update and enabling of options
●
Information about instrument configuration incl. firmware version and system error messages
●
Service support functions (self-test etc.)
●
Self-alignment (with spectrum analysis option)
surement results
Switches between the on-screen keyboard display:
●
At the top of the screen
●
At the bottom of the screen
●
Off
5.1.5 Function Keys
Function keys provide access to the most common measurement settings and
functions.
A detailed description of the corresponding functions is provided in the
R&S FPL1000 user manual.
Table 5-2: Function keys
Function key Assigned functions
[Freq] Sets the center frequency and the start and stop frequencies for
the frequency range under consideration. This key is also used to
set the frequency offset and the signal track function.
[Span] Sets the frequency span to be analyzed
[Ampt] Sets the reference level, the displayed dynamic range, the RF
attenuation and the unit for the level display
Sets the level offset and the input impedance
Activates the (optional) preamplifier
[BW] Sets the resolution bandwidth and the video bandwidth.
37Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Instrument Tour
Front Panel View
Function key Assigned functions
[Sweep] Sets the sweep time and the number of measurement points
Selects continuous measurement or single measurement
[Trace] Configures the graphical analysis of the measurement data
[Meas] Provides the measurement functions:
Measurement of multicarrier adjacent channel power (Ch Power
ACLR)
Carrier to noise spacing (C/N C/N0)
Occupied bandwidth (OBW)
Spectrum emission mask measurement (Spectrum Emission
Mask)
Spurious emissions (Spurious Emissions)
Measurement of time domain power (Time Domain Power)
Third-order intercept point (TOI)
AM modulation depth (AM Mod Depth)
[Meas Config] Used to configure measurements and data input and output
[Lines] Configures display lines and limit lines
[Mkr] Sets and positions the absolute and relative measurement mark-
ers (markers and delta markers)
Selects special marker functions
[Mkr->] Used for search functions of the measurement markers (maxi-
mum/minimum of the trace)
Assigns the marker frequency to the center frequency, and the
marker level to the reference level
Restricts the search area (Search Limits) and characterizes the
maximum points and minimum points (Peak Excursion)
[Trig] Sets the trigger mode, the trigger threshold, the trigger delay, and
the gate configuration for gated sweep
[Peak] Performs a peak search for active marker. If no marker is active,
normal marker 1 is activated and the peak search is performed
for it.
[Run Single] Starts and stops a single new measurement (Single Sweep
Mode)
[Run Cont] Starts and stops a continuous measurement (Continuous Sweep
Mode)
38Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Instrument Tour
Front Panel View
5.1.6 Keypad
The keypad is used to enter numeric parameters, including the corresponding
units. It contains the following keys:
Table 5-3: Keys on the keypad
Type of key Description
Decimal point Inserts a decimal point "." at the cursor position.
Sign key Changes the sign of a numeric parameter. For alphanumeric
parameters, inserts a "-" at the cursor position.
Unit keys
(GHz/-dBm MHz/dBm,
kHz/dB, Hz/dB etc.)
[ESC] Closes all kinds of dialog boxes, if the edit mode is not active.
(BACKSPACE)
[ENTER]
Adds the selected unit to the entered numeric value and complete the entry.
For level entries (e.g. in dB) or dimensionless values, all units
have the value "1" as multiplying factor. Thus, they have the
same function as an [ENTER] key.
Quits the edit mode, if the edit mode is active. In dialog boxes
that contain a "Cancel" button it activates that button.
For "Edit" dialog boxes the following mechanism is used:
●
If data entry has been started, it retains the original value
and closes the dialog box.
●
If data entry has not been started or has been completed, it
closes the dialog box.
If an alphanumeric entry has already been started, this key deletes the character to the left of the cursor.
●
Concludes the entry of dimensionless entries. The new value
is accepted.
●
With other entries, this key can be used instead of the
"Hz/dB" unit key.
●
In a dialog box, selects the default or focused element.
5.1.7 Navigation Controls
The navigation controls include a rotary knob and navigation keys. They allow
you to navigate within the display or within dialog boxes.
39Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Navigating in tables
The easiest way to navigate within tables (both in result tables and configuration tables) is to scroll through the entries with your finger on the touchscreen.
5.1.7.1 Rotary Knob
The rotary knob has several functions:
●
For numeric entries: increments (clockwise direction) or decrements (counterclockwise direction) the instrument parameter at a defined step width
●
In lists: toggles between entries
●
For markers, limit lines, and other graphical elements on the screen: moves
their position
Instrument Tour
Front Panel View
●
For active scroll bars: moves the scroll bar vertically
●
For dialog boxes: Acts like the [ENTER] key when pressed
5.1.7.2 Navigation Keys
The navigation keys can be used alternatively to the rotary knob to navigate
through dialog boxes, diagrams or tables.
Arrow Up/Arrow Down Keys
The <arrow up> or <arrow down> keys do the following:
●
For numeric entries: increments (arrow up) or decrements (arrow down) the
instrument parameter at a defined step width
●
In a list: scrolls forward and backward through the list entries
●
In a table: moves the selection bar vertically
●
In windows or dialog boxes with a vertical scroll bar: moves the scroll bar
Arrow Left/Arrow Right Keys
The <arrow left> or <arrow right> keys do the following:
●
In an alphanumeric edit dialog box, move the cursor.
●
In a list, scroll forward and backward through the list entries.
●
In a table, move the selection bar horizontally.
40Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
●
In windows or dialog boxes with horizontal scroll bar, move the scroll bar.
Instrument Tour
Rear Panel View
5.1.8 RF INPUT 50 Ω
Provides RF input from a connected device under test (DUT) to the
R&S FPL1000, which is then analyzed in an RF measurement. Connect the DUT
to the "RF Input" on the R&S FPL1000 via a cable equipped with an appropriate
connector. Do not overload the input. For maximum allowed values, see the data
sheet.
See also Chapter 4.14, "Considerations for Test Setup", on page 33.
5.1.9 GEN Output 50 Ω
Provides signal output from the (optional) internal generator (requires Internal
Generator option R&S FPL1-B9). Output levels range from -60 dBm to +10 dBm,
with a resolution of 0.1 dB. For details, see the data sheet.
5.2 Rear Panel View
This figure shows the rear panel view of the R&S FPL1000. The individual elements are described in more detail in the subsequent sections.
41Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Instrument Tour
Rear Panel View
1
16
4
9
Figure 5-3: Rear panel view
1+2 = Removable, rechargeable Li-Ion battery packs
3 = DC power connector
4 = AC power supply connection and main power switch with fuse
5 = GPIB (IEC 625) interface
6 = Reference clock connectors
7 = Trigger input connector
8 = "DVI" connector for external display
9 = "LAN" connector
10 = "USB" (3.0) connectors
11 = NRP power Sensor connector *)
12 = Headphones connector *)
13 = Aux. Port *)
14 = "IF/VIDEO OUT" connector *)
15 = NOISE SOURCE CONTROL *)
16 = Device ID with serial number and other labels
10
2
3
11
12
5
6
138
14 15
7
*) requires the "Additional Interfaces" option R&S FPL1-B5.
The meanings of the labels on the R&S FPL1000 are described in Chap-
ter 1.2, "Labels on R&S FPL1000", on page 11.
5.2.1 Li-Ion Battery Packs and DC Power Connector
With the Li-Ion battery pack (option R&S FPL1-B31), the R&S FPL1000 can be
operated independently of an AC or DC power supply. The instrument can house
2 Li-Ion battery packs which can be charged both via AC or DC power supply.
42Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Instrument Tour
Rear Panel View
For safety information concerning batteries, see "Handling batteries safely"
on page 10.
As an alternative, a DC power supply connector (option R&S FPL1-B30) is available. DC power supplies from +12 V to +24 V and from 13 A to 6.5 A can be used.
Connect the connector according to the following diagram:
1 2
3
Pin Description
1 Plus
2 Ground
3 Not used
If you use an external power supply unit to supply safety extra-low DC voltage
(SELV) to the instrument, be sure to meet the requirements for reinforced/double
insulation in accordance with DIN/EN/IEC 61010 (UL 3111, CSA C22.2 No.
1010.1) or DIN/EN/IEC 60950 (UL 1950, CSA C22.2 No. 950). Provide current
limitation in accordance with DIN EN 61010-1 Appendix F2.1.
Also see "Connecting to power" on page 8.
5.2.2 AC Power Supply Connection and Main Power Switch
An AC power supply connector and main power switch are located in a unit on
the rear panel of the instrument.
Main power switch function:
Position 1: The instrument is in operation.
Position O: The entire instrument is disconnected from the AC power supply.
For details, refer to "Connecting to power" on page 8 and Chapter 4.5, "Connect-
ing to Power", on page 21.
5.2.3 GPIB Interface
The optional GPIB interface (R&S FPL1-B10) is in compliance with IEEE488 and
SCPI. A computer for remote control can be connected via this interface. To set
up the connection, a shielded cable is recommended.
43Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Instrument Tour
Rear Panel View
For more details, refer to "Setting Up Remote Control" in the user manual.
5.2.4 Ref. In / Ref. Out
The Ref. In connectors are used to provide an external reference signal to the
R&S FPL1000.
The Ref. Out connectors can be used to provide a reference signal from the
R&S FPL1000 to other devices that are connected to this instrument.
Various connectors are provided for different reference signals:
Connector Reference signal Usage
Ref. In 10 MHz
10 dBm
Ref. Out 10 MHz
10 dBm
To provide an external reference signal on the
R&S FPL1000.
To provide the internal reference signal from the
R&S FPL1000 to another device continuously.
For the R&S FPL1000, this is also used to provide the optional OCXO reference signal to
another device.
5.2.5 Trigger In
Use the female Trigger In connector to input an external trigger or gate data.
Thus, you can control the measurement using an external signal. The voltage
level is 1.4 V. The typical input impedance is 10 kΩ.
5.2.6 DVI
You can connect an external monitor or other display device to the R&S FPL1000
via the DVI (Digital visual interface) connector to provide an enlarged display.
For details, see Chapter 4.9, "Connecting an External Monitor", on page 27.
5.2.7 LAN
The R&S FPL1000 is equipped with a network interface and can be connected to
an Ethernet LAN (local area network). The network card can be operated with a 1
GBit Ethernet IEEE 802.3u interface. Thus, a crossover cable is not necessary
(due to Auto-MDI(X) functionality).
44Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
The assignment of the RJ-45 connector supports twisted-pair category 5
UTP/STP cables in a star configuration (UTP stands for unshielded twisted pair,
and STP for shielded twisted pair).
Provided the network administrator has assigned you the appropriate rights and
adapted the Windows firewall configuration, you can use the interface, for example:
●
To transfer data between a controlling device and the test device, e.g. to run a
remote control program.
●
To access or control the measurement from a remote computer using the
"Remote Desktop" application (or a similar tool)
●
To connect external network devices (e.g. printers)
●
To transfer data from a remote computer and back, e.g. using network folders
For details, see the R&S FPL1000 user manual.
Instrument Tour
Rear Panel View
5.2.8 USB
The rear panel provides two additional female USB (3.0 standard) connectors to
connect devices like a keyboard, a mouse or a memory stick (see also Chap-
ter 5.2.8, "USB", on page 45).
5.2.9 Sensor Connector
The LEMOSA female connector is used to connect power sensors of the
R&S NRP-Zxy family. For a detailed list of supported sensors, see the data sheet.
For details on configuring and using power sensors, see the user manual.
This connector is provided by the "Additional Interfaces" option R&S FPL1B5.
5.2.10 Aux. Port
A 25-pole SUB-D male connector used as an input and output for low-voltage
TTL control signals (max. 5 V). This connector is provided by the "Additional
Interfaces" option R&S FPL1-B5.
45Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
13 1
Instrument Tour
Rear Panel View
25
14
Short-circuit hazard
Always observe the designated pin assignment. A short-circuit can damage
the port.
Table 5-4: Pin assignment for optional AUX port
Pin Signal Description
1 GND Ground
2
3 GND Ground
4
not used for spectrum analysis
not used for spectrum analysis
5 GND Ground
6
7 GND Ground
8 to 11
12 GND Ground
13 +5 V / max. 250 mA Supply voltage for external circuits
14 to 19 I/O_<no.> Control lines for user ports (see user manual)
20 GND Ground
21 READY FOR TRIG-
22 to 25
23 GND Ground
24 to 25
GER
not used for spectrum analysis
not used for spectrum analysis
Signal indicating that the instrument is ready to receive a
trigger signal.
The signal polarity is configurable.
(See the R&S FPL1000 user manual.)
not used for spectrum analysis
not used for spectrum analysis
46Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Instrument Tour
Rear Panel View
5.2.11 IF/Video Output
The female BNC connector can be used for various outputs in the Spectrum
application:
●
Intermediate frequency (IF) output of approximately 20 MHz
●
Video output (1V)
Which output is provided is defined in the software ("Overview" > "Output").
This connector is only available if the R&S FPL1-B5 option is installed.
For details, see the user manual.
5.2.12 Headphones Connector
The R&S FPL1000 provides demodulators for AM, FM and PM signals, which can
be routed to the headphone connector. With headphones or an external loudspeaker connected to the 3.5 mm headphone socket, the displayed signal can be
identified acoustically.
This connector is only available if the R&S FPL1-B5 option is installed.
Note the safety information provided in "Connecting headphones" on page 11.
For details, see the user manual.
5.2.13 Noise Source Control
The Noise Source Control female connector is used to provide the supply voltage
for an external noise source. For example, use it to measure the noise figure and
gain of amplifiers and frequency converting devices.
This connector is only available if the R&S FPL1-B5 option is installed.
Conventional noise sources require a voltage of +28 V to be switched on and 0 V
to be switched off. The output supports a maximum load of 100 mA.
5.2.14 Device ID
The unique device identifier is provided as a barcode sticker on the rear panel of
the R&S FPL1000.
47Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
It consists of the device order number and a serial number.
The serial ID is used to define the default instrument name, which is:
<Type><variant>-<serial_number>
For example, FPL1003-123456
The instrument name is required to establish a connection to the instrument
in a LAN.
Instrument Tour
Rear Panel View
48Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Measuring a Basic Signal
6 Trying Out the Instrument
This chapter introduces the most important functions and settings of the
R&S FPL1000 step by step. The complete description of the functionality and its
usage is given in the R&S FPL1000 User Manual. Basic instrument operation is
described in Chapter 7, "Operating the Instrument", on page 70.
Prerequisites
●
The instrument is set up, connected to the mains system, and started up as
described in Chapter 4, "Preparing for Use", on page 17.
For these first measurements, you use the internal calibration signal, so you do
not need any additional signal source or instruments. Try out the following:
● Measuring a Basic Signal................................................................................49
● Displaying a Spectrogram............................................................................... 51
● Activating Additional Measurement Channels.................................................53
● Performing Sequential Measurements............................................................58
● Setting and Moving a Marker.......................................................................... 59
● Displaying a Marker Peak List.........................................................................61
● Zooming into the Display.................................................................................62
● Saving Settings............................................................................................... 66
● Printing and Saving Results............................................................................ 68
6.1 Measuring a Basic Signal
We will start out by measuring a basic signal, using the internal calibration signal
as the input.
To display the internal 50 MHz calibration signal
1. Press the [Preset] key to start out in a defined instrument configuration.
2. Press the [Setup] key.
3. Tap the "Service + Support" softkey.
4. Tap the "Calibration Signal" tab.
5. Tap the "Calibration Frequency RF" option. Leave the frequency at the default
50 MHz.
49Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Measuring a Basic Signal
6. Close the dialog box.
The calibration signal is now sent to the RF input of the R&S FPL1000. By
default, a continuous frequency sweep is performed, so that the spectrum of
the calibration signal is now displayed in the standard level versus frequency
diagram.
Figure 6-1: Calibration signal as RF input
Instrument warmup time
Note that the instrument requires an initial warmup time after switching it
on. A message in the status bar ("Instrument warming up...") indicates that
the operating temperature has not yet been reached. Wait until this message is no longer displayed before you start a measurement to ensure
accurate results.
To optimize the display
To optimize the display for the calibration signal, we will adjust the main measurement settings.
1. Set the center frequency to the calibration frequency:
a) Tap the "Overview" softkey to display the configuration "Overview".
50Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
b) Tap the "Frequency" button.
c) In the "Center" field, enter 50 on the number pad on the front panel.
d) Press the "MHz" key next to the number pad.
2. Reduce the span to 20 MHz:
a) In the "Span" field of the "Frequency" dialog box, enter 20
b) Close the "Frequency" dialog box.
3. Average the trace to eliminate noise:
a) In the configuration "Overview", tap the "Analysis" button.
b) In the "Traces" tab, select the trace mode "Average".
c) Enter the "Average Count": 100.
d) Close the "Analysis" dialog box.
The display of the calibration signal is now improved. The maximum at the
center frequency (=calibration frequency) of 50 MHz becomes visible.
Trying Out the Instrument
Displaying a Spectrogram
MHz.
Figure 6-2: Calibration signal with optimized display settings
6.2 Displaying a Spectrogram
In addition to the standard "level versus frequency" spectrum display, the
R&S FPL1000 also provides a spectrogram display of the measured data. A
spectrogram shows how the spectral density of a signal varies over time. The xaxis shows the frequency, the y-axis shows the time. A third dimension, the power
level, is indicated by different colors. Thus you can see how the strength of the
signal varies over time for different frequencies.
1. Tap the "Overview" softkey to display the general configuration dialog box.
51Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Displaying a Spectrogram
2. Tap the "Display Config" button.
The SmartGrid mode is activated, and the evaluation bar with the available
evaluation methods is displayed.
3.
Drag the "Spectrogram" icon from the evaluation bar to the diagram area. The
blue area indicates that the new diagram would replace the previous spectrum
display. Since we do not want to replace the spectrum, drag the icon to the
lower half of the display to add an additional window instead.
Figure 6-3: Adding a Spectrogram to the display
Drop the icon.
4. Close the SmartGrid mode by tapping the "Close" icon at the top right corner
of the toolbar.
52Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Activating Additional Measurement Channels
5. Close the "Overview".
You see the spectrogram compared to the standard spectrum display. Since
the calibration signal does not change over time, the color of the frequency
levels does not change over time, i.e. vertically. The legend at the top of the
spectrogram window describes the power levels the colors represent.
Trying Out the Instrument
Figure 6-4: Spectrogram of the calibration signal
6.3 Activating Additional Measurement Channels
The R&S FPL1000 features multiple measurement channels, i.e. you can define
several measurement configurations in parallel and then switch between the
channel setups automatically to perform the measurements sequentially. We will
demonstrate this feature by activating additional measurement channels for a different frequency range, a zero span measurement, and an I/Q analysis.
To activate additional measurement channels
1. Press the [Mode] key on the front panel.
53Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Activating Additional Measurement Channels
2. On the "New Channel Setup" tab of the "Mode" dialog box, tap the "Spectrum"
button.
Figure 6-5: Adding a new measurement channel
3. Change the frequency range for this spectrum display:
In the "Frequency" dialog box, set the center frequency to 500 MHz and the
span to 1 GHz.
54Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Activating Additional Measurement Channels
Figure 6-6: Frequency spectrum of the calibration signal with a larger span
4. Repeat the previous steps to activate a third Spectrum window.
5. Change the frequency range for this spectrum display:
In the "Frequency" dialog box, set the center frequency to 50 MHz and tap
"Zero Span".
6. Increase the reference level so you can see the level of the calibration signal
at 1 dBm.
a) In the "Amplitude" dialog box, set the "Reference Level" value to +10
dBm.
As the calibration signal does not vary over time, the level versus time diagram displays a straight line.
55Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Activating Additional Measurement Channels
Figure 6-7: Time domain display of the calibration signal
7. Create a new measurement channel for I/Q analysis:
a) Press the [Mode] key.
b) Tap the "IQ Analyzer" button to activate a measurement channel for the I/Q
Analyzer application.
c) Tap the "Display Config" softkey to activate the SmartGrid mode.
56Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Activating Additional Measurement Channels
d) Drag the "Real/Imag (I/Q)" icon from the evaluation bar to the SmartGrid to
replace the default "Magnitude" display.
Figure 6-8: Inserting a Real/Imag diagram for I/Q analysis
e) Close the SmartGrid mode.
The "IQ Analyzer" measurement channel displays the real and imaginary signal parts in separate windows.
To display the MultiView tab
An overview of all active measurement channels is provided in the "MultiView"
tab. This tab is always displayed if more than one measurement channel is active
and cannot be closed.
► Tap the "MultiView" tab.
57Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Performing Sequential Measurements
Figure 6-9: The "MultiView" tab
6.4 Performing Sequential Measurements
Although only one measurement can be performed at any one time, the measurements configured in the active channel setups can be performed sequentially, that
means: one after the other, automatically, either once or continuously.
1. Tap the "Sequencer" icon in the toolbar.
2. Toggle the "Sequencer" softkey in the "Sequencer" menu to "On".
A continuous sequence is started, i.e. each channel setup measurement is
performed one after the other until the Sequencer is stopped.
58Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Setting and Moving a Marker

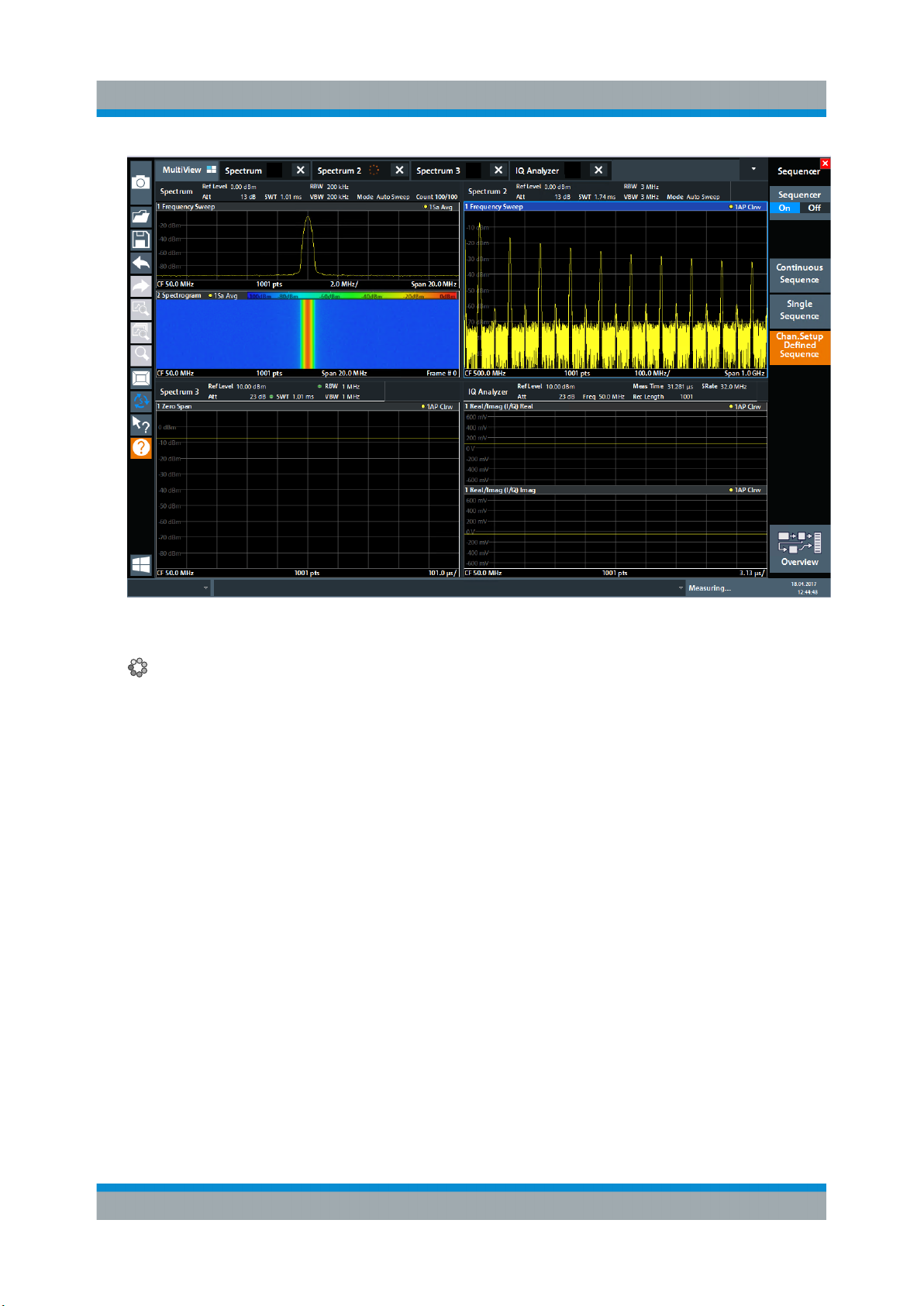

Figure 6-10: "MultiView" tab with active Sequencer
In Figure 6-10, the "Spectrum 2" measurement is currently active (indicated by
the "channel active" icon in the tab label).
3. Stop the Sequencer by tapping the "Sequencer" softkey again.

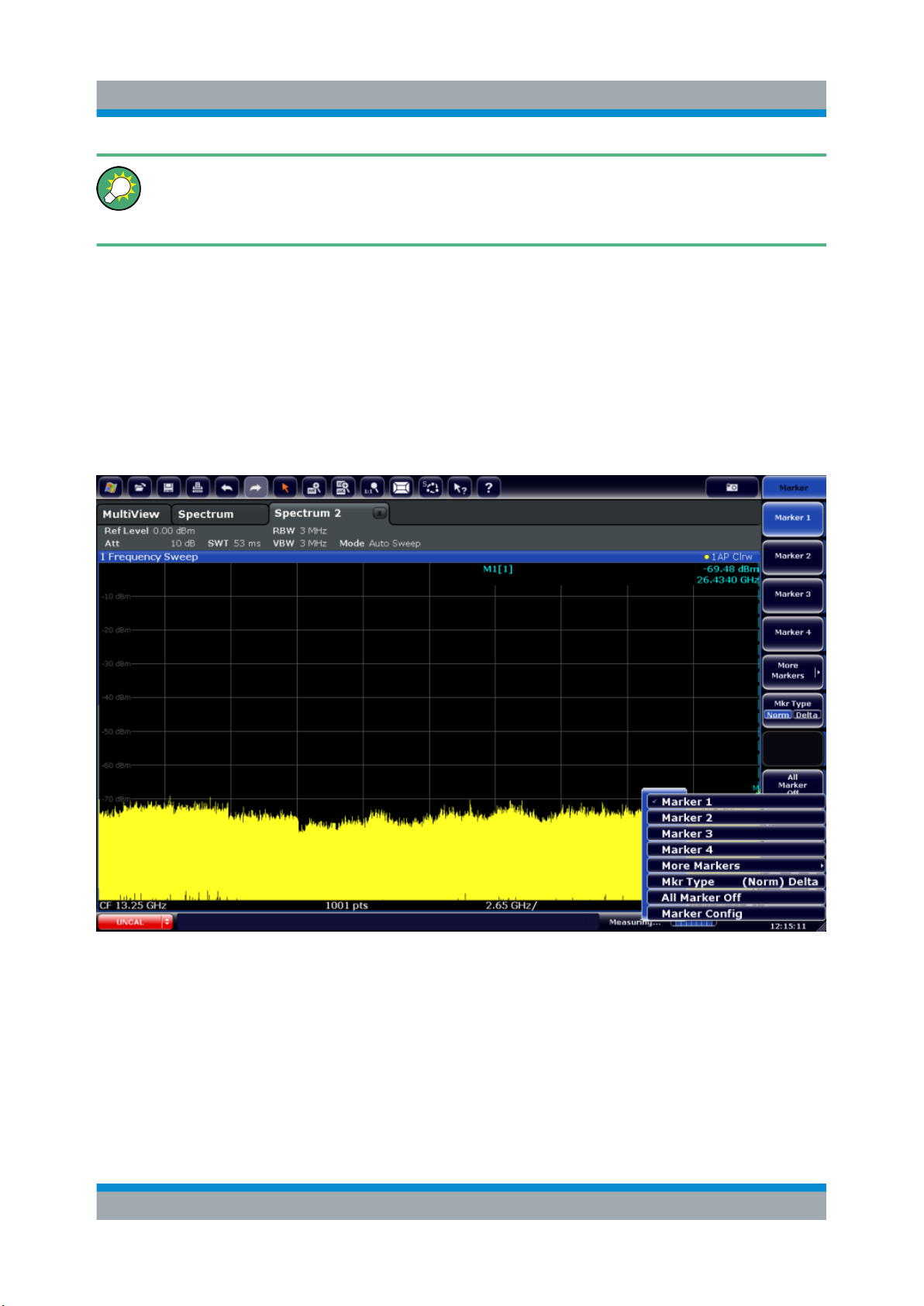

6.5 Setting and Moving a Marker
Markers are useful to determine the position of particular effects in the trace. The
most common use is to determine a peak, which is the default setting when you
activate a marker. We will set a marker on the peak in our first Spectrum measurement.
1. In the "MultiView" tab, double-tap the "Spectrum" window (frequency sweep
with spectrogram display) to return to the "Spectrum" measurement channel.
2. Tap the spectrum display to set the focus on that window.
59Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
3. Double-tap the spectrum window to maximize it, as we currently do not need
the spectrogram display.
4. Press the [Run Single] key on the front panel to perform a single sweep so we
have a fixed trace to set a marker on.
5. Press the [Mkr] key on the front panel to display the "Marker" menu.
Marker 1 is activated and automatically set to the maximum of trace 1. The
marker position and value is indicated in the diagram area as M1[1].
Trying Out the Instrument
Setting and Moving a Marker
6. Now you can move the marker by tapping and dragging it to a different position. The current position is indicated by a dotted blue line. Notice how the
position and value change in the marker area of the diagram.
60Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Displaying a Marker Peak List
6.6 Displaying a Marker Peak List
The marker peak list determines the frequencies and levels of peaks in the spectrum automatically. We will display a marker peak list for the "Spectrum 2" measurement channel.
1. Tap the "Spectrum 2" tab.
2. Press the [Run Single] key on the front panel to perform a single sweep for
which we will determine the peaks.
3. Tap the "SmartGrid" icon in the toolbar to activate SmartGrid mode.
4. Drag the "Marker Peak List" icon from the evaluation bar to the lower half of
the display to add a new window for the peak list.
5. Close the SmartGrid mode.
61Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
6. To obtain a more conclusive peak list that does not contain noise peaks, for
example, define a threshold that is higher than the noise floor:
a) Press the [Mkr] key on the front panel.
b) Tap the "Marker Config" softkey in the "Marker" menu.
c) Tap the "Search" tab in the "Marker" dialog box.
d) In the "Threshold" field, enter -68 dBm.
e) Tap the "State" box for "Threshold" to activate its use.
Only peaks that are larger than -90 dBm will be included in the peak list.
f) Close the "Marker" dialog box.
The marker peak list displays the determined peaks that are above the
defined threshold.
Trying Out the Instrument
Zooming into the Display
Figure 6-11: Marker Peak List
6.7 Zooming into the Display
To analyze the areas around the peak levels in more detail, we will zoom into the
top 3 peaks.
62Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Zooming into the Display
1. Tap the "Multiple Zoom" icon in the toolbar.
The icon is highlighted to indicate that multiple zoom mode is active.
2. Tap the diagram near the first peak and drag your finger to the opposite corner
of the zoom area. A white rectangle is displayed from the point where you tapped to the current position.
Figure 6-12: Defining the zoom area
When you remove your finger, the zoom area is enlarged in a second
(sub-)window.
Figure 6-13: Zoomed display around a peak
3. In Figure 6-14, the enlarged peak is represented by a very thick trace. This is
due to the insufficient number of sweep points. The missing sweep points for
the zoomed display are interpolated, which provides poor results. To optimize
63Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Zooming into the Display
the results, we will increase the number of sweep points from the default 1001
to 32001.
a) Press the [Sweep] key on the front panel.
b) Tap the "Sweep Config" softkey in the "Sweep" menu.
c) In the "Sweep Points" field, enter 32001.
d) Close the "Bandwidth" dialog box.
e) Press the [Run Single] key on the front panel to perform a new sweep with
the increased number of sweep points.
Figure 6-14: Zoomed peak with increased number of sweep points
Note that the trace becomes much more precise.
64Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Zooming into the Display
4. Tap the "Multiple Zoom" icon in the toolbar again and define a zoom area
around markers M2, M3 and M4.
Figure 6-15: Multiple zoom windows
5. Tap the "Multiple Zoom" icon in the toolbar again and define a zoom area
around marker M5.
6. To increase the size of the third zoom window, drag the "splitter" between the
windows to the left or right or up or down.
65Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Saving Settings
Figure 6-16: Enlarged zoom window
6.8 Saving Settings
To restore the results of our measurements later, we will store the instrument settings to a file.
To save the instrument settings to a file
1. Tap the "Save" icon in the toolbar.
2. Press the keyboard key on the front panel to display the online keyboard, as
you will have to enter text in the next step.
3. In the "Save" dialog box, tap the "File Name" field and enter MyMultiView-
Setup using the keyboard.
66Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Trying Out the Instrument
Saving Settings
Keep the default "File Type" setting "Instrument with all Channel Setups" to
store the configuration of all channel setups.
Figure 6-17: Saving the instrument settings to a file
4. Tap the "Save" button.
The file MyMultiViewSetup.dfl is stored in the default directory
C:\Users\Public\Documents\Rohde-Schwarz\Analyzer\Save.
To load stored instrument settings
You can restore the settings to the instrument at any time using the settings file.
1. Press the [Preset] button to restore the default instrument settings so you can
check that the stored user settings are actually restored afterwards.
67Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
2. Tap the "Load" icon in the toolbar.
3. In the "Load" dialog box, select the MyMultiViewSetup.dfl file in the
default directory
C:\Users\Public\Documents\Rohde-Schwarz\Analyzer\Save.
4. Tap the "Load" button.
All instrument settings are restored and the display should resemble the
instrument display right before the settings were stored.
Trying Out the Instrument
Printing and Saving Results
6.9 Printing and Saving Results
Finally, after a successful measurement, we will document our results. First we
will export the numeric trace data, then we will create a screenshot of the graphical display.
To export the trace data
1. Press the [Trace] key on the front panel.
2. Tap the "Trace Config" softkey.
3. Tap the "Trace / Data Export" tab.
4. Tap the "Export Trace to ASCII File" button.
5. Enter the file name MyMultiViewResults.
The trace data is stored to MyMultiViewResults.DAT
To create a screenshot of the display
1. Tap the "Print immediately" icon in the toolbar.
A screenshot of the current display is created. Note that the colors on the
screen are inverted in the screenshot to improve printout results.
68Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
2. In the "Save Hardcopy as" > "Portable Network Graphics (PNG)" dialog box,
enter a file name, e.g. MyMultiViewDisplay.
The screenshot is stored to MyMultiViewDisplay.png.
Trying Out the Instrument
Printing and Saving Results
69Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Understanding the Display Information - Spectrum Mode
Operating the Instrument
7 Operating the Instrument
This chapter provides an overview on how to work with the R&S FPL1000.
Remote control
In addition to working with the R&S FPL1000 interactively, located directly
at the instrument, it is also possible to operate and control it from a remote
PC. Various methods for remote control are supported:
●
Connecting the instrument to a (LAN) network
●
Using the LXI browser interface in a LAN network
●
Using the Windows Remote Desktop application in a LAN network
●
Connecting a PC via the GPIB interface
How to configure the remote control interfaces is described in the
R&S FPL1000 user manual.
● Understanding the Display Information - Spectrum Mode.............................. 70
● Accessing the Functionality.............................................................................79
● Entering Data.................................................................................................. 82
● Touchscreen Gestures.................................................................................... 84
● Getting Help.................................................................................................... 87
7.1 Understanding the Display Information - Spec-
trum Mode
The following figure shows a measurement diagram in Spectrum mode. All different information areas are labeled. They are explained in more detail in the following sections.
70Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Operating the Instrument
Understanding the Display Information - Spectrum Mode
1
2
4
5
6
3
1 = Channel bar for firmware and measurement settings
2+3 = Window title bar with diagram-specific (trace) information
4 = Diagram area with marker information
5 = Diagram footer with diagram-specific information, depending on measurement application
6 = Instrument status bar with error messages and date/time display
Hiding elements in the display
You can hide some of the elements in the display, for example the status
bar or channel bar, to enlarge the display area for the measurement results.
("Setup" > "Display" > "Displayed Items")
For details, see the R&S FPL1000 User Manual.
● Channel Setup Bar..........................................................................................72
● Window Title Bar............................................................................................. 75
● Marker Information.......................................................................................... 76
71Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Understanding the Display Information - Spectrum Mode
● Frequency and Span Information in Diagram Footer...................................... 77
● Instrument and Status Information.................................................................. 78
● Error Information............................................................................................. 78
Operating the Instrument
7.1.1 Channel Setup Bar
Using the R&S FPL1000 you can handle several different measurement tasks
(channels) at the same time (although they can only be performed asynchronously). For each channel, a separate tab is displayed on the screen. To switch
from one channel display to another, simply select the corresponding tab.
If many tabs are displayed, select the tab selection list icon at the right end of the
channel bar. Select the channel you want to switch to from the list.
MultiView tab
An additional tab labeled "MultiView" provides an overview of all active channels
at a glance. In the "MultiView" tab, each individual window contains its own channel bar with an additional button. Tap this button, or double-tap in any window, to
switch to the corresponding channel display quickly.
72Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Operating the Instrument
Understanding the Display Information - Spectrum Mode
Icons in the channel bar
The yellow star icon on the tab label (sometimes referred to as a "dirty flag")
indicates that invalid or inconsistent data is displayed, that is: the trace no longer
matches the displayed instrument settings. This can happen, for example, when
you change the measurement bandwidth, but the displayed trace is still based on
the old bandwidth. As soon as a new measurement is performed or the display is
updated, the icon disappears.
The icon indicates that an error or warning is available for that channel setup.
This is particularly useful if the MultiView tab is displayed.
The icon indicates the currently active channel during an automatic measurement sequence (Sequencer functionality).
Channel-specific settings
Beneath the channel name, information on channel-specific settings for the measurement is displayed in the channel bar. Channel information varies depending
on the active application.
In the Spectrum application, the R&S FPL1000 shows the following settings:
Table 7-1: Channel settings displayed in the channel bar in the Spectrum application
Ref Level Reference level
Att RF attenuation applied to input
Ref Offset Reference level offset
SWT Sweep time that has been set.
If the sweep time does not correspond to the value for automatic
coupling, a bullet is displayed in front of the field. The color of the
bullet turns red if the sweep time is set below the value for automatic coupling. In addition, the UNCAL flag is shown. In this case,
the sweep time must be increased.
For FFT sweeps, an estimated duration for data capture and pro-
cessing is indicated behind the sweep time in the channel bar.
RBW Resolution bandwidth that has been set.
If the bandwidth does not correspond to the value for automatic
coupling, a green bullet appears in front of the field.
VBW Video bandwidth that has been set.
If the bandwidth does not correspond to the value for automatic
coupling, a green bullet is displayed in front of the field.
73Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Operating the Instrument
Understanding the Display Information - Spectrum Mode
Compatible Compatible device mode (FSL, FSV, default; default not dis-
played)
Mode Indicates which sweep mode type is used:
●
"Auto FFT": automatically selected FFT sweep mode
●
"Auto sweep": automatically selected swept sweep mode
Icons for individual settings
A bullet next to the setting indicates that user-defined settings are used, not automatic settings. A green bullet indicates this setting is valid and the measurement
is correct. A red bullet indicates an invalid setting that does not provide useful
results.
Common settings
The channel bar above the diagram not only displays the channel-specific settings. It also displays information on instrument settings that affect the measurement results even though it is not immediately apparent from the display of the
measured values. This information is displayed in gray font and only when applicable for the current measurement, as opposed to the channel-specific settings
that are always displayed.
The following types of information are displayed, if applicable.
Table 7-2: Common settings displayed in the channel bar
SGL The sweep is set to single sweep mode.
Sweep Count The current signal count for measurement tasks that involve a specific number
of subsequent sweeps
(see "Sweep Count" setting in "Sweep Settings" in the User Manual)
TRG Trigger source
(for details see "Trigger settings" in the User Manual)
●
EXT: External
●
IFP: IF power (+trigger bandwidth)
●
PSE: Power sensor
●
TIM: Time
●
VID: Video
PA The preamplifier is activated.
74Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Operating the Instrument
Understanding the Display Information - Spectrum Mode
GAT The frequency sweep is controlled via the "TRIGGER INPUT" connector.
TDF The specified transducer factor is activated.
75 Ω The input impedance of the instrument is set to 75 Ω.
FRQ A frequency offset ≠ 0 Hz is set.
CWSource:
<level>
<"NOR" |
"APX">
/Trk.Gen
Internal generator in operation as independant CW source with specified level
(requires option R&S FPL1-B9).
Internal generator in operation as tracking generator (requires option
R&S FPL1-B9).
NOR: the measurements are normalized with the results of the internal generator calibration
APX (approximation): the measurements are normalized with the results of the
internal generator calibration; however, the measurement settings have been
changed since calibration
If neither label is displayed, no calibration has been performed yet or normalization is not active.
For details, see the "Internal Generator" section in the R&S FPL1000 User
Manual.
Changing the Channel Setup Name
The channel setups are labeled with their default name. If that name already
exists, a sequential number is added. You can change the name of the channel
setup by double-tapping the name in the channel bar and entering a new name.
7.1.2 Window Title Bar
Each channel in the R&S FPL1000 display can contain several windows. Each
window can display either a graph or a table as a result of the channel measurement. The window title bar indicates which type of evaluation is displayed.
Trace Information in Window Title Bar
Information on the displayed traces is indicated in the window title bar.
1 3 4 5
2
(1) Trace color
(2) Trace no.
Color of trace display in diagram
Trace number (1 to 6)
75Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Operating the Instrument
Understanding the Display Information - Spectrum Mode
(3) Detector
(4) Trace Mode
(5) Smoothing factor Smth Smoothing factor, if enabled.
AP AUTOPEAK detector
Pk MAX PEAK detector
Mi MIN PEAK detector
Sa SAMPLE detector
Av AVERAGE detector
Rm RMS detector
Clrw CLEAR/WRITE
Max MAX HOLD
Min MIN HOLD
Avg AVERAGE (Lin/Log/Pwr)
View VIEW
Selected detector:
Sweep mode:
7.1.3 Marker Information
Marker information is provided either in the diagram grid or in a separate marker
table, depending on the configuration.
Marker information in diagram grid
Within the diagram grid, the x-axis and y-axis positions of the last two markers or
delta markers that were set are displayed, if available, as well as their index. The
value in the square brackets after the index indicates the trace to which the
marker is assigned. (Example: M2[1] defines marker 2 on trace 1.) For more than
two markers, a separate marker table is displayed beneath the diagram by
default.
Marker information in marker table
In addition to the marker information displayed within the diagram grid, a separate
marker table may be displayed beneath the diagram. This table provides the following information for all active markers:
76Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Operating the Instrument
Understanding the Display Information - Spectrum Mode
"Type" Marker type: N (normal), D (delta), T (temporary, internal), PWR
(power sensor)
"Ref" Reference (for delta markers)
"Trc" Trace to which the marker is assigned
"X-value" X-value of the marker
"Y-Value" Y-value of the marker
"Function" Activated marker or measurement function
"Function Result" Result of the active marker or measurement function
The functions are indicated with the following abbreviations:
"FXD" Fixed reference marker
"Phase Noise" Phase noise measurement
"Signal Count" Signal count
"TRK" Signal tracking
"Noise Meas" Noise measurement
"MDepth" AM modulation depth
"TOI" Third order intercept measurement
7.1.4 Frequency and Span Information in Diagram Footer
The information in the diagram footer (beneath the diagram) depends on the current application, measurement, and result display.
For a default measurement in the Spectrum mode, the Diagram result display
contains the following information, for example:
Label Information
CF Center frequency
Span Frequency span (frequency domain display)
ms/ Time per division (time domain display)
Pts Number of sweep points or (rounded) number of currently displayed points
in zoom mode
77Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Understanding the Display Information - Spectrum Mode
Operating the Instrument
7.1.5 Instrument and Status Information
Global instrument settings and functions, the instrument status and any irregularities are indicated in the status bar beneath the diagram.
In the MultiView tab, the status bar always displays the information for the currently selected measurement.
The following information is displayed:
Instrument status
The instrument is configured for operation with an external reference.
Battery loading status
Date and time
The date and time settings of the instrument are displayed in the status bar.
7.1.6 Error Information
If errors or irregularities are detected, a keyword and an error message, if available, are displayed in the status bar.
Depending on the type of message, the status message is indicated in varying
colors.
78Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Operating the Instrument
Accessing the Functionality
Table 7-3: Status bar information - color coding
Color Type Description
Red Error An error occurred at the start or during a measurement, e.g. due to
missing data or wrong settings, so that the measurement cannot be
started or completed correctly.
Orange Warning An irregular situation occurred during measurement, e.g. the set-
tings no longer match the displayed results, or the connection to an
external device was interrupted temporarily.
Gray Information Information on the status of individual processing steps.
No color No errors No message displayed - normal operation.
Green Measurement
successful
Some applications visualize that the measurement was successful
by showing a message.
If any error information is available for a channel setup, an exclamation
mark is displayed next to the channel setup name ( ). This is particularly
useful when the MultiView tab is displayed, as the status bar in the MultiView tab always displays the information for the currently selected channel
setup only.
7.2 Accessing the Functionality
All tasks necessary to operate the instrument can be performed using this user
interface. Apart from instrument specific keys, all other keys that correspond to an
external keyboard (e.g. arrow keys, ENTER key) operate as specified by Microsoft.
For most tasks, there are at least 2 alternative methods to perform them:
●
Using the touchscreen
●
Using other elements provided by the front panel, e.g. the keypad, rotary
knob, or arrow and position keys.
The measurement and instrument functions and settings can be accessed by
selecting one of the following elements:
●
System and function keys on the front panel of the instrument
●
Softkeys on the touchscreen
●
Context menus for specific elements on the touchscreen
79Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Operating the Instrument
Accessing the Functionality
●
Icons on the tool bar in the touchscreen
●
Displayed setting on the touchscreen
7.2.1 Toolbar
Standard functions can be performed via the icons in the toolbar on the left side
of the screen.
You can hide the toolbar display, e.g. when using remote control, to enlarge
the display area for the measurement results ("Setup" > "Display" > "Displayed Items").
See the R&S FPL1000 User Manual.
7.2.2 Softkeys
Softkeys are virtual keys provided by the software. Thus, more functions can be
provided than those that can be accessed directly via the function keys on the
instrument. Softkeys are dynamic, i.e. depending on the selected function key, a
different list of softkeys is displayed on the right side of the screen.
A list of softkeys for a certain function key is also called a menu. Softkeys can
either perform a specific function or open a dialog box.
The "More" softkey indicates that the menu contains more softkeys than can be
displayed at once on the screen. When pressed, it displays the next set of softkeys.
Recognizing the softkey status by color
Color Meaning
Orange Associated dialog box is open
Blue Associated function is active; for toggle keys: currently active state
Gray Instrument function is temporarily not available due to a specific setting or
missing option
80Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
You can hide the softkey display, e.g. when using remote control, to enlarge
the display area for the measurement results ("Setup" > "Display" > "Displayed Items"). See the User Manual for details.
Operating the Instrument
Accessing the Functionality
7.2.3 Context Menus
Several items in the diagram area have context menus (for example markers,
traces or the channel bar). If you right-click on one of these items (or tap it for
about 1 second), a menu is displayed which contains the same functions as the
corresponding softkey. This is useful, for example, when the softkey display is
hidden.
7.2.4 On-screen Keyboard
The on-screen keyboard is an additional means of interacting with the instrument
without having to connect an external keyboard.
81Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
The on-screen keyboard display can be switched on and off as desired using the
"On-Screen Keyboard" function key beneath the screen.
When you press this key, the display switches between the following options:
●
Keyboard displayed at the top of the screen
Operating the Instrument
Entering Data
●
Keyboard displayed at the bottom of the screen
●
No keyboard displayed
You can use the TAB key on the on-screen keyboard to move the focus
from one field to another in dialog boxes.
7.3 Entering Data
Data can be entered in dialog boxes using one of the following methods:
●
Using the touchscreen, via the online keyboard
●
Using other elements provided by the front panel, e.g. the keypad, rotary
knob, or navigation keys
The rotary knob acts like the [ENTER] key when it is pressed.
●
Using a connected external keyboard
82Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Transparent dialog boxes
You can change the transparency of the dialog boxes to see the results in
the windows behind the dialog box. Thus, you can see the effects that the
changes you make to the settings have on the results immediately.
To change the transparency, select the transparency icon at the top of the
dialog box. A slider is displayed. To hide the slider, select the transparency
icon again.
(The title bar of the dialog box is always slightly transparent and is not
affected by the slider.)
Particularities in Windows dialog boxes
Operating the Instrument
Entering Data
In some cases, e.g. if you want to install a printer, original Windows dialog
boxes are used. In these dialog boxes, the rotary knob and function keys do
not work. Use the touchscreen instead.
Entering Numeric Parameters
If a field requires numeric input, the keypad provides only numbers.
1. Enter the parameter value using the keypad, or change the currently used
parameter value by using the rotary knob (small steps) or the [UP] or [DOWN]
keys (large steps).
2. After entering the numeric value via keypad, press the corresponding unit key.
The unit is added to the entry.
3. If the parameter does not require a unit, confirm the entered value by pressing
the [ENTER] key or any of the unit keys.
The editing line is highlighted to confirm the entry.
Entering Alphanumeric Parameters
If a field requires alphanumeric input, you can use the on-screen keyboard to
enter numbers and (special) characters (see Chapter 7.2.4, "On-screen Key-
board", on page 81).
83Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Correcting an entry
1. Using the arrow keys, move the cursor to the right of the entry you want to
delete.
2. Press the [Backspace] key.
The entry to the left of the cursor is deleted.
3. Enter your correction.
Completing the entry
► Press the [ENTER] key or the rotary knob.
Aborting the entry
► Press the [ESC] key.
The dialog box is closed without changing the settings.
Operating the Instrument
Touchscreen Gestures
7.4 Touchscreen Gestures
A touchscreen allows you to interact with the software using various finger gestures on the screen. The basic gestures supported by the software and most
applications are described here. Further actions using the same gestures may be
possible.
Note: Inappropriate tools or excessive force can damage the touchscreen.
For instructions on cleaning the screen, see "Cleaning the product" on page 9.
Tapping
Touch the screen quickly, usually on a specific element.
You can tap most elements on the screen; in particular, any elements you can
also click on with a mouse pointer.
84Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Operating the Instrument
Touchscreen Gestures
Figure 7-1: Tapping
Double-tapping
Tap the screen twice, in quick succession.
Double-tap a diagram or the window title bar to maximize a window in the display,
or to restore the original size.
Dragging
Move your finger from one position to another on
the display, keeping your finger on the display the whole time.
By dragging your finger over a table or diagram you can pan the displayed area of
the table or diagram to show results that were previously out of view.
Figure 7-2: Dragging
Pinching and spreading two fingers
Move two fingers together on the display (pinch) or
move two fingers apart on the display (spread).
When you pinch two fingers in the display, you decrease the size of the currently
displayed area, showing the surrounding areas previously out of view.
When you spread two fingers in the display, you increase the size of the currently
displayed area, showing more details.
85Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Operating the Instrument
Touchscreen Gestures
You can pinch or spread your fingers vertically, horizontally, or diagonally. The
direction in which you move your fingers determines which dimension of the display is changed.
Figure 7-3: Pinching
Figure 7-4: Spreading
Touch gestures in diagrams change measurement settings
When you change the display using touch gestures, the corresponding
measurement settings are adapted. This is different to selecting an area on
the screen in zoom mode, where merely the resolution of the displayed
trace points is changed temporarily (graphical zoom).
Mouse vs. touch actions
Any user interface elements that react to actions by a mouse pointer also react to
finger gestures on the screen, and vice versa. The following touch actions correspond to mouse actions:
86Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Operating the Instrument
Getting Help
Table 7-4: Correlation of mouse and touch actions
Mouse operation Touch operation
Click Tap
Double-click Double-tap
Click and hold Touch and hold
Right-click Touch, hold for 1 second and release
Drag-&-drop (= click and hold, then drag and
release)
n.a. (Change hardware settings) Spread and pinch two fingers
Mouse wheel to scroll up or down Swipe
Dragging scrollbars to scroll up or down, left or
right
In (graphical) Zoom mode only: dragging the
borders of the displayed rectangle to change
its size
Touch, then drag and release
Swipe
Touch, then drag and release
Example:
You can scroll through a long table in conventional mouse operation by clicking in
the table's scrollbar repeatedly. In touch operation, you would scroll through the
table by dragging the table up and down with your finger.
7.5 Getting Help
If any questions or problems concerning the R&S FPL1000 arise, an extensive
online help system is provided on the instrument and can be consulted at any
time. The help system is context-sensitive and provides information specifically
for the current operation or setting to be performed. In addition, general topics
provide an overview on complete tasks or function groups as well as background
information.
The online help can be opened at any time by selecting one of the "Help" icons
on the toolbar or by pressing the [F1] key on an external or the on-screen keyboard.
87Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
To call context-sensitive help
► To display the "Help" dialog box for the currently focused screen element, e.g.
a softkey or a setting in an opened dialog box, select the "Help" icon on the
toolbar.
The "Help" dialog box "View" tab is displayed. A topic containing information
about the focused screen element is displayed.
If no context-specific help topic is available, a more general topic or the "Content" tab is displayed.
For standard Windows dialog boxes (e.g. File Properties, Print dialog etc.),
no context-sensitive help is available.
Operating the Instrument
Getting Help
To display a help topic for a screen element not currently focused
1. Select the "Help pointer" icon on the toolbar.
The pointer changes its shape to a "?" and an arrow.
2. Select the screen element to change the focus.
A topic containing information about the selected (now focused) screen element is displayed.
88Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Collecting Information for Support
Customer Support
8 Customer Support
8.1 Collecting Information for Support
If problems occur, the instrument generates error messages which in most cases
will be sufficient for you to detect the cause of an error and find a remedy.
Error messages are described in the "Troubleshooting" section of the user manuals.
In addition, our customer support centers are there to assist you in solving any
problems that you may encounter with your R&S FPL1000. We will find solutions
more quickly and efficiently if you provide us with the information listed below.
●
Windows Event Log Files
Windows records important actions of applications and the operating system
in event logs. You can create event log files to summarize and save the existing event logs (see "To create Windows event log files" on page 90).
●
System Configuration: The "System Configuration" dialog box (in the
"Setup" menu) provides information on:
System Configuration: The "System Configuration" dialog box (in the "System Configuration" menu of the soft front panel) provides information on:
– Hardware Info: hardware assemblies
– Versions and Options: the status of all software and hardware options
installed on your instrument
– System Messages: messages on any errors that may have occurred
An .xml file with information on the system configuration ("Device Footprint")
can be created automatically (using the DIAGnostic:SERVice:SINFo command or as described in "To collect the support information" on page 90).
●
Error Log: The RSError.log file (in the
C:\ProgramData\Rohde-Schwarz\ZNL-FPL\log directory) contains a
chronological record of errors.
●
Support file: a *.zip file with important support information can be created
automatically (in the C:\ProgramData\Rohde-Schwarz\ZNL-FPL\user
directory). The *.zip file contains the system configuration information ("Device
Footprint"), the current eeprom data and a screenshot of the screen display.
89Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Collecting Information for Support
To collect the support information
1. Press the [Setup] key.
2. Select "Service" > "R&S Support" and then "Create R&S Support Information".
The file is stored as
C:\ProgramData\Rohde-Schwarz\ZNL-FPL\user\
<inst_model>_<serial-no>_<date_and_time>.zip
For example
C:\ProgramData\Rohde-Schwarz\ZNL-FPL\user\
FPL1003__20160803_145113.zip
To create Windows event log files
1. Select the "Windows Start Button" in the bottom left corner.
Customer Support
2. Enter Event Viewer and select "Enter".
3. Select and expand "Windows Logs" in the "Console Tree".
4. Right-click on each subsection and select "Save All Events As...".
90Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Customer Support
Contacting Customer Support
Figure 8-1: Event Viewer
5. Enter a file name and select "Save"
Collect the error information and attach it to an email in which you describe the
problem. Send the email to the customer support address for your region as listed
in Chapter 8.2, "Contacting Customer Support", on page 91.
8.2 Contacting Customer Support
Technical support – where and when you need it
For quick, expert help with any Rohde & Schwarz equipment, contact one of our
Customer Support Centers. A team of highly qualified engineers provides telephone support and works with you to find a solution to your query on any aspect
of the operation, programming or applications of Rohde & Schwarz equipment.
91Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Contacting Customer Support
Up-to-date information and upgrades
To keep your instrument up-to-date and to be informed about new application
notes related to your instrument, please send an e-mail to the Customer Support
Center stating your instrument and your wish. We will make sure that you get the
right information.
Europe, Africa, Middle East
Phone +49 89 4129 12345
customersupport@rohde-schwarz.com
North America
Phone 1-888-TEST-RSA (1-888-837-8772)
customer.support@rsa.rohde-schwarz.com
Customer Support
Latin America
Phone +1-410-910-7988
customersupport.la@rohde-schwarz.com
Asia/Pacific
Phone +65 65 13 04 88
customersupport.asia@rohde-schwarz.com
China
Phone +86-800-810-8228 / +86-400-650-5896
customersupport.china@rohde-schwarz.com
92Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Index
Index
Symbols
75 Ω (channel bar) ...................................75
A
Alphanumeric parameters ....................... 83
AP (trace information) ............................. 76
Application cards ..................................... 15
Application notes ..................................... 15
APX (channel bar) ................................... 75
Arrow keys ...............................................40
Att (channel setting) ................................ 73
Aux. Port
Connector ........................................... 45
AV (trace information) ..............................76
B
Brochures ................................................ 14
C
Calibration
Signal, as RF input ............................. 49
Calibration certificate ...............................15
Channel bar
Changing names .................................75
Information ..........................................72
Channel settings
Display .......................................... 72, 73
Channels
Switching ............................................ 72
Trying out ............................................53
CLRW (trace information) ........................76
CNT (marker functions) ........................... 77
Compatible mode (channel setting) .........74
Connector
AC power supply .................................43
Aux. Port ............................................. 45
Display Port ........................................ 44
DVI ......................................................44
GPIB interface .................................... 43
Headphones ....................................... 47
IF/VIDEO/DEMOD .............................. 47
LAN .....................................................44
Noise source control ........................... 47
Power sensor ......................................45
Ref. In ................................................. 44
Ref. Out .............................................. 44
RF Input 50Ω ...................................... 41
Trigger In .............................................44
USB .............................................. 36, 45
Context menus ........................................ 81
CWSource (channel setting) ................... 75
D
Data sheets ............................................. 14
Diagram area
Channel settings ................................. 73
Status display ..................................... 78
Trace information ................................75
Diagram footer .........................................77
Dialog boxes
Slider ...................................................83
Transparency ......................................83
Dirty flag
see Invalid data icon ........................... 73
Display
Information ..........................................70
Display Port
Connector ........................................... 44
DVI
Connector ........................................... 44
E
Entering data ........................................... 82
Error log ...................................................89
Error messages
see User Manual .................................78
Status bar ........................................... 78
Evaluation
Trying out ............................................51
EXT REF
Status message .................................. 78
Ext.Gen (channel bar) ............................. 75
External monitor
Connectors ......................................... 44
External reference
Status message .................................. 78
F
Firmware updates
see User Manual .................................17
Frq (channel bar) .....................................75
93Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Index
Function keys
Details - see user manual ................... 37
Overview .............................................37
FXD (marker functions) ........................... 77
G
GAT (channel bar) ................................... 75
Getting started .........................................13
GPIB interface
Configuring - see user manual ............43
Connector ........................................... 43
Graphical zoom ....................................... 86
H
Hardcopy
see Screenshots ................................. 68
Headphones
Connector ........................................... 47
Help ......................................................... 87
I
I/Q Analyzer
Trying out ............................................53
IF/VIDEO/DEMOD
Connector ........................................... 47
Instrument security procedures ............... 14
Invalid data
Icon ..................................................... 73
K
Key
DOWN ................................................ 40
LEFT ................................................... 40
Power ..................................................36
RIGHT .................................................40
UP .......................................................40
Keyboard
On-screen ........................................... 81
Keypad
Overview .............................................39
L
LAN
Connector ........................................... 44
Loading
Trying out ............................................67
M
Marker
Information ..........................................76
Marker table
Information ..........................................76
Markers
Trying out ............................................59
MAXH (trace information) ........................76
Measurement zoom .................................86
Menus
Context-sensitive ................................ 81
MI (trace information) .............................. 76
MINH (trace information) ......................... 76
MOD (marker functions) .......................... 77
Mode (channel setting) ............................74
MultiView
Status display ..................................... 78
Trying out ............................................57
N
Navigation
Controls .............................................. 40
in tables .............................................. 40
Navigation keys ....................................... 40
NCor (enhancement label) ...................... 75
NOI (marker functions) ............................ 77
Noise source control
Connector ........................................... 47
NOR (channel bar) .................................. 75
Numeric parameters ................................83
O
Offset (channel setting) ........................... 73
On-screen keyboard ..........................81, 83
Online help
Working with ....................................... 87
Operating system
service packs ...................................... 30
Optimizing
Calibration signal display .................... 50
P
Pa (channel bar) ......................................74
Parameters
Entering .............................................. 83
Peak list
Trying out ............................................61
PHN (marker functions) ...........................77
PK (trace information) ............................. 76
Power
Key ......................................................36
94Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Index
Power sensors
Configuring - see user manual ............45
Connector ........................................... 45
Using - see user manual .....................45
Power supply
Connector ........................................... 43
Printing
Trying out ............................................68
R
RBW (channel setting) ............................ 73
Rear panel
Overview .............................................41
Ref Level (channel setting) ......................73
Ref. In
Connector ........................................... 44
Ref. Out
Connector ........................................... 44
Release notes ......................................... 15
RF Input
Connector ........................................... 41
RM (trace information) .............................76
Rotary knob ............................................. 40
S
SA (trace information) ............................. 76
Safety instructions ................................... 14
Saving
Trying out ......................................66, 68
Screenshots
Trying out ............................................68
Search settings
Trying out ............................................61
Security procedures ................................ 14
Sequencer ............................................... 73
Trying out ............................................58
Service manual ........................................14
Service packs .......................................... 30
Sgl (channel bar) ..................................... 74
SmartGrid
Trying out ............................................51
Softkeys
Status ..................................................80
Spectrograms
Trying out ............................................51
Star (yellow)
see Invalid data icon ........................... 73
Status bar
Color coding ........................................79
Error messages .................................. 78
Status display .......................................... 78
Support ....................................................89
SWT (channel setting) .............................73
System
Keys ....................................................36
T
Tabs
MultiView ............................................ 72
Switching ............................................ 72
Tdf (channel bar) ..................................... 75
Technical support .................................... 89
TOI (marker functions) ............................ 77
Toolbar
Overview .............................................80
Touchscreen
Overview .............................................34
Trace information .....................................75
Detector type ...................................... 76
Trace number ......................................75
Window title bar .................................. 75
TRG (channel bar) ...................................74
Trigger In
Connector ........................................... 44
TRK (marker functions) ........................... 77
Trk.Gen (channel setting) ........................75
Troubleshooting
see User Manual .................................78
Trying out
Prerequisites .......................................49
U
USB
Connector ........................................... 45
Connectors ......................................... 36
V
VBW (channel setting) .............................73
Virus protection ....................................... 26
W
White papers ........................................... 15
Window title bar .......................................75
Windows
Access ................................................ 29
Dialog boxes ....................................... 83
Y
Yellow star
see Invalid data icon ........................... 73
95Getting Started 1323.1602.02 ─ 07
R&S®FPL1000
Z
Zoom
Graphical ............................................ 86
Measurement ......................................86
Zooming
Trying out ............................................62
Index
96Getting Started 1323.1602.02 ─ 07
