¸SMB100A Signal Generator
Data sheet
Version
01.01
July
2007
CONTENT
CONTENT ..................................................................................................................................................................................................2
Key features ...............................................................................................................................................................................................3
Specifications .............................................................................................................................................................................................4
RF characteristics ...................................................................................................................................................................................4
Frequency ...........................................................................................................................................................................................4
Frequency sweep ................................................................................................................................................................................4
Reference frequency ...........................................................................................................................................................................4
Level....................................................................................................................................................................................................5
Level sweep ........................................................................................................................................................................................7
Spectral purity .....................................................................................................................................................................................7
List mode.............................................................................................................................................................................................8
Analog modulation ..................................................................................................................................................................................9
Possible modulation types...................................................................................................................................................................9
Simultaneous modulation ....................................................................................................................................................................9
Amplitude modulation..........................................................................................................................................................................9
Frequency modulation.......................................................................................................................................................................10
Phase modulation..............................................................................................................................................................................11
Pulse modulation (R&S®SMB-K22 option) ........................................................................................................................................12
Input for external modulation signals.................................................................................................................................................12
Modulation sources...............................................................................................................................................................................12
Internal modulation generator ...........................................................................................................................................................12
Pulse generator (R&S®SMB-K23 option) ..........................................................................................................................................13
General data.............................................................................................................................................................................................14
Remote control......................................................................................................................................................................................14
Operating data ......................................................................................................................................................................................14
Ordering information.................................................................................................................................................................................15
License information ..................................................................................................................................................................................15
R&S®SMB100A Signal Generator Version 01.01, July 2007
2
Key features
Best signal quality in its class
• Low SSB phase noise of typ. –128 dBc (20 kHz carrier offset, 1 GHz carrier frequency, 1 Hz measurement bandwidth)
• Very low SSB phase noise even at low output frequencies (because a new DDS synthesizer is used from 9 kHz to
23.4375 MHz instead of a downconverter)
• Nonharmonics suppression of typ. –85 dBc (>10 kHz carrier offset, carrier frequency <1.5 GHz)
• Low wideband noise of typ. –152 dBc (>10 MHz carrier offset, 1 GHz carrier frequency, 1 Hz measurement bandwidth)
• Harmonics of typ. –30 dBc at the maximum specified output power of +18 dBm
… for high measurement accuracy in a wide variety of applications
Highest output power in its class
• Specified output power of +18 dBm over the wide frequency range of 1 MHz to 6 GHz
• Typical maximum level of +25 dBm (in overrange) over the entire frequency range up to 6 GHz
… provides power reserve to replace external amplifiers
On-site servicing as convenient alternative
• Flexible concept allows servicing to be done on site or by a Rohde & Schwarz service center
• Straightforward modular instrument design with only four exchangeable modules ensures short repair times
• Calibrated replacement modules make extensive calibration and adjustment tasks unnecessary
• Built-in selftest of modules supports troubleshooting
• Verification of level accuracy and automatic level correction with a connected power sensor of the R&S NRP family
… ensures low cost of ownership and maximum instrument availability
All-purpose RF source
• Wide frequency range from 9 kHz to 6 GHz covers the main frequency bands for RF applications
• Integrated frequency, level, and LF sweeps
• All important analog modulations with AM, FM/φM, and pulse modulation supported
• Internal LF generator provides sinewave signals up to 1 MHz as well as squarewave signals up to 20 kHz
• Intuitive user interface with graphical display of the signal flow facilitates operation
• Context-sensitive online help ensures efficient utilization of the instrument
… makes the R&S SMB100A the ideal signal source for a wide variety of applications
1
Ideal for production
• Short switchover times for frequency of typ. 1.6 ms and level of typ. 1.2 ms via remote control and <1 ms in the List mode allow
high throughput
• High level accuracy and repeatability are the basis of high production yield
• High output power of up to +25 dBm compensates level loss on the way to the DUT
• Wearfree electronic attenuator with overvoltage protection up to 6 GHz as standard ensures long service life even in the case of
heavy use in production
• Compact design with only two height units saves rack space
• Remote control via LAN, USB, and GPIB allows easy integration into the test system
… reduces production costs
Ready for aerospace and defense applications
• Optional pulse modulator offers excellent performance with typ. 90 dB on/off ratio and a rise/fall time of typ. 10 ns
• Flexible pulse generator with minimum pulse width of 20 ns allows the generation of various pulse signals
• Wide temperature range of 0 °C to +55 °C and maximum permissible operating altitude of 4600 m above sea level allow the
instrument to be used even under extreme conditions
• Low weight of only 5.3 kg for mobile applications
… expands the range of locations and applications for which the R&S SMB100A can be used
1
Available as of December 2007 via firmware update.
Version 01.01, July 2007 R&S®SMB100A Signal Generator
3
Specifications
Specifications apply under the following conditions:
30 minutes warm-up time at ambient temperature, specified environmental conditions met, calibration cycle adhered to, and total
calibration performed. Data designated ‘overrange’ or ‘underrange’ and data without tolerance limits is not binding.
RF characteristics
Frequency
Range
Resolution of setting 0.01 Hz
Resolution of synthesis f = 1 GHz 0.44 μHz
Setting time
Phase offset adjustable in 0.1° steps
Frequency sweep
Operating modes digital sweep in discrete steps
Sweep range full frequency range
Dwell time range 10 ms to 10 s
resolution 0.1 ms
R&S®SMB-B101 9 kHz to 1.1 GHz
R&S®SMB-B102 9 kHz to 2.2 GHz
R&S®SMB-B103 9 kHz to 3.2 GHz
®
R&S
SMB-B106 9 kHz to 6 GHz
to within <1 × 10−7 for f > 200 MHz or
<20 Hz for f ≤ 200 MHz
after IEC/IEEE bus delimiter <3 ms, typ. 1.6 ms
in ALC OFF mode (S&H) <7 ms
after trigger pulse in List mode <1 ms
automatic, step, single sweep,
external single, external step,
manual or external trigger,
linear or logarithmic spacing
linear full frequency range Step width
logarithmic 0.01 % to 100 % per step
Reference frequency
after 30 days of uninterrupted operation <1 × 10−6/year Aging
with R&S®SMB-B1 option <1 × 10
in temperature range 0 °C to 50 °C <2 × 10−6 Temperature effect
with R&S®SMB-B1 option <1 × 10
Warm-up time to nominal thermostat temperature (only
Output for internal reference signal
Input for external reference
with R&S®SMB-B1 option)
frequency (approx. sinewave) 10 MHz
level typ. 10 dBm
source impedance 50 Ω
frequency 10 MHz
maximum deviation 3 × 10−6
input level, recommended ≥0 dBm, ≤16 dBm
input impedance 50 Ω
≤10 min
−9
/day, <1 × 10−7/year
−7
R&S®SMB100A Signal Generator Version 01.01, July 2007
4
Level
The R&S®SMB100A has two different attenuator modes for level setting:
AUTO MODE: In this mode, the attenuator is switched automatically. The output level is specified over the full range from –120 dBm
to +13/18 dBm.
FIXED MODE: The level is set without switching the attenuator. The attenuator is fixed to the current setting. If ALC state is ON, level
changes are performed without interruption. The maximum attenuation range is limited. With higher attenuation, the spectral purity of
the output signal decreases.
Setting range –145 dBm to +30 dBm
Specified level range with
®
R&S
SMB-B101/102/103/106 frequency
option
1 MHz < f ≤ 6 GHz
200 kHz < f ≤ 1 MHz
–120 dBm to + 18 dBm (PEP)
–120 dBm to + 13 dBm (PEP)
2
Resolution 0.01 dB
Level uncertainty
ALC state ON, AUTO mode
temperature range 18 °C to 33 °C
200 kHz < f ≤ 3 GHz <0.5 dB
f > 3 GHz <0.9 dB
Additional uncertainty with ALC OFF, S&H This mode is only needed in case of pulse
<0.5 dB
modulation.
Output impedance VSWR in 50 Ω system 200 kHz < f ≤ 6 GHz <1.8
Setting time
after IEC/IEEE bus delimiter,
with GUI update stopped,
AUTO mode,
temperature range 18 °C to 33 °C,
to <0.1 dB deviation from final value
ALC state ON <2.5 ms, typ. 1.2 ms
ALC state OFF <7 ms
in List mode after trigger pulse <1 ms
FIXED mode, ALC state ON Uninterrupted level setting
setting range >20 dB
Reverse power (from ≥50 Ω source)
maximum permissible RF power in output
frequency range of RF path for f > 1 MHz
1 MHz < f ≤ 1 GHz 50 W
1 GHz < f ≤ 2 GHz 25 W
2 GHz < f ≤ 6 GHz 10 W
maximum permissible DC voltage 50 V
2
PEP = peak envelope power.
Version 01.01, July 2007 R&S®SMB100A Signal Generator
5
Measured maximum output power versus frequency
Measured level repeatability at 3 GHz, 5 dBm, ALC ON
R&S®SMB100A Signal Generator Version 01.01, July 2007
6
Level sweep
Digital sweep in discrete steps
operating modes
sweep range full level range
uninterrupted level sweep 0.01 dB to 20 dB
step width 0.01 dB to 20 dB per step
automatic, step, single sweep,
external single, external step,
manual or external trigger,
linear spacing
Spectral purity
f > 1 MHz; CW Harmonics
level ≤ 8 dBm <–30 dBc
Nonharmonics
Wideband noise attenuator mode AUTO
SSB phase noise
RMS jitter
Residual FM
Residual AM RMS value (0.03 kHz to 20 kHz) <0.02 %
CW, level >–10 dBm,
>10 kHz carrier offset
f ≤ 1500 MHz <–70 dBc (typ. < –85 dBc)
1500 MHz < f ≤ 3 GHz <–64 dBc (typ. < –79 dBc)
f > 3 GHz <–58 dBc (typ. < –73 dBc)
for level > 5 dBm,
>10 MHz carrier offset,
1 Hz measurement bandwidth, CW
20 kHz carrier offset, 1 Hz measurement
bandwidth, CW
f = 100 MHz <–141 dBc (typ. –147 dBc)
f = 1 GHz <–122 dBc (typ. –128 dBc)
f = 2 GHz <–116 dBc (typ. –122 dBc)
f = 3 GHz <–112 dBc (typ. –118 dBc)
f = 4 GHz <–110 dBc (typ. –116 dBc)
f = 6 GHz <–106 dBc (typ. –112 dBc)
carrier frequency (Cf) = 1 GHz, BW = 1 Hz
to 10 MHz,
with R&S
Cf = 1 GHz, BW = 1 Hz to 10 MHz typ. 3.9 ps (3.9 mUI)
Cf = 155 MHz, BW = 100 Hz to 1.5 MHz typ. 83 fs (12,9 µUI)
Cf = 622 MHz, BW = 1 kHz to 5 MHz typ. 63 fs (39,2 µUI)
Cf = 2.488 GHz, BW = 5 kHz to 15 MHz typ. 55 fs (137 µUI)
RMS value at f = 1 GHz
0.3 kHz to 3 kHz, weighted (ITU-T) <4 Hz
0.03 kHz to 23 kHz <10 Hz
®
SMB-B1 option
<–142 dBc (typ. –152 dBc)
typ. 1.1 ps (1.1 mUI)

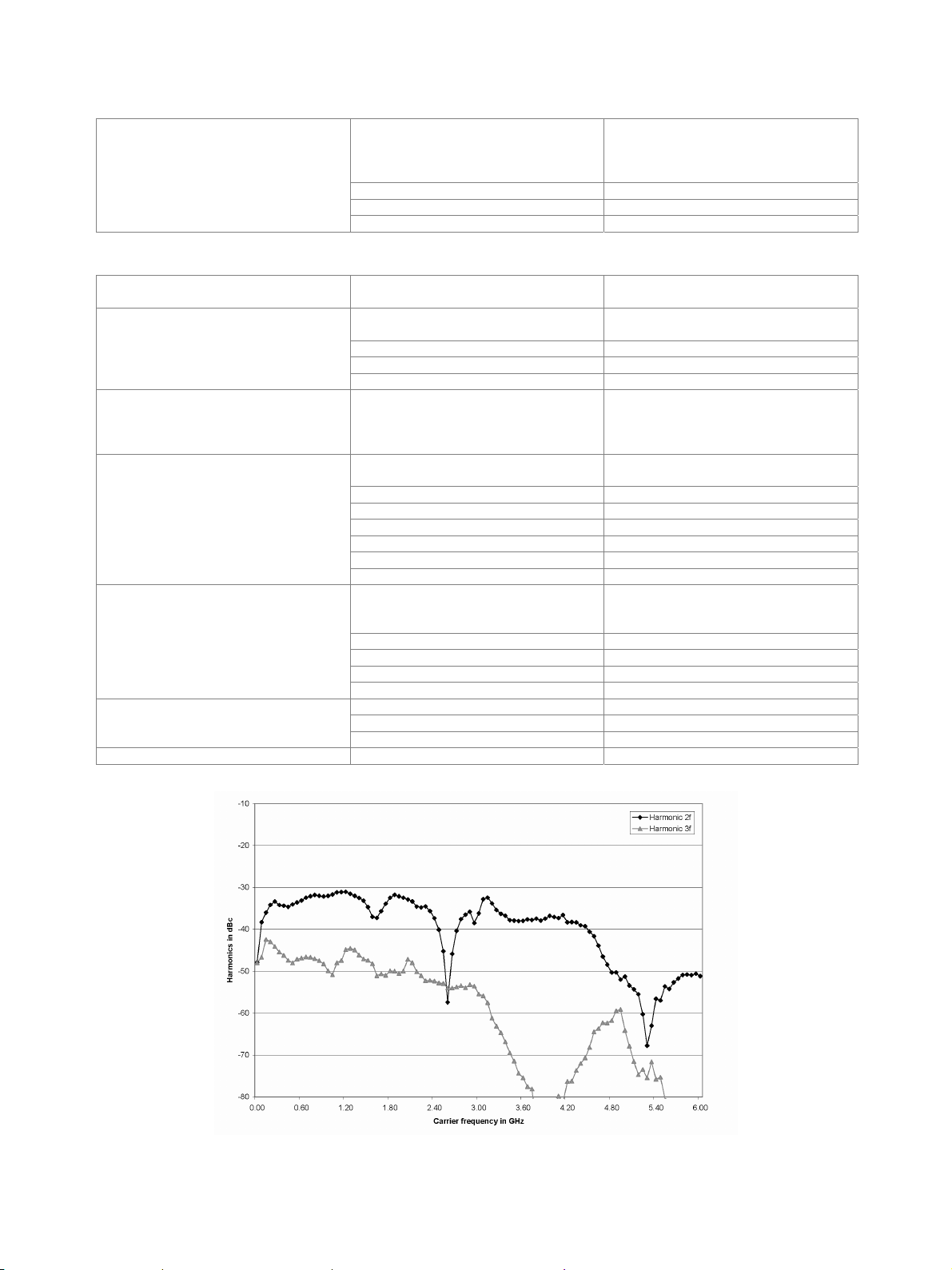

Measured harmonics at +18 dBm versus frequency
Version 01.01, July 2007 R&S®SMB100A Signal Generator
7

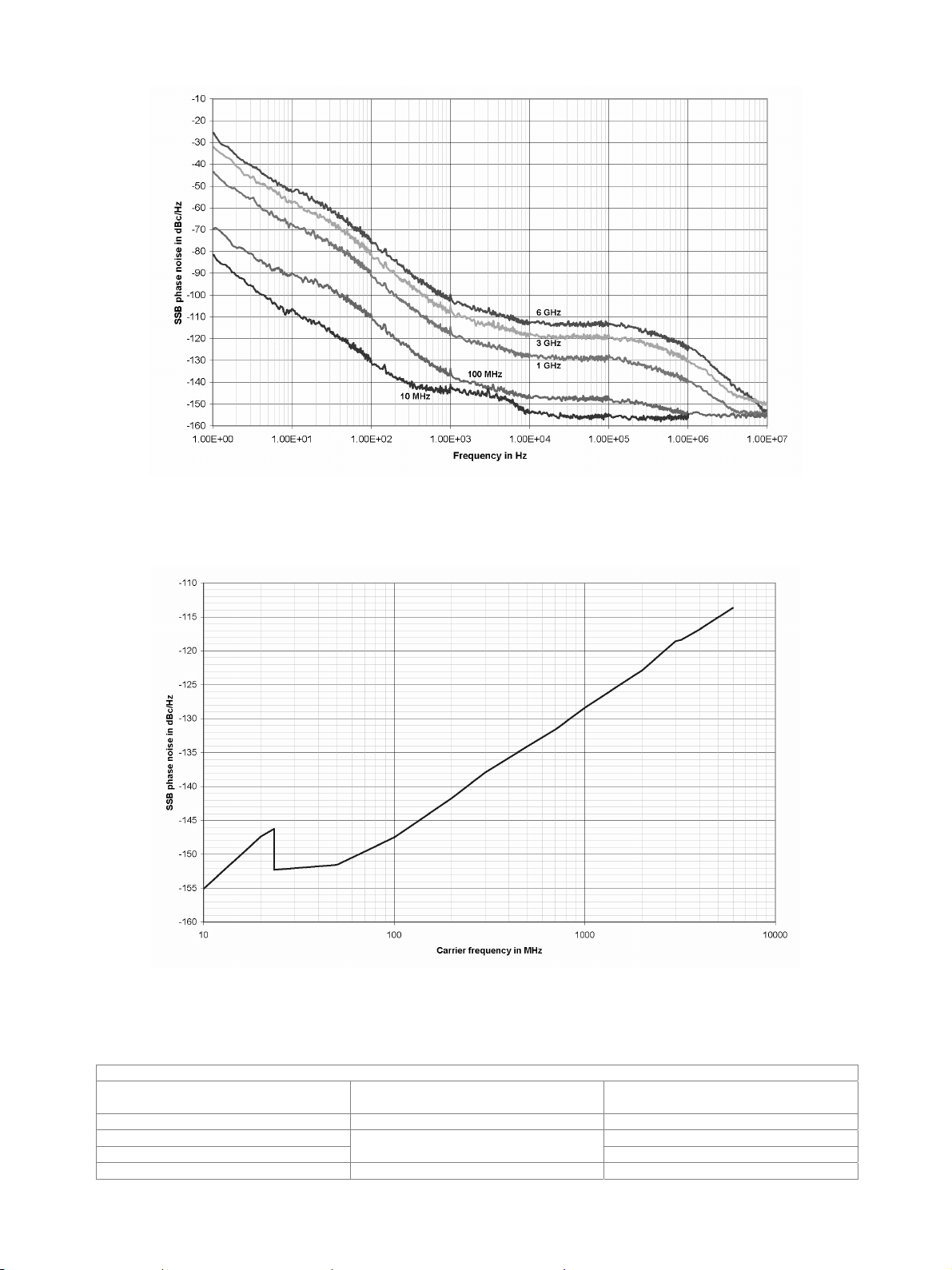

Typical SSB phase noise with internal OCXO (R&S
®
SMB-B1 option)
Typical SSB phase noise at 20 kHz offset versus frequency with internal OCXO (R&S
®
SMB-B1 option)
List mode
Frequency and level values can be stored in a list and set in an extremely short amount of time.
Operating modes automatic, single sweep, manual or
external trigger
Max. number of stored settings 2000
Dwell time 1 ms to 1 s
Resolution
Setting time after external trigger see frequency and level data
R&S®SMB100A Signal Generator Version 01.01, July 2007
8
0.1 ms
Analog modulation
Possible modulation types
Amplitude modulation, frequency modulation, phase modulation, pulse modulation
Simultaneous modulation
Amplitude modulation Frequency modulation Phase modulation Pulse modulation
Amplitude modulation + + (+)
Frequency modulation + – +
Phase modulation + – +
Pulse modulation (+) + +
+ = compatible, – = incompatible, (+) = compatible with limitations
Amplitude modulation
For f ≥ 100 kHz, attenuator mode AUTO, level (PEP) within specified level range.
Operating modes internal, external, internal + external,
AC/DC
Modulation depth At high levels, modulation is clipped when
0 % to 100 %
the maximum PEP is reached.
Resolution 0.1 %
f
Setting uncertainty
= 1 kHz and m <80 %
mod
f ≤ 23.4375 MHz <(1 % of reading + 1 %)
f > 23.4375 MHz <(4 % of reading + 1 %)
f
AM distortion
= 1 kHz, f ≤ 23.4375 MHz
mod
m = 30 % <0.25 %
m = 80 % <0.5 %
f
= 1 kHz, f > 23.4375 MHz
mod
m = 30 % < 1.5 %
m = 80 % < 3 %
Modulation frequency response m = 60 %, up to 50 kHz <3 dB
Synchronous φM at AM m = 30 %, f
= 1 kHz, ±peak/2 <0.2 rad
mod
Version 01.01, July 2007 R&S®SMB100A Signal Generator
9
Frequency modulation
FM multiplier for different frequency
ranges
Operating modes internal, external, internal + external,
Maximum deviation
Resolution < 0.02 % of set deviation
Setting uncertainty
FM distortion f
Modulation frequency response
Synchronous AM 40 kHz deviation, f
Carrier frequency offset with FM DC after FM offset calibration <0.2 % of set deviation
f ≤ 23.4375 MHz rm = 1/4
23.4375 MHz < f ≤ 46.875 MHz rm = 1/32
46.875 MHz < f ≤ 93.75 MHz rm = 1/16
93.75 MHz < f ≤ 187.5 MHz rm = 1/8
187.5 MHz < f ≤ 375 MHz rm = 1/4
375 MHz < f ≤ 750 MHz rm = 1/2
750 MHz < f ≤ 1500 MHz rm = 1
1500 MHz < f ≤ 3 GHz rm = 2
f > 3 GHz rm = 4
AC/DC
FM mode Low Noise
FM mode Normal
FM mode High Deviation
f ≤ 23.4375 MHz 1 MHz
f > 23.4375 MHz
FM mode Normal rm × 2 MHz
FM mode Low Noise rm × 1 MHz
FM mode High Deviation rm × 4 MHz
min. rm × 0.1 Hz
f
= 1 kHz, deviation ≤ rm x 1 MHz
mod
internal <(2 % of reading + 20 Hz)
external <(3 % of reading + 20 Hz)
= 2 kHz, deviation = rm × 1 MHz <0.2 %
mod
FM modes Low Noise and High Deviation
DC/10 Hz to 100 kHz <3 dB
FM mode Normal
DC/10 Hz to 500 kHz <3 dB
= 1 kHz, f > 10 MHz <0.2 %
mod
FM deviation versus frequency and operating mode
R&S®SMB100A Signal Generator Version 01.01, July 2007
10
Phase modulation
ϕM multiplier for different frequency
ranges
Operating modes internal, external, internal + external,
Maximum deviation
Resolution < 0.02 % of set deviation,
Setting uncertainty
Distortion f
Modulation frequency response
f ≤ 23.4375 MHz rm = 1/4
23.4375 MHz < f ≤ 46.875 MHz rm = 1/32
46.875 MHz < f ≤ 93.75 MHz rm = 1/16
93.75 MHz < f ≤ 187.5 MHz rm = 1/8
187.5 MHz < f ≤ 375 MHz rm = 1/4
375 MHz < f ≤ 750 MHz rm = 1/2
750 MHz < f ≤ 1500 MHz rm = 1
1500 MHz < f ≤ 3 GHz rm = 2
f > 3 GHz rm = 4
AC/DC
ϕM mode Low Noise
ϕM mode Normal
ϕM mode High Deviation
f ≤ 23.4375 MHz 2 rad
f > 23.4375MHz
ϕM mode Normal rm × 4 rad
ϕM mode Low Noise rm × 10 rad
ϕM mode High Deviation rm × 40 rad
min. rm × 20 µrad
f
= 1 kHz, deviation ≤ half of max.
mod
deviation
internal <(2 % of reading + 0.003 rad)
external <(3 % of reading + 0.003 rad)
= 10 kHz, half of max. deviation <0.2 %
mod
ϕM modes Low Noise and High Deviation
DC/10 Hz to 100 kHz <3 dB
ϕM mode Normal
DC/10 Hz to 500 kHz <3 dB

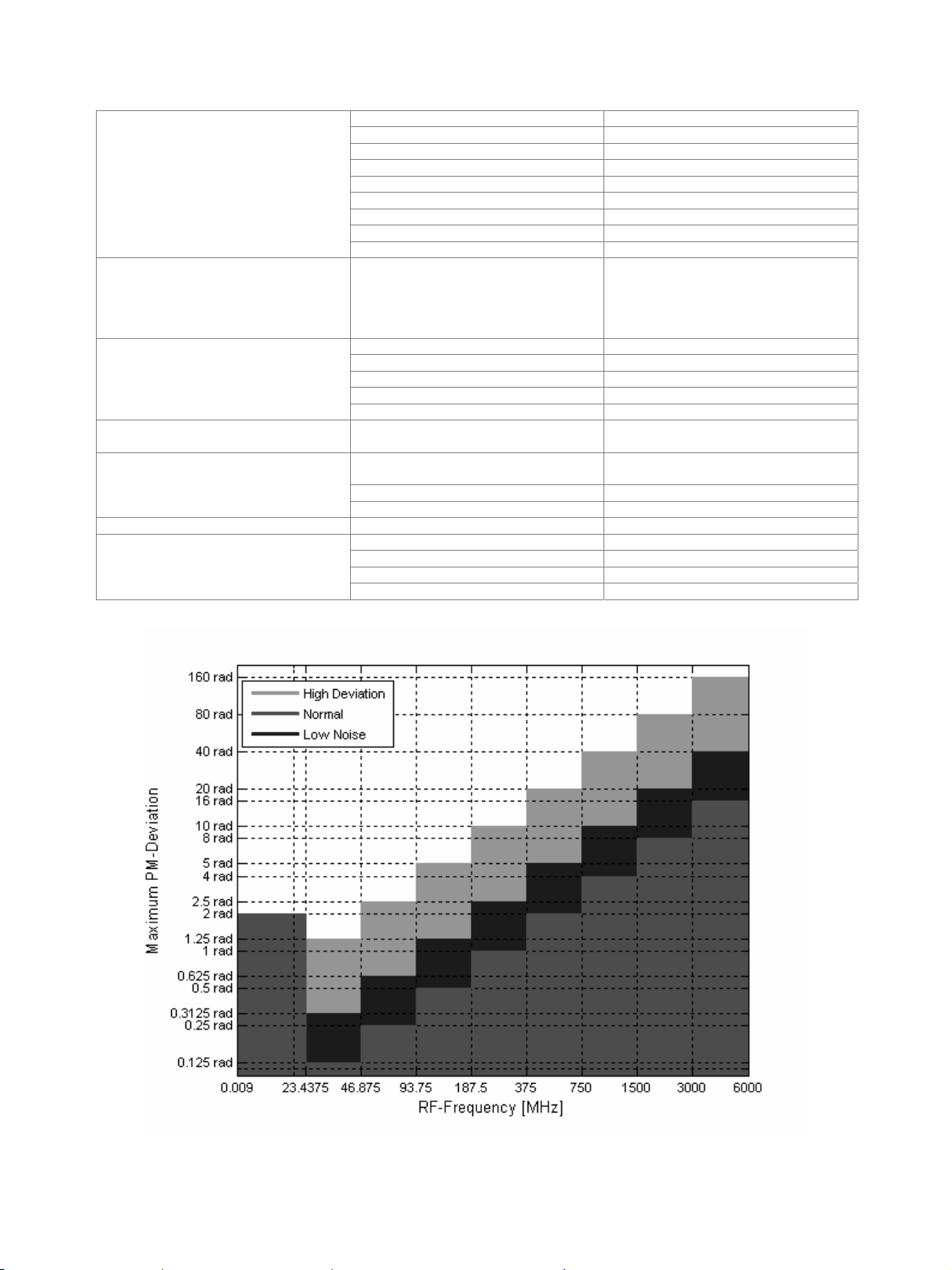

ϕ
M deviation versus frequency and operating mode
Version 01.01, July 2007 R&S®SMB100A Signal Generator
11
Pulse modulation (R&S®SMB-K22 option)
When pulse modulation is activated, the ALC state of the R&S®SMB100A is automatically changed to ALC OFF (Sample & Hold). In
this state, the ALC loop is opened and the output level is set directly. In order to set the correct output level, a sample & hold
measurement is performed after each frequency or level setting.
Operating modes external, internal
On/off ratio >80 dB
Rise/fall time 10 % to 90 % of RF amplitude <20 ns, typ. 10 ns
Pulse repetition frequency 0 Hz to 2.5 MHz
Video crosstalk spectral line of fundamental of 100 kHz
squarewave modulation
<–30 dBc
Input for external modulation signals
Modulation input EXT for AM/FM/ϕM
Modulation input PULSE
input impedance >100 kΩ
input sensitivity 1 V
(peak value for set modulation depth or
deviation)
input level threshold 1 V
input impedance >5 kΩ or 50 Ω
polarity selectable
Modulation sources
Internal modulation generator
Waveforms sine, square
Frequency range sine
Resolution of setting 0.1 Hz
Frequency accuracy <0.005 Hz + relative deviation of reference
Frequency response sine
Distortion sine
Output voltage
Output impedance 10 Ω
Frequency setting time to within <1 × 10–7, after IEC/IEEE bus
Sweep
square
0.1 Hz to 1 MHz
f < 100 kHz
at R
> 200 Ω, level (V
L
Vp at LF connector, open circuit voltage
EMF
resolution 1 mV
setting accuracy at 1 kHz <(1 % of reading + 1 mV)
delimiter
digital sweep in discrete steps
operating modes
sweep range full frequency range
step width (lin) full frequency range
step width (log) 0.01 % to 100 % per step
EMF
) < 1 V
0.1 Hz to 1 MHz
0.1 Hz to 20 kHz
frequency
<1 dB
<0.1 %
1 mV to 3 V
<5 ms
automatic, step, single sweep,
external single, external step,
manual or external trigger,
linear or logarithmic spacing
R&S®SMB100A Signal Generator Version 01.01, July 2007
12
Pulse generator (R&S®SMB-K23 option)
Operating modes automatic, external trigger, external gate,
single pulse, double pulse, delayed pulse
(external trigger)
Active trigger edge positive or negative
Pulse period 100 ns to 85 s
Resolution 20 ns
Pulse width The pulse width of double pulses can be
set independently.
Resolution 20 ns
Pulse delay 20 ns to 1 s
Resolution 20 ns
Double-pulse spacing 20 ns to 1 s
Resolution 20 ns
Uncertainty for pulse timing generated digitally; ensured by design relative deviation of reference frequency
External trigger
Delay typ. 50 ns
Jitter <10 ns
PULSE/VIDEO output LVTTL signal (RL ≥ 50 Ω)
20 ns to 1 s
Version 01.01, July 2007 R&S®SMB100A Signal Generator
13
General data
Remote control
Systems IEC/IEEE bus, IEC 60625 (IEEE 488)
Ethernet (TC/IP)
USB
Command set SCPI 1999.5
Connector
IEC 24-contact Amphenol
Ethernet Western
USB USB
IEC/IEEE bus address 0 to 30
Interface functions SH1, AH1, T6, L4, SR1, RL1, PP1, DC1, DT1, C0
LAN interface 10/100BaseT
Operating data
Power supply
Power factor correction in line with EN 61000-3-2
EMC in line with EN 55011 class B, EN 61326
Immunity to interfering field strength up to 10 V/m
Environmental conditions
Mechanical resistance
Electrical safety in line with IEC 61010-1, EN 61010-1,
Approvals VDE-GS,
Dimensions (W × H × D) 344 mm x 112 mm x 368 mm
Weight when fully equipped 5.3 kg (11.7 lb)
Recommended calibration interval 3 years
input voltage range, AC, nominal 100 V to 240 V (AC) ±10 %
AC supply frequency 50 Hz to 400 Hz, –5 %/+10 %
power consumption 250 VA
operating temperature range 0 °C to 55 °C
storage temperature range –40 °C to +71 °C
climatic resistance,
+40 °C/95 % rel. humidity
operating altitude up to 4600 m
vibration, sinusoidal 5 Hz to 150 Hz,
vibration, random 10 Hz to 300 Hz, acceleration 1.2 g (rms)
shock 40 g shock spectrum
in line with EN 60068-2-1, EN 60068-2-2
in line with EN 60068-2-3
max. 2 g at 55 Hz,
max. 0.5 g at 55 Hz to 150 Hz,
in line with EN 60068-2-6
in line with EN 60068-2-64
in line with EN 60068-2-27,
MIL-STD-810E
CAN/CSA-C22.2 No. 61010-1-04,
UL 61010-1
CSAUS
C
(13.54 in × 4.41 in × 14.49 in)
R&S®SMB100A Signal Generator Version 01.01, July 2007
14
Ordering information
Designation Type Order No.
Signal Generator3 R&S®SMB100A 1406.6000.02
Including power cable, Quick Start Guide, and CD-ROM (with operating and service manual)
Options
RF Path
9 kHz to 1.1 GHz R&S®SMB-B101 1407.2509.02
9 kHz to 2.2 GHz R&S®SMB-B102 1407.2609.02
9 kHz to 3.2 GHz R&S®SMB-B103 1407.2709.02
9 kHz to 6 GHz R&S®SMB-B106 1407.2909.02
Reference Oscillator OCXO R&S®SMB-B1 1407.3005.02
Pulse Modulator R&S®SMB-K22 1407.3770.02
Pulse Generator R&S®SMB-K23 1407.3786.02
Recommended extras
Hardcopy manuals (in English, UK) 1407.0806.32
Hardcopy manuals (in English, US) 1407.0806.39
19" Rack Adapter R&S®ZZA-S234 1109.4493.00
Power Sensor 9 kHz to 6 GHz R&S®NRP-Z92 1171.7005.42
Keyboard with USB Interface (US character set) R&S®PSL-Z2 1157.6870.04
Mouse with USB Interface, optical R&S®PSL-Z10 1157.7060.03
License information
The firmware of this device contains open source software. Details as well as license agreements can be found in release notes and
operating manual.
3
The base unit must be ordered together with an R&S®SMB-B101/R&S®SMB-B102/R&S®SMB-B103/R&S®SMB-B106 frequency option.
Version 01.01, July 2007 R&S®SMB100A Signal Generator
15
Certified Quality System
ISO 9001
DQS REG. NO 1954 QM
Certified Environmental System
ISO
14001
DQS REG. NO 1954 UM
For product brochure, see PD 5213.8396.12
and www.rohde-schwarz.com
(search term: SMB100A)
¸ is a registered trademark of Rohde & Schwarz GmbH & Co. KG · Trade names are trademarks of the owners · Printed in Germany (we)
PD 5213.8396.22 · Version 01.01 · July 2007 · ¸SMB100A · Data without tolerance limits is not binding · Subject to change
Europe: +49 1805 12 4242, customersupport@rohde-schwarz.com
www.rohde-schwarz.com
USA and Canada: +1-888-837-8772, customer.support@rsa.rohde-schwarz.com
Asia: +65 65 130 488, customersupport.asia@rohde-schwarz.com
Loading...
