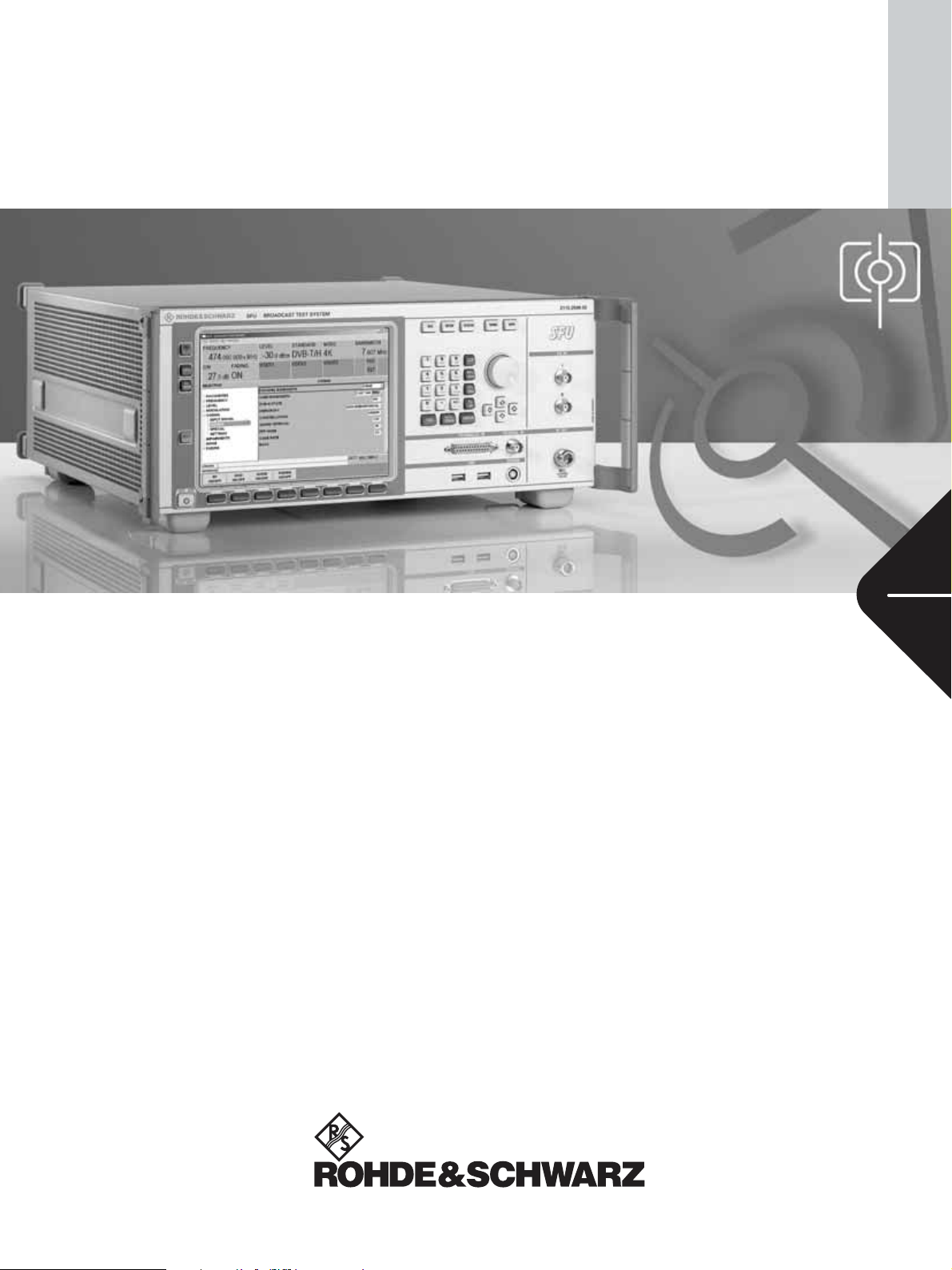

Rohde and Schwarz SFU Spec Sheet

Broadcast Test System ¸SFU
Specifications
Version
03.00
March
2005
Specifications
CONTENTS
INTRODUCTION...........................................................................................................................................................................................3
APPLICATION OVERVIEW..............................................................................................................................................................................3
KEY FEATURES............................................................................................................................................................................................4
General.................................................................................................................................................................................................4
Intuitive, fast and easy operation..........................................................................................................................................................4
Outstanding signal quality ....................................................................................................................................................................4
Unrivaled flexibility for research and development...............................................................................................................................4
Ideal for production...............................................................................................................................................................................4
Easy remote access.............................................................................................................................................................................4
RF CHARACTERISTICS.................................................................................................................................................................................5
Frequency.............................................................................................................................................................................................5
Frequency sweep.................................................................................................................................................................................5
Reference frequency............................................................................................................................................................................5
Level.....................................................................................................................................................................................................5
Spectral purity.......................................................................................................................................................................................6
High power and overvoltage protection (option R&S SFU-B90)..........................................................................................................6
I/Q MODULATION.........................................................................................................................................................................................7
I/Q modulator........................................................................................................................................................................................7
External wideband I/Q..........................................................................................................................................................................7
Internal baseband I/Q...........................................................................................................................................................................8
I/Q output..............................................................................................................................................................................................8
Extended I/Q (option R&S SFU-K80)...................................................................................................................................................8
MPEG-2 inputs.....................................................................................................................................................................................9
Internal test signals...............................................................................................................................................................................9
DIGITAL MODULATION SYSTEMS ...................................................................................................................................................................9
DVB-T/H (option R&S SFU-K1)............................................................................................................................................................9
DVB-C (option R&S SFU-K2).............................................................................................................................................................10
DVB-S (option R&S SFU-K3).............................................................................................................................................................10
DVB-S2 (option R&S SFU-K8) (see ordering information).................................................................................................................10
AMC (advanced modulation coding, option R&S SFU-K108)............................................................................................................11
DMB-T (TDS-OFDM, option R&S SFU-K7) (see ordering information).............................................................................................11
NOISE GENERATOR AWGN (OPTION R&S SFU-K40).................................................................................................................................11
PHASE NOISE (OPTION R&S SFU-K41)......................................................................................................................................................12
IMPULSIVE NOISE (OPTION R&S SFU-K42)................................................................................................................................................12
BER MEASUREMENTS (OPTION R&S SFU-K60).........................................................................................................................................12
FADING SIMULATOR (OPTION R&S SFU-B30) ............................................................................................................................................13
ENHANCED FADING (OPTION R&S SFU-K30) (SEE ORDERING INFORMATION)..............................................................................................14
TS GENERATOR (OPTION R&S SFU-K20)..................................................................................................................................................14
TS RECORDER (OPTION R&S SFU-K21)...................................................................................................................................................15
ARBITRARY WAVEFORM GENERATOR (OPTION R&S SFU-K35)...................................................................................................................15
TRIGGER INPUTS/OUTPUTS........................................................................................................................................................................16
Triggers and connections reserved for future use..............................................................................................................................16
GENERAL DATA.........................................................................................................................................................................................16
Systems data......................................................................................................................................................................................16
Operating data....................................................................................................................................................................................16
ORDERING INFORMATION.......................................................................................................................................................................17
2 Broadcast Test System R&S SFU Version 03.00, March 2005
Introduction
The Broadcast Test System R&S SFU has been designed as a platform for different applications and for future options. It combines several instruments in one cabinet of only four height units to offer unrivaled RF and baseband characteristics.
Due to its modular design, the R&S SFU can be optimally adapted to the requirements of different applications. It is an ideal research and development tool for making improvements to introduced standards and for generating new standard signals. Applications that previously required many different instruments are now fully covered by the R&S SFU. The modern, intuitive concept of the R&S SFU ensures fast and easy operation.
Application overview
Broadcast test transmitter with all important standards in one box Wide level range for transmitter and chip test applications Wide frequency range for limit tests RF generator and IF generator functionality Frequency steps of 0.1 Hz and uninterrupted level change for margin tests (PLL, AGC) Digital noise source for highly precise C/N, also for channel simulation Dynamic fading (channel) simulation for testing mobile and multipath reception, diversity simulations Internal transport stream generator and special test signals Internal transport stream recorder and player for recording and replaying data streams
TM
Internal arbitrary waveform generator together with R&S WinIQSIM User-definable signal impairments and signal modification for research and development Modifiable standard parameters for research and development Wear-free electronic attenuator for production BER measurement on PRBS as well as on MPEG-2 transport streams
software
Version 03.00, March 2005 Broadcast Test System R&S SFU 3
Key features
General
DTV multistandard platform Output frequency from 100 kHz to 3 GHz Support for internal interferer generation Fully digital baseband signal processing Upgradeability to multifunctional broadcast test system Easy installation of most options at customer site
Intuitive, fast and easy operation
Color display with 1024 × 768 pixels (XVGA format) Intuitive user interface with Windows XP Embedded Context-sensitive help system User-definable favorites for fast access
Outstanding signal quality
I/Q modulator with 180 MHz RF bandwidth Very low SSB phase noise of typ. –135 dBc at 1 GHz (20 kHz carrier offset, 1 Hz measurement bandwidth) High optional output power of up to +19 dBm (PEP), overrange +26 dBm High-stability reference oscillator as standard
Unrivaled flexibility for research and development
Multistandard platform that supports expansions Transmission simulations TS baseband generator and recorder with universal coder for realtime signal generation Arbitrary waveform generator with 64 Msample, supported by R&S WinIQSIM Internal hard disk as standard for storing waveforms and modulation data
TM
software
Ideal for production
Wear-free electronic attenuator of up to 3 GHz over the full level range Minimum space requirements: TS generator and test transmitter are accommodated in one instrument of only four height units
Easy remote access
Remote control via GPIB and LAN User-friendly remote access by VNC or Remote Desktop USB connectors
for keyboard, mouse and memory stick
4 Broadcast Test System R&S SFU Version 03.00, March 2005
Specifications
Specifications apply under the following conditions: 30 minutes warm-up time at ambient temperature, specified environmental conditions met, calibration cycle adhered to and all internal adjustments performed. Data designated "overrange" or "underrange" and data without tolerance limits is not binding.
RF characteristics
Frequency
Range
underrange
Accuracy depends on reference frequency Resolution of setting 0.1 Hz Resolution of synthesis standard, fundamental frequency range
750 MHz to 1500 MHz
Frequency sweep
Digital sweep in discrete steps operating modes
sweep range step width (lin) step width (log)
Reference frequency
Accuracy Aging after 30 days of uninterrupted operation Temperature effect in operating temperature range 0 °C to
Warm-up time to nominal thermostat temperature Input for external reference signal frequency (approx. sinewave)
Output for internal reference signal frequency (approx. sinewave)
+50 °C, standard
maximum deviation input level
limits recommended input impedance connector
level source impedance connector
300 kHz to 3 GHz 100 kHz to <300 kHz
5 µHz
automatic, single shot, manual or external trigger, linear or logarithmic full range full range
0.01% to 100%
–7
<1 ⋅ 10 <1 ⋅ 10
<6 ⋅ 10 10 min 5 MHz, 10 MHz or 13 MHz 3 ⋅ 10 –6 dBm to 19 dBm
0 dBm to 19 dBm 50 BNC female, rear 10 MHz or external input frequency
typ. 5 dBm, ±3 dB 50 BNC female, rear
–9
/day
–8
–6
Level
RF output connector
output impedance
Maximum level without option
with option R&S SFU-B90 (high power and overvoltage protection)
Setting range without option
with option R&S SFU-B90 (high power and overvoltage protection) resolution
Level accuracy attenuator mode "auto",
Additional uncertainty with ALC OFF, S&H (sample & hold)
Output impedance VSWR in 50 system
1
PEP = peak envelope power (CW), for other modulation types depending on crest factor.
Version 03.00, March 2005 Broadcast Test System R&S SFU 5
temperature range +18 °C to +33 °C
f 3 GHz / level –100 dBm (This function is needed only for some
special applications.) ALC state ON, standard
f 3 GHz ALC state ON, with option R&S SFU-B90
attenuator mode "normal"
attenuator mode "high power"
N female, front 50
+13 dBm (PEP)+19 dBm (PEP)
–120 dBm to +20 dBm –120 dBm to +30 dBm
0.1 dB
<0.5 dB <0.2 dB
<1.6, typ. <1.4
<1.8, typ. <1.6 <1.9, typ. <1.7
1
Uninterrupted level setting with attenuator mode fixed, ALC state ON
Back-feed (from ≥50 Ω source)
setting range maximum permissible RF power in output
frequency range of RF path maximum permissible DC voltage with option R&S SFU-B90 (high power and overvoltage protection)
maximum permissible RF power in
output frequency range of RF path
maximum permissible DC voltage
>20 dB 50 W for max. 5 ms, 0.5 W continuous
20 V
50 W 35 V
Spectral purity
Harmonics
Nonharmonics CW, vector modulation (full-scale input),
Subharmonics f > 1.5 GHz to 3.0 GHz <–74 dBc Wideband noise carrier offset > 5 MHz,
SSB phase noise carrier offset 20 kHz,
Residual FM rms value at f = 1 GHz
Residual AM rms value 20 Hz to 23 kHz at f = 1 GHz <0.02%
levels 8 dBm, CW levels 12 dBm with option R&S SFU-B90
attenuator mode "high power", CW
>10 kHz offset from carrier and outside the modulation spectrum
0.3 MHz f 200 MHz
200 MHz < f 1.5 GHz
1.5 GHz < f 3.0 GHz
>850 kHz offset from carrier and outside the modulation spectrum
0.3 MHz f 200 MHz
200 MHz < f 1.5 GHz
1.5 GHz < f 3.0 GHz
measurement bandwidth 1 Hz CW
20 MHz f 200 MHz
200 MHz < f 1.5 GHz
1.5 GHz < f 3 GHz
vector modulation with full-scale input
I/Q input gain +3 dB
20 MHz f 200 MHz
200 MHz < f 1.5 GHz
1.5 GHz < f 3 GHz
measurement bandwidth 1 Hz
20 MHz f 200 MHz
f = 1 GHz
f = 2 GHz
f = 3 GHz
300 Hz to 3 kHz
20 Hz to 23 kHz
<–30 dBc <–30 dBc
<–77 dBc <–80 dBc <–74 dBc
<–77 dBc <–86 dBc <–80 dBc
<–146 dBc <–150 dBc <–150 dBc
<–143 dBc <–146 dBc <–146 dBc
<–128 dBc <–131 dBc <–125 dBc <–121 dBc
<1 Hz <4 Hz
High power and overvoltage protection (option R&S SFU-B90)
Extends the output level and protects the instrument against externally applied RF power from a 50 source. Maximum level 19 dBm Maximum permissible RF power 50 W Maximum permissible DC voltage 35 V
6 Broadcast Test System R&S SFU Version 03.00, March 2005
