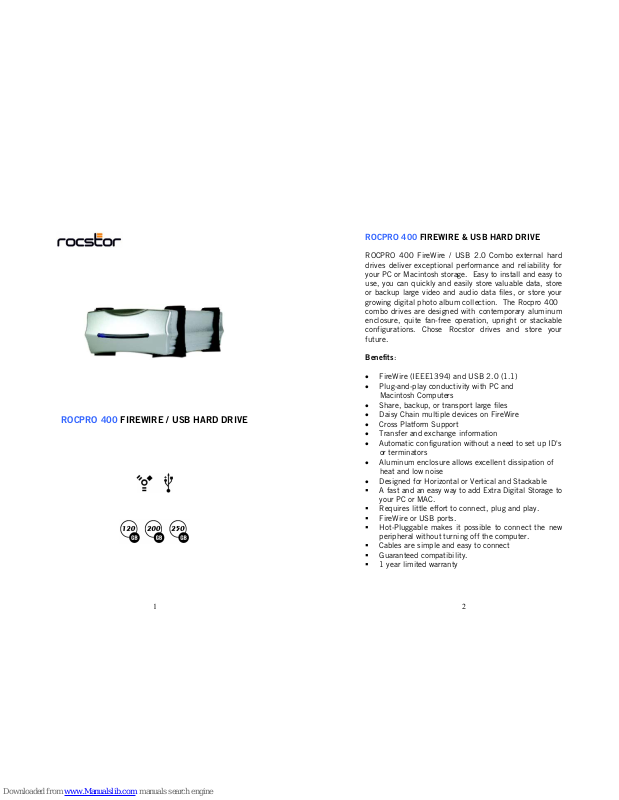

ROCPRO 400
FIREWIRE / USB HARD DRIVE
2
ROCPRO 400 FIREWIRE & USB HARD DRIVE
ROCPRO 400 FireWire / USB 2.0 Combo external hard
drives deliver exceptional performance and reliability for
your PC or Macintosh storage. Easy to install and easy to
use, you can quickly and easily store valuable data, store
or backup large video and audio data files, or store your
growing digital photo album collection. The Rocpro 400
combo drives are designed with contemporary aluminum
enclosure, quite fan-free operation, upright or stackable
configurations. Chose Rocstor drives and store your
future.
Benefits:
• FireWire (IEEE1394) and USB 2.0 (1.1)
• Plug-and-play conductivity with PC and
Macintosh Computers
• Share, backup, or transport large files
• Daisy Chain multiple devices on FireWire
• Cross Platform Support
• Transfer and exchange information
• Automatic configuration without a need to set up ID's
or terminators
• Aluminum enclosure allows excellent dissipation of
heat and low noise
• Designed for Horizontal or Vertical and Stackable
A fast and an easy way to add Extra Digital Storage to
your PC or MAC.
Requires little effort to connect, plug and play.
FireWire or USB ports.
Hot-Pluggable makes it possible to connect the new
peripheral without turning off the computer.
Cables are simple and easy to connect
Guaranteed compatibility.
1 year limited warranty
3
STORE YOUR FUTURE with unlimited applications for
your High-Performance Hard Drive
Store Massive amount of Audio and Video data such
as Digital music, Digital Pictures and Movies
Store thousands of Digital photos.
Store Digital music
Stores Digital Movies off of your computer
Store games
Use as Back up storage for your other drives
Unlimited storage of data with multiple FireWire /
USB external hard drives.
Secure your Hard Drive by locking it up in a safe
place.
Flexibility will also allow you to transfer files between
computers.
Dimensions
• 7.8 x 4.4 x 1.7 inch. (19.8 x 11.2 x 4.4 cm)
Interface (Oxford-911)
• FireWire/IEEE 1394 and USB2.0 (1.1 compatible)
Transfer Rate
• Up to 400 Mbps FireWire
• Up to 480 Mbps USB2.0
Connectors
• 6-pin FireWire, IEEE 1394 connector x 2
• 4-pin USB connector x 1
• Power On/Off switch x 1
Power Requirement
• External Universal AC Adapter 12VDC / 3A (included)
4
PACKAGE CONTAINS:
RocPro 400 FireWire / USB external hard drive
FireWire and USB Cable
AC adaptor and cable
Quick Install Manual
SYSTEMS REQUIREMENTS
Macintosh Users:
• Power Mac, iMac G3 and G4, eMac and G4/G5
Models with Built-in FireWire or USB Ports
• Minimum 64 MB RAM (128MB recommended)
• Apple System Software OS 9.1 or Higher
PC Users:
Pentium II 200Mhz or greater with built-in/optional
USB 2.0 or USB1.1 and IEEE 1394 / iLink
Interface or FireWire enabled Connection
Minimum 64 MB RAM (128 MB recommended)
Windows 98 SE (second edition) or higher Windows
2000, Me and XP
5
Hardware and Software installation for Apple Computers.
Note: Hard Drives are shipped pre-formatted with
Macintosh (HFS Plus) extended format, for testing
propose and should mount automatically on the desktop;
if it dose not mount for any reason, follow the instruction
according to your Operating System version.
Hardware and Software Installation for Mac OS 9.1 or
Higher
• Plug the FireWire or USB cable to the FireWire or
USB port on the drive and then plug the other end of
the FireWire or USB cable to the FireWire or USB
port at the back of the computer
• Turn On the drive; wait for this message window to
come up on the screen. “This disk is unreadable by
the computer “ and follow below
• Do you want to initialize the disk?
• Name: _________________
• Format: Mac OS Extended.
……….
• Name the hard drive and Select Mac Os Extended
Under Format Type,
• Click Initialize and Hard Drive Icon Will Appear on
the Desktop. Ready to be used.
Hardware and Software Installation for Mac OS X or later
• Plug the AC adaptor to the power port at the back of
the drive
• Plug the Fire wire (6 Pin to 6 Pin) cable to one of the
ports or USB cable to the USB port on the drive and
then plug the other end of the FireWire or USB cable
6
to the FireWire or USB port at the back of the
computer
• Turn On the drive and wait for a message window to
come up on the screen “You have inserted a disk
containing No volumes that Mac OS X can read”
• To use the unreadable volumes, Click initialize to
continue with the disk inserted click Ignore
• The Initialize Button located at the bottom of the
same window. To open disk utility
• Select the hard drive in the Volume Scheme.
• Click Erase in the Disk Utility, Select the format type
and click erase to initialize the Hard Drive
• The Hard Drive Icon will Appear on the desktop,
Ready to be used
Note:
There are several ways to un-mount your FireWire
external hard drive. You can drag the External Hard Drive
icon to the Trash, wait until the disk icon disappears
from the desktop, then disconnect or turn off the
FireWire external hard drive.
Or you may also click on the Hard Drive icon on your
desktop and press (Apple/command) “Y” on OS 9.1 to
9.2.2, for OS X use (Apple/Command) “E” to un-mount
