Rockwell Automation Library of Process Objects: Analog/Pulsed Control Valve (P_ValveC)

Version 3.5

IMPORTANT

This manual applies to the Rockwell Automation Library of Process Objects version 3.5 or earlier.

For Rockwell Automation Library of Process Objects version 5.0, see

• PROCES-RM200

For Rockwell Automation Library of Process Objects version 4.0 or later, use the following manuals:

• PROCES-RM013 contains logic instructions

• PROCES-RM014 contains display elements

Important User Information

Read this document and the documents listed in the additional resources section about installation, configuration, and operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.

Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be carried out by suitably trained personnel in accordance with applicable code of practice.

If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited.

Throughout this manual, when necessary, we use notes to make you aware of safety considerations.

WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss.

ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.

IMPORTANT

Identifies information that is critical for successful application and understanding of the product.

Labels may also be on or inside the equipment to provide specific precautions.

SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous voltage may be present.

BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may reach dangerous temperatures.

ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).

Allen-Bradley, Rockwell Software, and Rockwell Automation are trademarks of Rockwell Automation, Inc.

Trademarks not belonging to Rockwell Automation are property of their respective companies.

Preface Software Compatibility and Content Revision. . . . . . . . . . . . . . . . . . . . 5

Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Analog/Pulsed Control Valve (P_ValveC)

Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Required Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Controller File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Visualization Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Controller Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Analog/Pulsed Control Valve Input Structure . . . . . . . . . . . . . . . 13

Analog/Pulsed Control Valve Output Structure . . . . . . . . . . . . . 17

Analog/Pulsed Control Valve Local Configuration Tags . . . . . . 21

Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Execution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Programming Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Example 1: Manual Loading Station. . . . . . . . . . . . . . . . . . . . . . . . . 24

Example 2: Ratcheting Control Valve . . . . . . . . . . . . . . . . . . . . . . . 25

Display Elements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Status/Quality Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Mode Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Alarm Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Maintenance Bypass Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using Display Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Quick Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Faceplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Operator Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Maintenance Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Engineering Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Diagnostics Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Alarms Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Analog/Pulsed Control Valve Faceplate Help . . . . . . . . . . . . . . . . 54

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 3

Table of Contents

Notes:

4 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Preface

Software Compatibility and Content Revision

Additional Resources

Table 1 - Summary of Changes

Topic Page

Visualization Files: Global Objects (.ggfx) - Process Diagnostic Objects 11

P_ValveC Local Configuration Tags - Navigation Tag 21

For the latest compatible software information and to download the Rockwell Automation® Library of Process Objects, see the Product Compatibility and Download Center at

http://www.rockwellautomation.com/rockwellautomation/support/pcdc.page.

For general library considerations, see Rockwell Automation Library of Process Objects, publication

PROCES-RM002.

These documents contain additional information concerning related products from Rockwell Automation.

Resource Description

PlantPAx® Distributed Control System Selection Guide, publication

PlantPAx Distributed Control System Reference Manual, publication

Rockwell Automation Library of Process Objects, publication

FactoryTalk® View Machine Edition User Manual, publication

FactoryTalk View Site Edition User Manual, publication

Logix5000™ Controllers Add On Instructions Programming Manual, publication

Rockwell Automation Library of Process Objects Common Alarm Block (P_Alarm) Reference Manual, publication

Rockwell Automation Library of Process Objects: Interlocks with First Out and Bypass (P_Intlk) Reference Manual, publication

Rockwell Automation Library of Process Objects Common Mode Block (P_Mode) Reference Manual, publication

SYSLIB-RM005

PROCES-SG001

PROCES-RM001

PROCES-RM002

VIEWME-UM004

VIEWSE-UM006

1756-PM010

SYSLIB-RM002

SYSLIB-RM004

Provides information to assist with equipment procurement for your PlantPAx system.

Provides characterized recommendations for implementing your PlantPAx system.

Provides general considerations for the PlantPAx system library of process objects.

Provides details on how to use this software package for creating an automation application.

Provides details on how to use this software package for developing and running human-machine interface (HMI) applications that can involve multiple users and servers, distributed over a network.

Provides information for designing, configuring, and programming Add-On Instructions.

Details how to monitor an input condition to raise an alarm. Information includes acknowledging, resetting, inhibiting, and disabling an alarm.

Explains how to collect (sum up) the interlock conditions that stop or de-energize a running or energized piece of equipment or prevent it from starting or being energized.

Explains how to select the Mode (owner) of an instruction or control strategy. The Mode instruction is usually embedded within other instructions to extend their functionality. It is possible to use a standalone Mode instruction to enhance a program where modes are wanted.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 5

Preface

You can view or download publications at

http:/www.rockwellautomation.com/literature/. To order paper copies of

technical documentation, contact your local Allen-Bradley distributor or Rockwell Automation sales representative.

6 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC)

The P_ValveC (Analog/Pulsed Control Valve) Add-On Instruction manipulates a control valve by using an analog signal or discrete signals, and monitors the valve by using an analog position feedback. The global objects and following faceplate are examples of the graphical interface tools for this Add-On Instruction.

Global Objects

Faceplate

Add-On Instruction

Guidelines

Use this instruction in these situations:

• You want to use a control (modulating) valve where 0…100% is mapped to the percentage open.

• The valve requires an analog output (or analog value over a network) for the target position, or the valve requires a pair of discrete outputs (or discrete signals over a network) to tell it when to move toward fully closed and when to move toward fully open. The discrete outputs can be held (for a motor-operated control valve) or pulsed (for a ratcheting control valve).

• If you use discrete outputs, and optionally if you use the analog output, the valve provides an actual position feedback signal.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 7

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Do not use this instruction in these situations:

• You are using a single analog output control valve with a PID loop (the

P_PIDE Add-On Instruction or the PIDE built-in instruction). The CVEU signal can be used directly to drive the valve or you can use the P_AOut (Analog Output) Add-On Instruction.

• You are using a two-state valve, such as a motor-operated or solenoid-operated valve that is driven only fully open or fully closed and not used to control flow or pressure. Use the appropriate two-state valve instruction instead:

• P_ValveMO for motor operated valve (also for a dual solenoid operated

valve)

• P_ValveSO for a single solenoid operated valve

Functional Description

The P_ValveC Instruction provides the following capabilities:

• Program and operator entry of the target valve position (percentage of the valve opening).

• Ramping of the valve position to the entered target at a specified rate of change (percent per second).

• Scaling of the Position Feedback from the valve from raw (I/O card or network value) units to percent open.

• Monitoring of Interlock conditions. When an Interlock condition is not OK, the valve can be configured to hold its current position or shed to a configured Interlock position.

• Monitoring for I/O communication faults. When an I/O communication fault occurs, this instruction can be configured to alarm only, or to shed, either to hold the current position or go to the configured Interlock position.

• Provides alarms for Interlock trip, I/O fault, or an actuator-declared fault.

• Provides full-open and full-closed status based on user-specified ranges for

analog position feedback, or based on optional valve travel limit switches.

• Provides an ‘available’ status when the control valve instruction is in Program mode and the valve is capable of being controlled.

The diagram shows the functional characteristics of the P_ValveC Add-On Instruction.

8 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 9

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Required Files

Add-On Instructions are reusable code objects that contain encapsulated logic that can streamline implementing your system. This lets you create your own instruction set for programming logic as a supplement to the instruction set provided natively in the ControlLogix® firmware. An Add-On Instruction is defined once in each controller project, and can be instantiated multiple times in your application code as needed.

Controller File

The P_ValveC_3_5-00_AOI.L5X Add-On Instruction must be imported into the controller project to be used in the controller configuration. The service release number (boldfaced) can change as service revisions are created.

Visualization Files

This Add-On Instruction has associated visualization files that provide a common user interface. These files can be downloaded from the Product Compatibility and Download Center at

http://www.rockwellautomation.com/rockwellautomation/support/pcdc.page.

IMPORTANT

The visualization file dependencies require Process Library content imports to occur in a specific order as reflected in the following tables:

• Images

• Global Objects

• Standard Displays

• HMI Tags

• Macros

Images are external graphic files that can be used in displays. They must be imported for FactoryTalk View to make use of them.

When PNG files are imported, they are renamed by FactoryTalk View with a .bmp file extension, but retain a .png format.

Table 2 - Visualization Files: Images (.png)

FactoryTalk View SE Software FactoryTalk View ME Software Description

All .png files in the images folder All .png files in the images folder These are the common icons used in the global objects and

standard displays for all Process Objects.

The Global Object files (.ggfx file type) in the following table are Process Library display elements that are created once and referenced multiple times on multiple displays in an application. When changes are made to a Global Object, all instances in the application are automatically updated.

Table 3 - Visualization Files: Global Objects (.ggfx)

FactoryTalk View SE Software FactoryTalk View ME Software Description

(RA-BAS) Common Faceplate Objects (RA-BAS-ME) Common Faceplate Objects Global objects used on process object faceplates.

10 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Table 3 - Visualization Files: Global Objects (.ggfx)

FactoryTalk View SE Software FactoryTalk View ME Software Description

(RA-BAS) P_LLS Graphics Library (RA-BAS-ME) P_LLS Graphics Library P_LLS global object device symbols used to build

(RA-BAS) Process Alarm Objects (RA-BAS-ME) Process Alarm Objects Global objects used for managing alarms on process

(RA-BAS) Process Diagnostic Objects (RA-BAS-ME) Process Diagnostic Objects Diagnostic global objects used on process object

(RA-BAS) Process Faceplate Motor Objects (RA-BAS-ME) Process Faceplate Motor Objects Motor global objects used on process object faceplates.

(RA-BAS) Process Help Objects (RA-BAS-ME) Process Help Objects Global objects used for all process objects help displays.

(RA-BAS) Process Interlock Objects (RA-BAS-ME) Process Interlock Objects Global objects used for managing interlocks and

(RA-BAS) Process Mode Objects (RA-BAS-ME) Process Mode Objects Global objects used for managing modes on process

process graphics.

object faceplates.

faceplates.

permissives on process object faceplates.

object faceplates.

The Standard Display files (.gfx file type) in the following table are the Process Library displays that you see at runtime.

Table 4 - Visualization Files: Standard Displays (.gfx)

FactoryTalk View SE Software FactoryTalk View ME Software Description

(RA-BAS) Common-AnalogEdit N/A Faceplate used for analog input data entry. The FactoryTalk

(RA-BAS) P_Alarm-Faceplate (RA-BAS-ME) P_Alarm-Faceplate The faceplate that is used for managing alarms for

(RA-BAS) P_Alarm-Help (RA-BAS-ME) P_Alarm-Help Alarm Help information that is accessed from the

(RA-BAS) P_LLS-Faceplate (RA-BAS-ME) P_LLS-Faceplate The faceplate that is used for the object

(RA-BAS) P_LLS-Quick (RA-BAS-ME) P_LLS-Quick The Quick display that is used for the object

(RA-BAS) P_Mode-Config (RA-BAS-ME) P_Mode-Config The Configuration Display used to configure the

(RA-BAS) Process Motor Family-Help (RA-BAS-ME) Process Motor Family-Help The Help display for Motor objects

(RA-BAS) P_Intlk-Faceplate (RA-BAS-ME) P_Intlk-Faceplate Optional

(RA-BAS) P_Perm-Faceplate (RA-BAS-ME) P_Perm-Faceplate Optional

(RA-BAS) Process Interlock Family-Help (RA-BAS-ME) Process Interlock Family-Help Optional

View ME faceplates use the native analog input data entry so no file is required.

the object.

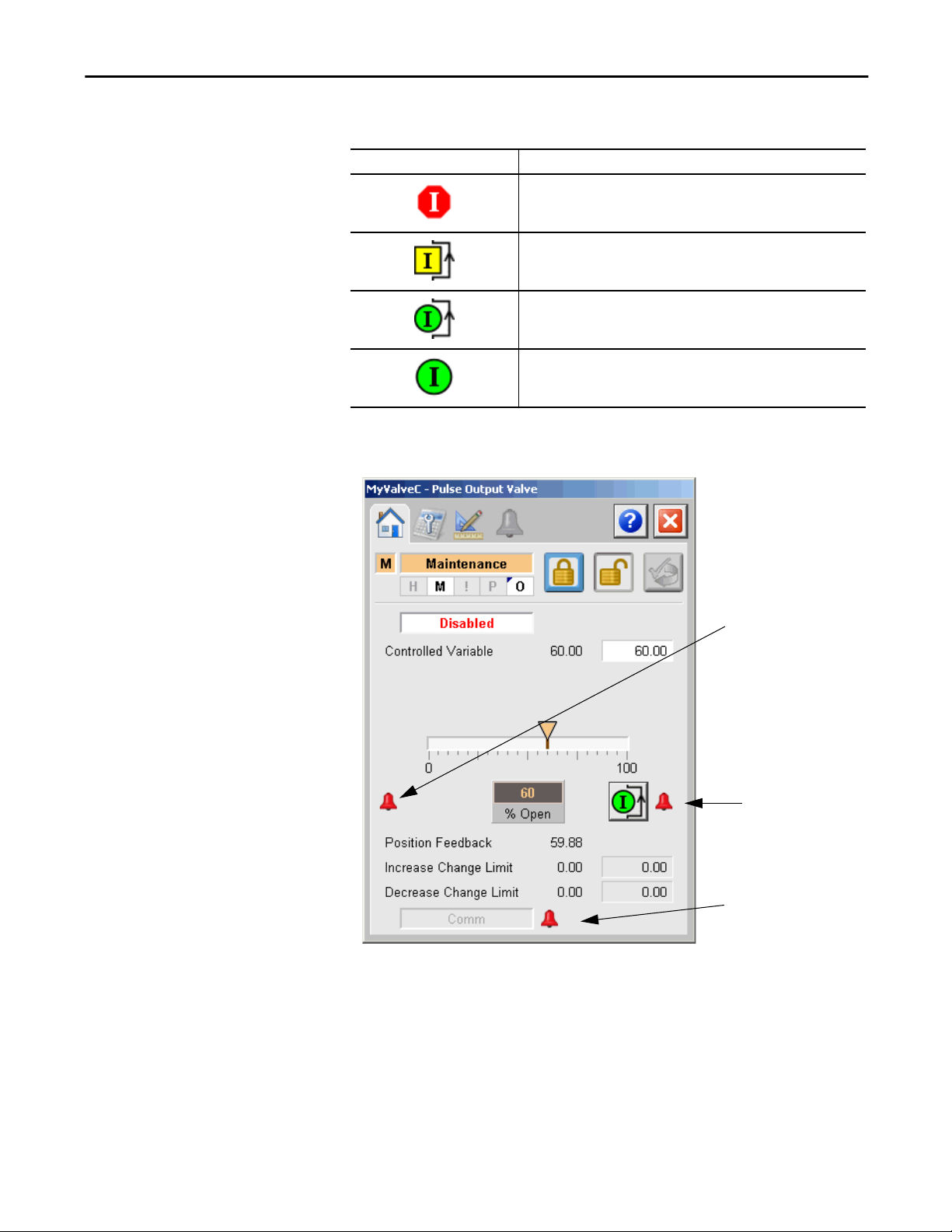

P_AIarm faceplate.

P_Mode object.

The interlock faceplate used for the object. Use this file if your Discrete Output has an associated

P_Intlk object and you enable navigation to its faceplate from the Discrete Output faceplate.

Permissive faceplate that is used for the object Use this file if your object has an associated P_Perm object

and you enable navigation to the P_Perm faceplate from the object faceplate.

Interlock/permissives help display that is used for the object

Use this file if you use the P_Intlk or P_Perm faceplate.

HMI Tags are created in a FactoryTalk View ME application to support tab switching on Process Library faceplates. The HMI tags may be imported via the comma-separated values file (.csv file type) in the following table.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 11

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Table 5 - Visualization Files: HMI Tags (.csv)

FactoryTalk View SE Software FactoryTalk View ME Software Description

N/A FTVME_PlantPAxLib_Tags_3_5_xx.csv

where xx = the service release number.

These tags must be imported into the FactoryTalk View ME project to support switching tabs on any Process Object faceplate.

In a FactoryTalk View SE application, a macro is a series of commands stored in a text file. In FactoryTalk View ME application, a macro is a list of tag assignments stored in a text file. The following table lists the Macros (.mcr file type) used by the Process Library.

Table 6 - Visualization Files: Macros (.mcr file)

FactoryTalk View SE Software FactoryTalk View ME Software Description

NavToP_LLS_Motor N/A This macro must be imported into the FactoryTalk View SE

project to support navigation to the Motor faceplate from the P_LLS faceplate.

12 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Controller Code

This section describes the parameter references for this Add-On Instruction.

Analog/Pulsed Control Valve Input Structure

Input parameters include the following:

• Input data elements (Inp_) are typically used to connect field inputs from I/O modules or signals from other objects.

• Configuration data elements (Cfg_) are used to set configurable capabilities and features of the instruction.

• Command data elements (PCmd_, OCmd_, MCmd_) are used by program logic, operators, and maintenance personnel to request instruction actions.

• Setting data elements (PSet_, OSet_) are used by program logic, operators, and maintenance personnel to establish runtime setpoints, thresholds, and so forth.

Table 7 - P_ValveC Input Parameters

Input Parameter Data

Type

EnableIn BOOL 1 Ladder Diagram:

Inp_PosFdbk REAL 0.0 Position feedback from valve (in raw input units).

Inp_OpenLS BOOL 0 Valve open limit switch.

Inp_ClosedLS BOOL 0 Valve closed limit switch.

Inp_ActuatorFault BOOL 0 Valve actuator fault (overload, and so forth):

Inp_IntlkOK BOOL 1 1 = Interlocks OK, pulse output valve can be moved.

Inp_NBIntlkOK BOOL 1 1 = Non-bypassable interlocks OK, pulse output valve can be moved.

Inp_IOFault BOOL 0 Input/output communication status:

Inp_Sim BOOL 0 Simulation input. When set to 1, the instruction holds the analog output at

Inp_Hand BOOL Mode.Inp_Hand 0 1 = Select Hand (hard-wired) mode.

Inp_Ovrd BOOL Mode.Inp_Ovrd 0 1 = Select override (Ovrd) mode.

Inp_OvrdCV REAL 0.0 CV target in Override mode (CV engineering units).

Inp_Reset BOOL 0 Input parameter used to programatically reset alarms. When set to 1, all

Alias For Default Description

If the rung-in condition is true, the instruction’s Logic routine executes. If the rung-in condition is false, the instruction’s EnableInFalse routine executes.

Function Block Diagram:

If true, or not connected, the instruction’s Logic routine executes. If the parameter is exposed as a pin and wired, and the pin is false, the instruction’s EnableInFalse routine executes.

Structured Text:

No effect. The instruction’s Logic routine executes.

1 = Confirmed fully open.

1 = Confirmed fully closed.

0 = OK 1 = Fault

0 = OK 1 = Fail

zero and holds the discrete pulse outputs off while simulating a working valve. When set to 0, the instruction controls the valve position normally.

alarms requiring reset are reset.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 13

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Table 7 - P_ValveC Input Parameters

Input Parameter Data

Type

Cfg_ShedHold BOOL 0 1 = Hold output on interlock or bad CV.

Cfg_ShedOnIOFault BOOL 0 1 = Take shed action (hold or interlock CV) and alarm on I/O Fault.

Cfg_SkipRoCLim BOOL 0 1 = Skip Rate of Change limiting in Interlock, Maintenance, Override

Cfg_SetTrack BOOL 1 This parameter is used to set up bumpless behavior of setting parameters

Cfg_SetTrackOvrdHand BOOL 0 1 = Program/operator settings track override/hand CV.

Cfg_HasOpenLS BOOL 0 1 = Valve provides an open limit switch signal.

Cfg_HasClosedLS BOOL 0 1 = Valve provides a closed limit switch signal.

Cfg_UseOpenLS BOOL 0 1 = Valve Open LS - use for open/closed status.

Cfg_UseClosedLS BOOL 0 1 = Valve Closed LS - use for open/closed status.

Cfg_LSFail BOOL 1 1 = Both switches On = fail.

Cfg_HasIntlkObj BOOL 0 1 = Tells HMI an interlock object (for example, P_Intlk) is used for

Cfg_HasCVNav BOOL 0 1 = Tells HMI to enable navigation to a connected CV object.

Cfg_PCmdClear BOOL Mode.Cfg_PCmdClear 1 When this parameter is 1, program commands are cleared once they are

Cfg_ProgDefault BOOL Mode.Cfg_ProgDefault 0 This parameter defines the default mode. When this parameter is 1, the

Cfg_OvrdIntlk BOOL 0 1 = Override ignores bypassable interlock.

Cfg_HasIntlkTripAlm BOOL IntlkTrip.Cfg_Exists 0 These parameters determine whether the corresponding alarm exists and

Cfg_HasActuatorFaultAlm ActuatorFault.Cfg_Exists

Cfg_HasIOFaultAlm IOFault.Cfg_Exists

Alias For Default Description

0 = Go to Cfg_IntlkCV.

0 = Alarm only on I/O Fault. IMPORTANT: If a condition is configured to shed the device on a fault, a

reset is required to clear the shed fault to command the device.

modes.

when switching modes. When this parameter is 1, in Program mode the operator settings track the program settings; in Operator mode the program settings track the operator settings; and the simulation inputs match the output values (transitions are bumpless).

When this parameter is 0, the operator settings and program settings are not modified by this instruction. In this case, when the mode is changed, the effective value of the setting can change depending on the programset and operator-set values.

0 = Both switches Off = fail.

Inp_IntlkOK and navigation to the interlock object’s faceplate is enabled. IMPORTANT: The name of the interlock object in the controller must be

this object's name with the suffix ‘_Intlk’. For example, if your P_ValveC object has the name ’ValveC123’, then its interlock object must be named ‘ValveC123_Intlk’.

acted upon. When set to 0, program commands remain set until cleared by the application program logic.

IMPORTANT: Clearing this parameter online can cause unintended program command execution.

mode defaults to Program if no mode is being requested. When this parameter is 0, the mode defaults to Operator if no mode is being requested.

IMPORTANT: Changing this parameter online can cause unintended mode changes.

0 = Override mode uses all interlocks.

is checked or if the alarm does not exist and is not used. When these parameters are 1, the corresponding alarm exists.

14 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Table 7 - P_ValveC Input Parameters

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Input Parameter Data

Type

Cfg_IntlkTripResetReqd BOOL IntlkTrip.Cfg_ResetReqd 0 These parameters determine whether a reset is required to clear the alarm

Cfg_ActuatorFaultResetReqd ActuatorFault.Cfg_ResetReqd

Cfg_IOFaultResetReqd IOFault.Cfg_ResetReqd

Cfg_IntlkTripAckReqd BOOL IntlkTrip.Cfg_AckReqd 1 These parameters determine whether an acknowledgement is required for

Cfg_ActuatorFaultAckReqd ActuatorFault.Cfg_AckReqd

Cfg_IOFaultAckReqd IOFault.Cfg_AckReqd

Cfg_IntlkTripSeverity INT IntlkTrip.Cfg_Severity 500 These parameters determine the severity of each alarm that gauges the

Cfg_ActuatorFaultSeverity ActuatorFault.Cfg_Severity 1000

Cfg_IOFaultSeverity IOFault.Cfg_Severity 1000

Cfg_MinCV REAL 0.0 Minimum CV (in CV engineering units, for limiting).

Cfg_MaxCV REAL 100.0 Maximum CV (in CV engineering units, for limiting).

Cfg_MaxCVRoCInc REAL 10.0 Maximum allowed CV Rate of Change (increasing) setting (engineering

Cfg_MaxCVRoCDec REAL 10.0 Maximum allowed CV Rate of Change (decreasing) setting (engineering

Cfg_IntlkCV REAL 0.0 CV (target in engineering units) when interlocked (used when

Cfg_CVEUMin REAL 0.0 These parameters must be set to the range of the signal connected to the

Cfg_CVEUMax 100.0

Cfg_CVRawMin REAL 0.0 These parameters must be set to match the CV range of the output signals

Cfg_CVRawMax 100.0

Cfg_FdbkRawMin REAL 0.0 These parameters must be set to the range of the signal connected to the

Cfg_FdbkRawMax 100.0

Cfg_CycleT REAL 10.0 Open and close pulse output overall period (seconds).

Cfg_OpenRate REAL 1.0 Rate at which valve moves when opening (CV engineering units/second).

Cfg_CloseRate REAL 1.0 Rate at whcih valve moves when closing (CV engineering units/second).

Cfg_MaxOnT REAL 5.0 Open and close pulse output maximum on time (seconds).

Cfg_MinOnT REAL 1.0 Open and close pulse output minimum on time (seconds).

Alias For Default Description

status. When these parameters are 1, the alarm is latched ON when the alarm occurs. After the alarm condition returns to normal, a reset is required to clear the alarm status (for example, OCmd_Reset, Inp_Reset, or IOFault.OCmd_Reset are required to clear Alm_IOFault alarm after the alarm is set and the value returns to normal). When these parameters are 0, no reset is required and the alarm status is cleared when the alarm condition returns to normal.

IMPORTANT: If the reset clears the alarm, it also acknowledges the alarm.

an alarm. When these parameters are 1, the acknowledge (ack) bit is cleared when the alarm occurs. An acknowledge command (for example, PCmd_IOFaultAck or IOFault.OCmd_Ack) are required to acknowledge the alarm. When set to 0, the Acknowledge bit is set when an alarm occurs indicating an acknowledged alarm and no acknowledge command is required.

color and symbol that are used to indicate alarm status on the faceplate and global object.

The following are valid values: 1…250 = Low 251…500 = Medium 501…750 = High 751…1000 = Urgent IMPORTANT: For FactoryTalk View software, version 7.0, these severity

priorities drive only the indication on the global object and faceplate. The Alarm & Events definition severity drives the color and symbol that is used on the alarm banner and alarm summary as well a the value returned by the FactoryTalk Alarm and Events software display commands.

units/second).

Cfg_ShedHold is configured to 0).

setting inputs (for example, PSet_CV). The output is then scaled to the values set by Cfg_CVRawMin and Cfg_CVRawMax.

(Out_CV) in raw units. EXAMPLE: If your output card expects a value in the range of 4…20 and

the P_ValveC's CV is ranged 0…100% , P_ValveC can scale the outputs for you by setting Cfg_CVRawMin to 4, Cfg_CVRawMax to 20, Cfg_CVEUMin to 0, and Cfg_CVEUMax to 100.

feedback signal (Inp_PosFdbk). The inputs are then scaled to the values set by Cfg_CVEUMin and Cfg_CVEUMax.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 15

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Table 7 - P_ValveC Input Parameters

Input Parameter Data

Type

Cfg_BumpT REAL 0.0 Time to bump valve open or closed (by operator) when feedback bad

Cfg_Deadtime REAL 0.0 Additional time on first pulse after stop or direction change.

Cfg_MaxClosedPos REAL 0.0 Position above which valve is assumed open if limit switches are not used.

PSet_CV REAL 0.0 Program setting of controlled variable (output) (CV engineering units).

PSet_CVRoCLimInc REAL 0.0 Program setting of CV Rate of Change limit, increasing (in engineering

PSet_CVRoCLimDec REAL 0.0 Program setting of CV Rate of Change limit, decreasing (in engineering

PSet_Owner DINT 0.0 Program owner Request ID (non-zero) or Release (zero).

OSet_CV REAL 0.0 Operator setting of controlled variable (output) (CV engineering units).

OSet_CVRoCLimInc REAL 0.0 Operator setting of CV Rate of Change limit, increasing (in engineering

OSet_CVRoCLimDec REAL 0.0 Operator setting of CV Rate of Change limit, decreasing (in engineering

PCmd_Acq BOOL Mode.PCmd_Acq 0 When Cfg_PCmdClear is 1:

PCmd_Rel Mode.PCmd_Rel

PCmd_Lock BOOL Mode.PCmd_Lock 0 When Cfg_PCmdClear is 1:

PCmd_Unlock Mode.PCmd_Unlock

PCmd_Reset BOOL 0 • Set PCmd_Reset to 1 to reset all alarms requiring reset

PCmd_IntlkTripAck BOOL IntlkTrip.PCmd_Ack 0 • Set PCmd_<Alarm>Ack to 1 to Acknowledge alarm

PCmd_ActuatorFaultAck ActuatorFault.PCmd_Ack

PCmd_IOFaultAck IOFault.PCmd_Ack

PCmd_IntlkTripSuppress BOOL IntlkTrip.PCmd_Suppress 0 When Cfg_PCmdClear is 1:

PCmd_ActuatorFaultSuppress ActuatorFault.PCmd_Suppress

PCmd_IOFaultSuppress IOFault.PCmd_Suppress

PCmd_IntlkTripUnsuppress IntlkTrip.PCmd_Unsuppress

PCmd_ActuatorFaultUnsuppress ActuatorFault.PCmd_Unsuppress

PCmd_IOFaultUnsuppress IOFault.PCmd_Unsuppress

PCmd_IntlkTripUnshelve BOOL IntlkTrip.PCmd_Unshelve 0 • Set PCmd_<Alarm>Unshelve to 1 to Unshelve alarm

PCmd_ActuatorFaultUnshelve ActuatorFault.PCmd_Unshelve

PCmd_IOFaultUnshelve IOFault.PCmd_Unshelve

OCmd_BumpOpen BOOL 0 Operator command to bump valve open (available if feedback bad).

Alias For Default Description

(seconds).

units/second).

• Set PCmd_Acq to 1 to Acquire

• Set PCmd_Rel to 1 to Release

• These parameters reset automatically

When Cfg_PCmdClear is 0:

• Set PCmd_Acq to 1 to Acquire

• Set PCmd_Acq to 0 to Release

• PCmd_Rel is not used

• These parameters do not reset automatically

• Set PCmd_Lock to 1 to Lock

• Set PCmd_Unlock to 1 to Unlock

• These parameters reset automatically

When Cfg_PCmdClear is 0:

• Set PCmd_Lock to 1 to Lock

• Set PCmd_Lock to 0 to Unlock

• PCmd_Unlock is not used

• These parameters do not reset automatically

• This parameter is always reset automatically

• The parameter is reset automatically

• Set PCmd_<Alarm>Suppress to 1 to suppress alarm

• Set PCmd_<Alarm>Unsuppress to 1 to unsuppress alarm

• These parameters reset automatically

When Cfg_PCmdClear is 0:

• Set PCmd_<Alarm>Suppress to 1 to suppress alarm

• Set PCmd_<Alarm>Suppress to 0 to unsuppress alarm

• PCmd_<Alarm>Unsuppress is not used

• These Parameters do not reset automaticallyS

• The parameter is reset automatically

16 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Table 7 - P_ValveC Input Parameters

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Input Parameter Data

Type

OCmd_BumpClose BOOL 0 Operator command to bump valve closed (available if feedback bad).

OCmd_Bypass BOOL 0 Operator command to bypass all bypassable interlocks.

OCmd_Check BOOL 0 Operator command to check (not bypass) all interlocks.

MCmd_Disable BOOL 0 Maintenance command to disable control valve.

MCmd_Enable BOOL 0 Maintenance command to enable control valve.

MCmd_Acq BOOL Mode.MCmd_Acq 0 Maintenance command to acquire ownership (Operator/Program/Override

MCmd_Rel BOOL Mode.MCmd_Rel 0 Maintenance command to release ownership (Maintenance to Operator/

OCmd_AcqLock BOOL Mode.OCmd_AcqLock 0 Operator command to acquire (Program to Operator)/lock ownership.

OCmd_Unlock BOOL Mode.OCmd_UnlockRel 0 Operator command to unlock/release (Operator to Program) ownership.

OCmd_Reset BOOL 0 Operator command to reset all alarms requiring reset.

OCmd_ResetAckAll BOOL 0 Operator command to acknowledge and reset all alarms and latched shed

Alias For Default Description

to Maintenance)

Program/Override)

conditions.

Analog/Pulsed Control Valve Output Structure

Output parameters include the following:

• Output data elements (Out_) are the primary outputs of the instruction, typically used by hardware output modules; however, they can be used by other application logic.

• Value data elements (Val_) are numeric outputs of the instruction for use by the HMI. Values also can be used by other application logic or software packages.

• Source and Quality data elements (SrcQ_) are outputs of the instruction used by the HMI to indicate PV source and quality.

• Status data elements (Sts_) are bit outputs of the instruction for use by the HMI. Status bits also can be used by other application logic.

• Error data elements (Err_) are outputs of the instruction that indicate a particular configuration error. If any Err_ bit is set then the Sts_Err configuration error summary status is set and the Invalid Configuration indicator is displayed on the HMI.

• Not Ready data elements (Nrdy_) are bit outputs of the instruction for use by the HMI for displaying the Device Not Ready indicator. Not Ready bits can also be used by other application logic.

• Alarm data elements (Alm_) are outputs of the instruction that indicate a particular alarm has occurred.

• Acknowledge data elements (Ack_) are outputs of the instruction that indicate the corresponding alarm has been acknowledged.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 17

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

• Ready data elements (Rdy_) are bit outputs of the instruction used by the HMI to enable and disable Command buttons and Setting entry fields.

Table 8 - P_ValveC Output Parameters

Output Parameter Data Type Alias For Description

EnableOut BOOL Enable Output: The EnableOut signal is not manipulated by this instruction. Its output state

Out_CV REAL CV output in raw (I/O Card) units.

Out_Open BOOL Pulse output to drive valve open.

Out_Close BOOL Pulse output to drive valve closed.

Val_Pos REAL Valve actual position from feedback (CV engineering units).

Val_CVSet REAL Value of selected CV Setting (before rate limiting, CV engineering units).

Val_CVOut REAL Value of CV output (after clamping and ramping) (CV engineering units).

Val_CVRoCLimInc REAL Value of CV Rate of Change Limit, increasing (in engineering units/second).

Val_CVRoCLimDec REAL Value of CV Rate of Change Limit, decreasing (in engineering units/second).

Val_CVEUMin REAL Minimum of scaled range = Min (Cfg_CVEUMin, Cfg_CVEUMax).

Val_CVEUMax REAL Maximum of scaled range = Max (Cfg_CVEUMin, Cfg_CVEUMax.)

SrcQ_IO SINT I/O signal source and quality.

SrcQ Final position source and quality.

Val_Fdbk SINT Device feedback includes the following:

Val_Sts SINT Device status includes the following:

Val_Fault SINT Device fault status includes the following:

always reflects EnableIn input state.

GOOD 0 = I/O live and confirmed good quality

1 = I/O live and assumed good quality 2 = No feedback configured, assumed good quality

TEST 8 = Device simulated

9 = Device loopback simulation 10 = Manually entered value

UNCERTAIN 16 = Live input, off-specification

17 = Value substituted at device/bus 18 = Value substituted by maintenance (Has and not Use) 19 = Shed, using last good value 20 = Shed, using replacement value

BAD 32 = Signal failure (out-of-range, NaN, invalid combination)

33 = I/O channel fault 34 = I/O module fault 35 = Bad I/O configuration (for example, scaling parameters)

0 = Moving 1 = Closed 2 = Opened 3 = Limit Switch Failure

0 = At Target 1 = Ramping to close 2 = Ramping to open 3 = Clamped at minimum 4 = Clamped at maximum 5 = Closing to target (bump) 6 = Opening to target (bump) 33 = Disabled

0 = None 32 = I/O Fault 34 = Configuration Error

18 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Table 8 - P_ValveC Output Parameters

Output Parameter Data Type Alias For Description

Val_Mode SINT Mode.Val The current mode is shown with status bits and also as an enumeration ‘Val_Mode’ as

Val_Owner DINT Current object owner ID (0 = not owned).

Val_Notify SINT Current alarm level and acknowledgement (enumeration):

Sts_CVInfNaN BOOL 1 = Selected CV is Infinite or Not A Number (1.$, 1.#NaN).

Sts_PosInfNaN BOOL 1 = Inp_PosFdbk is Infinite or Not A Number.

Sts_BumpOpen BOOL 1 = Bump open requested or active.

Sts_BumpClose BOOL 1 = Bump close requested or active.

Sts_Ramping BOOL 1 = CV is ramping to target.

Sts_Clamped BOOL 1 = CV Set is clamped at CVMinimum or CVMaximum.

Sts_SkipRoCLim BOOL 1 = Rate of Change limiting was skipped this scan (Maintenance, Override, Interlock, Hand).

Sts_Active BOOL 1 = CV is greater than Cfg_MaxClosedPos, show graphic symbol as ‘active’.

Sts_Available BOOL 1 = Control valve available for control by automation (Program).

Sts_Bypass BOOL 1 = Bypassable interlocks are bypassed.

Sts_BypActive BOOL 1 = Bypassing active (Bypassed or Maintenance).

Sts_Disabled BOOL 1 = Output is disabled.

Sts_LSFail BOOL 1 = Limit switch overlap failure.

Sts_NotRdy BOOL 1 = Device is not ready to be operated.

Nrdy_Disabled BOOL 1 = Device Not Ready:

Nrdy_CfgErr

Nrdy_Intlk

Nrdy_IOFault

Nrdy_NoMode

Sts_MaintByp BOOL 1 = Device has a maintenance bypass function active.

Sts_AlmInh BOOL 1 = One or more alarms shelved, disabled or suppressed.

Sts_Err BOOL 1 = Error in configuration: see detail bits for reason.

follows: 0 = No mode 1 = Hand 2 = Maintenance 3 = Override 4 = Program (locked) 5 = Operator (locked) 6 = Program (unlocked, Operator is default) 7 = Operator (unlocked, Program is default) 8 = Program (unlocked, Program is default) 9 = Operator (unlocked, Operator is default)

0 = No alarm 1 = Alarm cleared: a reset or acknowledge is required 2 = Low (acknowledged) 3 = Low (unacknowledged) 4 = Medium (acknowledged) 5 = Medium (unacknowledged) 6 = High (acknowledged) 7 = High (unacknowledged) 8 = Urgent (acknowledged) 9 = Urgent (unacknowledged)

• Device disabled by Maintenance

• Configuration error

• Interlock not OK

• I/O Fault (shed requires reset)

• Device Logic disabled/No mode.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 19

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Table 8 - P_ValveC Output Parameters

Output Parameter Data Type Alias For Description

Err_Limit BOOL 1 = Error in configuration: CV limits swapped.

Err_EU BOOL 1 = Error in configuration: Scaled CV engineering units minimum = maximum.

Err_Raw BOOL 1 = Error in configuration: Raw output scaling minimum = maximum.

Err_Fdbk BOOL 1 = Error in configuration: Raw feedback scaling minimum = maximum.

Err_Timer BOOL 1 = Error in configuration: Invalid timer preset (use 0…2,147,483).

Err_Alarm BOOL 1 = Error in configuration: Alarm minimum on time or severity.

Sts_Hand BOOL Mode.Sts_Hand 1 = Mode is Hand (supersedes Maintenance, Override, Program, Operator).

Sts_Maint BOOL Mode.Sts_Maint 1 = Mode is Maintenance (supersedes Override, Program, Operator).

Sts_Ovrd BOOL Mode.Sts_Ovrd 1 = Mode is Override (supersedes Program, Operator).

Sts_Prog BOOL Mode.Sts_Prog 1 = Mode is Program (auto).

Sts_Oper BOOL Mode.Sts_Oper 1 = Mode is Operator (manual).

Sts_ProgOperLock BOOL Mode.Sts_ProgOperLock 1 = Program or operator has requested Mode Lock.

Sts_NoMode BOOL Mode.Sts_NoMode 1 = No mode (disabled because EnableIn is false).

Sts_MAcqRcvd BOOL Mode.Sts_MAcqRcvd 1 = Maintenance Acquire command received this scan.

Sts_IntlkTrip BOOL IntlkTrip.Inp 1 = Status: CV held or forced by interlock not OK.

Sts_ActuatorFault ActuatorFault.Inp 1 = Actuator fault detected (input).

Sts_IOFault IOFault.Inp 0 = I/O communication OK.

1 = I/O communication failure.

Alm_IntlkTrip BOOL IntlkTrip.Alm 1 = Alarm: CV held or forced by interlock not OK.

Alm_ActuatorFault ActuatorFault.Alm 1 = Alarm: Actuator fault detected.

Alm_IOFault IOFault.Alm 1 = I/O Fault alarm.

Ack_IntlkTrip BOOL IntlkTrip.Ack 1 = Interlock trip alarm, actuator fault alarm, or I/O fault alarm is acknowledged.

Ack_ActuatorFault ActuatorFault.Ack

Ack_IOFault IOFault.Ack

Sts_IntlkTripDisabled BOOL IntlkTrip.Disabled 1 = Interlock trip alarm, actuator fault alarm, or I/O fault alarm is disabled by maintenance.

Sts_ActuatorFaultDisabled ActuatorFault.Disabled

Sts_IOFaultDisabled IOFault.Disabled

Sts_IntlkTripShelved BOOL IntlkTrip.Shelved 1 = Interlock trip alarm, actuator fault alarm, or I/O fault alarm is shelved by operator.

Sts_ActuatorFaultShelved ActuatorFault.Shelved

Sts_IOFaultShelved IOFault.Shelved

Sts_IntlkTripSuppressed BOOL IntlkTrip.Suppressed 1 = Interlock trip alarm, actuator fault alarm, or I/O fault alarm is suppressed by program.

Sts_ActuatorFaultSuppressed ActuatorFault.Suppressed

Sts_IOFaultSuppressed IOFault.Suppressed

Rdy_BumpOpen BOOL 1 = Ready to receive OCmd_BumpOpen, OCmd_BumpClose, OCmd_Bypass, OCmd_Check,

Rdy_BumpClose

Rdy_Bypass

Rdy_Check

Rdy_Reset

or OCmd_Reset (enables HMI button).

20 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Table 8 - P_ValveC Output Parameters

Output Parameter Data Type Alias For Description

Rdy_Disable BOOL 1 = Ready to receive MCmd_Disable or MCmd_Enable (enables HMI button).

Rdy_Enable

Rdy_ResetAckAll BOOL 1 = At least one alarm or latched shed condition requires reset or acknowledgment.

Rdy_CV BOOL 1 = Ready to receive OSet_CV, OSet_CVRoCLimInc, or OSet_CVRoCLimDec (enables data

Rdy_CVRoCLimInc

Rdy_CVRoCLimDec

P_ValveC BOOL Unique parameter name for auto-discovery.

entry field).

Analog/Pulsed Control Valve Local Configuration Tags

Configuration parameters that are array, string, or structure data types cannot be configured as parameters for Add-On Instructions. Configuration parameters of these types appear as local tags to the Add-On Instruction. Local tags can be configured through the HMI faceplates or in Studio 5000 Logix Designer® application by opening the Instruction Logic of the Add-On Instruction instance and then opening the Data Monitor on a local tag. These parameters cannot be modified by using controller logic or Logix Designer application export/import functionality.

Table 9 - P_ValveC Local Configuration Tags

Tag Name Data Type Default Description

Cfg_CVNavTag STRING_NavTag ' ' Tagname for destination of CV Navigation button.

IMPORTANT: This tag does not work in FactoryTalk ME Software.

Cfg_Desc STRING_40 'Control Valve' Description for display on HMI. This string is shown in the title bar of the faceplate.

Cfg_EU STRING_8 '% Open' Engineering units for display on HMI.

Cfg_Label STRING_20 'Control Valve' Label for graphic symbol displayed on HMI. This string appears on the graphic symbol.

Cfg_Tag STRING_20 'P_ValveC' Description for display on HMI. This string is shown in the title bar of the faceplate.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 21

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Operations

This section describes the primary operations for Add-On Instructions.

Modes

This instruction uses the following standard modes, which are implemented by using an embedded P_Mode Add-On Instruction.

Table 10 - Modes

Mode Description

Operator The Operator owns control of the group. Operator commands (OCmd_) and Operator settings

(OSet_) from the HMI are accepted.

Program Program logic owns control of the group. Program commands (PCmd_) and Program settings

(PSet_) are accepted.

Override Priority logic owns control of the group and supersedes Operator and Program control. Override

Inputs (Inp_OvrdCmd and other Inp_OvrdXxxx values) are accepted. If so configured, bypassable interlocks and permissives are bypassed.

Maintenance Maintenance owns control of the group and supersedes Operator, Program, and Override control.

Operator commands and settings from the HMI are accepted. Bypassable interlocks and permissives are bypassed, and device timeout checks are not processed.

Hand Hardwired logic or other logic outside the instruction owns control of the group. The instruction

tracks the state of the device for bumpless transfer back to one of the other modes.

No Mode The device is disabled and has no owner because the EnableIn input is false. The main

instruction Logic routine is not being scanned. See Execution section for more information on EnableInFalse processing.

See Rockwell Automation Library of Process Objects: Common Mode Block (P_Mode) Reference Manual, publication SYSLIB-RM005, for more information.

Alarms

This instruction uses the following alarms, which are implemented by using embedded P_Alarm and P_Gate Add-On Instructions.

Alarm Name P_Alarm Name P_Gate Name Description

Can’t Start CantStart None Raised when there are not enough motors available to

start to satisfy the entered Demand. Too many motors are faulted or stopped in a mode other than Program.

Can’t Stop CantStop None Raised when there are not enough motors available to

stop to satisfy the entered Demand. Too many motors are running in a mode other than Program.

Interlock Trip IntlkTrip None Raised when the motor is running and an interlock

'not OK' condition causes the motor to stop. If interlocks are not bypassed, a bypassable interlock

or a non-bypassable interlock 'not OK' condition initiates an interlock trip. If interlocks are bypassed, only a non-bypassable interlock 'not OK' condition initiates an interlock trip.

Parameters of the P_Alarm object can be accessed by using the following convention: [P_Alarm Name].[P_Alarm Parameter].

22 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Simulation

Simulation in P_ValveC holds the analog output at zero and holds the discrete pulse outputs off while simulating a working valve. The I/O fault input is ignored.

You must set the Inp_Sim parameter in the controller to ‘1’ to enable simulation.

The Loopback Test icon is displayed at the bottom left of the Operator faceplate indicating the device is in simulation.

When you have finished in simulation, set the Inp_Sim parameter in the controller to ‘0’ to return to normal operation.

Execution

The following table explains the handling of instruction execution conditions.

Condition Description

EnableIn False (false rung) Processing for EnableIn False (false rung) is handled the

Powerup (prescan, first scan) Processing of modes and alarms on pre-Scan and

Postscan No SFC Postscan logic is provided.

See the Logix5000 Controllers Add-On Instructions Programming Manual, publication

1756-PM010, for more information.

same as if the Control Valve were Disabled by Command. The discrete open and close outputs are de-energized. The analog CV output is de-energized (zeroed). The Control Valve instruction is shown as Disabled on the HMI. The mode is shown as NO MODE.

Powerup is handled by the embedded P_Mode and P_Alarm instructions - refer to their specifications for details. On Power-up, the Control Valve ownership is cleared and any commands received while the controller was in PROG mode are discarded; otherwise, all data remains in the state it was in at power down.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 23

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Programming Examples

This section shows two examples for using the P_Valve C instruction.

Example 1: Manual Loading Station

This example uses the P_ValveC instruction to implement a manual loading station for a pressure control valve that is used to regulate gas supply to a process. The control valve in our example has open and closed limit switches and a position feedback. The desired valve position is provided by the operator through the HMI faceplate.

The field inputs for position feedback, open limit switch, and closed limit switch (as shown in the illustration) are connected to the instruction inputs Inp_PosFdbk, Inp_OpenLS, and Inp_ClosedLS. The Out_CV is connected to the field output going to the valve.

The parameters Cfg_HasOpenLS and Cfg_HasClosedLS are both set to 1 so the instruction knows the field is providing open and closed limit switches. The parameters Cfg_UseOpenLS and Cfg_UseClosedLS are set to 1 so that these limit switches are used to determine device status.

The analog output card is expecting an output in units of 4…20 mA; however, the faceplate shows the value in terms of 0…100% open. Therefore, the scaling parameters are set as follows:

Cfg_CVEUMin: 0 Cfg_CVEUMax: 100 Cfg_CVRawMin: 4 Cfg_CVRawMax: 20

The feedback signal is also provided in units of 4…20 mA, so the parameters Cfg_FdbkRawMin and Cfg_FdbkRawMax are set to 4 and 20, respectively.

We want to limit the operator entry of the desired valve position to 80% open by setting Cfg_MaxCV to 80.

24 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

The parameters Cfg_HasIOFaultAlm, Cfg_HasActuatorFaultAlm, and Cfg_HasIntlkTripAlm are all set to 0 to indicate that no alarms are necessary for this device.

Lastly, configure the following local configuration tags to drive the text on the HMI faceplate. In this example, they are set as follows:

Cfg_Tag: PV110812 Cfg_Label: Gas Supply Valve Cfg_Desc: Gas Supply Valve Manual Loading Station Cfg_EU: %

Example 2: Ratcheting Control Valve

This example uses the P_ValveC instruction to automate a ratcheting valve that is driven open or closed by using two discrete outputs to control flow. The flow valve in our example has a position feedback. The desired valve position is provided by an output of a control algorithm that is elsewhere in logic.

In this example, the field inputs for position feedback are wired (or connected) to the instruction input Inp_PosFdbk. Out_Open and Out_Close are connected to the field outputs going to the valve. The input to the instruction to set valve position is wired to PSet_CV. Cfg_ProgDefault is set to 1 so the instruction defaults to Program mode.

The analog output is not used; however, the faceplate shows the value in terms of 0…100% open. Therefore, the scaling parameters are set as follows:

Cfg_CVEUMin: 0 Cfg_CVEUMAx: 100 Cfg_CVRawMin: 0 - default Cfg_CVRawMax: 100 - default

The feedback signal is provided in units of 4…20 mA, so the parameters Cfg_FdbkRawMin and Cfg_FdbkRawMax are set to 4 and 20, respectively.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 25

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

In this example, the ratcheting control valve is to be adjusted by cycling the open or close valve command for a period of time proportional to the amount the valve is to be moved. Cfg_CycleT is set to 10, to define the overall period of the cycle to cycle on and off the open or close output. Cfg_OpenRate and Cfg_OpenCloseRate are both set to 1, which means the required valve output is energized 1 second for every 1% difference between the desired position and the feedback position.

Cfg_MaxOnT is set to 5 so that the output is energized for no more than 5 seconds of the 10-second cycle time to allow for the valve to move, and the feedback to be verified before the next cycle. Cfg_MinOnT is set to 1 so that the output does not pulse if the calculated pulse time is less than 1 second.

The parameters Cfg_HasIOFaultAlm, Cfg_HasActuatorFaultAlm, and Cfg_HasIntlkTripAlm are all set to 0 to indicate that no alarms are necessary for this device.

Lastly, configure the following local configuration tags to drive the text on the HMI faceplate. In this example, they are set as follows:

Cfg_Tag: FV110813 Cfg_Label: Flow Control Valve Cfg_Desc: Flow Ratcheting Control Valve Cfg_EU: %

26 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Display Elements

A display element (global object) is created once and can be referenced multiple times on multiple displays in an application. When changes are made to the original (base) object, the instantiated copies (reference objects) are automatically updated. Use of global objects, in conjunction with tag structures in the ControlLogix system, aid consistency and save engineering time.

Table 11 - P_ValveC Display Elements Description

Display Element Name Display Element Description

GO_ProcessControlValve Normal controlled valve symbol for horizontal pipe.

GO_ProcessControlValve1 Inverted controlled valve symbol for horizontal pipe.

GO_ProcessControlValve2 Controlled valve symbol for vertical pipe (pipe to the left).

GO_ProcessControlValve3 Controlled valve symbol for vertical pipe (pipe to the right).

Common attributes of the P_ValveC global objects include the following:

• Animated graphic symbol representing the device

• Current value of the CV with engineering unit text

• Status/Quality indicators

• Mode indicator

• Maintenance Bypass indicator

• Label

• Color changing alarm border that blinks on unacknowledged alarm

• Alarm indicator that changes color and symbol with the severity of an

alarm

Border

Label

Alarm Indicator

Status/Quality Indicator Current CV

Value

Engineering Units Text

Valve Graphic Symbol

Maintenance Bypass Indicator

Status / Quality Indicator

Mode Indicator

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 27

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Status/Quality Indicators

One of these symbols appears on the graphic symbol when the described condition is true.

Graphic Symbol Description

Invalid configuration.

Data quality bad/failure.

Data Quality degraded: uncertain, test, simulation, substitution, or out of specification.

The group has been disabled.

Device not ready to operate.

Motor running.

Motor idle.

Motor not controllable.

No symbol displayed I/O communication and quality good, configuration valid.

TIP

When the Invalid Configuration Indicator appears, you can find what

configuration setting is invalid by following the indicators. Click the graphic symbol to open the faceplate. The Invalid Configuration indicator appears next to the appropriate tab at the top of the faceplate to guide you in finding the configuration error. Once you navigate to the tab, the misconfigured item is flagged with this indicator or appear in a magenta box.

For the Analog/Pulsed Control Valve Instruction, the Invalid Configuration indicator appears under the following conditions:

• CV Scaled EU Minimum and EU Maximum scaling parameters are set to the same value.

• CV Output Raw Minimum and Raw Maximum scaling parameters are set to the same value.

• Position Feedback Raw Minimum and Raw Maximum scaling parameters are set to the same value.

• Maximum CV clamp value is less than the Minimum CV clamp value.

• Pulse output Cycle Time is set to a value less than zero or greater than

2,147,483 seconds.

• Alarm Minimum On Time is set to a value less than zero or greater than 2,147,483 seconds.

• Alarm Severity is set to a value less than 1 or greater than 1000.

28 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

TIP

When the Not Ready indicator appears, you can find what condition is preventing operation by following the indicators. Click the graphic symbol to open the faceplate. The Not Ready indicator appears next to the appropriate tab at the top of the faceplate to guide you in finding the condition. When you navigate to the tab, the condition preventing operation is flagged.

For the Analog/Pulsed Control Valve Instruction, the Device Not Ready indicator appears under the following conditions:

• Device has been disabled by Maintenance.

• There is a configuration error.

• Interlock is not OK.

• There has been an I/O Fault and shed requires reset.

Device Logic has been disabled or there is no mode.

Mode Indicators

One of these symbols appears on the right side of the graphic symbol to indicate the mode of the object instruction.

Graphic Symbol Description

Transparent Operator mode (if the default mode is Operator and the current mode is Operator, the mode

Transparent Program mode (if the default mode is Program and the current mode is Program, the mode

indicator is transparent).

Operator mode (if the default mode is Program).

Operator mode locked.

indicator is transparent).

Program mode (if the default mode is Operator).

Program mode locked.

Override mode

Maintenance mode.

Hand mode

No mode.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 29

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

TIP

The images provided for the Operator and Program default modes are

transparent; therefore, no mode indicators are visible if the device is in its default mode. This behavior can be changed by replacing the image files for these mode indicators with images that are not transparent.

See Rockwell Automation Library of Process Objects: Common Mode Block (P_Mode) Reference Manual, publication

SYSLIB-RM005, for more

information.

Alarm Indicators

One of these symbols appears on the left side of the label to indicate the described alarm condition and the alarm border and label background change color. The alarm border and label background blink if acknowledgement of an alarm condition is required. Once the alarm is acknowledged, the alarm border and label background remain the color that corresponds to the severity of the alarm.

Symbol Border and Label Background Description

No change in color Alarm Inhibit: an alarm is suppressed by the Program,

White Return to normal (no alarm condition), but a previous

disabled by Maintenance, or shelved by the Operator.

alarm has not been acknowledged.

Blue Low severity alarm.

Yellow Medium severity alarm.

Red High severity alarm.

Magenta Urgent severity alarm.

No symbol No change in color No alarm or alarm inhibit condition, and all alarms

are acknowledged.

See Rockwell Automation Library of Process Objects: Common Alarm Block (P_Alarm) Reference Manual, publication

SYSLIB-RM002, for more

information.

Maintenance Bypass Indicator

This symbol appears to the right of the label to indicate that a maintenance bypass has been activated.

30 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

TIP

When the Maintenance Bypass Indicator appears, you can find what condition was bypassed by following the indicators. Click the graphic symbol to open the faceplate. The Maintenance Bypass Indicator appears next to the appropriate tab at the top of the faceplate to guide you in finding the bypass. Once you navigate to the tab, the bypassed item is flagged with this indicator.

For the Analog/Pulsed Control Valve Instruction, the Maintenance bypass indicator appears when the bypassable interlocks and permissives have been bypassed.

Using Display Elements

The global objects for P_ValveC can be found in the global object file (RA-BAS) Process Graphics Library.ggfx.

Complete the following steps to use a global object.

1. Copy it from the global object file and paste it in the display file.

2. In the display file, right-click the global object file and choose Global

Object Parameter Values.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 31

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

The Global Object Parameter Values dialog box appears.

3. Type the tag or value in the Value column as specified in the Description column.

TIP

You can click the ellipsis (…) to browse and select a tag.

Values for items marked ‘(optional)’ can be left blank.

4. Click OK.

The global object parameters are as follows.

Parameter Required Description

#102 Y Object tag to point to the name of the associated object Add-On Instruction

#103 Y Path used for display navigation features to other objects. Include program

#120 N Additional parameter to pass to the display command to open the faceplate.

#121 N Additional parameter to pass to the display command to open the faceplate.

#122 Y These are the options for the global object display:

in the controller.

scope if tag is a program scope tag.

Typically used to define position for the faceplate.

if defining X and Y coordinate, separate parameters so that X is defined by #120 and Y is defined by #121. This lets the same parameters be used in subsequent display commands originating from the faceplate.

0 = Always show faceplate 1 = Show Quick Display for users without Maintenance access (Code C) 2 = Always show Quick Display

32 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Quick Display

The Quick Display screen provides a means for operators to perform simple interactions with the P_ValveC instruction instance. From the Quick Display, you can navigate to the faceplate for full access for operation, maintenance, and configuration.

Click to Navigate to Full Faceplate

Faceplate

The P_ValveC faceplate consists of five tabs and each tab consists of one or more pages.

Each faceplate contains the value of local configuration tags Cfg_Tag and Cfg_Desc in the title bar.

The Operator tab is displayed when the faceplate is initially opened. Click the appropriate icon at the top of the faceplate to access a specific tab.

Operator

Maintenance

Engineering

Diagnostics Help

Alarms

Exit

The faceplate provides the means for operators, maintenance personnel, engineers, and others to interact with the P_ValveC Instruction instance, including viewing its status and values and manipulating it through its commands and settings. When a given input is restricted via FactoryTalk View security, the required user security code letter is shown in the tables that follow.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 33

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Operator Tab

The Faceplate initially opens to the Operator (‘Home’) tab. From here, an operator can monitor the device status and manually operate the device when it is in Operator mode.

The Operator tab for an analog output shows the following information:

• Current mode (Operator, Program, Override, Maintenance, or Hand)

• Requested Mode indicator (appears only if the Operator or Program mode

has been superseded by another mode)

• Bar graph that displays the current output Controlled Variable (CV) as a yellow pointer and the target CV as a gray line

• Bar graph range is the minimum and maximum engineering units (scaled) values

• Target CV (before rate limiting)

• Increasing and decreasing rates of change for the output CV

• Analog output state (At Target, Ramping Up, or Ramping Down)

• Interlock state

• Input Source and Quality indicator (See 'SrcQ' in the Output parameters

table on

page 18 for details).

34 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Mode Indicator

Ramping Status

Bump Valve Closed

and Bump Valve

Open Buttons

Current Controlled Variable Bargraph

Controlled Variable

(CV) Object

Input Source and

Quality Indicator

Reset and Acknowledge All Alarms Button

Operator Mode Unlock and Lock Command Buttons

Controlled Variable Output Value

Interlock Indicator

Input Source and

Quality Icon

Simulation

The following table shows the functions included on the Operator tab.

Table 12 - Operator Tab Description

Function Action Security

Click to release Operator mode lock. Manual Device

Operation (Code B)

Click to lock in Operator mode.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 35

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Table 12 - Operator Tab Description

Function Action Security

Click to request Program mode. Manual Device

Operation (Code B)

Click to request Operator mode.

Click to bump valve open (visible only when position feedback is bad).

Click to bump valve closed (visible when only position feedback is bad).

Click to reset and acknowledge all alarms. Acknowledge Alarms

Click to open the Interlock faceplate. None

Controlled Variable (CV) Output Value

Increase Change Limit Click to enter a new value for the CV maximum Rate

Decrease Change Limit Click to enter a new value for the CV maximum Rate

Controlled Variable (CV) Object

Type a new value for the CV. This entry is available only in Operator or Maintenance mode

unless Bumpless Program/Operator Transition is not selected on the configuration screen.

of Change when increasing. This entry is available only in Operator or Maintenance mode

unless Bumpless Program/Operator Transition is not selected on the configuration screen.

of Change when decreasing. This entry is available only in Operator or Maintenance mode

unless Bumpless Program/Operator Transition is not selected on the configuration screen.

Click this object to navigate to the faceplate specified by the associated tag name.

Allow Navigation on be checked and a tag name typed in to enable this object.

Engineering Tab Page 3 on page 49 must

(Code F)

Normal Production (Code A)

None

If the object is configured to have an interlock object (for example, Cfg_HasIntlkObj is true), the interlock indication becomes a button that opens the faceplate of the source object used as an interlock (often this is a P_Intlk interlock object). If the object is not configured in this way, the interlock is indicator only.

See the Rockwell Automation Library of Process Objects: Interlocks with First Out and Bypass (P_Intlk) Reference Manual, publication

36 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

SYSLIB-RM004.

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

One of these symbols appears to indicate the described interlock condition.

Graphic Symbol Description

One or more conditions not OK

Non-bypassed conditions OK

All conditions OK, bypass active

All conditions OK

Alarm indicators appear on the Operator tab when the corresponding alarm occurs.

Actuator Fault Alarm

Interlock Trip Alarm

I/O Fault Alarm

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 37

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

The following table shows the alarm status on the Operator tab.

Table 13 - Operator Tab Alarm Status

Graphic Symbol Alarm Status

In alarm (active alarm)

In alarm and acknowledged

Out of alarm but not acknowledged

Alarm suppressed (by Operator; alarm is logged but not displayed)

Alarm disabled (by Maintenance)

Alarm Shelved (by Operator)

38 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Maintenance Tab

Maintenance personnel use the information and controls on the Maintenance tab to make adjustments to device parameters, troubleshoot and temporarily work around device problems, and disable the device for routine maintenance.

The Maintenance tab has three pages.

Maintenance Tab Page 1

Page 1 of the Maintenance tab shows the following information:

• Current mode (Operator, Program, Override, Maintenance, or Hand)

• Requested Modes indicator - This display highlights all modes that have

been requested. The leftmost highlighted mode is the active mode.

• Whether the analog output is enabled or disabled

• Interlock Bypassed/Enabled Indicator

Mode Indicator

Requested Modes Indicator

Maintenance Mode Acquire and Release Command Buttons

Analog Output Enable and Disable Command Buttons

Interlock Check Enable and Bypass Buttons

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 39

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

The following table shows the functions on page 1 of the Maintenance tab.

Table 14 - Maintenance Tab Page 1 Description

Function Action Security Configuration Parameters

Click to release valve from Maintenance mode.

Equipment Maintenance (Code C)

None

In Override Mode, bypass interlocks that can be bypassed

Bumpless Program/ Operator Transition

Bumpless Transition from Override/Hand to Program/Operator

Click to place valve in Maintenance mode.

Click to Enable valve. None

Click to Disable valve. None

Click to enable checking of all interlocks and permissives.

Click to bypass checking of bypassable interlocks and permissives.

Check so that bypassable interlocks and permissives are bypassed in Override mode.

Check so that program settings track operator settings in Operator mode, and operator settings track program settings in Program mode for bumpless transfer.

Check so that program and operator settings of the CV track the output CV when the mode is Hand or Override.

Disable Alarms (Code H)

Equipment Maintenance (Code C)

None

Cfg_OvrdIntlk

Cfg_SetTrack

Cfg_SetTrackOvrdHand

See the

40 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Operations section for more information on modes.

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Maintenance Tab Page 2

Page 2 of the Maintenance tab shows the following information:

• Source of the data that is used to determine the Output CV along with the configuration and device states that affect the final output value

• Program mode CV Target

• Override mode CV Target

• Hand mode CV Target

• Current Target CV

• Program mode Rate of Change Limits

• Operator mode Rate of Change Limits

• Maximum allowed Rate of Change Limit entry values

• Output CV Current Value that is being used

Operator/Maintenance CV

Entry (in Engineering Units)

Hold Last Good Value

CV Target on I/O

Fault or Interlock

Maximum Increase/Decrease

Rate of Change Configuration

TIP

Maximum/Minimum CV Configuration

CV Out (Scaled)

A green path indicates normal operation while a yellow path indicates non-normal operation.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 41

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

The following table shows a function on page 2 of the Maintenance tab.

Table 15 - Maintenance Tab Page 2 Description

Function Action Security Configuration Parameters

Operator/Maintenance CV Entry (in engineering units)

Maximum/Minimum CV Configuration

CV Target When Interlocked or I/O Fault When Hold Not Enabled

Increase/Decrease Rate of Change Limits

Maximum Rate of Change Limits

Hold Last Good Value When checked, the CV holds at the

Type the CV in engineering units. This entry is available in Operator

mode and Maintenance mode. It is available in other modes if Bumpless Program/Operator Transition is not selected on Maintenance Tab Page 1.

Type the clamping limits for the Controlled Variable in engineering units.

Clamping limits are enforced in Operator and Program modes only.

Type the interlock target CV in engineering units.

This value is used for the CV when interlocked or on an I/O Fault, but only if Hold Last Good Value is not selected.

Type the CV Rate of Change Limit in engineering units per second. This value determines the rate at which the CV output changes upon a change in CV target. A value of zero disables rate of change limiting. The maximum allowed value for this entry is determined by the Maximum Rate of Change Limit (below).

This entry is available in Operator mode and Maintenance mode. It is available in other modes if Bumpless Program/Operator Transition is not selected on Maintenance Tab Page 1.

Type the maximum allowed value for the Rate of Change Limits in engineering units per second.

last good value when an Interlock trips or an I/O Fault occurs.

When cleared, the CV is set to the configured Interlock CV value when an Interlock trips or an I/O Fault occurs.

Normal Operation of Devices (Code A)

Configuration & Tuning Maintenance (Code D)

Normal Operation of Devices (Code A)

Configuration & Tuning Maintenance (Code D)

Engineering Configuration (Code E)

None

• Cfg_MinCV

• Cfg_MaxCV

Cfg_IntlkCV

None

• Cfg_MaxCVRoCInc

• Cfg_MaxCVRoCDec

Cfg_ShedHold

42 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Maintenance Tab Page 3

Page 3 of the Maintenance tab lets you define settings for failure checking and valve position.

The following table shows a function on page 3 of the Maintenance tab.

Table 16 - Maintenance Tab Page 3 Description

Function Action Security Configuration Parameters

Use Valve Closed limit switch for failure checking

Use Valve Open limit switch for failure checking

Position above which valve is assumed open if limit switches not used

Open and close pulse output overall period (seconds)

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 43

Check to enable the Valve Closed limit switch for failure checking.

Check to enable the Valve Open limit switch for failure checking.

Type a value to indicate the position assumed open if limit switches are not used.

Type a value to indicate the time (in seconds) for an open and close pulse.

Equipment Maintenance (Code C)

Configuration & Tuning Maintenance (Code D)

Cfg_UseClosedLS

Cfg_UseOpenLS

Cfg_MaxClosedPos

Cfg_CycleT

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Table 16 - Maintenance Tab Page 3 Description

Function Action Security Configuration Parameters

Additional time on first pulse after stop or direction change (seconds)

Open and close pulse output maximum on time (seconds)

Open and close pulse output minimum on time (seconds)

Time to bump valve open or closed (by Operator) when feedback is Bad (seconds)

Type a value to indicate the additional time (in seconds) on the first pulse after a stop or direction change.

Type a value to indicate the maximum pulse output time (in seconds) for opening and closing a value.

Type a value to indicate the minimum pulse output time (in seconds) for opening and closing a value.

Type a value to indicate the amount of time to bump the valve open or closed when feedback is bad.

Configuration and Tuning Maintenance (Code D)

Cfg_Deadtime

Cfg_MaxOnT

Cfg_MinOnT

Cfg_BumpT

44 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Engineering Tab

The Engineering tab provides access to device configuration parameters and ranges, options for device and I/O setup, displayed text, and faceplate-to-faceplate navigation settings, and for initial system commissioning or later system changes.

The Engineering tab has three pages.

Engineering Tab Page 1

Page 1 of the Engineering tab lets you configure the description, label, tag, and CV units for the device.

Mode Configuration Button

Maximum/Minimum

Raw Feedback

Maximum/Minimum

Scaled Output

Configure Device Description, Label, and Tag Text

Maximum/Minimum Scaled CV

CV Engineering Units Text

Maximum/Minimum Unscaled Output

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 45

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

The following table lists the functions on page 1 of the Engineering tab.

Table 17 - Engineering Tab Page 1 Description

Function Action Security Configuration Parameters

Click to navigate to the Mode Configuration display.

None See Mode Configuration display

page 46

Description Type the device description to show on

Label Type the label to show on the Graphic

Tag Type the tag name to show on the

Maximum/Minimum Raw Feedback

Maximum/Minimum Scaled Feedback

Units for Scaled Range Type an engineering unit for the

Maximum/Minimum Scaled Output

Maximum/Minimum Unscaled Output

the faceplate title bar.

Symbol.

faceplate title bar and in the tooltip. IMPORTANT: Pausing the mouse over

these fields displays a tool tip with the configured Logix tag/path.

Type a maximum and minimum range for the raw feedback signal.

Type a maximum and minimum range for the controlled variable in engineering units (for scaling).

controlled variable.

Type a maximum and minimum range for the controlled variable in engineering units for scaling).

Type maximum and minimum range (in raw units) to use for output unscaling to I/O.

Mode Configuration Display

Engineering Configuration (Code E)

Cfg_Desc

Cfg_Label

Cfg_Tag

Cfg_FdbkRawMax Cfg_FdbkRawMin

Cfg_CVEUMax Cfg_CVEUMin

Cfg_EU

Cfg_CVEUMax Cfg_CVEUMin

Cfg_CVRawMax Cfg_CVRawMin

This display lets you select the default mode for the object by selecting the appropriate mode.

IMPORTANT

If no mode is being requested, changing the default mode changes the mode of the instruction.

You must have FactoryTalk View security code E to select the default mode on this display.

46 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Engineering Tab Page 2

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

The following table shows the functions on page 2 of the Engineering tab.

Table 18 - Engineering Tab Page 2 Description

Function Action Security Configuration Parameters

Valve has Closed

Limit Switch

Valve has Open

Limit Switch

Fault when both limit switches are

On Off

Clear Program Commands on Receipt

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 47

Check if the valve provides a closed limit switch signal.

Check if the valve provides an open limit switch signal.

Click to enable a fault when both limit switches are On, or when both switches are Off.

Check to set this parameter to the following:

• ON to use Edge-triggered Program Commands (default).

• OFF to use Level-triggered Program Commands.

Engineering Configuration (Code E)

Cfg_HasClosedLS

Cfg_HasOpenLS

Cfg_LSFail

Cfg_PCmdClear

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Table 18 - Engineering Tab Page 2 Description

Function Action Security Configuration Parameters

Skip Rate of change Limiting in Interlock Trip, Maintenance, and Override modes

Enable navigation to interlock object

Rate at which valve moves when opening (% open per second)

Rate at which valve moves when closing % open per second)

Check to have the CV immediately go to its target value or configured Interlock CV value when an Interlock trips or the instruction is placed in Maintenance or Override mode.

Clear the checkbox to have the CV always use rate of change limiting (ramping) of the CV output.

Check if an interlock instruction is used with this output.

IMPORTANT: The name of the Interlock object in the controller must be this object's name with the suffix

‘_Intlk’. For example, if your

P_ValveC object has the name ’ValveC123’, then its Interlock object must be named ‘ValveC123_Intlk’.

Type a value to indicate the rate the value moves when opening.

Type a value to indicate the rate the value moves when closing.

Engineering Configuration (Code E)

Cfg_SkipRoCLim

Cfg_HasIntlkObj

Cfg_OpenRate

Cfg_CloseRate

See Rockwell Automation Library of Process Objects: Interlock with First Out and Bypass (P_Intlk) Reference Manual, publication

SYSLIB-RM004 for more

information.

48 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Engineering Tab Page 3

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

The following table shows the functions on page 3 of the Engineering tab.

Table 19 - Engineering Tab Page 3 Description

Function Action Security Configuration Parameters

Shed Action: Hold Last Good Value

Shed Action: Use set value

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 49

Click to have the output hold its current value when an Interlock trips or an I/O Fault occurs (if configured as shed trigger).

Click to have the output go to its configured Interlock CV value when an Interlock trips or an I/O Fault occurs (if configured as a shed trigger).

Type a value for the interlock CV

value to be used if shed is configured to go to a set value.

Engineering Configuration (Code E)

Cfg_ShedHold

Cfg_IntlkCV

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Table 19 - Engineering Tab Page 3 Description

Function Action Security Configuration Parameters

Shed on I/O Fault Check to have the CV perform the

Shed on Interlock Trip

Allow Navigation to CV Object

Object Tag name Type the name of the CV object to

configured Shed Action (hold or go to the Interlock CV value) when an I/O Fault occurs. When checked, the Shed Trigger is latched; that is, it is necessary to issue a Reset command to return to normal operation after the I/O Fault condition clears.

Clear the checkbox to have an I/O Fault not trigger the configured Shed Action. The output continues to operate normally.

The device always performs the shed action on an Interlock Trip. This item cannot be unchecked. It is displayed as a reminder of the Interlock Trip function.

Check to permit navigation to the faceplate of the object which is the source of this object’s CV.

navigate to when the CV display on the Home tab is clicked.

Engineering Configuration (Code E)

Cfg_ShedOnIOFault

None

Cfg_HasCVNav

Cfg_CVNavTag

50 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Diagnostics Tab

The Diagnostic tab provides indications helpful in diagnosing or preventing device problems, which can include specific reasons a device is 'Not Ready', device warnings and faults, warning and fault history, and predictive/preventive maintenance data.

The previous figure shows that the valve is not ready because the Device Logic is disabled or there is no mode.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 51

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Alarm Names

Alarms Tab

The Alarms tab displays each configured alarm for the P_ValveC instruction. The icon on the tab for the alarms page changes color based on the current active alarms. A blinking alarm icon indicates that one or more alarms must be acknowledged or the device must be reset.

Alarm Acknowledge Command Button

Alarm Severity Indicators

Reset and Acknowledge All Alarms Command Button

Click an alarm name to open the P_Alarm faceplate for that alarm. From the P_Alarm faceplate, you can configure and perform additional operations on

the alarm.

If an alarm is active, the panel behind the alarm changes color to match the severity of the alarm. The color of the bell icon at the top of the faceplate shows the severity of the highest active alarm, and the icon blinks if any alarm is unacknowledged or requires reset.

52 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Analog/Pulsed Control Valve (P_ValveC) Chapter 4

Table 20 - Alarm Severity Colors

Color Definition

Magenta Urgent

Red High

Yellow Medium

Blue Low

White (bell icon) Alarm has cleared but is unacknowledged

Background (Light Gray) No alarm

The following table shows the functions on the Alarms tab.

Table 21 - Alarms Tab Description

Function Action Security

Alarm Name Click an alarm name to open the associated

P_Alarm faceplate.

Click to acknowledge the alarm. Acknowledge Alarms

None

(Code F)

Click to reset and acknowledge all alarms.

When the Reset and Acknowledge All Alarms button is enabled, the panel behind the alarm blinks, indicating the alarm requires acknowledgement or reset. The Alarm Acknowledge button is enabled if the alarm requires acknowledgment. Click the button with the check mark to acknowledge the alarm.

See Rockwell Automation Library of Process Objects: Common Alarm Block (P_Alarm) Reference Manual, publication

SYSLIB-RM002, for

more information.

Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017 53

Chapter 4 Analog/Pulsed Control Valve (P_ValveC)

Analog/Pulsed Control Valve Faceplate Help

The Faceplate Help is divided into two pages.

Faceplate Help Page 1

Faceplate Help Page 2

54 Rockwell Automation Publication SYSLIB-RM034E-EN-P - February 2017

Rockwell Automation Support

Rockwell Automation provides technical information on the Web to assist you in using its products.

http://www.rockwellautomation.com/support you can find technical and application notes, sample code, and links to

At software service packs. You can also visit our Support Center at updates, support chats and forums, technical information, FAQs, and to sign up for product notification updates.

In addition, we offer multiple support programs for installation, configuration, and troubleshooting. For more information, contact your local distributor or Rockwell Automation representative, or visit

http://www.rockwellautomation.com/services/online-phone.

Installation Assistance

If you experience a problem within the first 24 hours of installation, review the information that is contained in this manual. You can contact Customer Support for initial help in getting your product up and running.

United States or Canada 1.440.646.3434

Outside United States or Canada Use the

Worldwide Locator at http://www.rockwellautomation.com/rockwellautomation/support/overview.page, or contact your local

Rockwell Automation representative.

New Product Satisfaction Return

https://rockwellautomation.custhelp.com/ for software

Rockwell Automation tests all of its products to help ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.

United States Contact your distributor. You must provide a Customer Support case number (call the phone number above to obtain one) to your

Outside United States Please contact your local Rockwell Automation representative for the return procedure.

distributor to complete the return process.

Documentation Feedback

Your comments will help us serve your documentation needs better. If you have any suggestions on how to improve this document, complete this form, publication

Rockwell Automation maintains current product environmental information on its website at

http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page.

Rockwell Otomasyon Ticaret A.Ş., Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: +90 (216) 5698400

RA-DU002, available at http://www.rockwellautomation.com/literature/.

Publication SYSLIB-RM034E-EN-P - February 2017

Rockwell Automation ValveC Reference Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Rockwell Automation Library of Process Objects: Analog/Pulsed Control Valve (P_ValveC)

Important User Information

Table of Contents

Preface

Software Compatibility and Content Revision

Additional Resources

Analog/Pulsed Control Valve (P_ValveC)

Guidelines

Functional Description

Required Files

Controller File

Visualization Files

Controller Code

Analog/Pulsed Control Valve Input Structure

Analog/Pulsed Control Valve Output Structure

Analog/Pulsed Control Valve Local Configuration Tags

Operations

Modes

Alarms

Simulation

Execution

Programming Examples

Example 1: Manual Loading Station

Example 2: Ratcheting Control Valve

Display Elements

Status/Quality Indicators

Mode Indicators

Alarm Indicators

Maintenance Bypass Indicator

Using Display Elements

Quick Display

Faceplate

Operator Tab

Maintenance Tab

Engineering Tab

Diagnostics Tab

Alarms Tab

Analog/Pulsed Control Valve Faceplate Help
